ShangHai SPV Special Vehicle Co., Ltd.

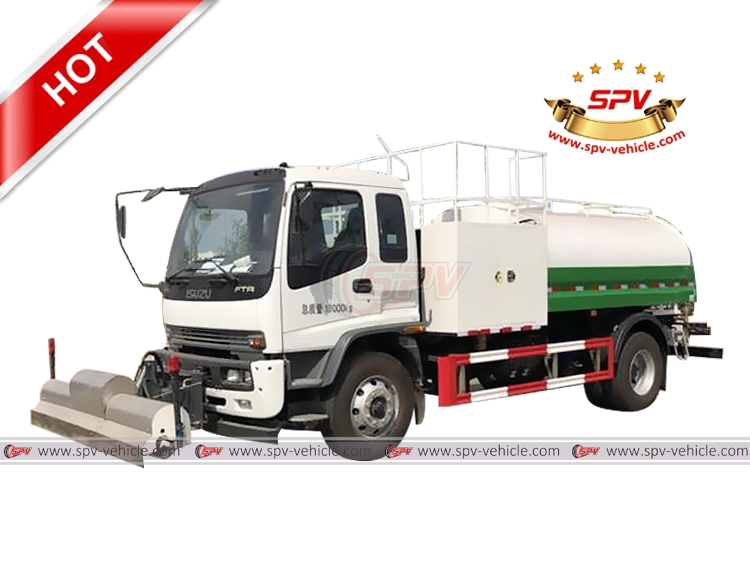

Water jetting truck (also called road cleaning truck, street washing vehicle, high pressure washing truck, jet cleaning truck, street cleaning vehicle, road cleaning vehicle, high pressure jetting vehicle) is designed for high pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.
The basic accessories for a road jetting truck are: front stainless steel high pressure washing beam, rear sprinkling nuzzles bar, sprayer, etc.
---- World famous ISUZU chassis - one of the best and oldest chassis brand in China.
---- ISUZU engine (American brand), super powerful; reliable performance.
---- Nice shape, compact structure
---- Italy imported high pressure pump, super powerful, efficient jetting
---- Massive, durable, perfect performance
---- Prolonged service life
| Water Jetting Truck ISUZU (8,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9600 * 2550 * 3200 mm | |
| GVW / Kerb Weight | 16,000 kg / 10,900 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 sleeper |
| Air Conditioner | Equippped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 205 Ps (150 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 10.00R20, Radial tyres | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 8,000 Litres (About 2,100 gallons) |
| High Pressure Pump | Imported Germany high pressure plunge pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 40 L/min @ 10MPa | |
| Cleaning Speed | 5-10 km/h | |
| Road Flushing Width | 3.5 m | |
| Deflection Angle | 30°(left and right) | |
| Auxiliary Engine |
CUMMINS engine (American brand) 170 Hp / 125 KW |
|
| Sprinkling | Another water pump equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M. | |
| All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual…… | ||
| Optional |
** Stainless steel water tank. ** Elevating Platform. ** High cannon. |
|
