ShangHai SPV Special Vehicle Co., Ltd.

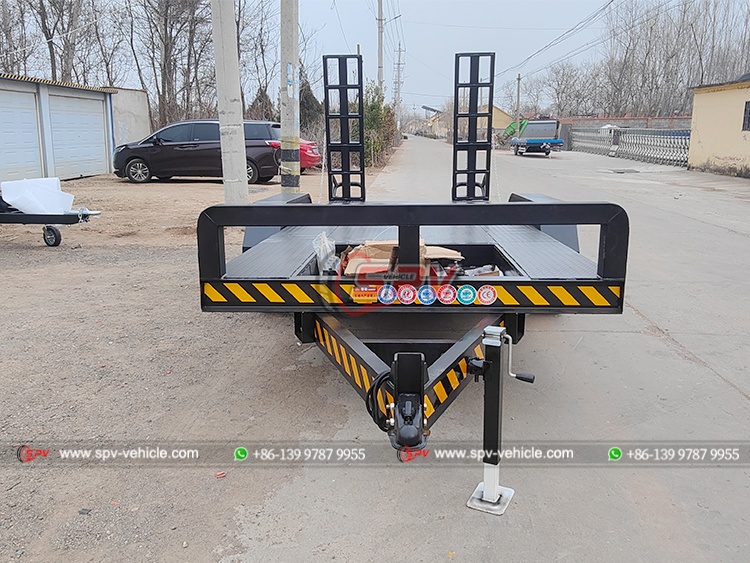

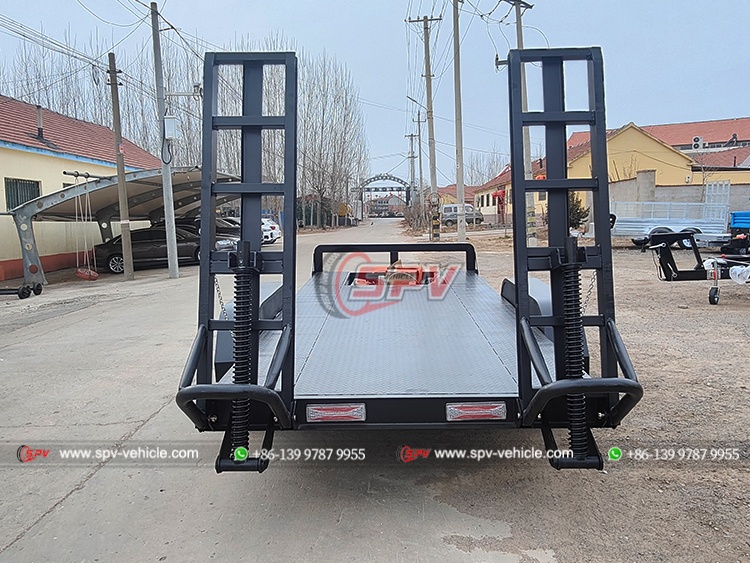

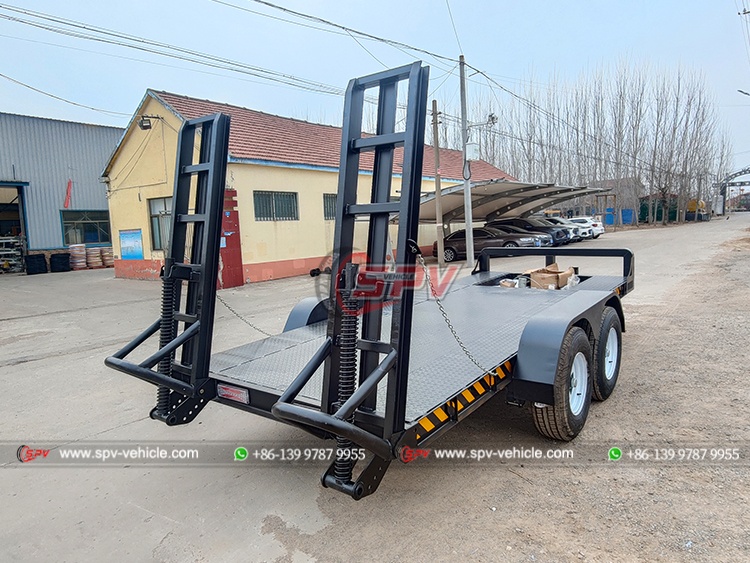

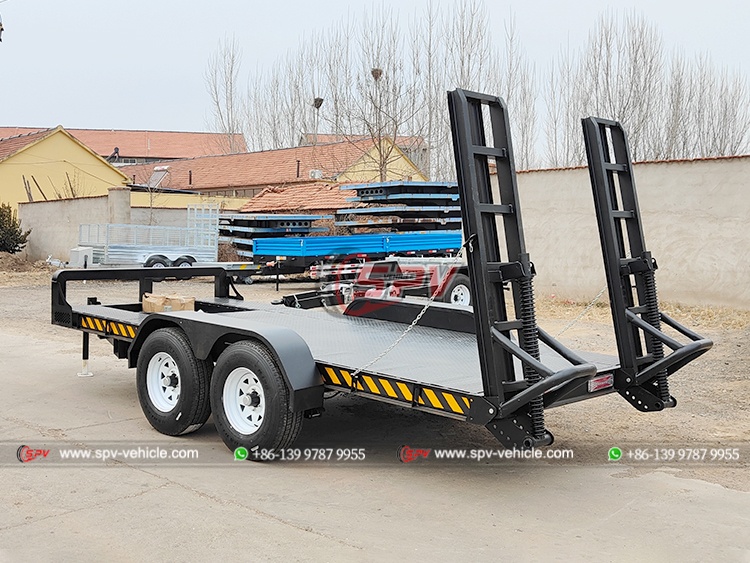

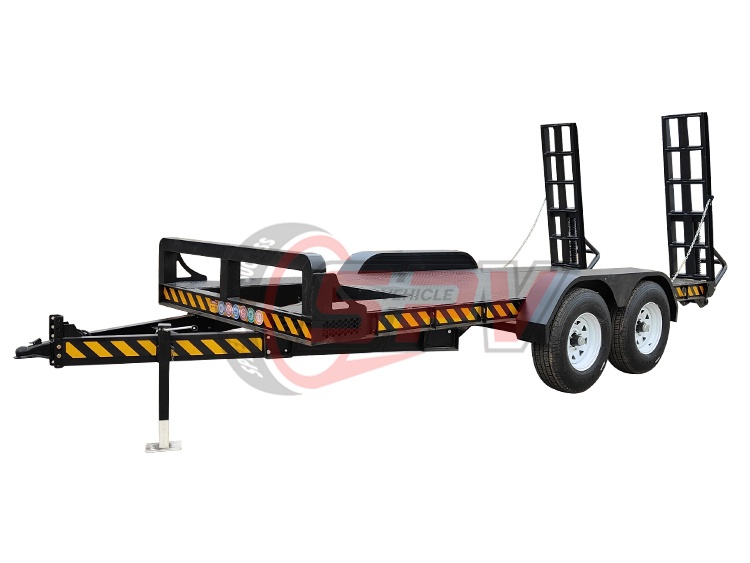

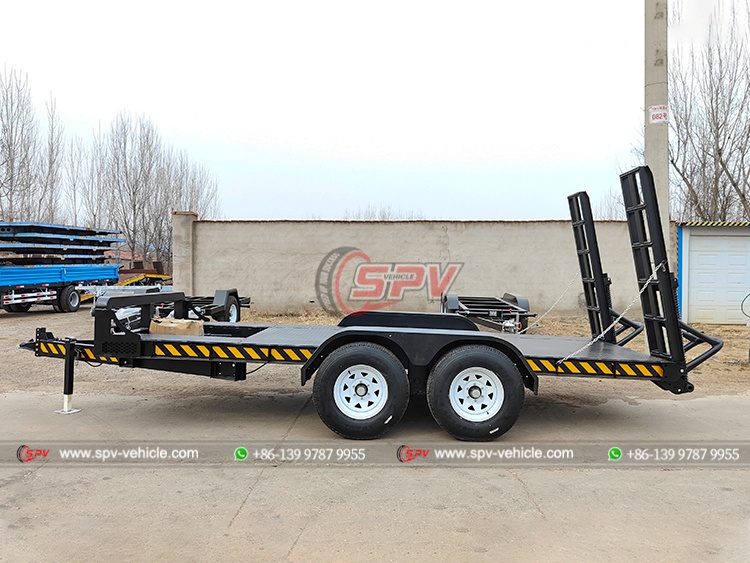

Truck carrying trailer (also called truck trailer, cargo trailer, vehcile trailer, cargo hauling trailer, truck towing trailer, truck transport trailer, cargo carrying trailer, flat bed trailer, platform trailer truck semi-trailer) A truck trailer is a non-powered vehicle designed to be towed by a truck, primarily for transporting freight. It's a crucial component of many transportation systems, enabling the movement of goods over long distances.
| Truck Carrying Trailer | ||
| General | Vehicle Brand | SPV |
| Overall Dimension | 6200 * 2500 * 2300 mm | |
| GVW / Kerb Weight | 83,00 kg / 2,300 kg | |
| Superstructure | Payload | 6,000kg |
| Outrigger | 1 Towing outrigger | |
| Ladder | L≈1500mm power-assisted return spring type | |
| Connection Type | Ring link inner hole 45mm outer ring 110mm | |
| Towing Height From Ground | 0.6m | |
| Front pole height | 350mm | |
| Brake System | Electric brake | |
| Base plate thickness | 4mm tread plates are laid on both sides of the tracks, and 2mm tread plates are laid in the middle. | |
| Axles | 130 with non-braking | |
| Tyre | ST235/85R16 | |
| No. of Tyres | 4 tyres with 1 spare tyre | |
| Paint | Automotive metallic paint | |
| All necessary accessories: took kit, English manual… | ||
| Optional |
** Platform could be flat steel plate or checked steel plate. ** Tube or tubeless tyres, off-road single tyre for bad roads. |
|
