ShangHai SPV Special Vehicle Co., Ltd.
Refueling tank truck (also called oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
| Fuel Tanker Truck ISUZU (4,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5840 * 1980 * 2200 mm | |
| GVW / Kerb Weight | 7,300 kg / 2,690 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4JB | |
| Power | 98 Ps (72 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 98 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 4,000 Litres (About 1000 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
To Djibouti in 2022
To Ghana in 2021
To Djibouti in 2021
3 units ISUZU Fuel Trucks Shipping to Djibouti - 1
3 units ISUZU Fuel Trucks Shipping to Djibouti - 2

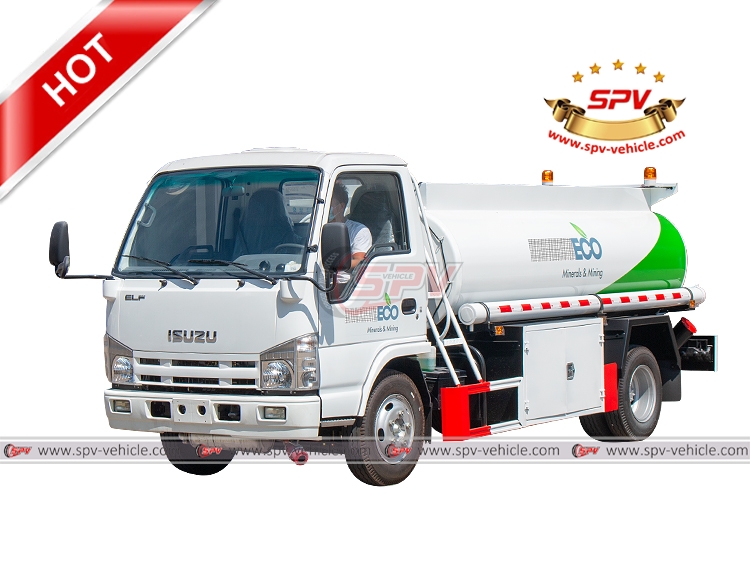

Front View of Refueling Tank Truck ISUZU(4,000 Litres)
Left Front View of Refueling Tank Truck ISUZU(4,000 Litres)
Left Side View of Refueling Tank Truck ISUZU(4,000 Litres)
Left Back View of Refueling Tank Truck ISUZU(4,000 Litres)
Right Front View of Refueling Tank Truck ISUZU(4,000 Litres)
Right Side View of Refueling Tank Truck ISUZU(4,000 Litres)
Right Back View of Refueling Tank Truck ISUZU(4,000 Litres)
Back View of Refueling Tank Truck ISUZU(4,000 Litres)
Refueling Tank Truck ISUZU(4,000 Litres) - Top manhole with level mater probe
Refueling Tank Truck ISUZU(4,000 Litres) - Discharge box with level mater display
Refueling Tank Truck ISUZU(4,000 Litres) - Loading into 20" container
