ShangHai SPV Special Vehicle Co., Ltd.

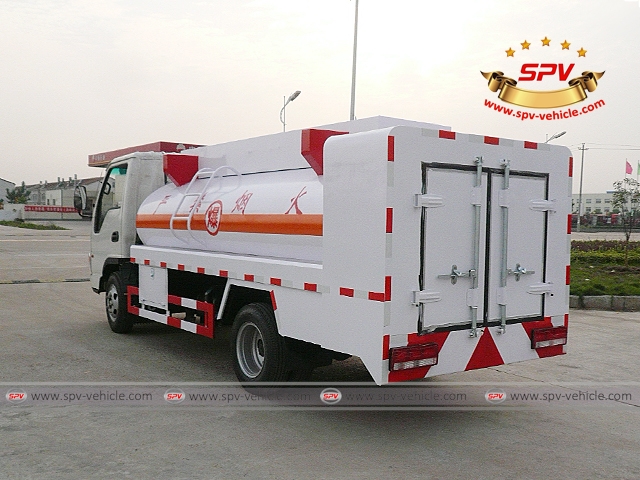

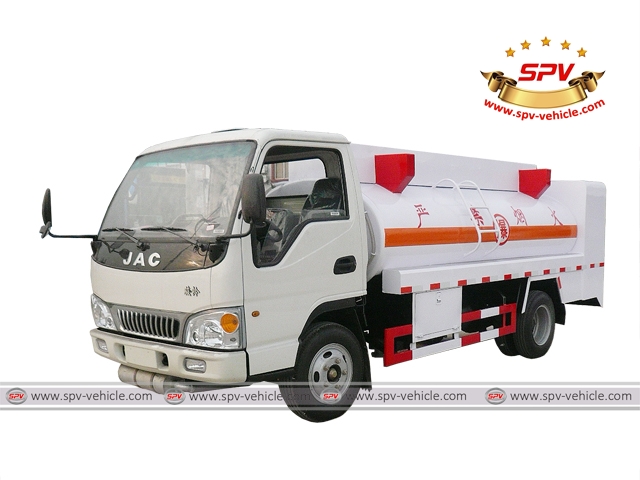

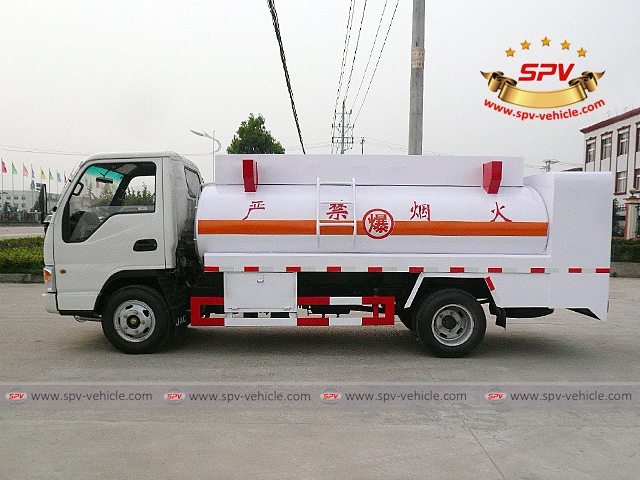

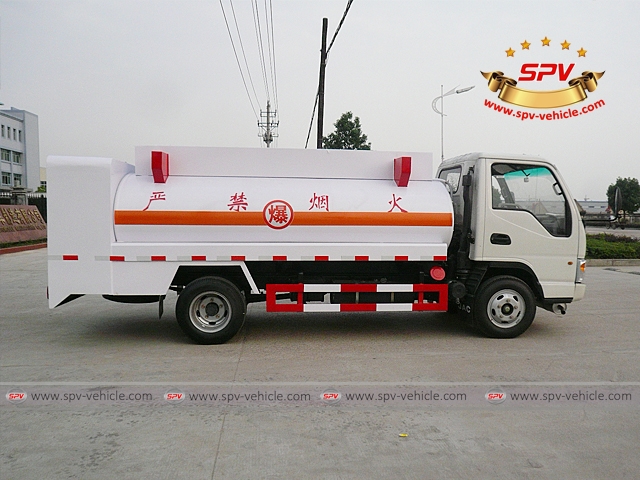

Petroleum Tanker (also called oil dispensing tanker, fuel truck tanker, fuel refueling truck, oil storage tank, oil tanker truck, diesel bowser, oil refueler truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
---- JAC chassis, perfect performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
| Petroleum Tanker JAC (6,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | JAC | |
| Overall Dimension | 5990 * 1900*2550 mm | |
| GVW / Kerb Weight | 7,495 kg / 3,300 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Chaoyang engine | |
| Power | 98 Ps (72 KW) | |
| Displacement | 3707 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3308 mm / 2 | |
| Tyre Specification | 6.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 6,000 Litres (About 1,600 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |

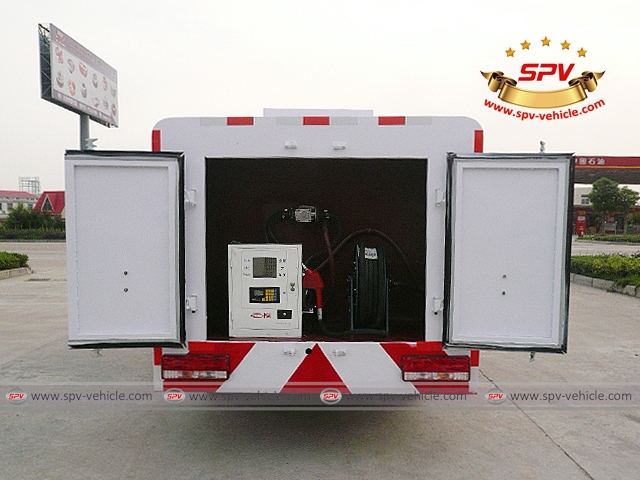

| All standard accessories: manhole, ladder, inlet, discharge…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
