Mini Road Sweeper Truck Forland
2.5 CBM Dustbin and 0.5 CBM Water Tank
Mini Road Sweeper Truck Forland
Function:

Mini road sweeper truck (also called street cleaing truck, truck mounted sweeper, road cleaning truck, street sweeping truck, street cleaning truck) is used for all cleaning, brushing and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city/ municipal roads and areas.

It is suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

It is composed of water tank, dustbin, sprayers, sweeping brooms, auxiliary engine, air blower, etc.

It is widely used in the municipal sanitation field because of convenient operation and high efficiency.

Features:

---- Forland chassis, perfect performance.
---- Quanchai diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Imported Italian high pressure water pump, highly powerful for cleaning.
---- PLC operation and control system.
---- Massive, durable, long service life.
---- 2.5 CBM Dustbin and 0.5 CBM Water Tank

Specification:

Mini Road Sweeper Truck Forland
General Vehicle Brand SPV
Chassis Brand Forland(Foton)
Overall Dimension 5300 * 1700 * 2100 mm
GVW / Kerb Weight 3,620 kg / 2,500 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Quanchai Diesel Engine
Power 68 Ps (50 KW)
Displacement 1809 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission 5-speed front, 1 reverse
Wheelbase/No. of axle 2300 mm / 2
Tyre Specification 6.00-13
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Tank Stainless Steel
Water Tank Capacity 500 Litres (About 130 gallons)
Dustbin Material Stainless Steel
Dustbin Capacity 1.5 CBM
Sweeping Capacity 35,000 - 50,000 m³/h
Sweeping Speed 3-25 km/h
Max Sweeping Width 2500 mm
Brooms 2 sets at each side
Auxiliary Engine JX493 (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

Mini Road Sweeper Truck Forland-LS

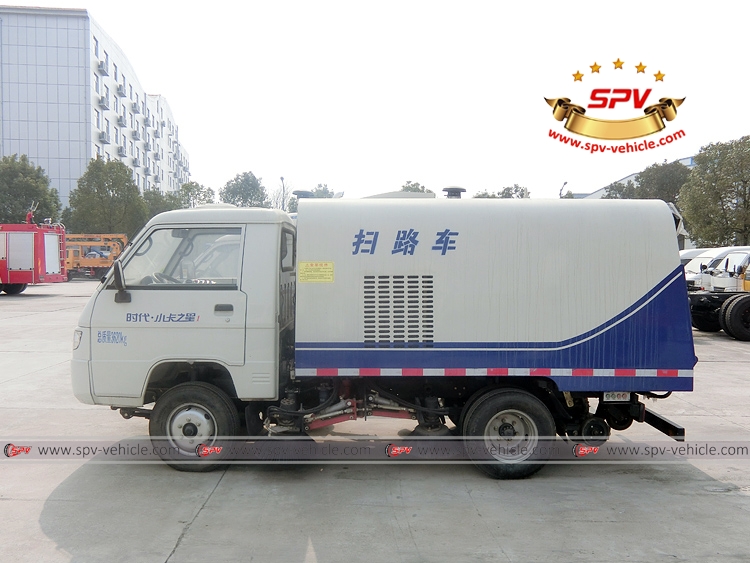

Photo 1: Left side view of Mini Road Sweeper Truck Forland (2.5 CBM Dustbin and 0.5 CBM Water Tank)

Mini Road Sweeper Truck Forland-LB

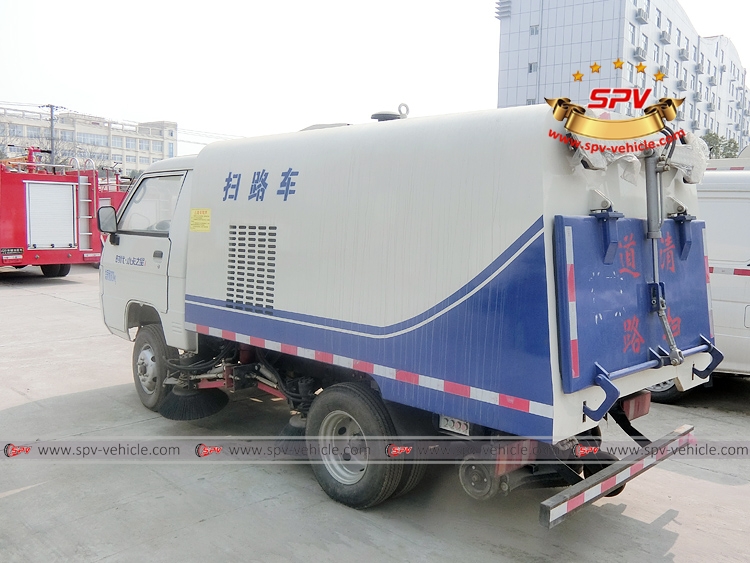

Photo 2: Left back view of Mini Road Sweeper Truck Forland (2.5 CBM Dustbin and 0.5 CBM Water Tank)

Mini Road Sweeper Truck Forland-RF

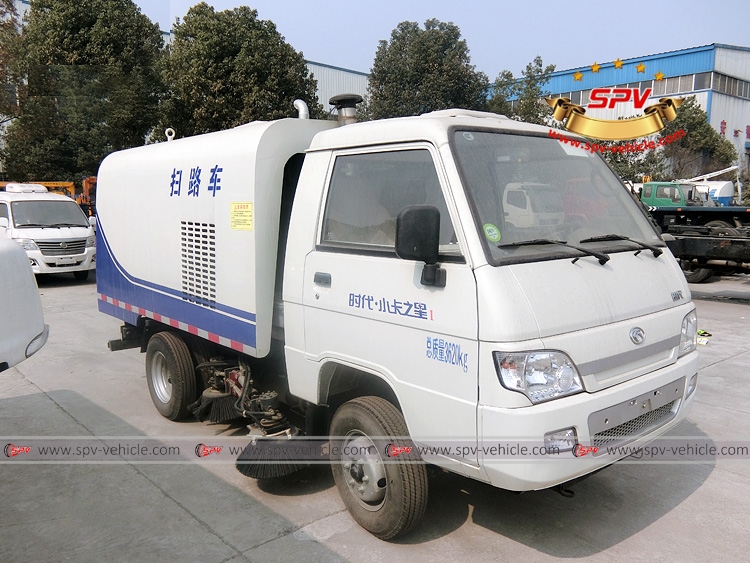

Photo 3: Right front view of Mini Road Sweeper Truck Forland (2.5 CBM Dustbin and 0.5 CBM Water Tank)

Mini Road Sweeper Truck Forland-RB

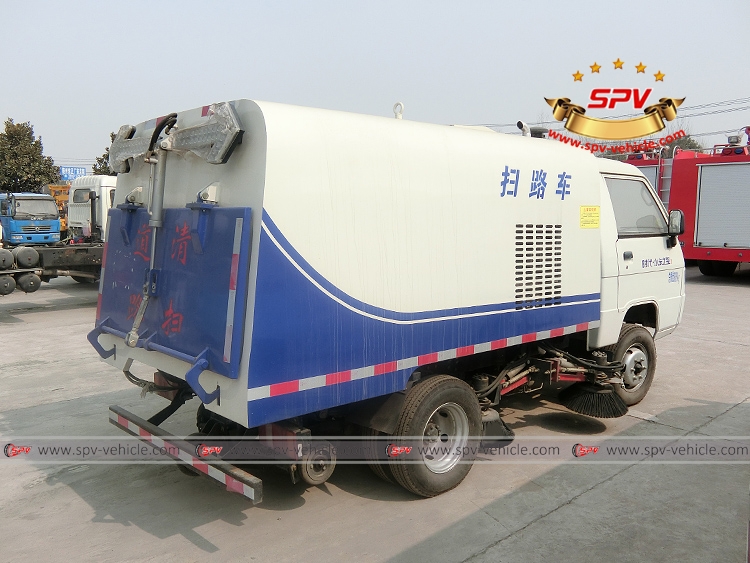

Photo 4: Right back view of Mini Road Sweeper Truck Forland (2.5 CBM Dustbin and 0.5 CBM Water Tank)
