4 CBM Hook Loader Truck, Roll-off Garbage Truck, Hook Lifter Truck, Hook Loader Container Truck from China

Hook loader truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck, etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.

SPV hook loaders loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.

Features:

---- Forland chassis, perfect performance.

---- Quanchai diesel engine(Chinese famous brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Advanced technical, high quality material, steady performance and simple operation;

---- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
---- Main hydraulic components are from well-known company all over the world;
---- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve and locking structure of container by hydraulic;
---- Rear support device is available.

Specification:

Hook Loader Truck Forland (4 CBM)
General	Vehicle Brand	SPV
	Chassis Brand	Forland
	Overall Dimension	4600 * 1800 * 2100 mm
	GVW / Kerb Weight	4,200 kg / 2,800 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	Quanchai Diesel Engine
	Power	68 HP (60 KW)
	Displacement	2270 ml
	Emission Standard	Euro II, III, IV
Chassis	Drive Type	4X2, left-hand or right-hand drive
	Transmission	5-speed forward, 1 reverse
	Wheelbase/No. of axle	2600 mm / 2
	Tyre Specification	6.00-14
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Loading Capacity	4 CBM
	Self-discharging Incline Angle	50°
	Lifting Time	≤60S
	Unloading Time	≤60S
	The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system ……..
	All other standard accessories: Tool kit, English manual……

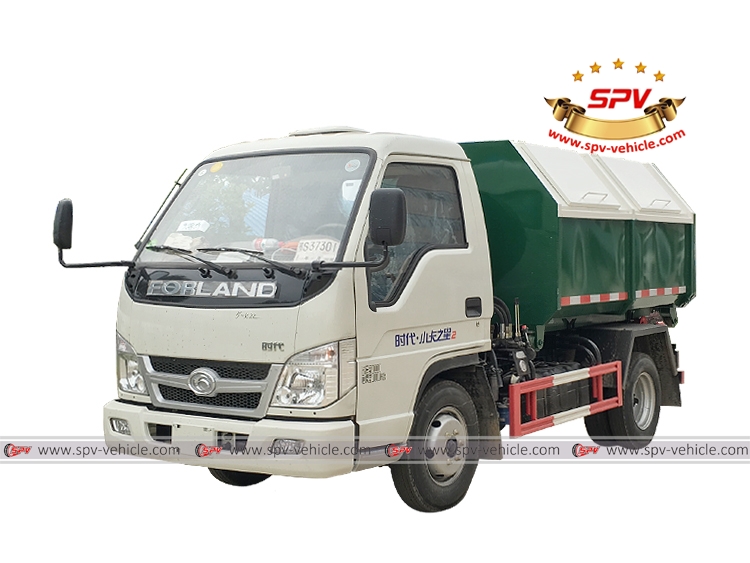

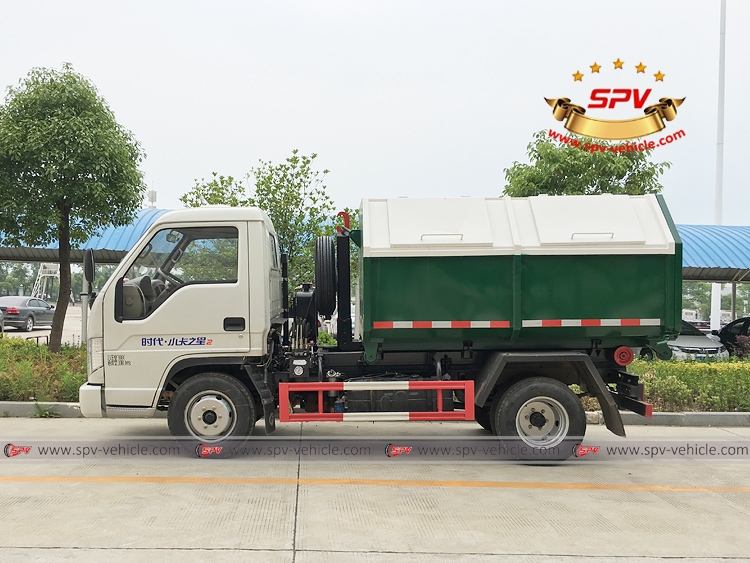

Photo 1: Left side view of Forland Hook Loader Truck (4 CBM)

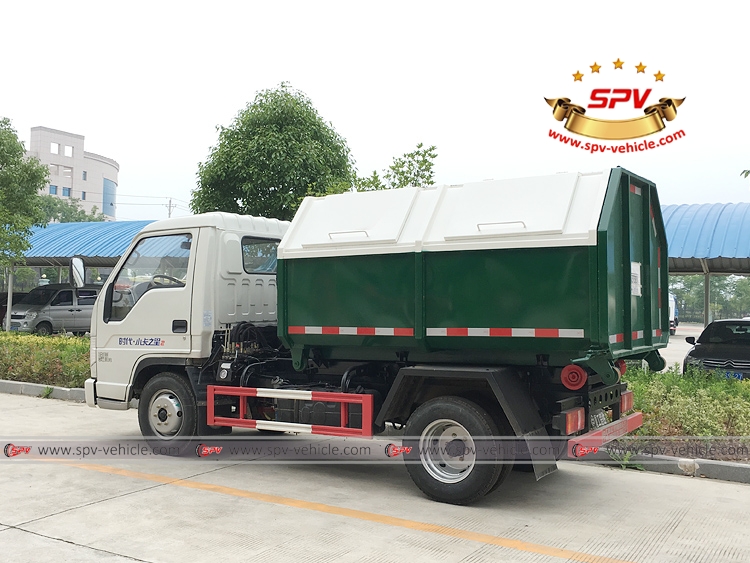

Photo 2: Left back view of 2 Tons Forland Hook Loader Truck (4 CBM)

Aother Style with Different Garbage Container:

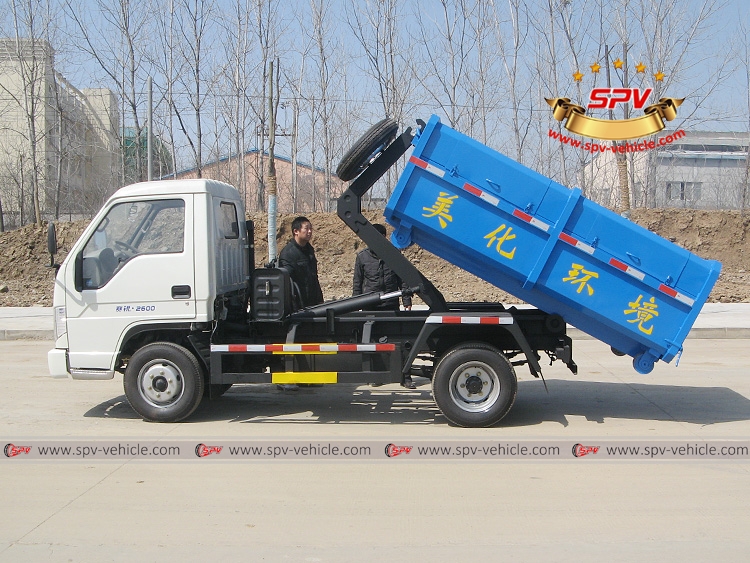

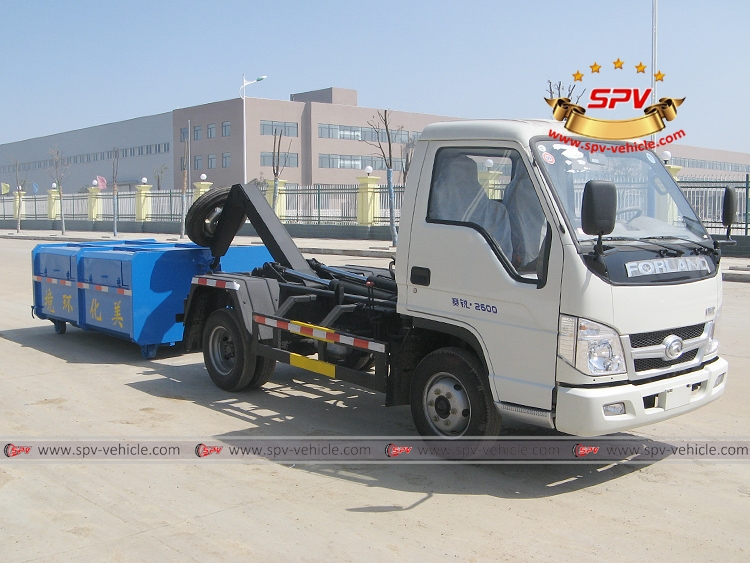

Photo 3: Hook Loader Truck Working Photo - Rolling on/ off Garbage Container (4 CBM)

Photo 3: Hook Loader Truck Working Photo - Rolling on/ off Garbage Container (4 CBM)

Similar Key Words: roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck
