6 CBM Garbage Collection Truck, Hook Lifter Truck, Hook Loader Container Truck, Garbage Container Transport Truck from China

Garbage collection truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck, etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.

SPV hook loaders loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.

Features:

---- Dongfeng chassis, perfect performance.

---- Cummins engine(American brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Advanced technical, high quality material, steady performance and simple operation;

---- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
---- Main hydraulic components are from well-known company all over the world;
---- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve and locking structure of container by hydraulic;
---- Rear support device is available.

Specification:

Garbage Collection Truck Dongfeng (6 CBM)
General	Vehicle Brand	SPV
	Chassis Brand	Dongfeng
	Overall Dimension	5800 * 2300 * 2400 mm
	GVW / Kerb Weight	9,400 kg / 4,600 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	Cummins engine (American brand)
	Power	130 HP (96 KW)
	Displacement	3900 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, left-hand or right-hand drive
	Transmission	5-speed forward, 1 reverse
	Wheelbase/No. of axle	3800 mm / 2
	Tyre Specification	8.25-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Loading Capacity	6 CBM
	Self-discharging Incline Angle	50°
	Lifting Time	≤60S
	Unloading Time	≤60S
	The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system ……..
	All other standard accessories: Tool kit, English manual……

6 CBM Garbage Collection Truck Dongfeng-LS

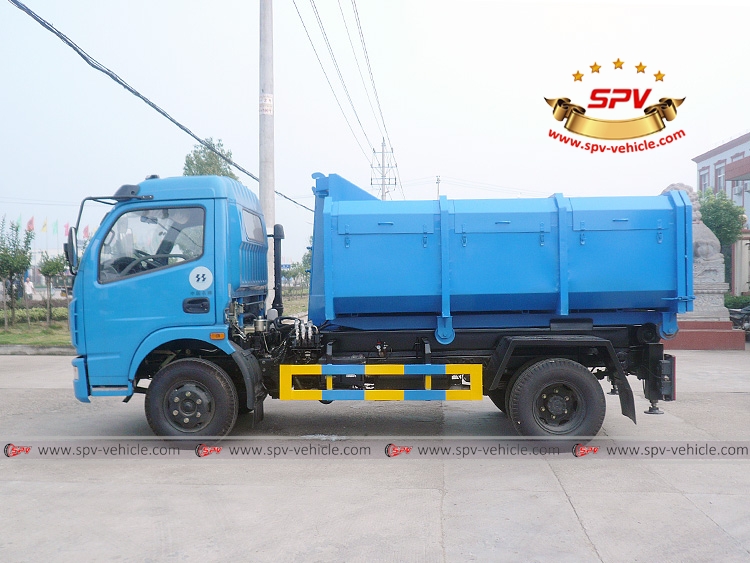

Photo 1: Left side view of Dongfeng Garbage Collection Truck (6 CBM)

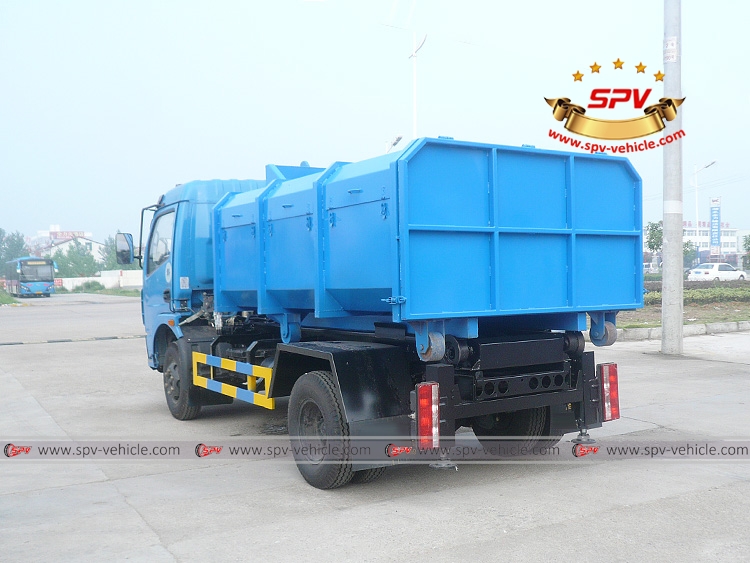

Photo 2: Left back view of Dongfeng Garbage Collection Truck (6 CBM)

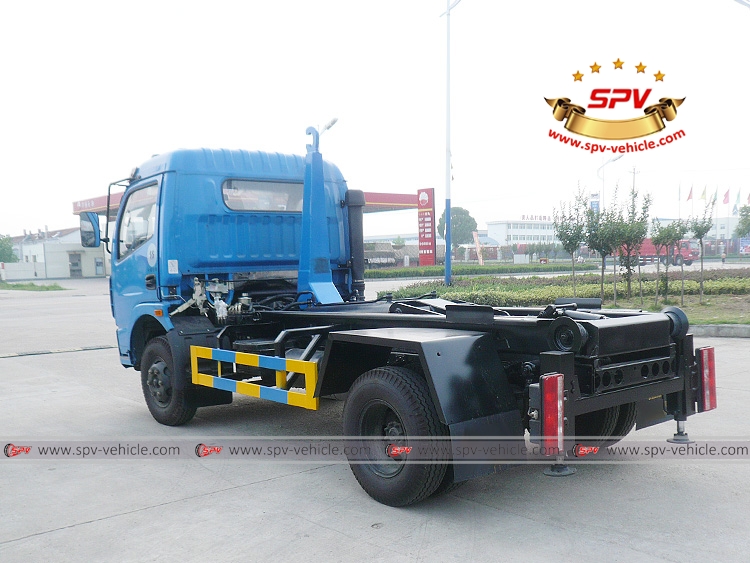

Photo 3: Dongfeng Garbage Collection Truck, without conatiner (6 CBM)

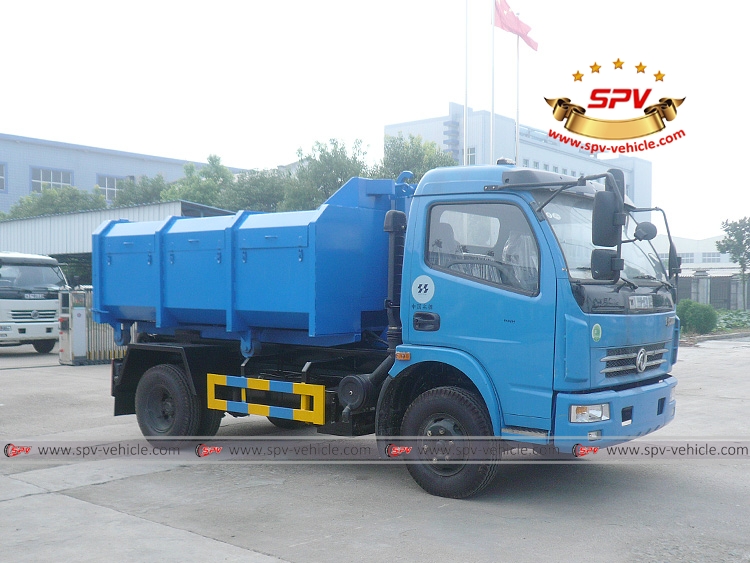

Photo 4: Right front view of Dongfeng Garbage Collection Truck (6 CBM)

6 CBM Garbage Collection Truck Dongfeng-RB

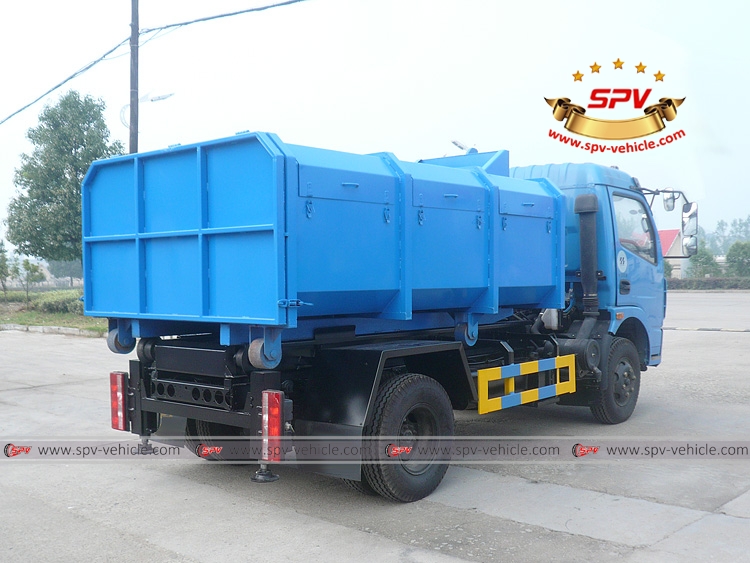

Photo 5: Right back view of Dongfeng Garbage Collection Truck (6 CBM)

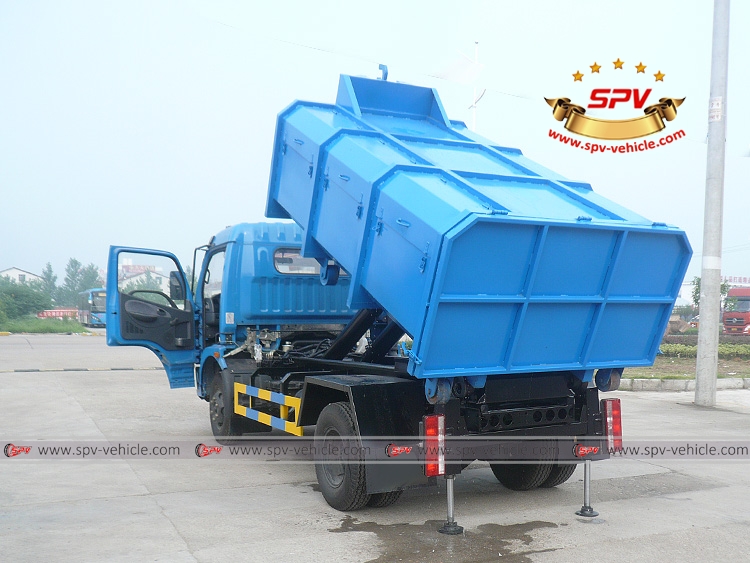

Photo 6: Operation progess of Dongfeng Garbage Collection Truck - LB

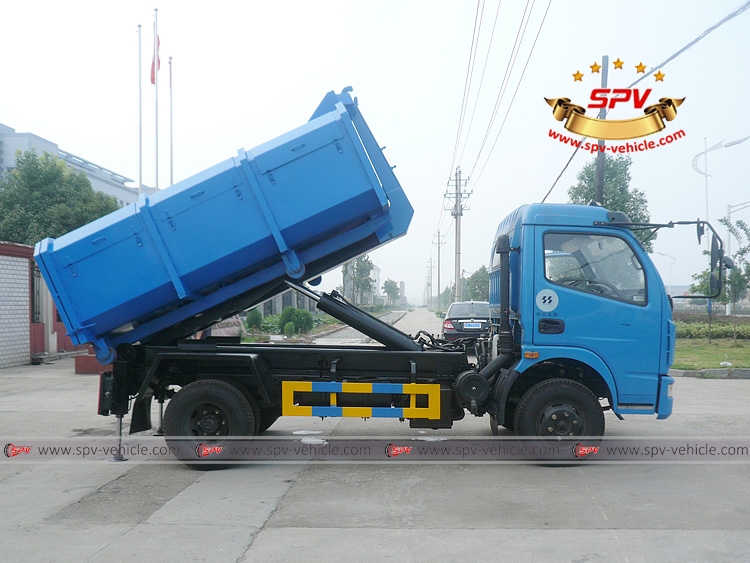

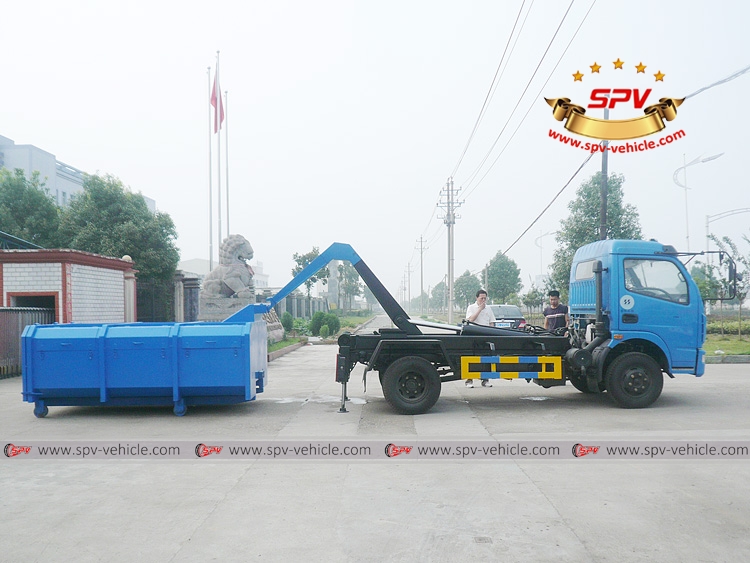

Photo 7: Operation progess of Dongfeng Garbage Collection Truck - RS-1

Photo 8: Operation progess of Dongfeng Garbage Collection Truck - RS-2
