Tipper (also called dumptruck, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.
---- JAC chassis ensures perfect driving performance.
---- JAC engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Massive, durable, perfect performance
---- Prolonged service life

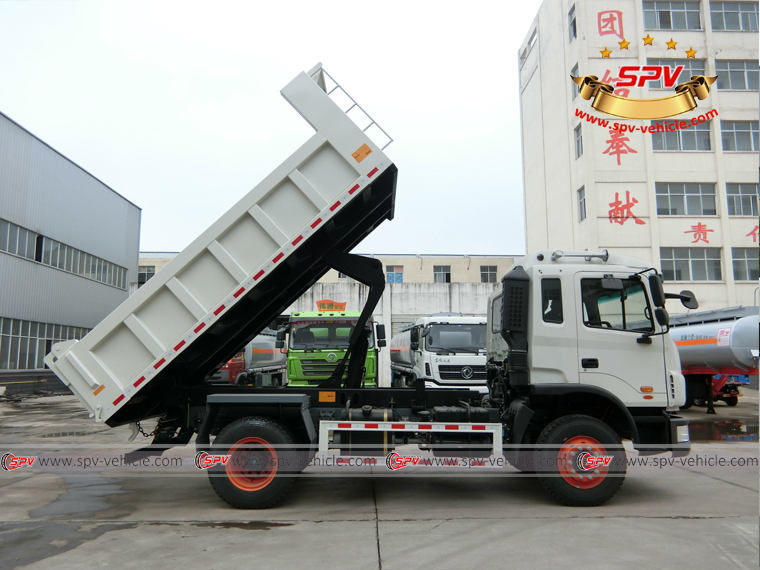

Dump Tipper Truck JAC (Volume: 8 CBM) | ||
General | Vehicle Brand | SPV |
Chassis Brand | JAC | |
Overall Dimension | 7150X2500X3040 mm | |
GVW / Kerb Weight | 16,000 kg / 9,450kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | Yuchai engine | |
Power | 180 Hp (132KW) | |
Displacement | 6494 ml | |
Emission Standard | Euro 2 | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | 8-speed front, 2 reverse | |
Wheelbase/No. of axle | 3800 mm / 2 | |
Tyre Specification | 10.R20 ,Radial Tyre | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90km/h | |
Paint | Metallic paint | |
Superstructure | Box Volume | 8 cbm |
Box Dimension | 4500X2300X800 mm | |
All other standard accessories: Tool kit, English manual | ||
Optional |
Box thickness could be nominated. Box height could be nominated. Tip way: back or side. |
