ShangHai SPV Special Vehicle Co., Ltd.
Telescopic boom lift truck (also called telescopic boom trucks, telescopic boom lifts, lifting platform truck, truck manlift, telescopic aerial lift, telescopic aerial truck, telescopic working platform, articulated telescopic aerial truck, articulated boom lift, articulated basket platform, cheery picker bucket truck etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, fruit picker lift in farm, cleaning/setting signboard and other high aerial works.
SPV telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m, 26-28 mInsulated cage is optional.
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

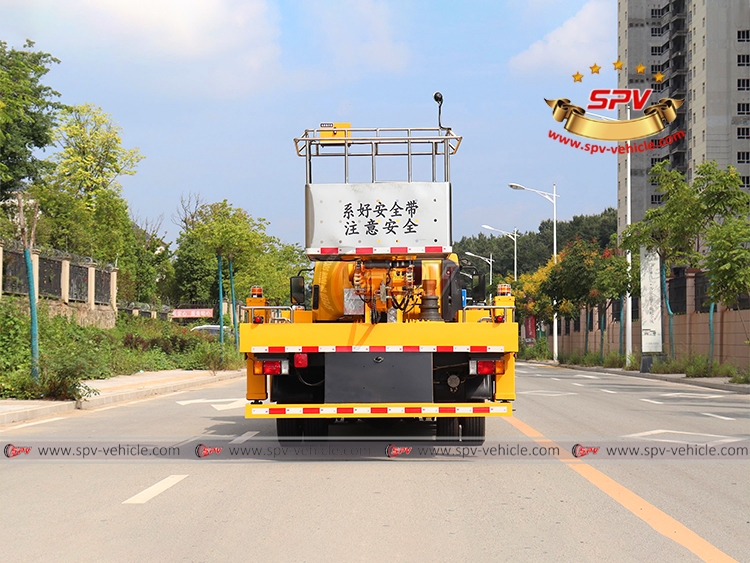

| Telescopic Boom Lift Truck ISUZU (28 M) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7550 x 2300 x 3350 mm | |
| GVW / Kerb Weight | 10,000 kg / 8,400 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1-TC51 | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-forward gears & 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 235/78R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Automative metallic paint | |
| Superstructure | Cage Rated Capacity | 400 kg |
| Working Height | 28 m | |
| Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |
| Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. | |
| Control | Control both on the ground and remote control in cage | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
| Optional | Insulated cage; Wireless remote control system | |
