20M Aerial Platform Truck, Beam Lifter Truck, Articulated Bucket Lift from China

Aerial platform truck (also called aerial work platform truck, articulated telescopic bucket lift, truck mounted platform, high platform truck, man lift vehicle, mobile hydraulic aerial cage, skylift, overhead working truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Features:

---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.

Specification:

Aerial Platform Truck Dongfeng ( 20 M )
General	Vehicle Brand	SPV
	Chassis Brand	Dongfeng
	Overall Dimension	9800 * 2500 * 3800 mm
	GVW / Kerb Weight	16,000 kg / 10,825 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Cummins engine
	Power	190 Ps (125KW)
	Displacement	5900 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, left or right hand drive
	Transmission	6-speed front, 1 reverse
	Wheelbase/No. of axle	4700 mm / 2
	Tyre Specification	10.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	85 km/h
	Paint	Metallic paint
Superstructure	Working Cage	200 kg capacity, anti-slip floor
	Working Height	≤20 M
	Slewing	360° continuous rotation with base turntable
	Control	Control both on the ground and in the cage
	Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
	Emergency stop switches at base and operator’s cage.
Optional	** Hoist hook with cables can be equipped for the function of a crane.

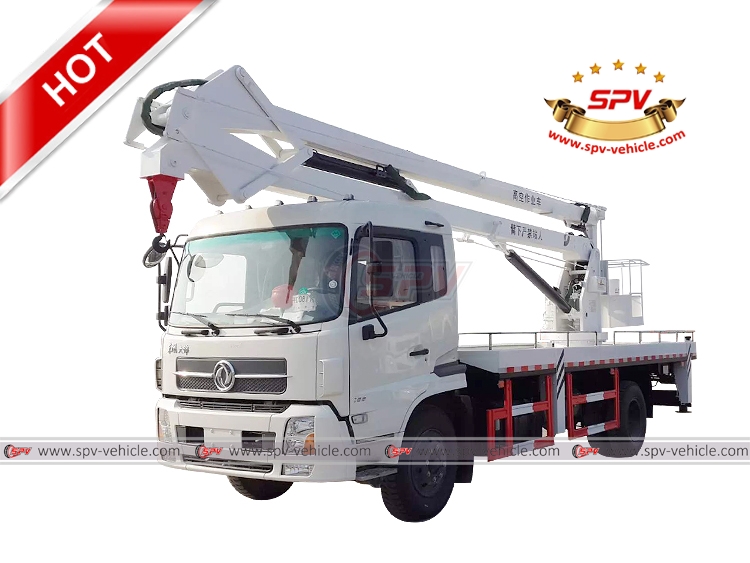

Right Side View of Aerial Platform Truck Dongfeng(20 m)

20m Aerial Platform Truck Dongfeng - RB

Right Back View of Aerial Platform Truck Dongfeng(20 m)
