ShangHai SPV Special Vehicle Co., Ltd.

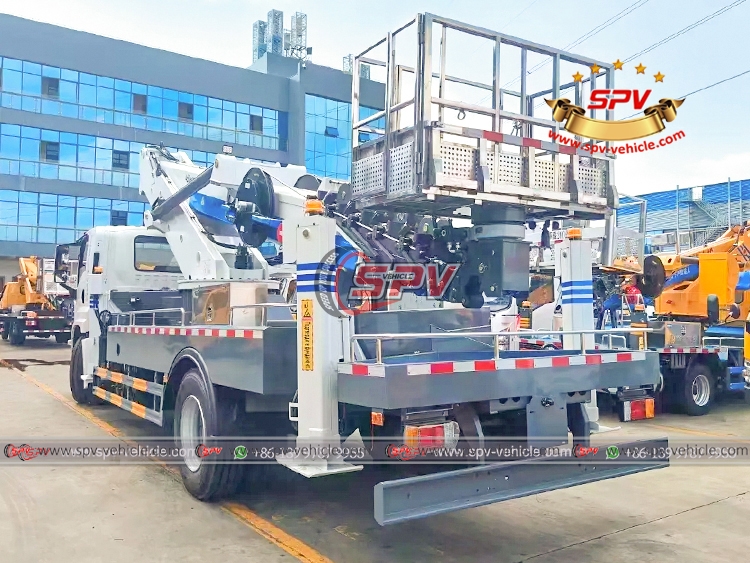

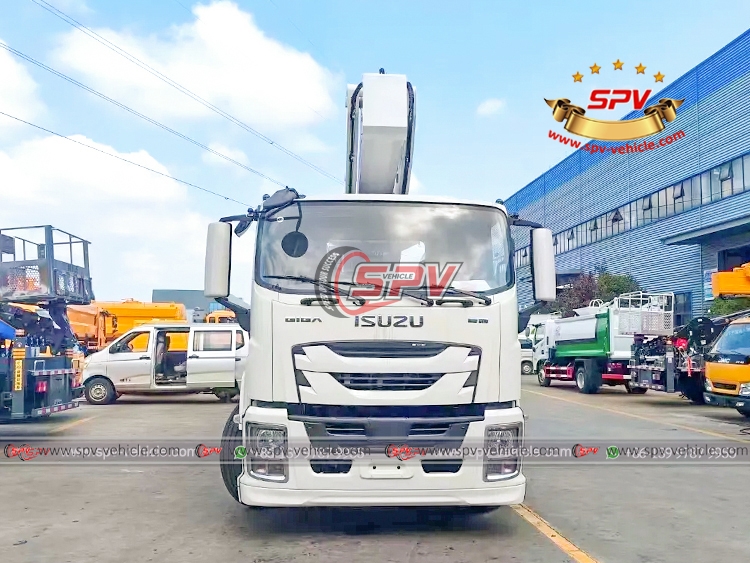

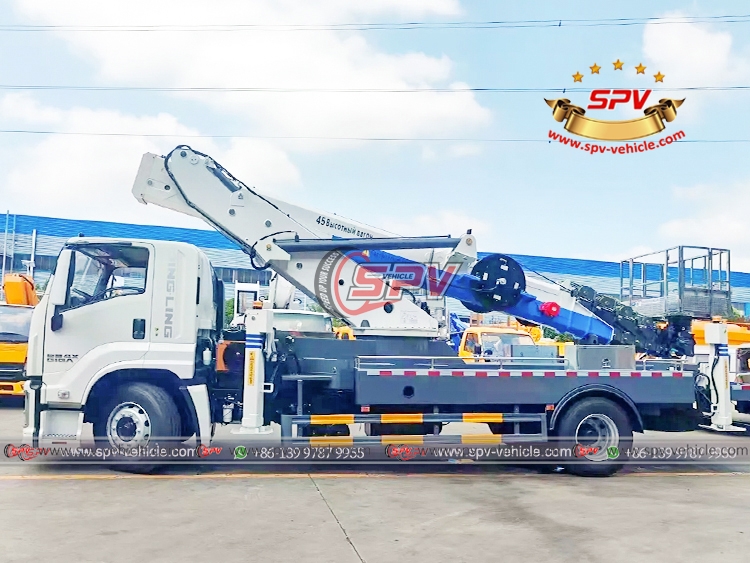

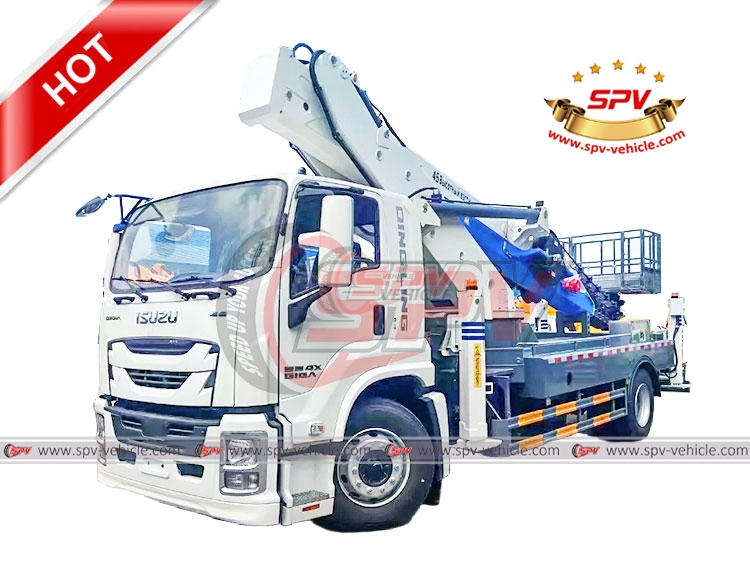

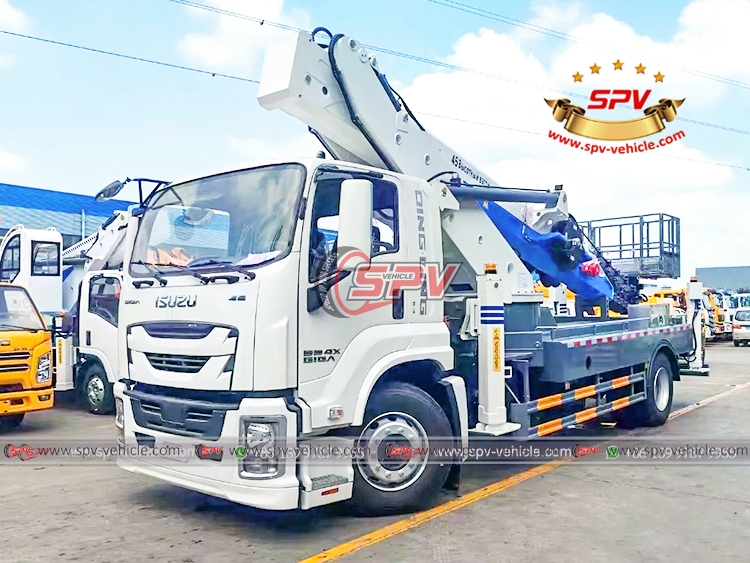

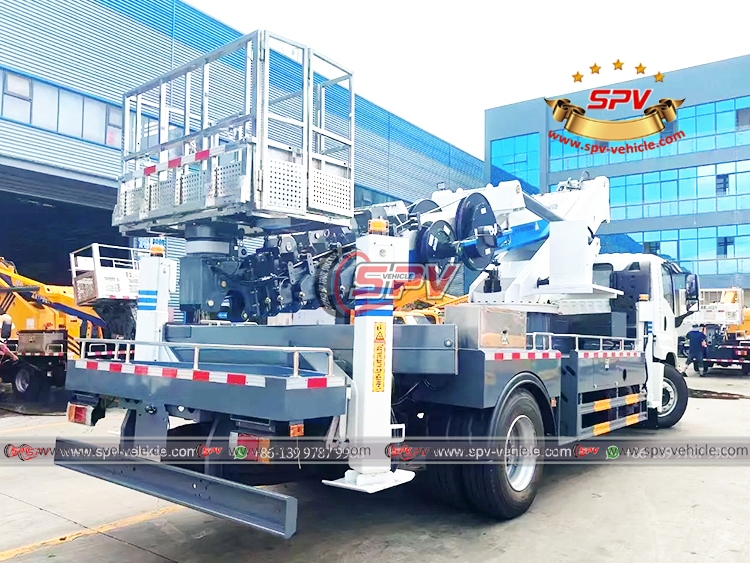

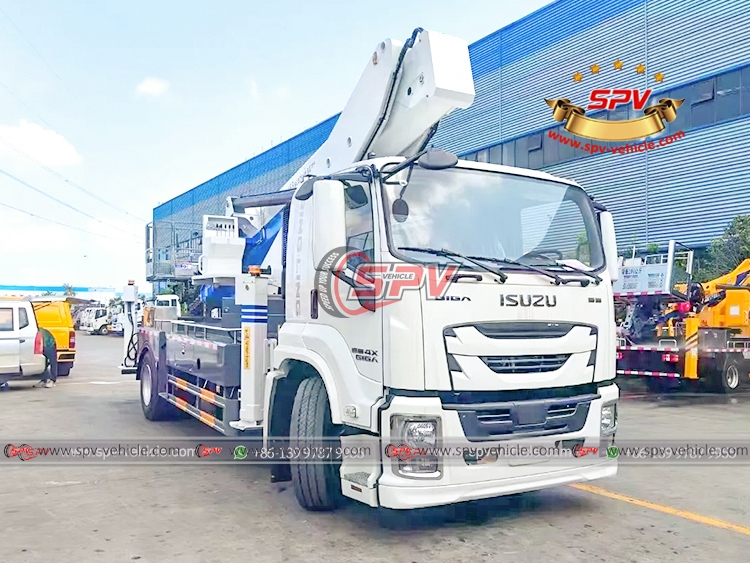

| Aerial Lift Truck ISUZU (16 M) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9900 * 2500 * 4200 mm | |
| GVW / Kerb Weight | 21,000 kg / 12,000 kg | |
| Cab | Cab Capacity | 2 persons seat |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 300 Ps (220 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, 9 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 315/80R22.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Working Cage | 200 kg capacity, anti-slip floor |
| Max. Working Height | 16 M | |
| Slewing | 360° continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at base and operator’s cage. | ||
| Optional | ** Hoist hook with cables can be equipped for the function of a crane. | |
