Name: SPV 5,000 Liters Sewer Jetting Superstructure
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Sewer Jetting Superstructure (also called vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) will be used to mounted onto chassis to clean and collect liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

It has two main parts. The high pressure jetting part to remove the blocked sewage, the other vacuum suction part collect the sewage. tipping sewage and solid stuff.

Features:
---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Adopt imported high pressure pump or equivalent China top brand pump.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

Specitfication:

Sewer Jetting Superstructure (5,000 Litres)
General	Make & Model	SPV
	Dimension	5400 * 1900 * 2100 mm
	Kerb Weight	4,300 kg
Superstructure	Sewer Tank	Tank Capacity	5,000 Litres (about 1,300 gals)
		Tank Material	Carbon steel
		Tank Thickness	6 mm
		High Pressure Pump	Italy Imported brand / 16 Mpa
		Flow Speed	170 L/min
		High Pressure Hose	60 m
		Hose Diameter	19 mm
		Hose Winding & Rewinding	Hydraulic Control
		Hose Reel Swiveling	Hydraulic Control
		Nozzles	A cluster of nozzles included
	All standard accessories: anti-fill valve, sight glass, tool kit, English manual……..
Optional	Tank material could be stainless steel. High pressure hose length could be customized.

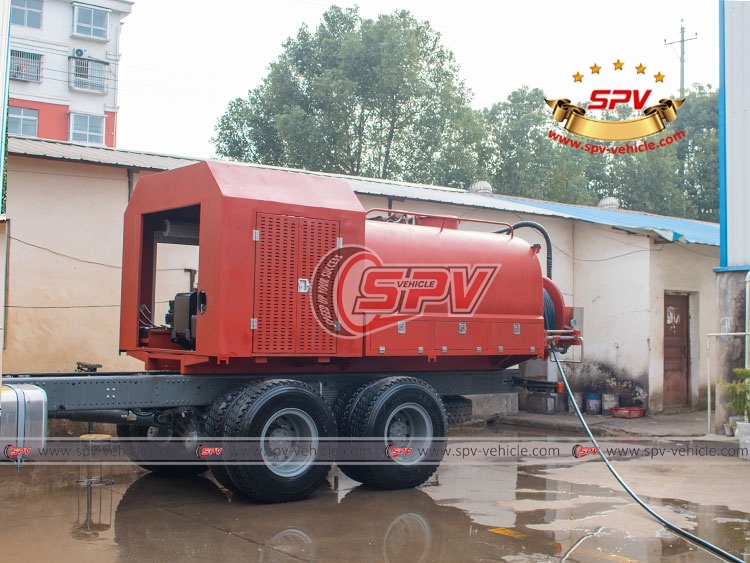

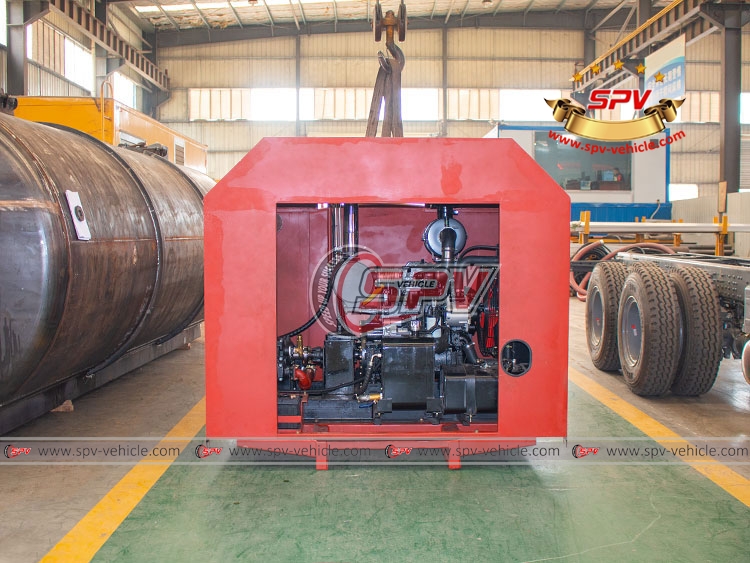

5,000 Jetting Unit for Truck Chassis - Front	5,000 Litres Sewer Flushing Tank SKD - Front Left

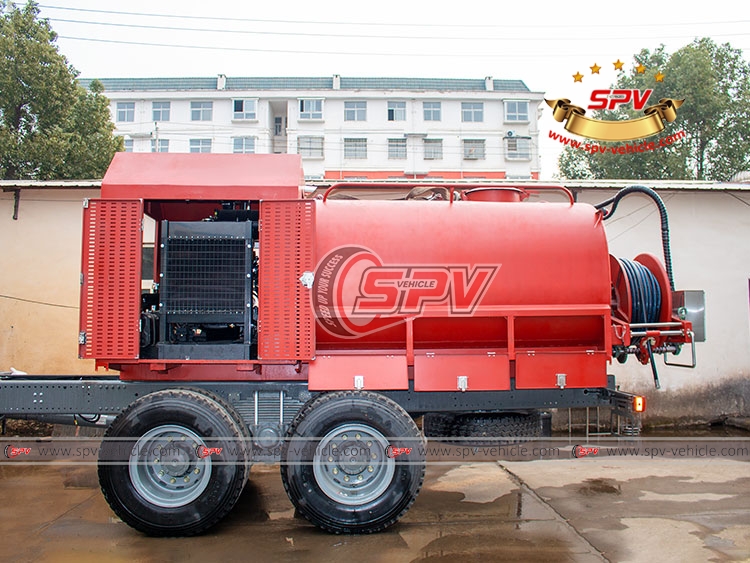

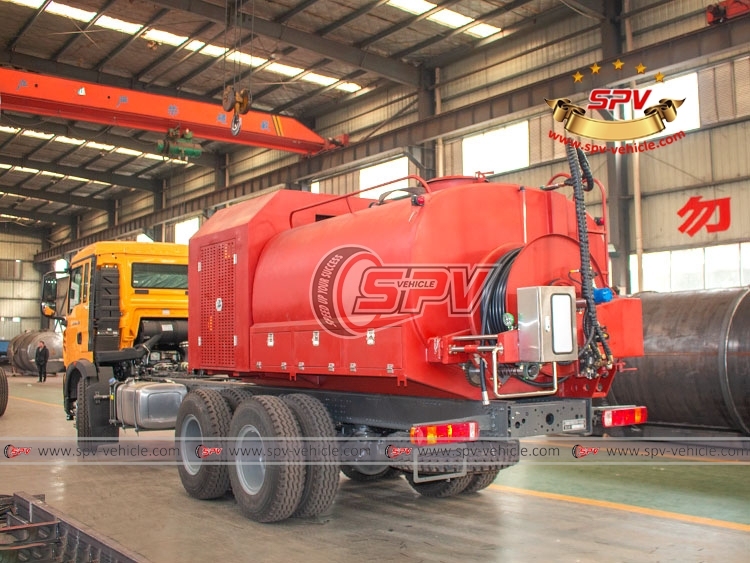

5,000 Litres Drain Jjetting Truck Body - Left	High-Pressure Sewer Jetting Body - Rear Left

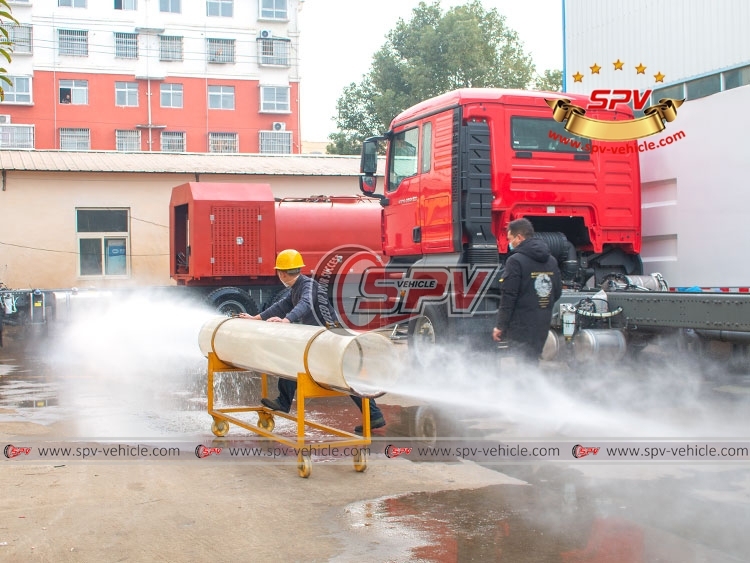

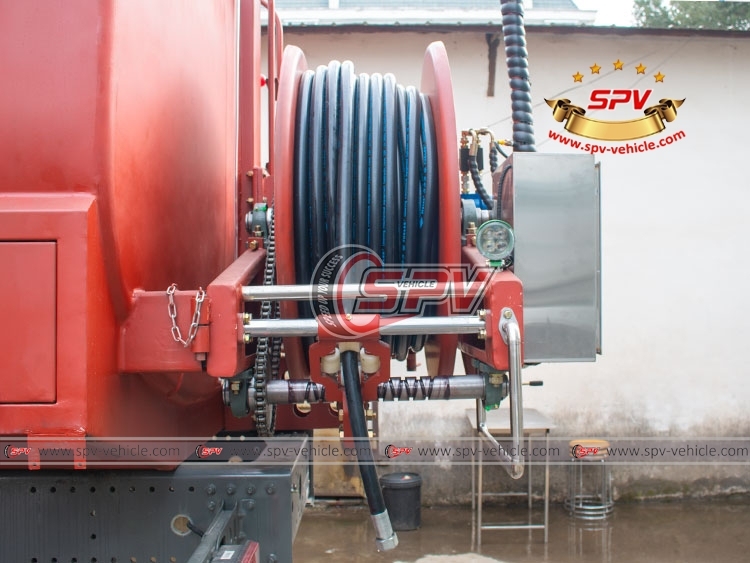

5,000 Litres Sewer Jetting Topbody - Testing	5,000 Litres High-pressure Water Jetting Body - Hose Reel

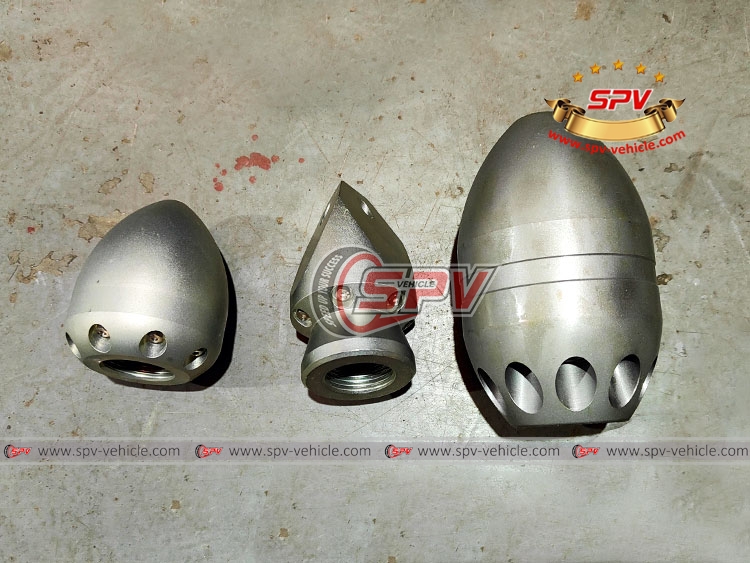

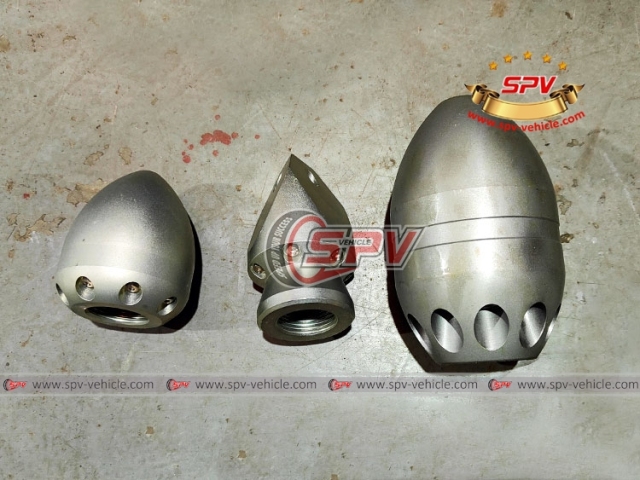

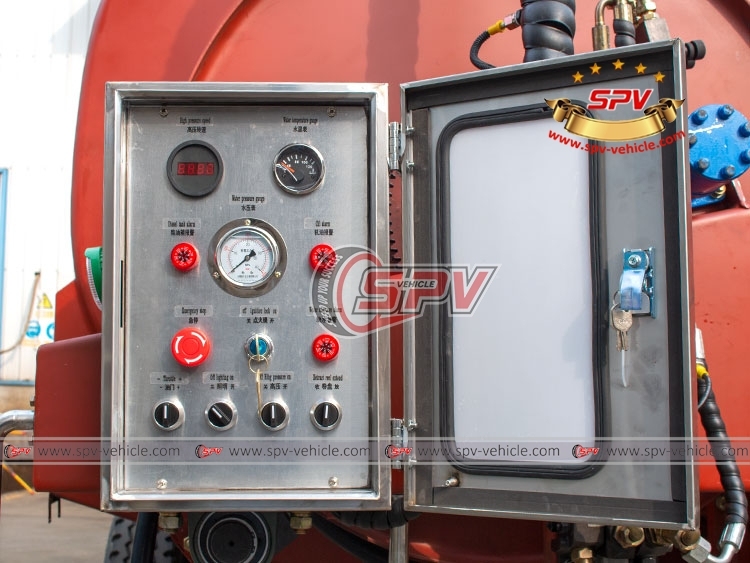

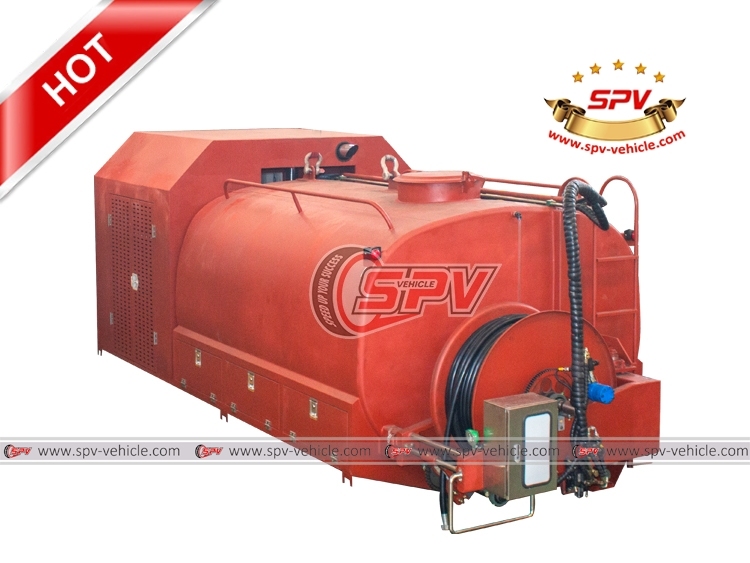

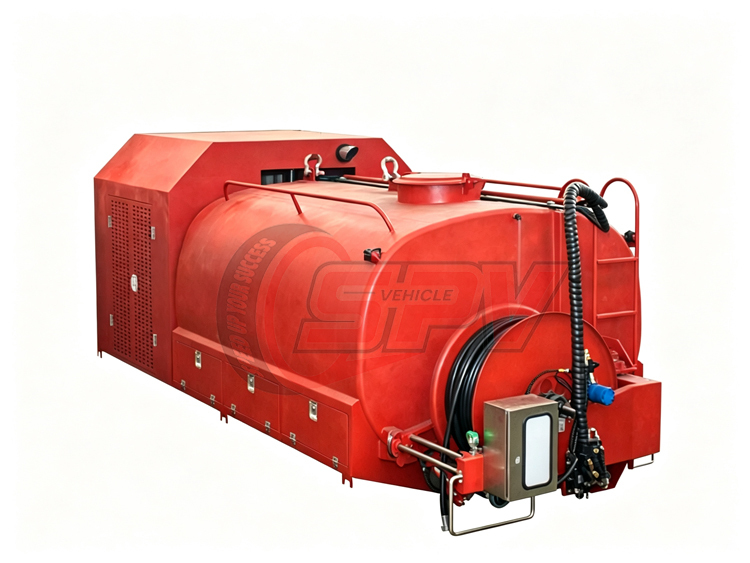

5,000 Litres Sewer Jetting Tank SKD - Operation Panel	Jetting Nozzle for Sewer Jetting Tank

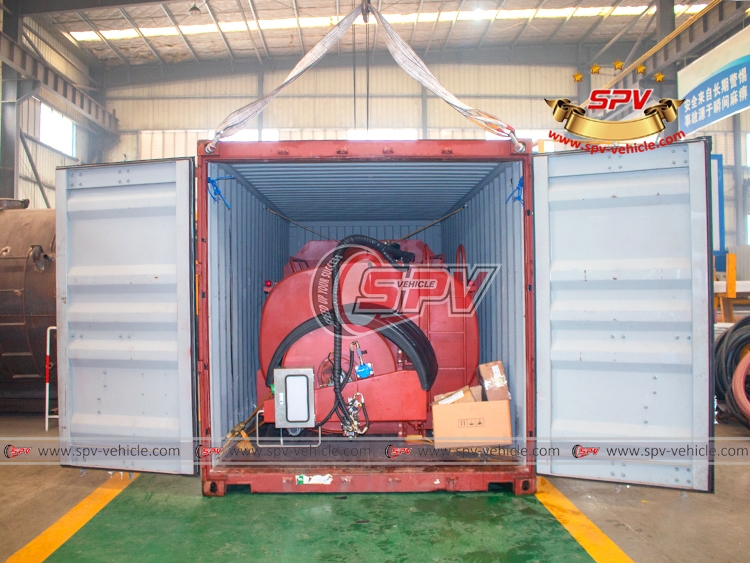

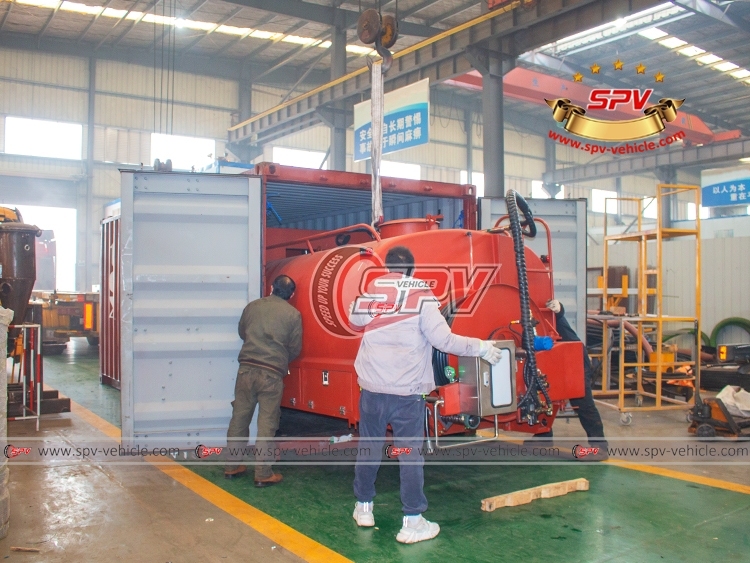

5,000 Litres Drain Cleaning Truck Superstructure - Laoding Into Container	5,000 Litres Sewer Jetting Tank SKD - Loading into Container
