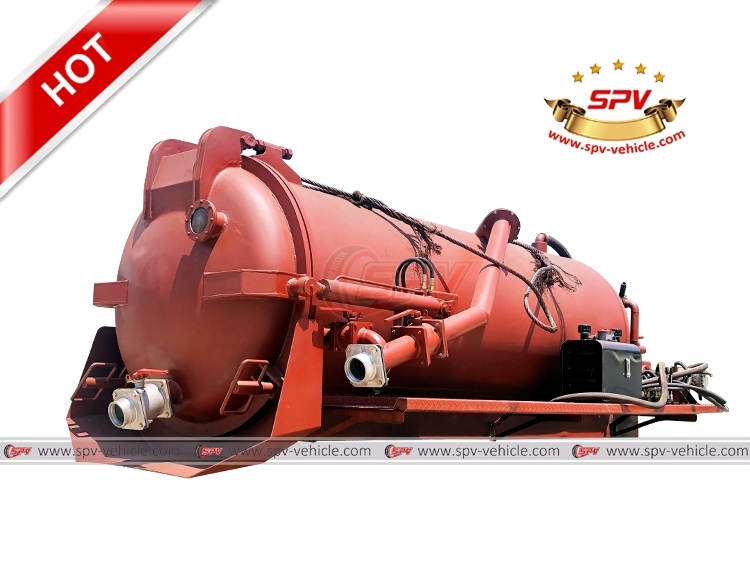

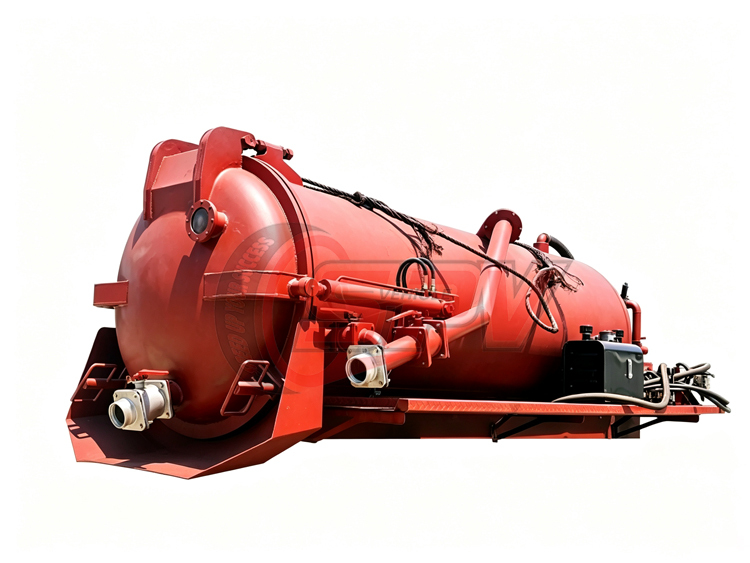

Name: SPV 4,000 Liters Sewer Disposal Tank Body
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Sewer disposal tank body (also called vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) will be used to mounted onto chassis to clean and collect liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

It has two main parts. The high pressure jetting part to remove the blocked sewage, the other vacuum suction part collect the sewage. tipping sewage and solid stuff.

Features:
---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Adopt imported high pressure pump or equivalent China top brand pump.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

Specitfication:

Sewer Disposal Tank Body (4,000 Litres)
General	Make & Model	SPV
	Dimension	3200 x 1600 x 1200 mm
	Kerb Weight	2,340 kg
Superstructure	Sewer Tank	Tank Capacity	4,000 Litres (about 1,000 gals)
		Tank Material	Carbon steel
		Tank Thickness	5 mm
		Vacuum Pump	Italy BPP brand, very powerful, max suction speed: 100 L/s(6500 L/min), recommended 800-1200 rpm, max 1400 rpm. Max power: 24 Kw. Suction lift: 6 meters. Vacuum Rate: 94%
		Hydraulic System	Rear door hydraulic lifting
		Suction Hose	High quality, wire strength hose
	Other neccesory parts: multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. Tank no lifting
Optional	Tank material could be stainless steel. High pressure hose length could be customized.

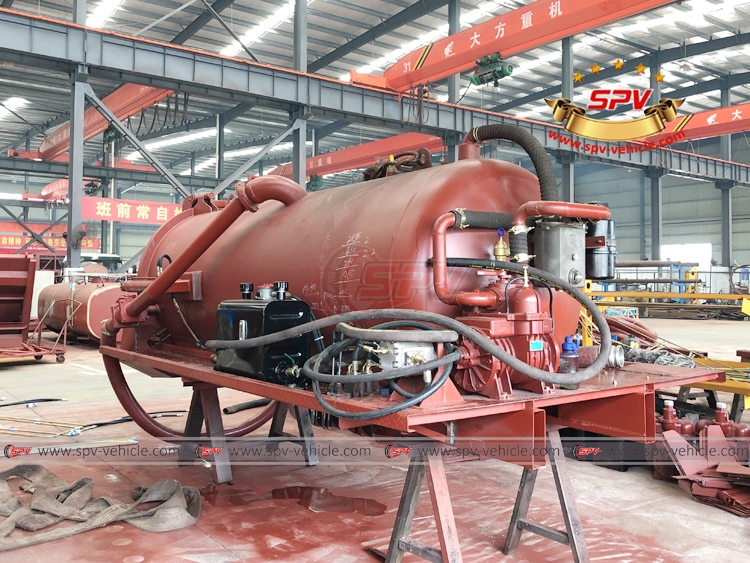

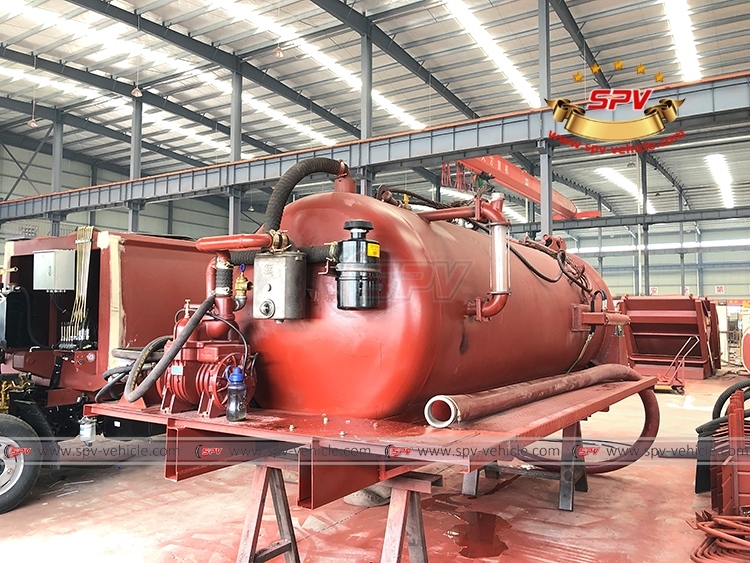

4,000 Litres Sewage Vacuum Tanker Body - Left Front	SPV 4,000 Litres Sewer Cleaning Tanker Body - Front Right

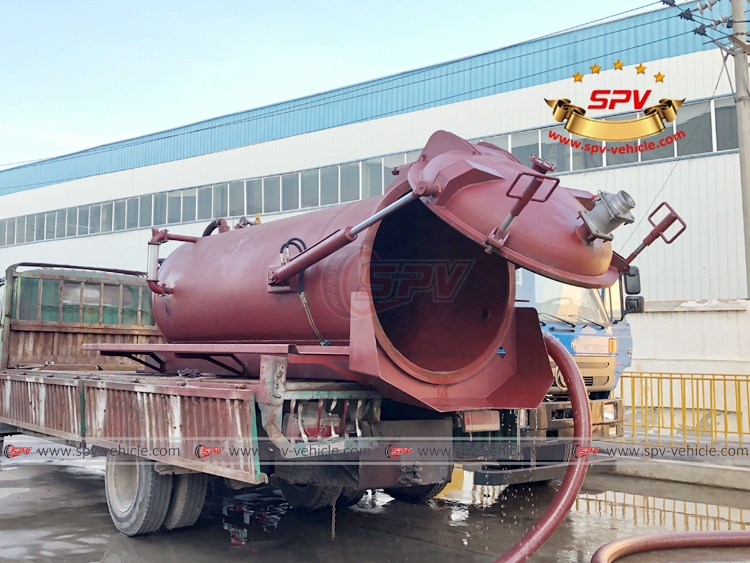

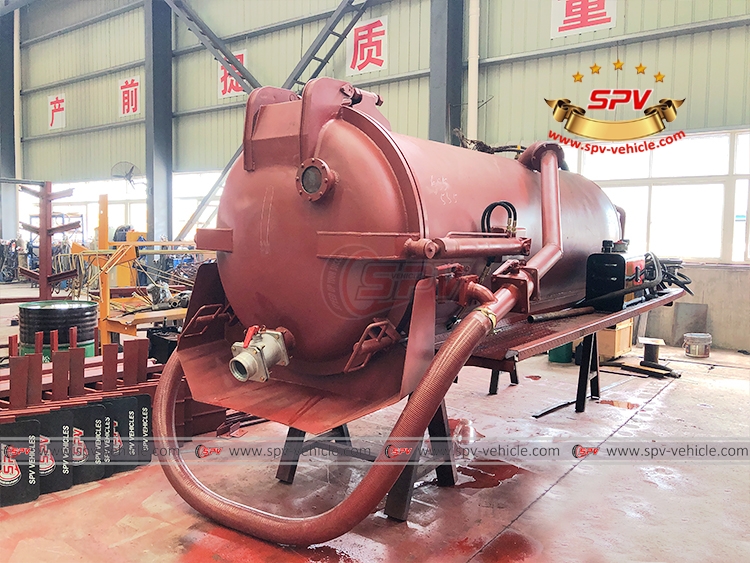

4,000 Litres Sewage Vacuum TopBody - Rear Right	SPV 4,000 Litres Sewage Disposal Tanker Body - Rear Door Opening

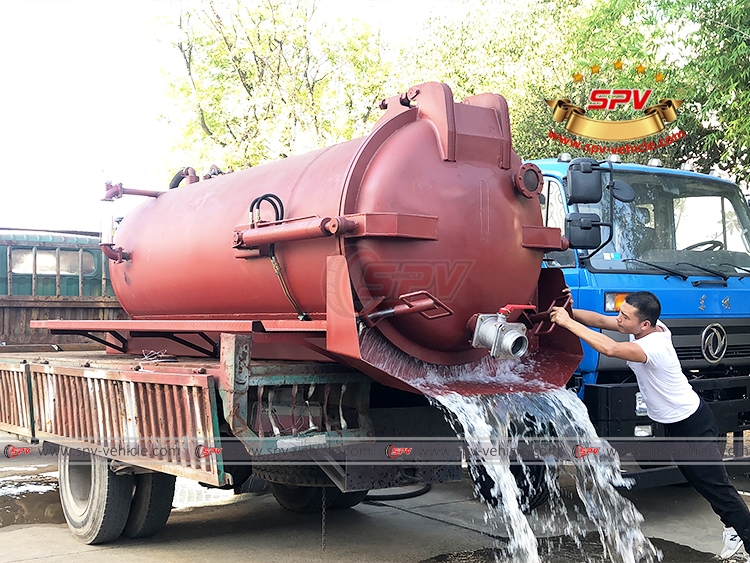

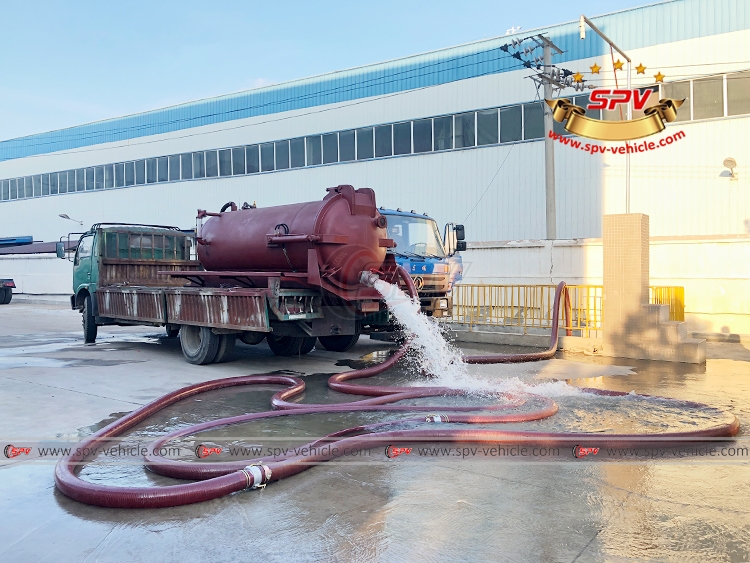

SPV 4,000 Litres Sewage Collection Tank Body - Discharging Water Test	SPV 4,000 Litres Drain Vacuum Tanker Body - Discharging Water Test

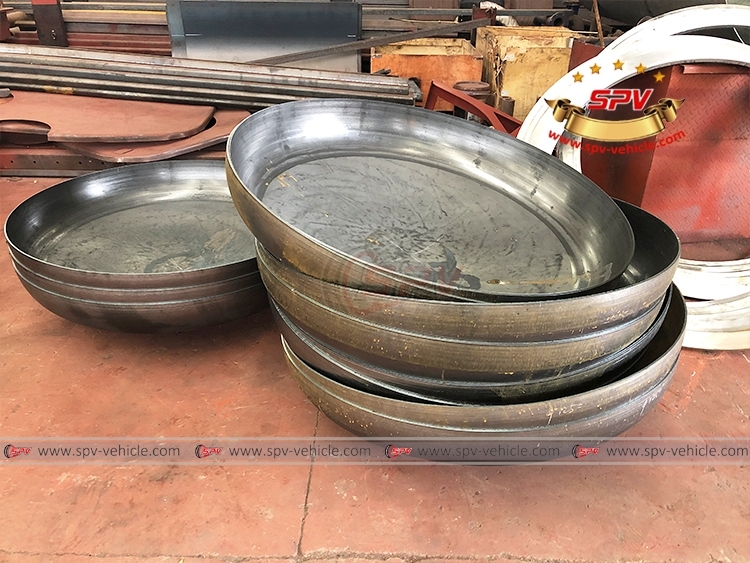

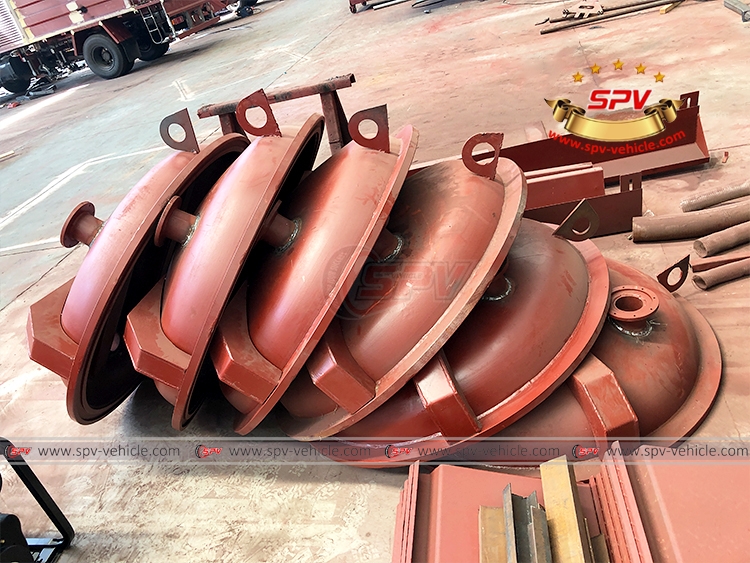

4,000 Litres Waste Water Vacuum Tanker Body - Front Lid	4,000 Litres Sewage Vacuum Tanker Body - Rear Lid

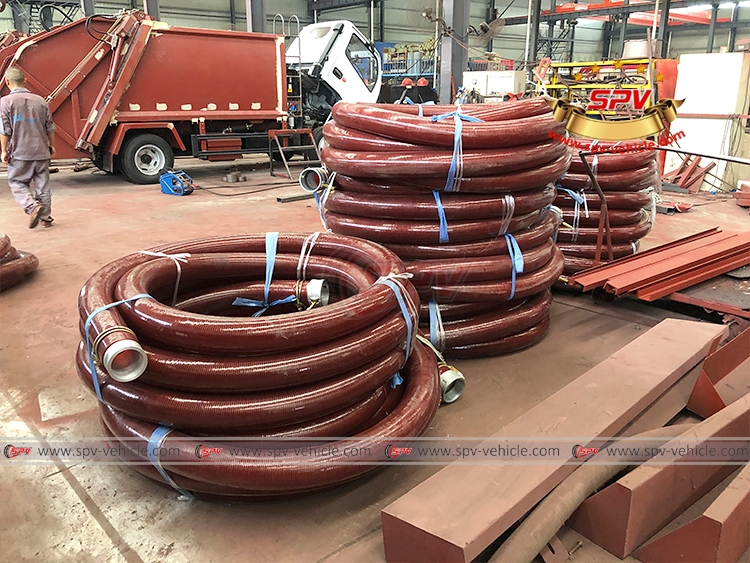

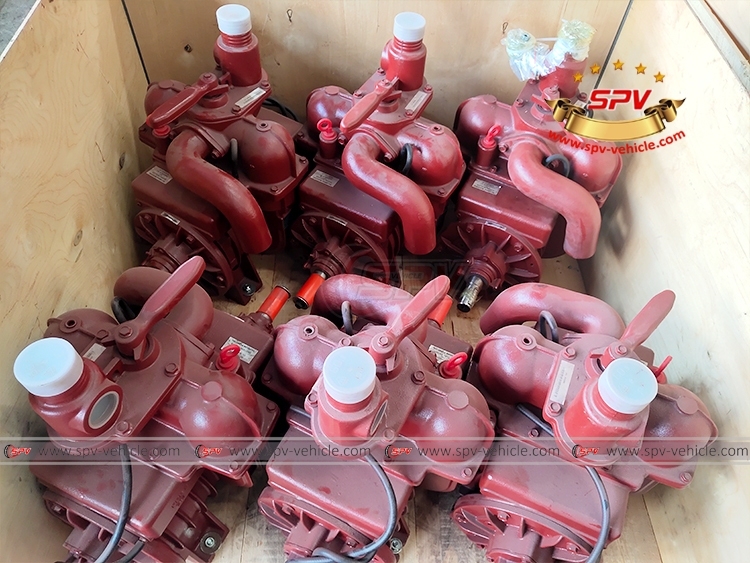

4,000 Litres Sewer Vacuum Tanker Body - Pumps	4,000 Liters Sewer Jetting Superstructure - Hose

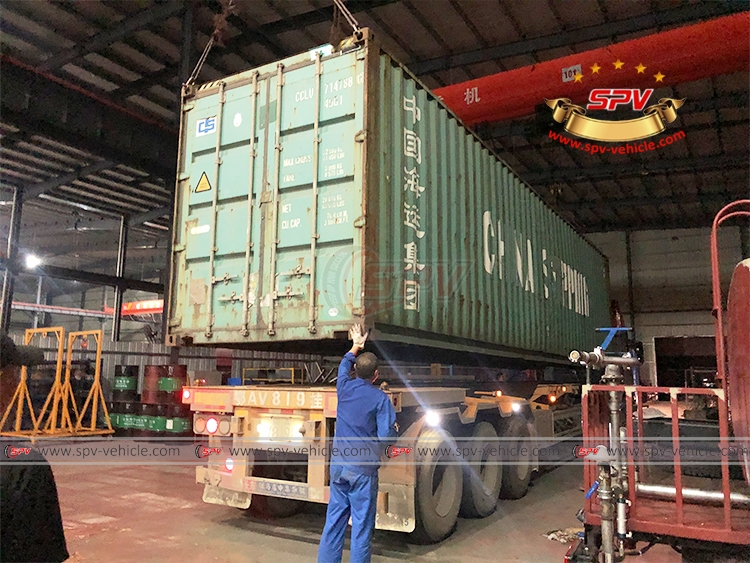

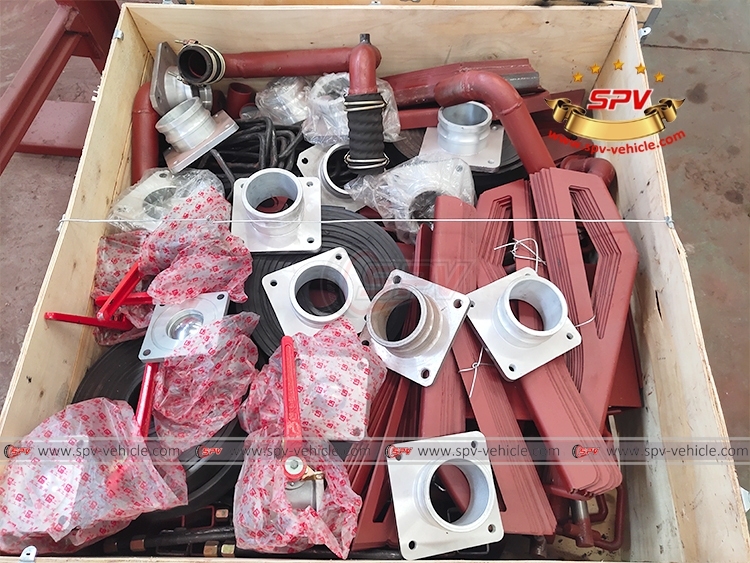

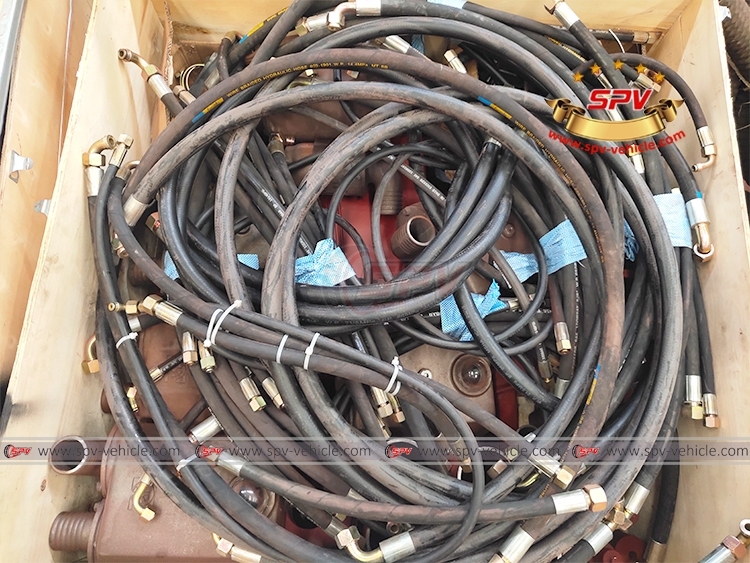

4,000 Litres Sewage Vacuum Tanker Body - Tubes	SPV 4,000 Litres Sewage Vacuum Tanker Body and Spare Parts Loaded into Container

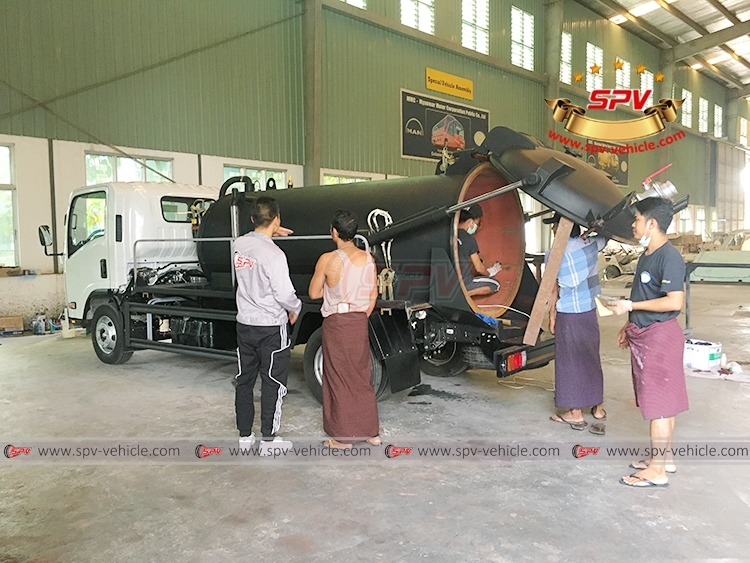

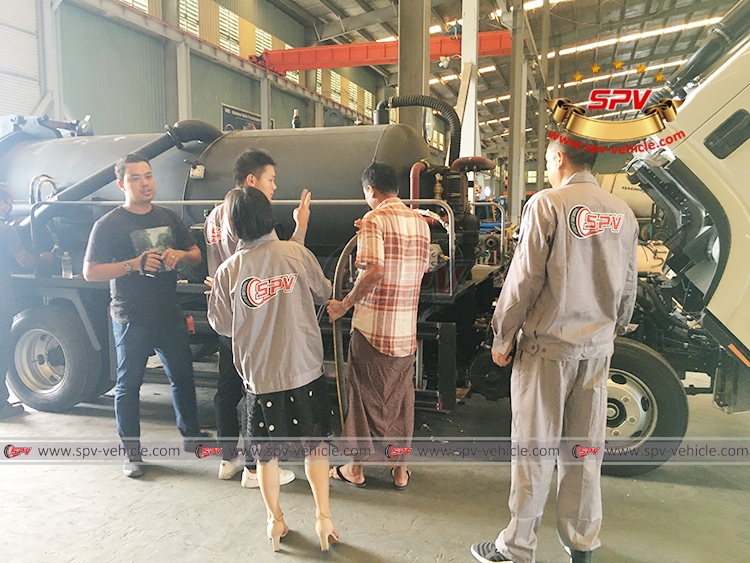

Sewage Vacuum Superstructure - Onsite Training in Myanmar	Sewage Disposal Tank Superstructure - Onsite Training in Myanmar
