| 3-Axles Fuel Tanker Trailer (20,000 Litres) | ||
| General |
Trailer Brand | SPV |
| Overall Dimension | 9550 * 2500 * 3030 mm | |
| GVW / Kerb Weight | 24,850kg / 8,850kg | |
| Payload | 20,000 Liters | |
| Transport For | Fuel Liquid | |
| Superstructure |
Tank Capacity |
20,000 Litres (5,300 gallons) |
| Tank Material |
Made of Carbon steel with inner baffles to prevent fuel surge during moving. |
|
| Landing Gear | 28 Ton capacity | |
| Kingpin |
2" or 5" |
|
| Axles |
3 axles, 13Ton, FUWA or BPW brand | |
| Tyre | 11.00-20, 11.00R20, 315/80R22.5 | |
| Tyre Number | 8 tyres | |
| Paint | Automative Metallic Paint | |
| All standard accessories: manhole, ladder, inlet, discharge, anti-slip walkway, hose, reflective strips…….. | ||
| Optional | 1. Tank material could be aluminum alloy, carbon steel, stainless steel…… 2. It can be divided into many compartments to load different types of fuels. 3. BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS. 4. Heat preservation of rock cotton or polyurethane foaming, Heating system. 5. OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve…… 6. Tube or tubeless tyres, off-road single tyre for bad roads. |
|
 |
 |

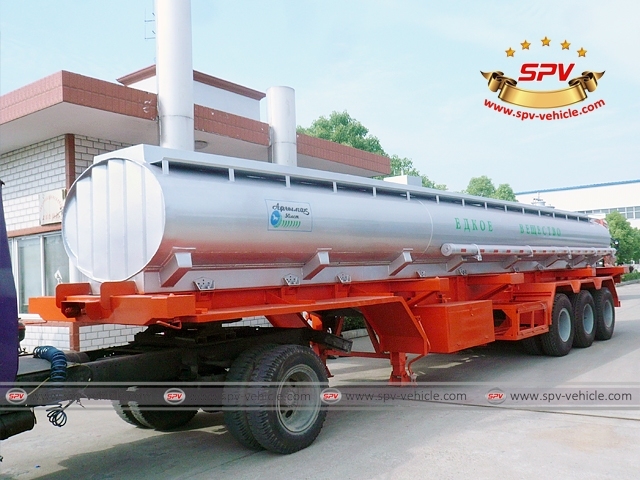

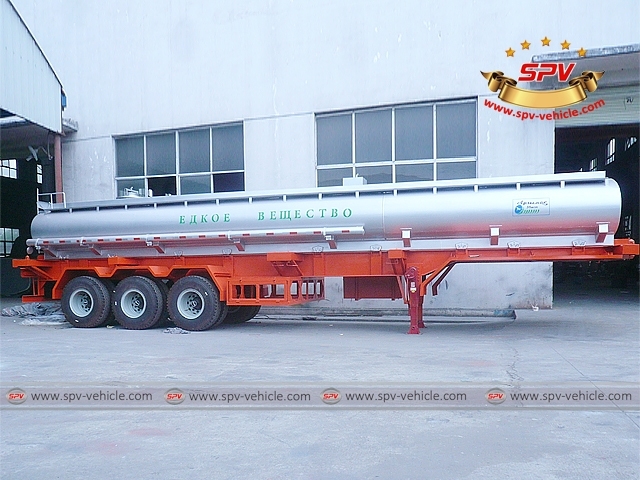

| SPV 20,000 Liters Fuel Tank Semitrailer - Front Left | 20,000 Liters Fuel Tanker Trailer - Right |
