| Cesspool Vacuum Tank SKD (10,000 Litres) |
|||
General |
Make & Model | SPV |
|
| Dimension | 8900 * 1900 * 2400 mm |
||
| Kerb Weight | 5,500 kg |
||
| Superstructure |
Water Tank |
Tank Capacity | 8,000 Litres (about 2,100 gals) |
| Tank Material | Carbon steel | ||
| Tank Thickness | 6 mm | ||
| High Pressure Pump | Italy Imported brand / 16 Mpa | ||
| Flow Speed | 170 L/min | ||
| High Pressure Hose Reel | 120 m (1") | ||
| Hose Diameter | 19 mm | ||
| Hose Winding & Rewinding | Hydraulic Control | ||
| Hose Reel Swiveling | Hydraulic Control | ||
| Nozzles | A cluster of nozzles included | ||
Sewer Tank |
Tank Capacity | 2,000 Litres (about 5,00 gals) | |
| Tank Material | Carbon steel | ||
| Tank Thickness | 6 mm | ||
| Vacuum Pump | Highly efficient, vacuum rate 93%, quick suction and discharge | ||
| Suction Valve | 4” | ||
| Discharge Valve | 24” hydraulic opened valve and 6” manual valve |
||

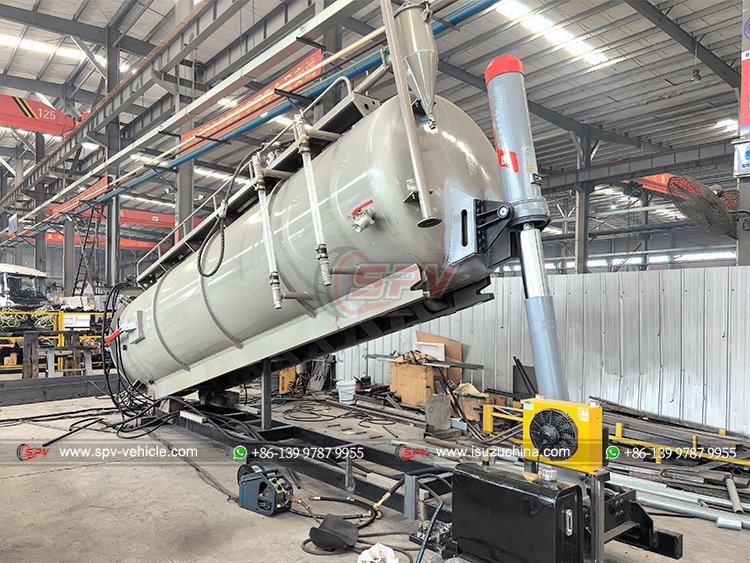

| The tank could be hydraulic lifted and rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
| All standard accessories: anti-fill valve, sight glass, tool kit, English manual…….. |
|||
| Optional | ** Tank material could be stainless steel. ** High pressure hose length could be customized. |
||
 |
 |
