Functions

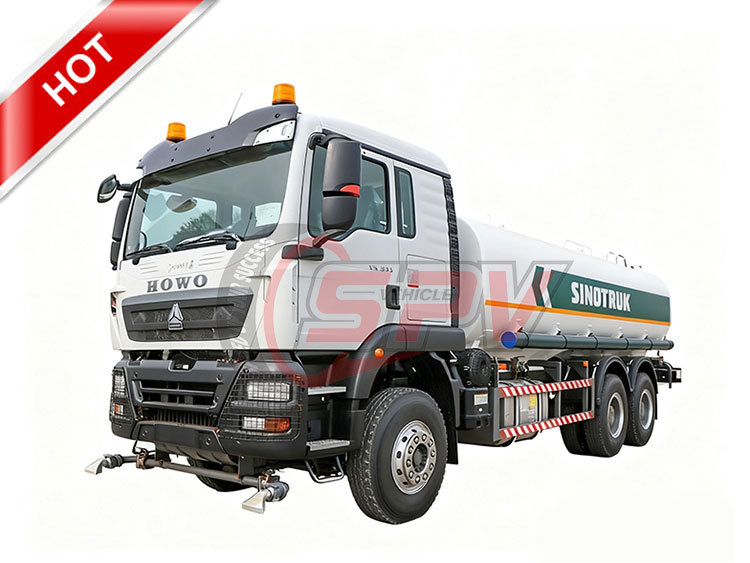

Sinotruk TX 6x4 Water sprinkler Truck (also called road spraying truck, mist water spary truck, water sprinkler truck, ISUZU greening water sprinkler, water spray truck, HOWO dust control truck, Multi-functional Dust Suppression Truck Sinotruk, water transport truck, reduce dust truck, DONGFENG watering truck, mining spray truck, dust reduce truck, ) is a special vehicle for efficient washing operations. It is suitable for washing operations in urban roads, highways, squares, and mine area, etc, as well as municipal and landscaping watering operations.
Water tanker can be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Features:
---- SINOTRUK HOWO chassis, perfect performance
---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specitfication:
| Water Sprinkler Truck HOWO TX (20,000 litres) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 10000 * 2500 * 3200 mm | |
| GVW / Kerb Weight | 25,000 kg / 11,200 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | WEICHAI engine | |
| Power | 371 Hp (273 KW) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | Manual, 10-speed forward, 2 reverse | |
| No. of Axles | 3 | |
| Tyre Specification | 12.00R20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 20,000 Litres ( About 5,200 gallons) |
| Tank Material | Carbon steel | |
| Flow Speed | 1000 litres / min | |
| Hose | High quality PVC hose, anti-aging | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
 |
 |

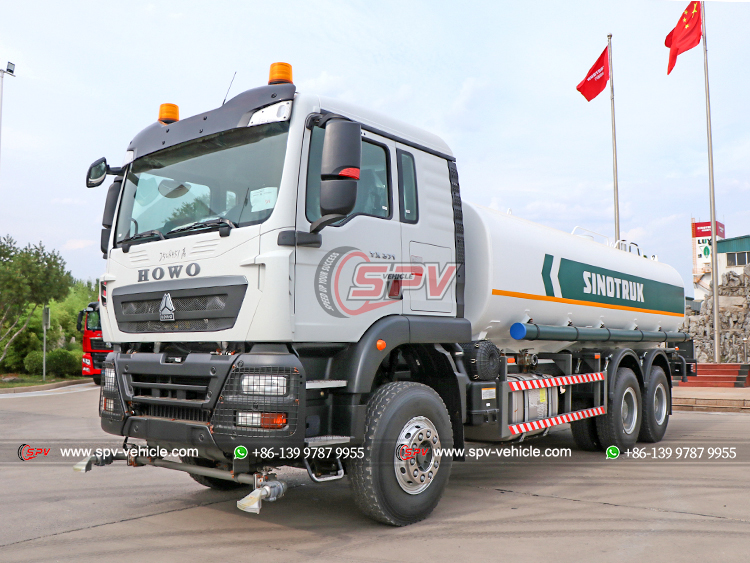

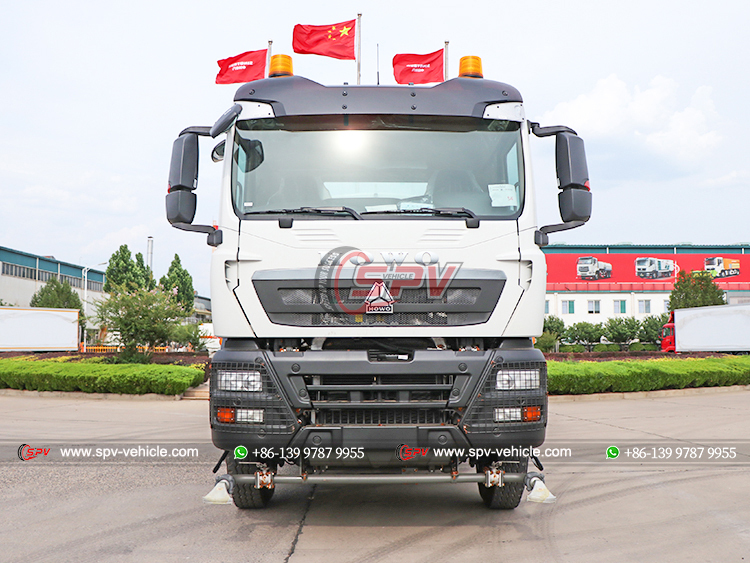

| SINOTRUK 10 Wheels Watering Truck - Front | SINOTRUK Water Spray Bowser - Front Left |
 |
 |

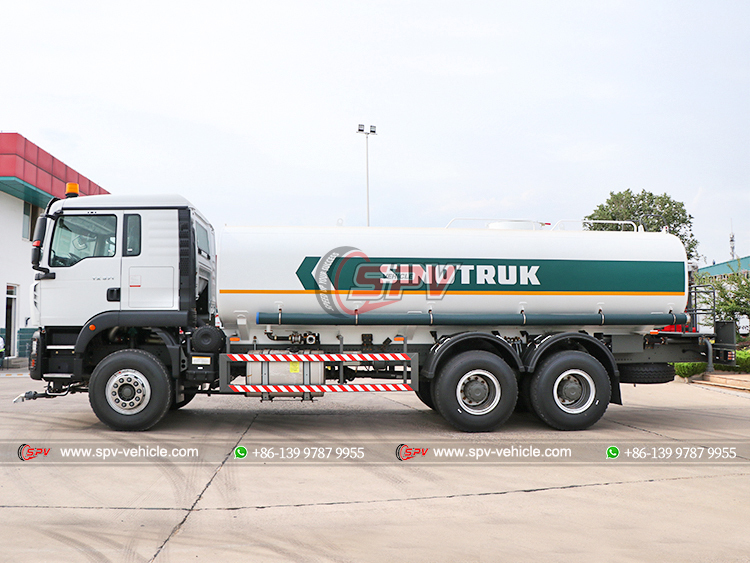

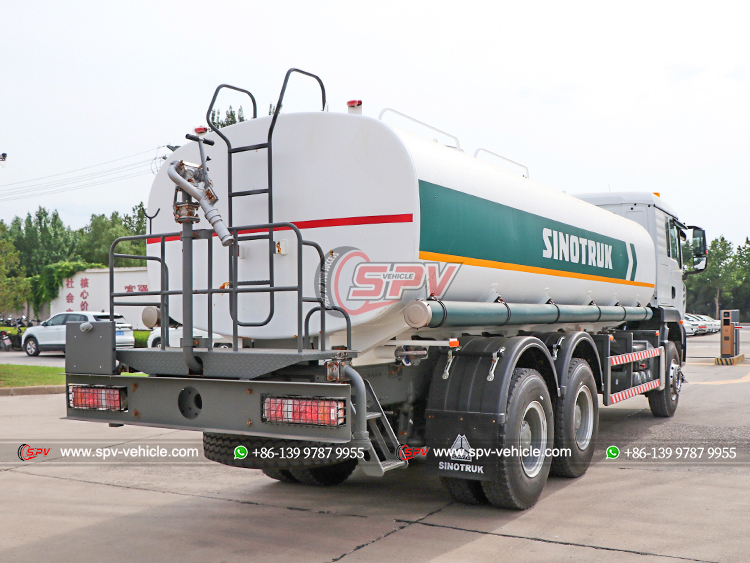

| SINOTRUK 3 Axles Watering Truck - Left | SINOTRUK Heavy-duty Water Spraying Lorry - Rear Right |
 |
|

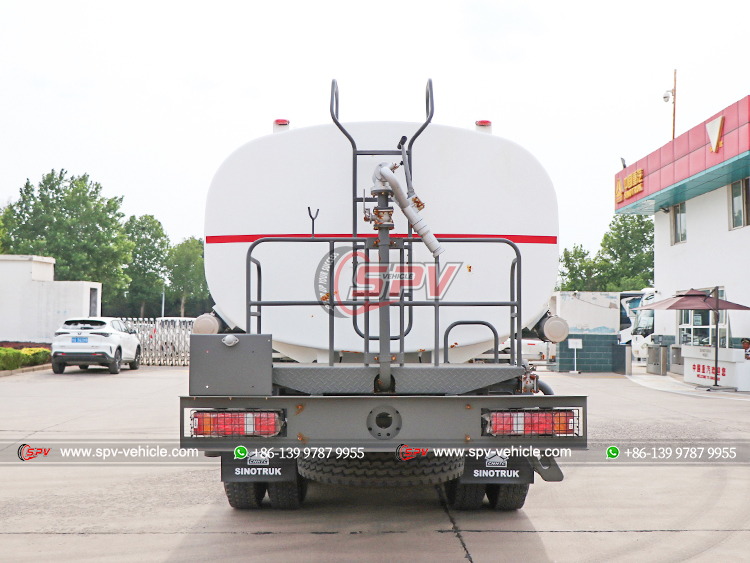

| SINOTRUK 3 Axles Water Spray Truck - Rear |
