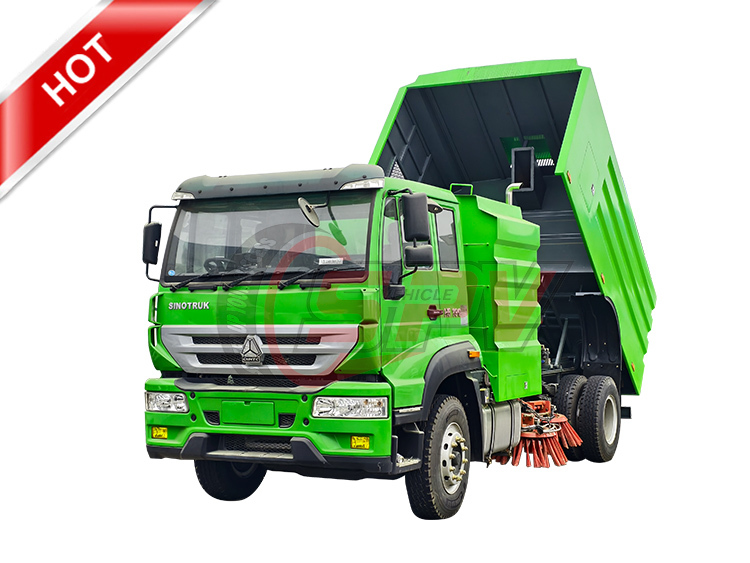

Name: SINOTRUK Road Washing and Cleaning Truck
Brand: SPV Group Limited.
Rating: 5 (1 reviews)

Function:
Road washing and sweepping truck (also called road sweeper, street sweeper, road clean truck, street sweeper truck, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle, road vacuum truck, sanitation sweeping truck, ) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.

Features:
---- SINOTRUK chassis, perfect performance.
---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.

Specitfication:

Road Washing and Sweeping Truck SINOTRUK ( 8 CBM dustbin & 2 CBM water tank )
General	Vehicle Brand	SPV
	Chassis Brand	SINOTRUK
	Overall Dimension	8100 * 2450 * 2465 mm
	GVW / Kerb Weight	16,000kg / 9,700kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	WEICHAI engine
	Power	220 Ps (162 KW)
	Displacement	2771 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 9 speed forward, 1 reverse
	No. of Axles	2
	Tyre Specification	295/80R22.5‌
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	105 km/h
	Paint	Metallic paint
Superstructure	Water Tank	Stainless Steel
	Dustbin Material	Stainless Steel
	Dustbin Capacity	8 CBM
	Water Tank Capacity	2 CBM
	Sweeping Capacity	42,000 m³/h
	Sweeping Speed	3-15 km/h
	Max Sweeping Width	2800mm
	Brooms	2 sets at each side, at diameter 900 mm
	Auxiliary Engine	JMC engine
	Vacuum	Created by powerful air blower driven by auxiliary engine
	Suctions	Wet suction and dry suction Middle suctions
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional	Backup alarm can be equipped. Camera can be equipped. ** Air blower can be of stainless steel.

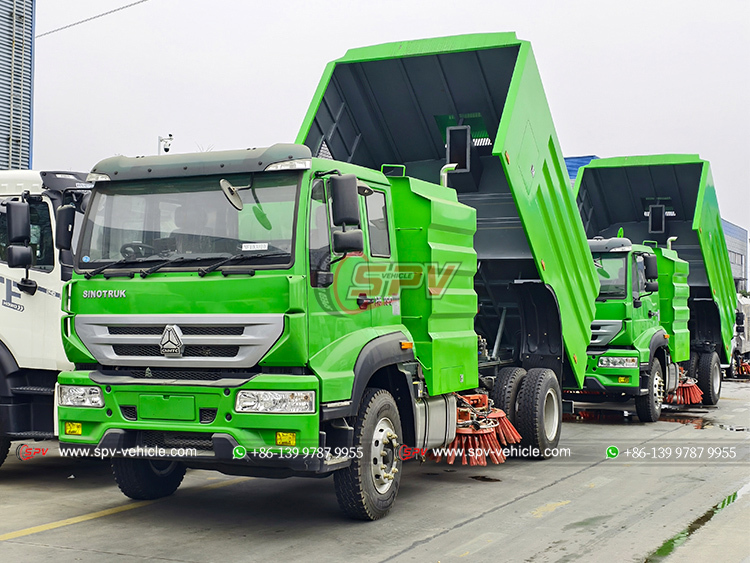

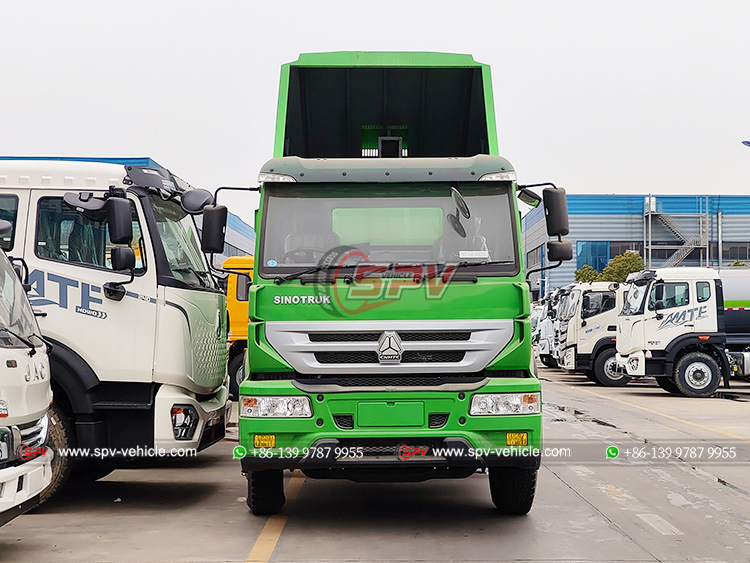

SINOTRUK 4x2 Street Cleaning Truck - Front	SINOTRUK 190 Hp Road Sweeping Truck - Front Left

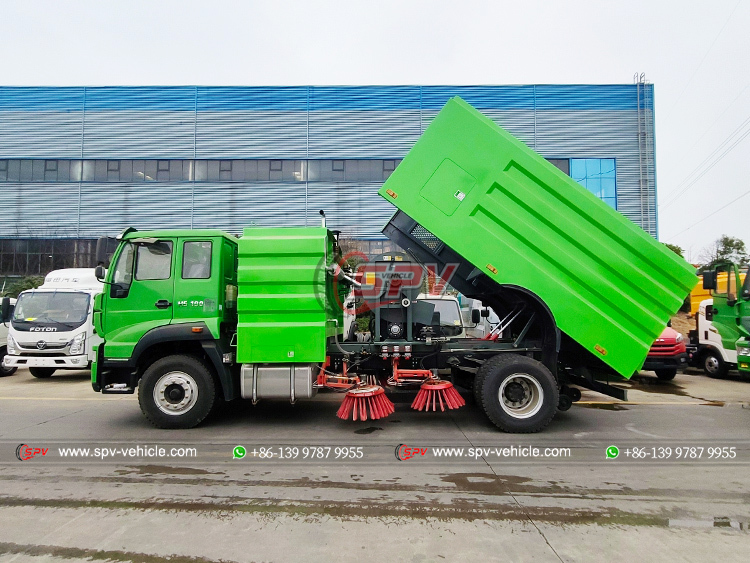

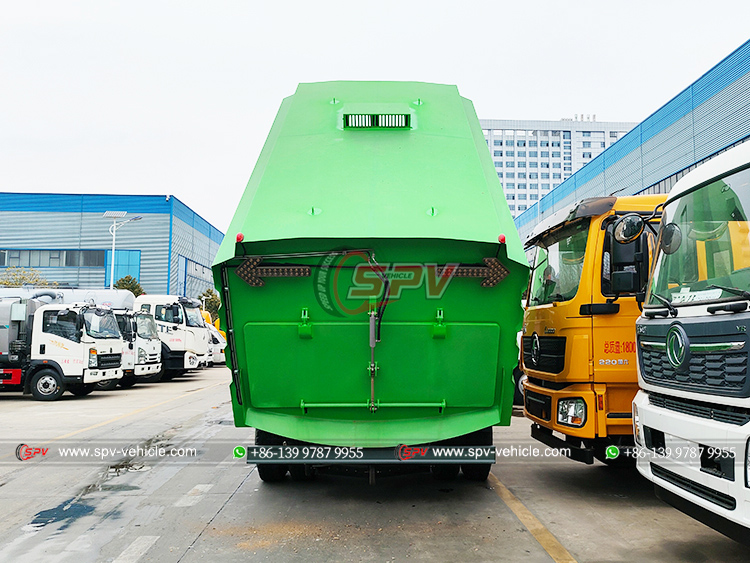

SINOTRUK Road Washing and Sweeping Truck - Left	SINOTRUK Road Vacuum and Washing Truck - Rear
