The primary function of an LPG tank truck is to transport liquefied gas from refineries, storage terminals, or filling plants to end users. These trucks are equipped with pressure-resistant tanks, safety valves, pumping systems, and emergency shut-off devices to ensure secure transportation.
Key functions include:
| LPG Distribution Truck SINOTRUK ( 20,000 litres) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 10500 * 2500 * 3500 mm | |
| GVW / Kerb Weight | 25,000 kg / 14,320 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Sinotruk engine | |
| Power | 336 Hp (247 KW) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | 10-speed front, 2 reverses | |
| No. of Axles | 3 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 20,000 Litres ( About 5,300 gallons) |
| Tank Material | Specialized steel for high pressure gas tank | |
| Tank Thickness | 12 mm | |
| Optional | ** Separate inlet and outlet. ** Pump, gas dispenser…. |
|
 |
 |

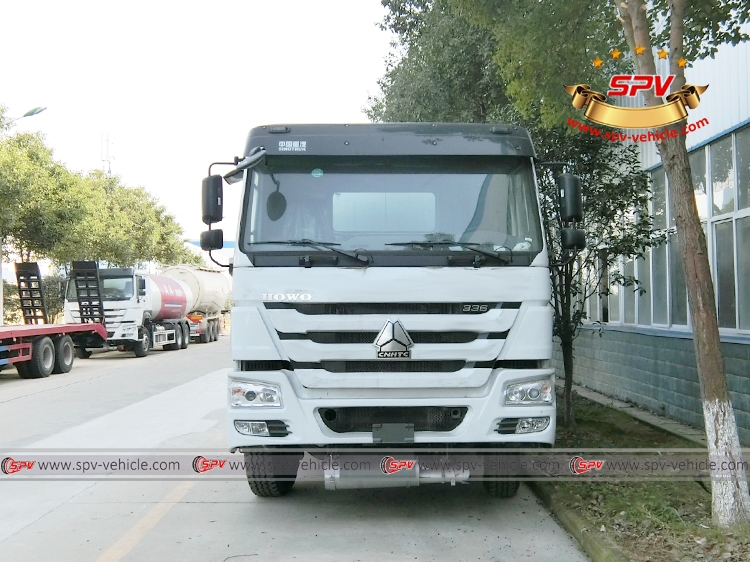

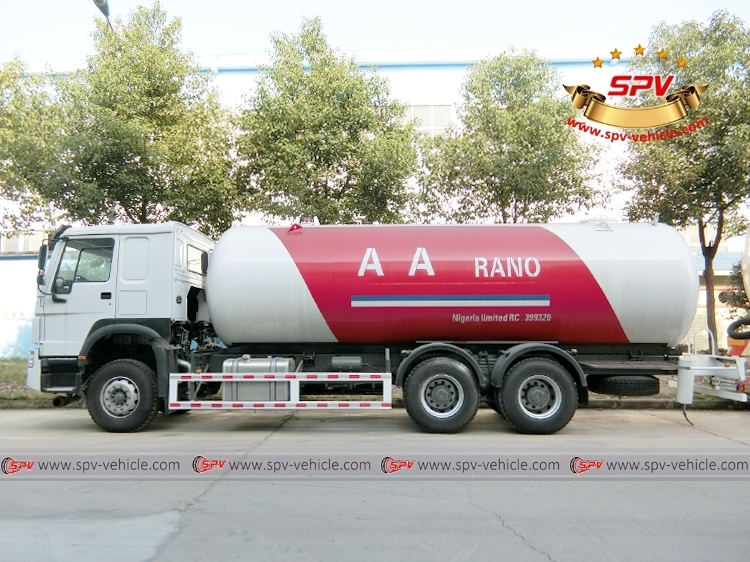

| Sinotruk 6x4 LPG Tanker - Front | Sinotruk 6x4 LPG Delivery Tanker - Front Left |
 |
 |

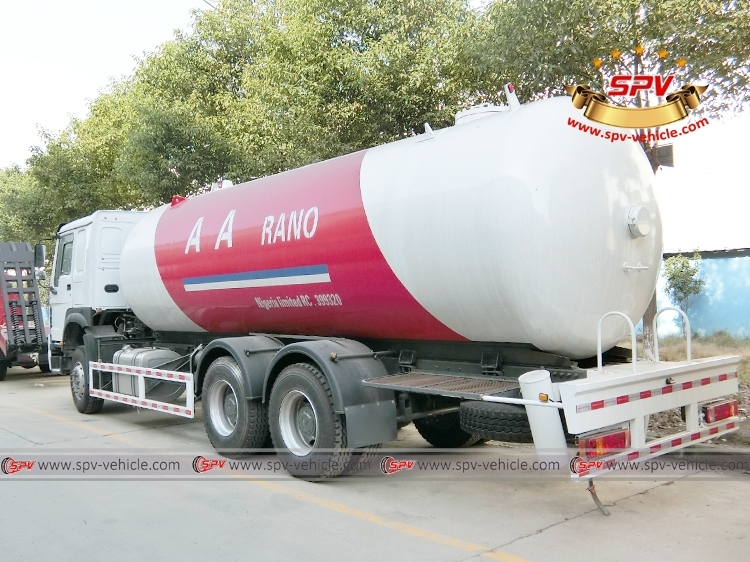

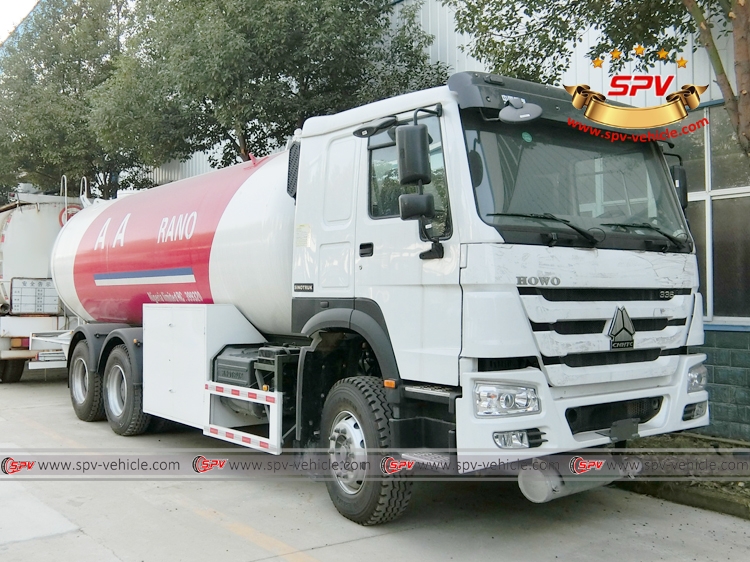

| Sinotruk 10 Wheels LPG Tank Truck - Rear Left | HOWO 24,000L Dispensing Truck - Front Right |
 |
|

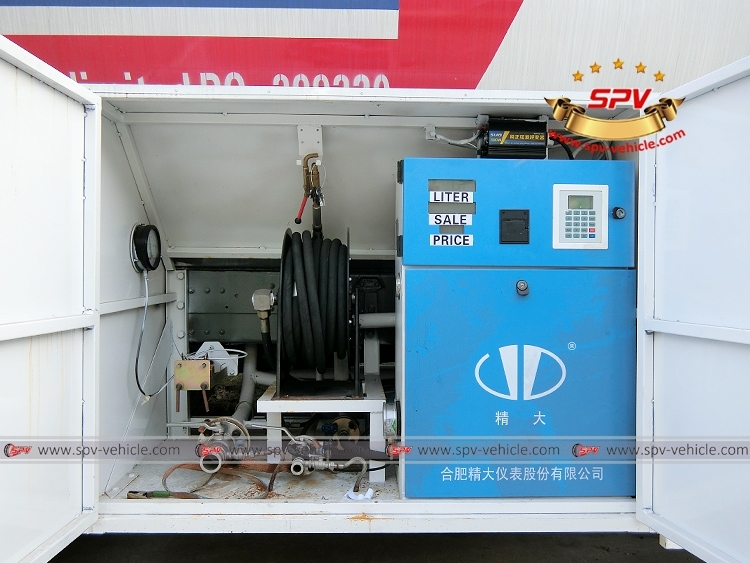

| Dispenser of HOWO 24,000L LPG Transfer Truck |
