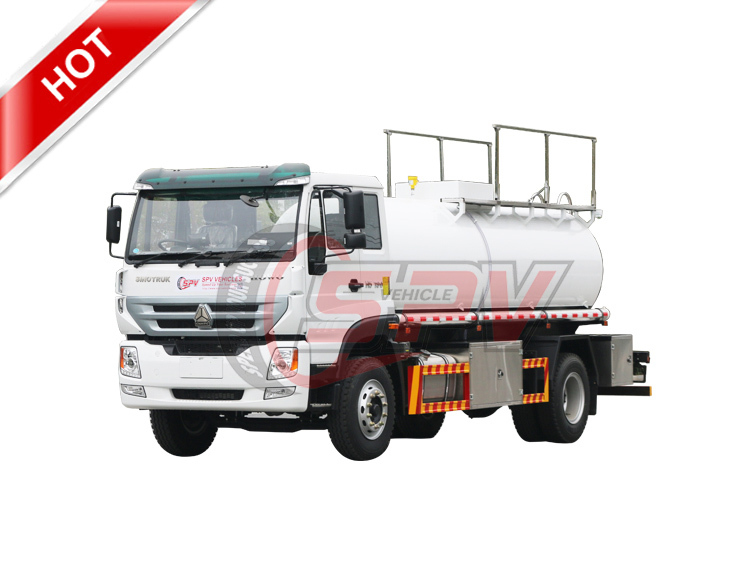

Transport Liquid Chemicals Safely| Chemical Tank Truck SINOTRUK ( 10,000 litres) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 8420*2500*3000 mm | |
| GVW / Kerb Weight | 16,000 kg/7,770 kg | |
| Cab | Cab Capacity | 2 persons allowed with 1 sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Sinotruk engine | |
| Power | 190 Hp (140 KW) | |
| Displacement | 6490 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X2, Right Hand Drive |
| Transmission | Manual, 8-speed forward, 2 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 10.00R20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 10,000 Litres (About 2,600 gallons) |
| Tank Material | Stainless Steel | |
| Flow Speed | 1000 litres / min | |
| Delivery Head | 90m | |
| Suction Head | 6m | |
| Optional | Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
 |
 |

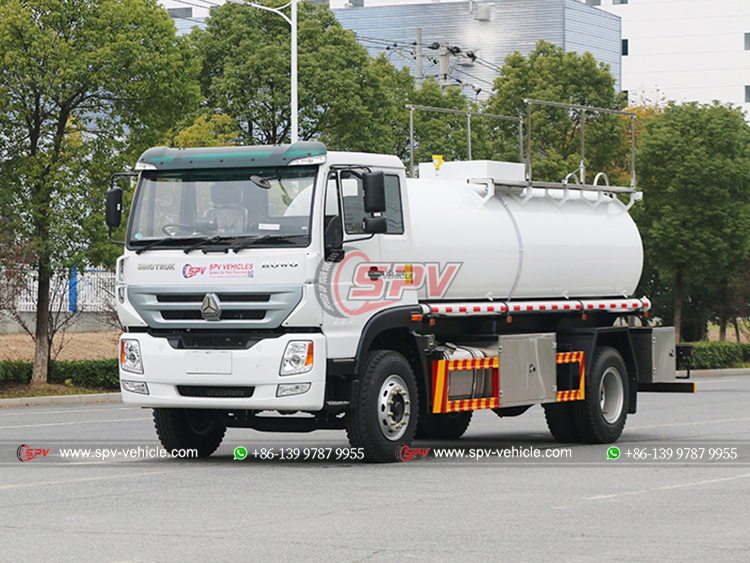

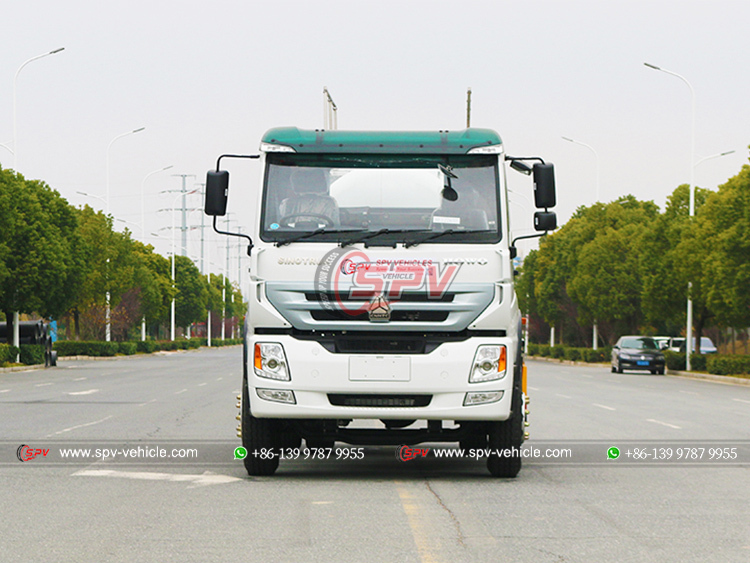

| HOWO Medium Duty Alkali Transport Tanker - Front | HOWO 6 Wheels Corrosive Liquid Transport Truck - Front Left |
 |
 |

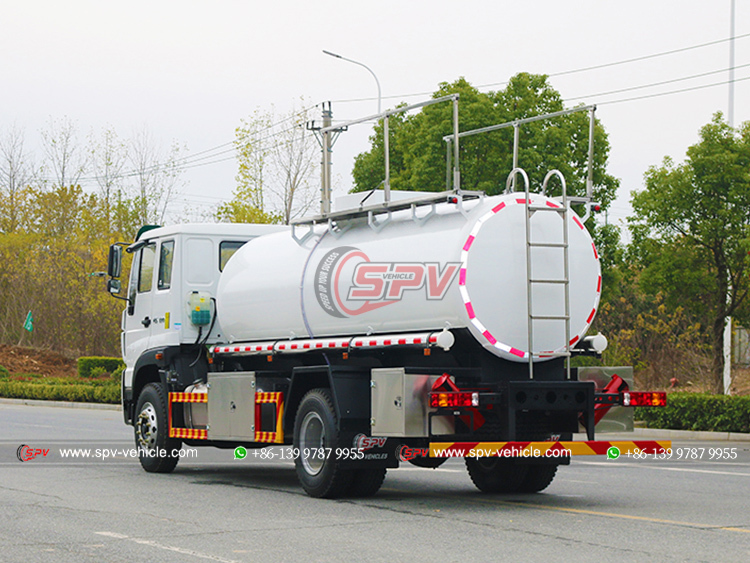

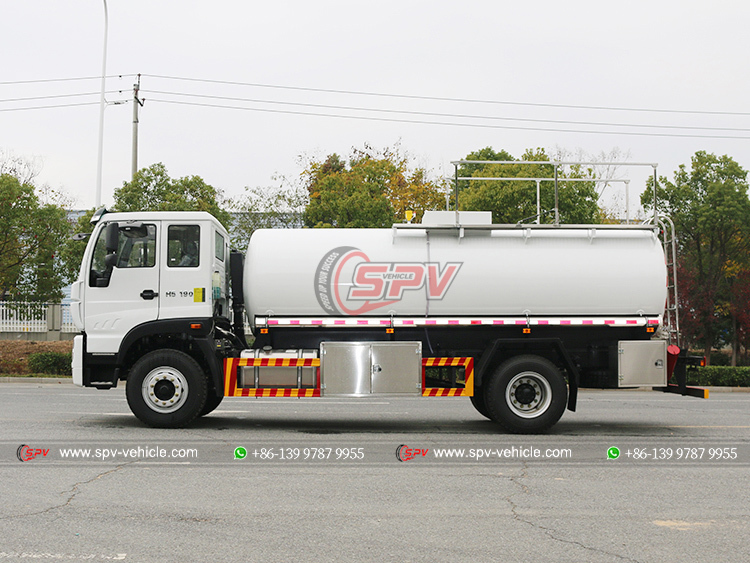

| HOWO 4x2 Dangerous Liquid Carrying Truck - Left | HOWO 10,000L Stainless Steel Chemical Lorry - Rear Left |
 |
 |

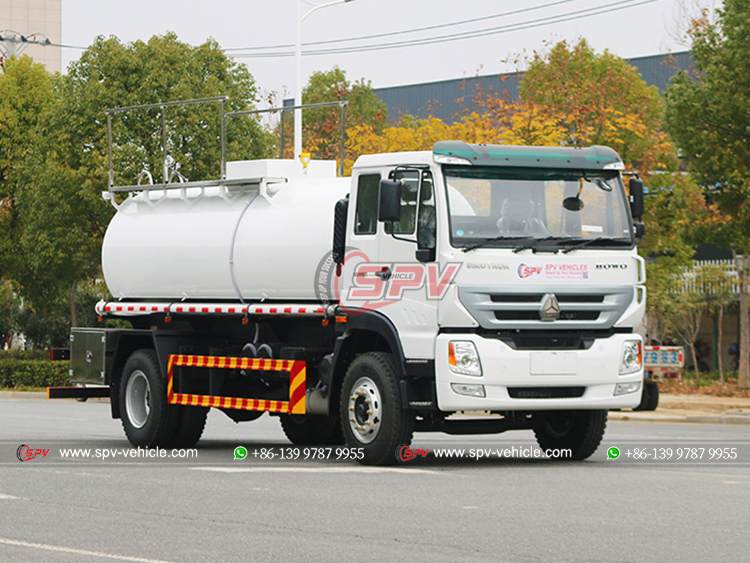

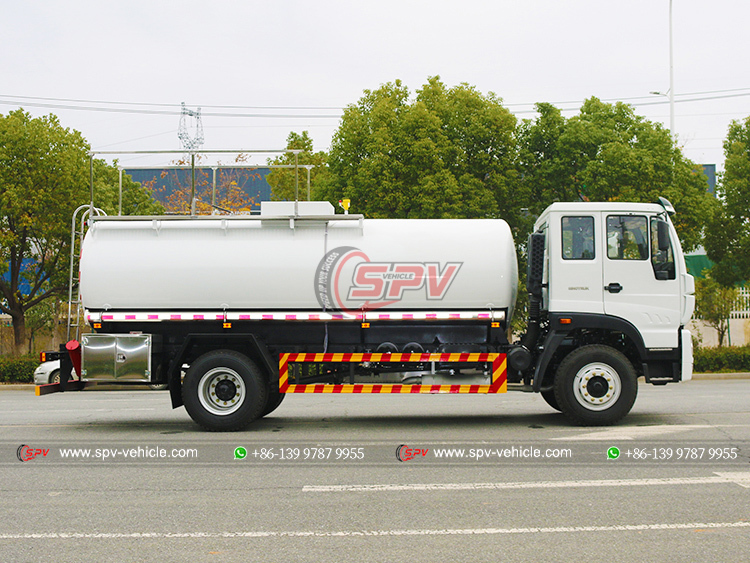

| HOWO 4x2 Liquid Chemical Truck - Front Right | HOWO 10,000L Industrial Chemical Tanker - Right |
 |
 |

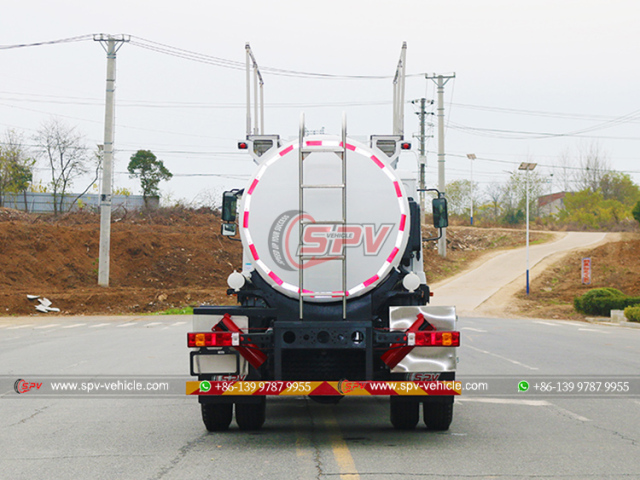

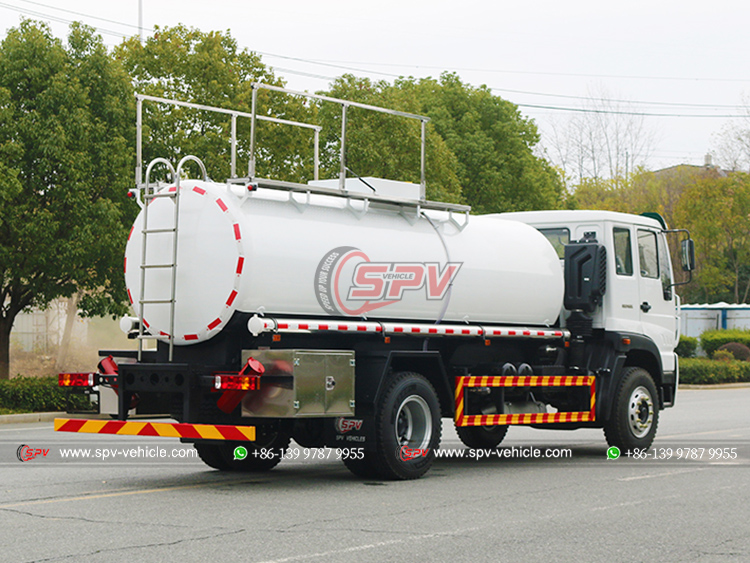

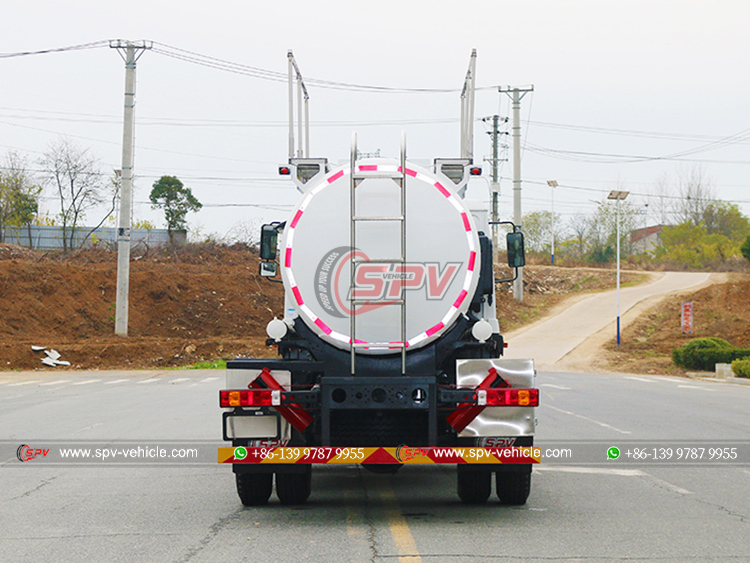

| HOWO Stainless Steel Chemical Tanker Truck - Rear Left | SINOTRUK 10,000L Chemical Distribution Truck - Rear |
 |
 |

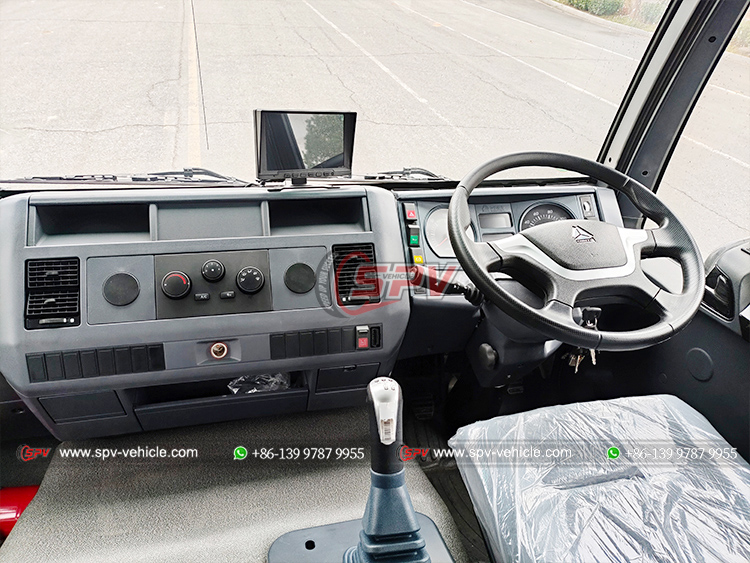

| Cabin of HOWO 10,000L Chemical Tank Truck | Clients Visited SPV for Pre-inspection |
