Name: JMC Vacuum Sweeping Truck
Brand: SPV-Vehicle - A Professional Special Purpose Vehicle Manufacturer from

Function:
Vacuum sweeping truck (also called road sweeper, street sweeper, road clean truck, street sweeper truck, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle, road vacuum truck, sanitation sweeping truck) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.

Features:
---- JMC chassis, perfect performance.
---- JMC engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.

Specification:

Vacuum Sweepping Truck JMC (5 CBM)
General	Vehicle Brand	SPV
	Chassis Brand	JMC
	Overall Dimension	7000 * 2100 * 2430 mm
	GVW / Kerb Weight	7,300kg / 5,300kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	JMC
	Power	109 Ps (80 KW)
	Displacement	2771 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 5 speed forward, 1 reverse
	No. of Axles	2
	Tyre Specification	7.00R16.5 LT10PR
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Metallic paint
Superstructure	Dustbin Material	Stainless Steel
	Dustbin Capacity	5 CBM
	Sweeping Capacity	45,000 -90,000m³/h
	Sweeping Speed	3-25 km/h
	Max Sweeping Width	2800-3200mm
	Brooms	2 sets at each side
	Auxiliary Engine	JMC engine
	Vacuum	Created by powerful air blower driven by auxiliary engine
	Suctions	Wet suction and dry suction Middle suctions
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional	Backup alarm can be equipped. Camera can be equipped. ** Air blower can be of stainless steel.

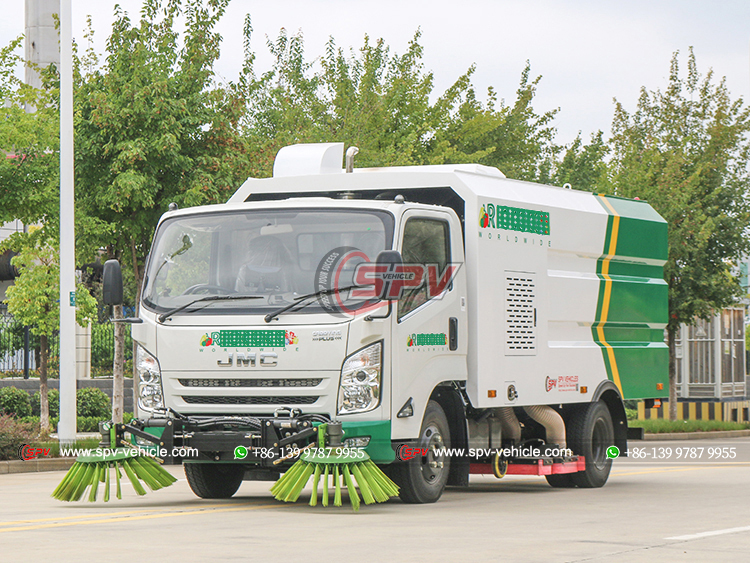

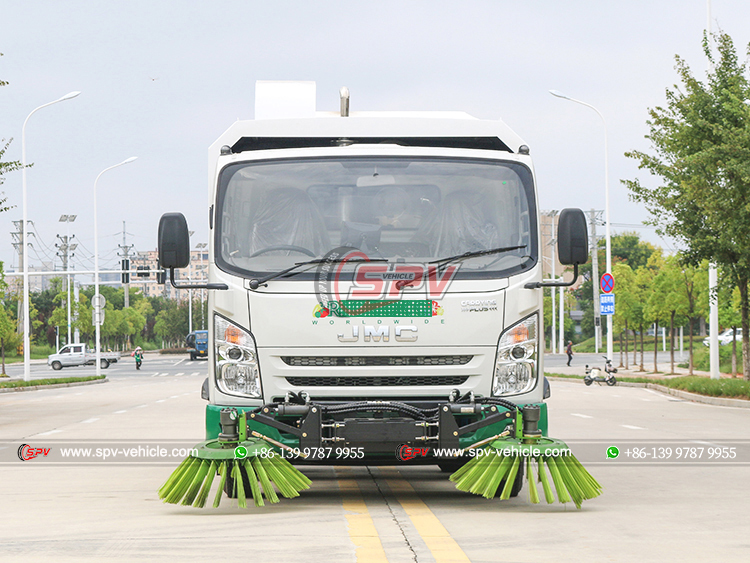

JMC Light Vacuum Truck with Broom - Front	JMC 5CBM Vacuum Sweeping Truck - Front Left

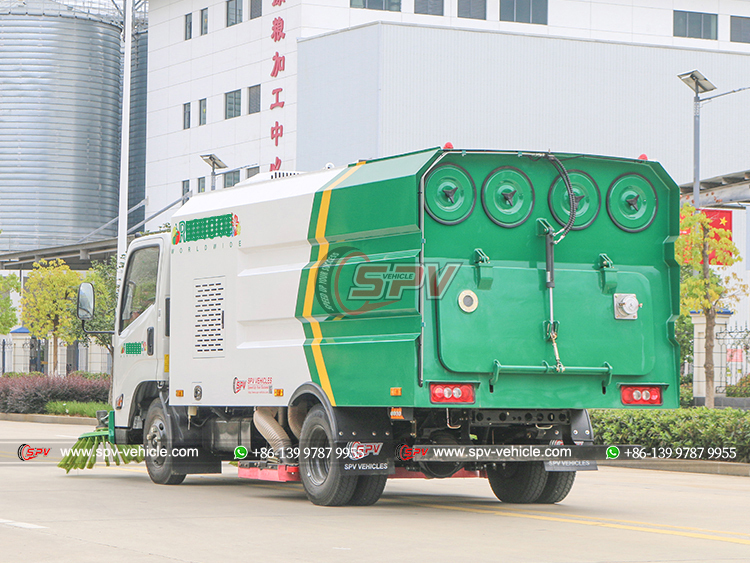

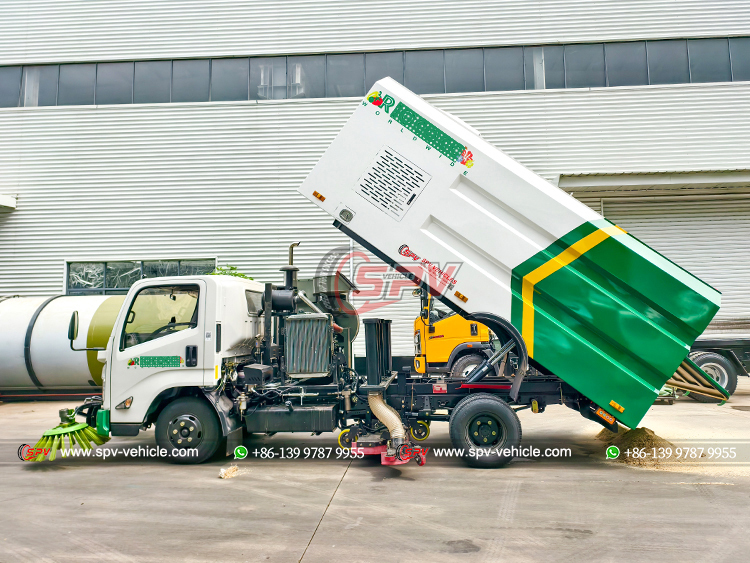

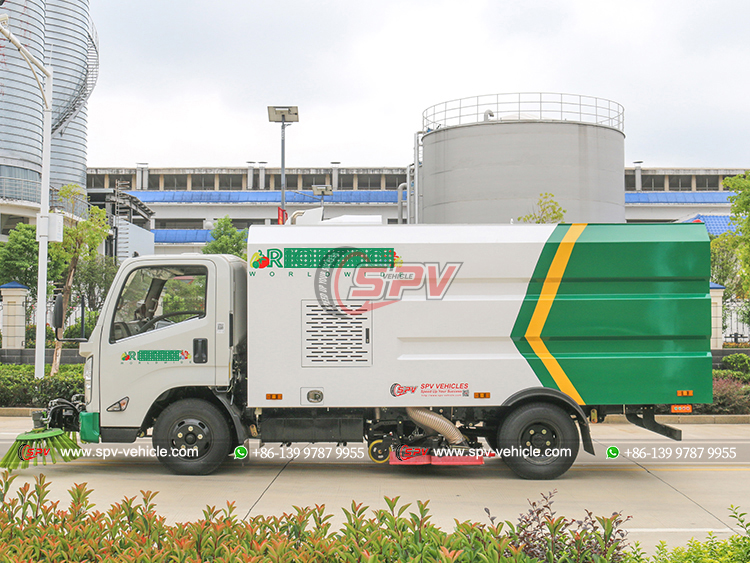

JMC 5CBM Powder Collection Truck With Broom - Left	JMC 5CBM Debris Vacuum Truck - Rear Left

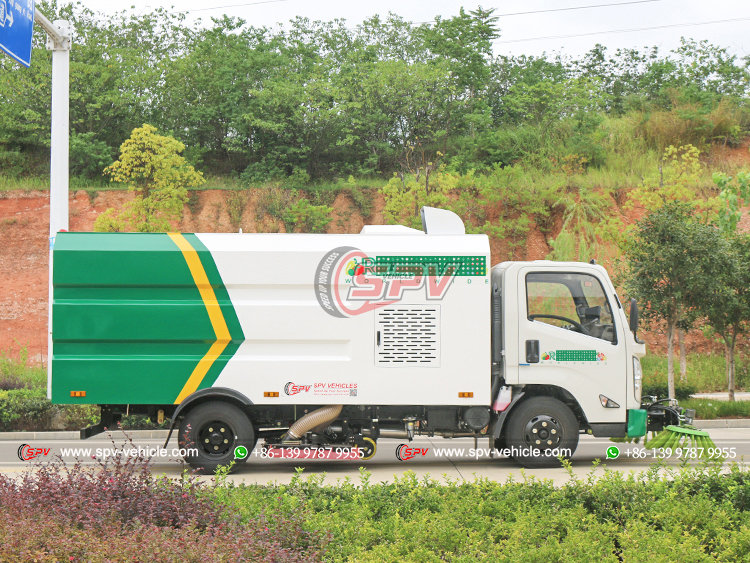

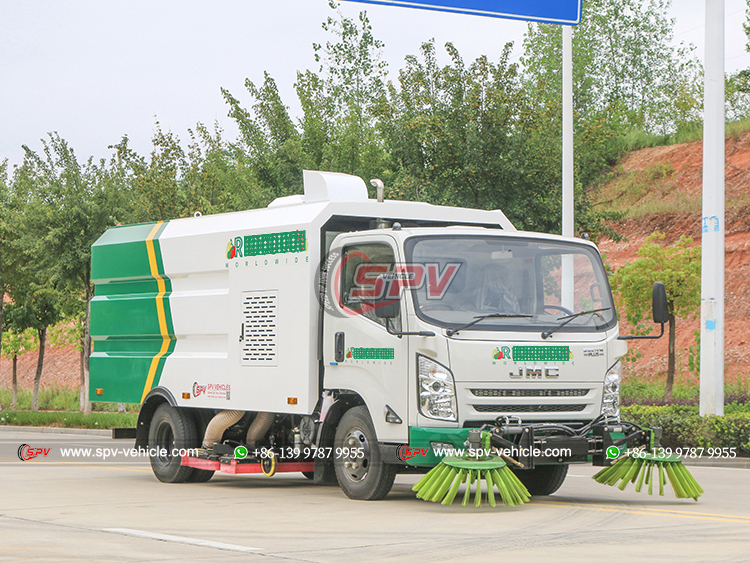

JMC 5CBM Road Sweeper Truck - Front Right	JMC 5CBM Street Sweeping Truck - Right

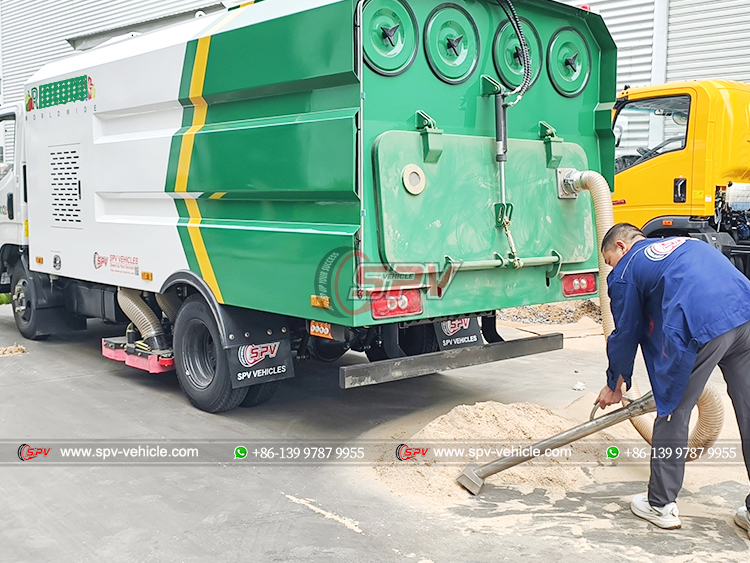

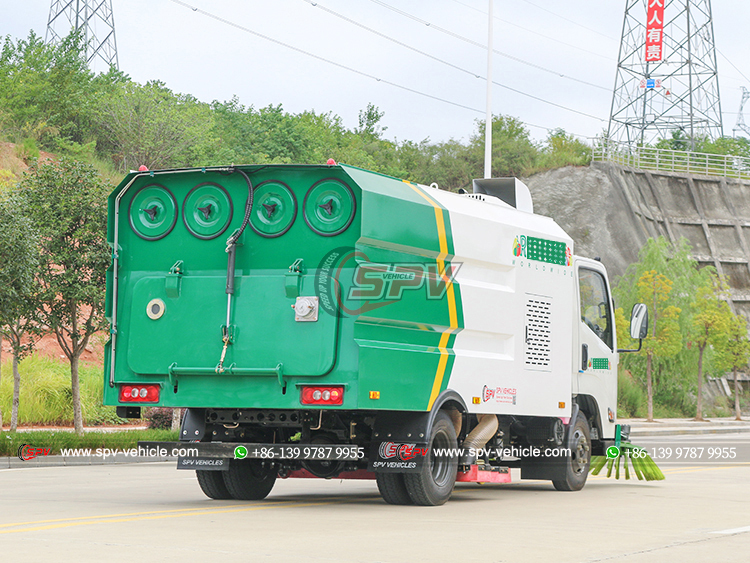

JMC 4X2 Road Vacuum Truck with Broom - Rear Right Side	JMC 5CBM Sweeper Vacuum Truck - Suction Powder Testing

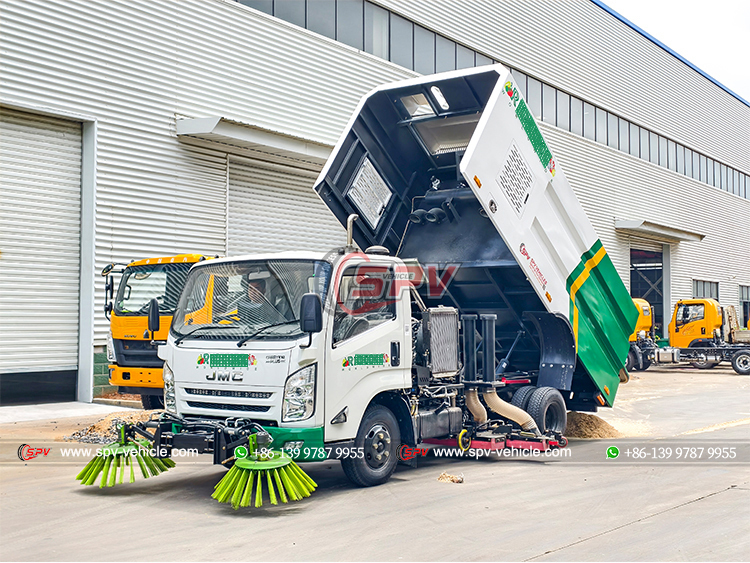

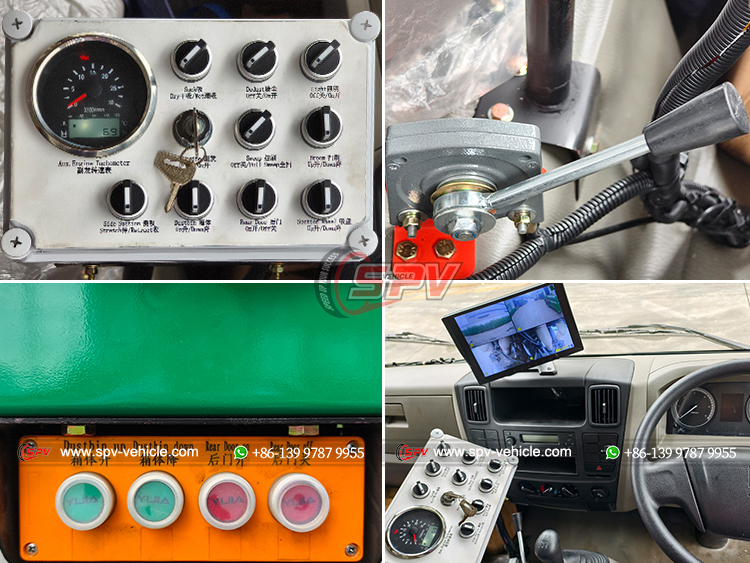

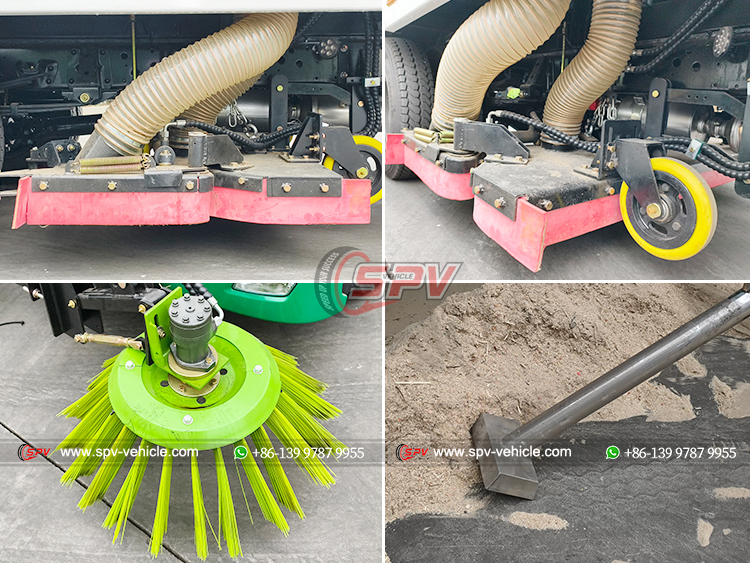

JMC 5CBM Powder Removal Truck - Broom Details	JMC 5CBM Dust Vacuum Truck Equippments Show
