Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Rubbish Collection Truck ISUZU (5 m³ garbage truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | JAC | |
| Overall Dimension | 9000 X 2050 X 3000 mm | |
| GVW / Kerb Weight | 12,600 kg / 6,100 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | YUCHAI engine | |
| Power | 130 Ps (96 KW) | |
| Displacement |
4214 ml | |
| Emission Standard |
Euro II | |
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 5-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
9.00R20 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
5 m³ |
| Waste Box Material |
Anti-corrosive steel | |
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic Pressure | 16 Mpa | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

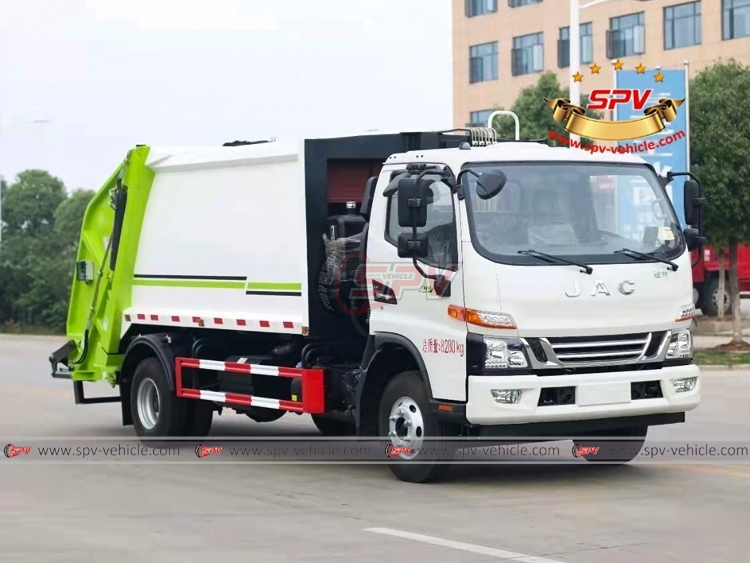

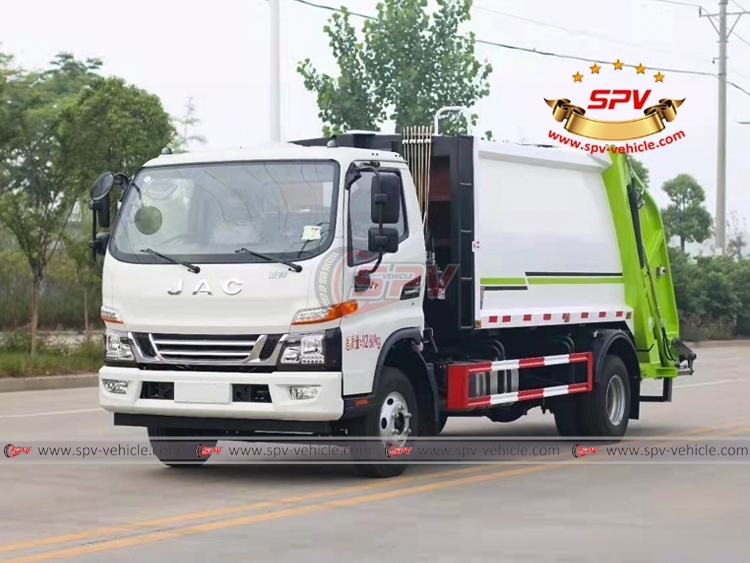

| JAC 5 CBM Garbage Collection Lorry - Front Left | JAC 5 CBM Rubbish Hauling Truck - Front Right |
