Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

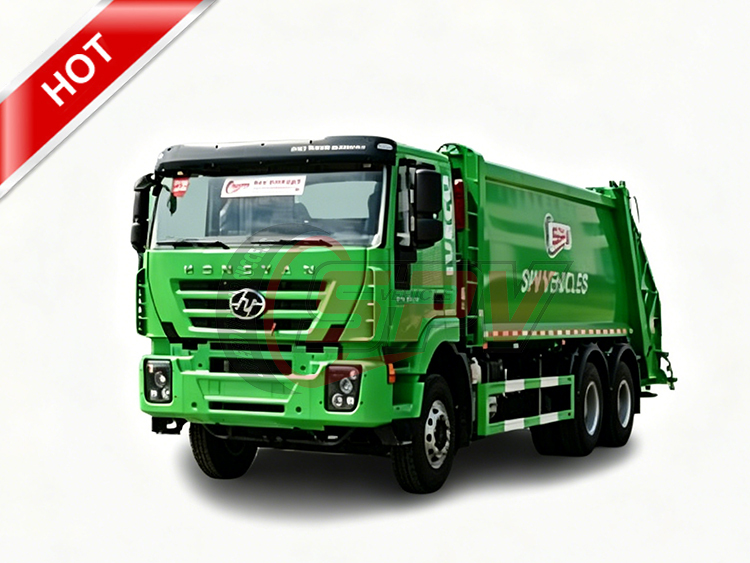

| Rubbish Delivery Truck IVECO (20 m³ urban waste collection truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | IVECO | |
| Overall Dimension | 10150 X 2540 X 3290 mm | |
| GVW / Kerb Weight | 25,000 kg / 15,580 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | IVECO CURSOR engine | |
| Power | 340 Hp (249 KW) | |
| Displacement |
8709 ml | |
| Emission Standard |
Euro III |
|
| Chassis | Drive Type |
6X4, right hand drive |
| Transmission |
Manual, 9-speed forward & 1 reverse |
|
| No. of Axles |
3 |
|
| Tyre Specification |
12.00R20 |
|
| Tyre Number |
10 tyres and 1 spare tyre | |
| Max Speed |
85 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
20 CBM |
| Waste Box Material |
Carbon steel | |
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| 1: Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of loading mechanism. | ||
| 2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. | ||
| Optional | 3: With working device of emergency braking stop button. | |
| 4: Garbage body use frame design, elegant, strong structure, large effective capacity. | ||
| 5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||
| 6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600～800kg／m3 after compression. | ||
| 7: All other standard accessories: Tool kit, English manual… | ||
 |
 |

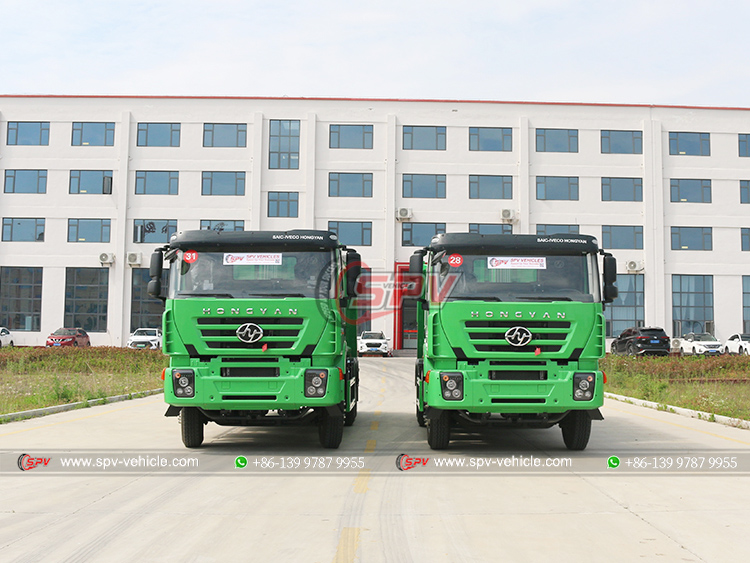

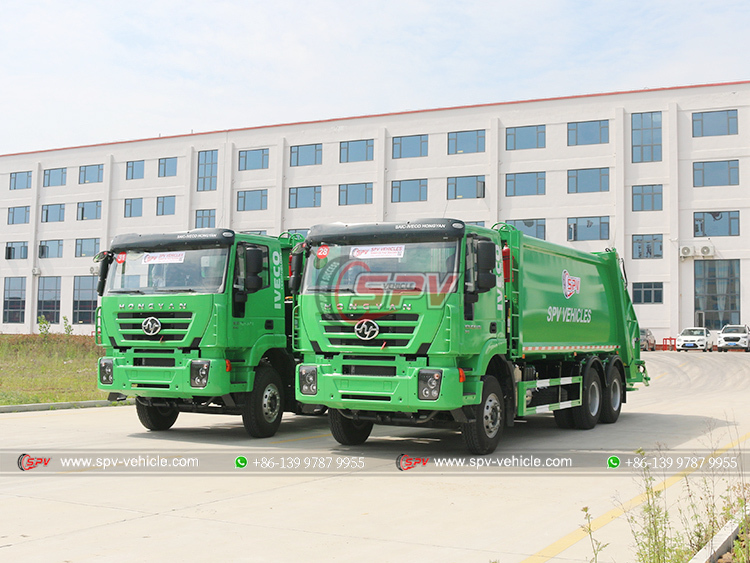

| 20 CBM Garbage Truck for Waste Management Station - Front | IEVCO 20 CBM Soild Waste Delivery Truck - Front Left |
 |
 |

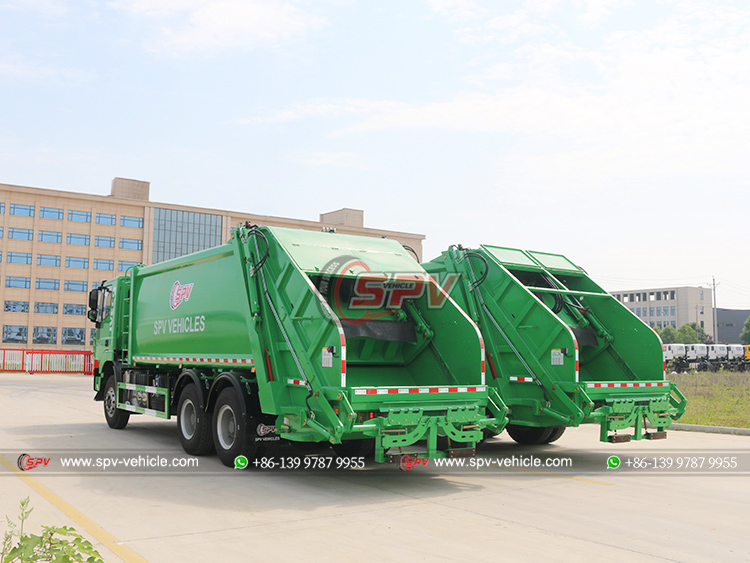

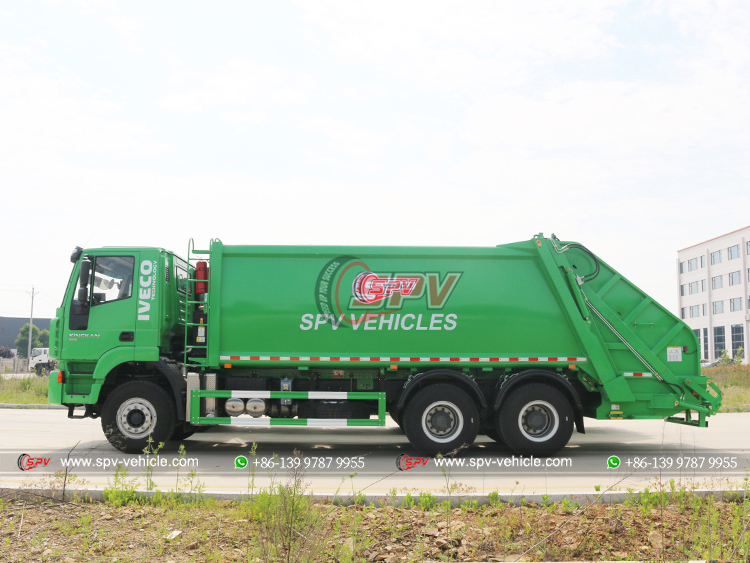

| Customized Compressd Garbage Trucks - Left Side | IEVCO 20 CBM Rubbish Hauling Truck - Rear Left |
 |
 |

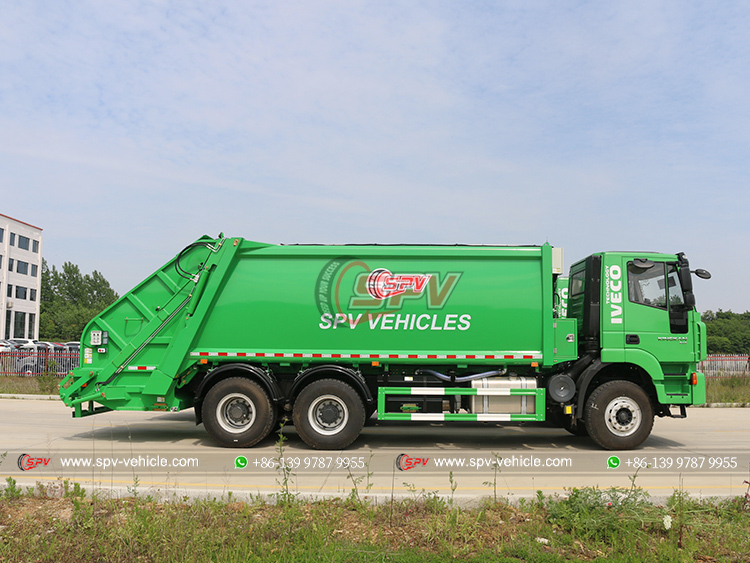

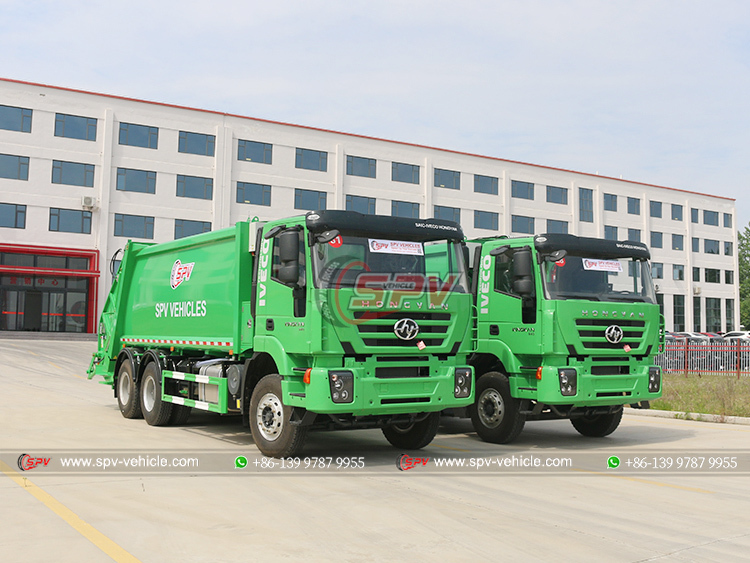

| IEVCO Municipal Solid Waste Collection Truck - Front Right | IEVCO 20CBM Garbage Disposal Truck - Right |
 |
 |

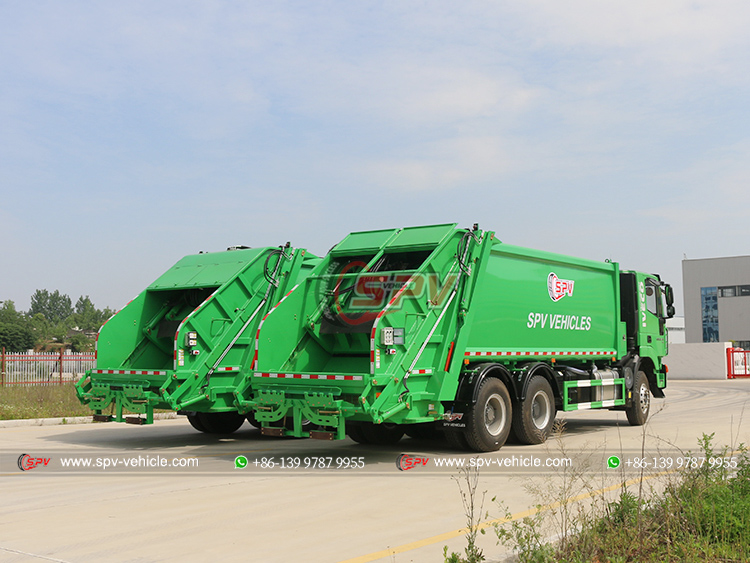

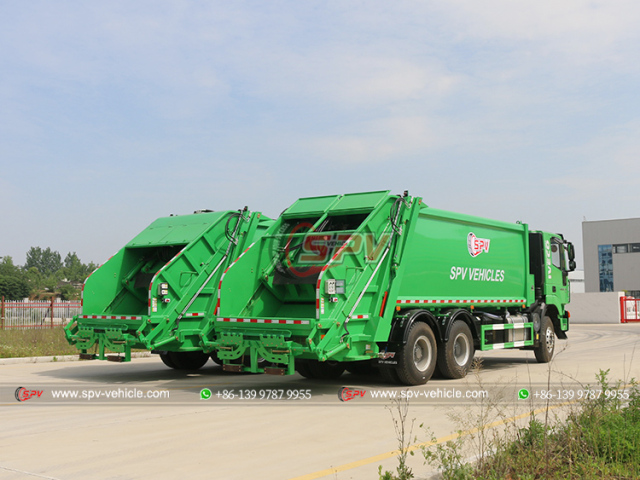

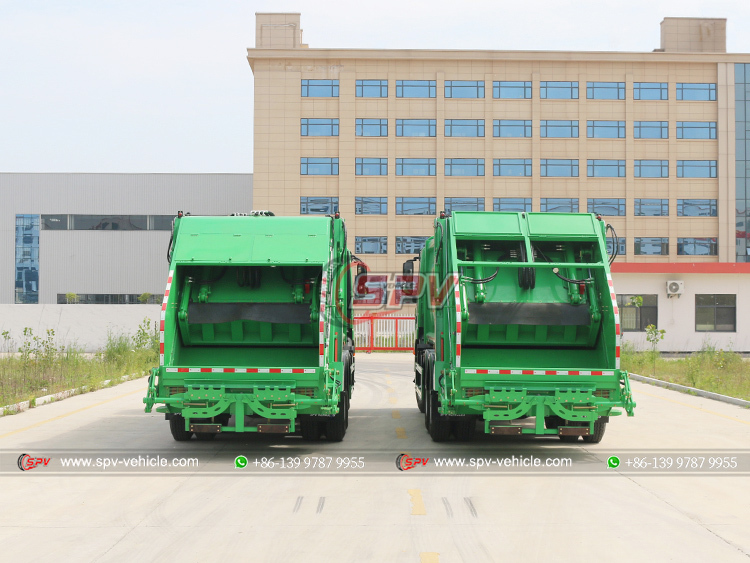

| SPV 20 CBM Junk Collection Truck - Rear Right | 20 CBM Urban Solid Waste Collection Truck - Rear |
 |
 |

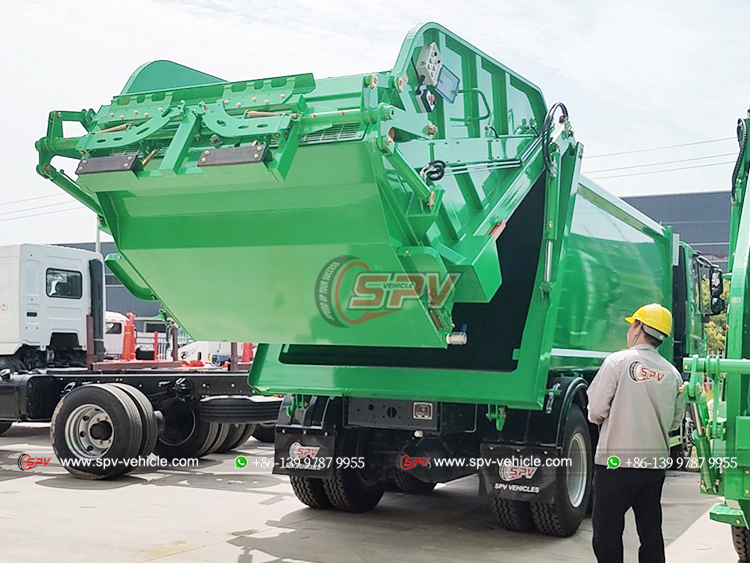

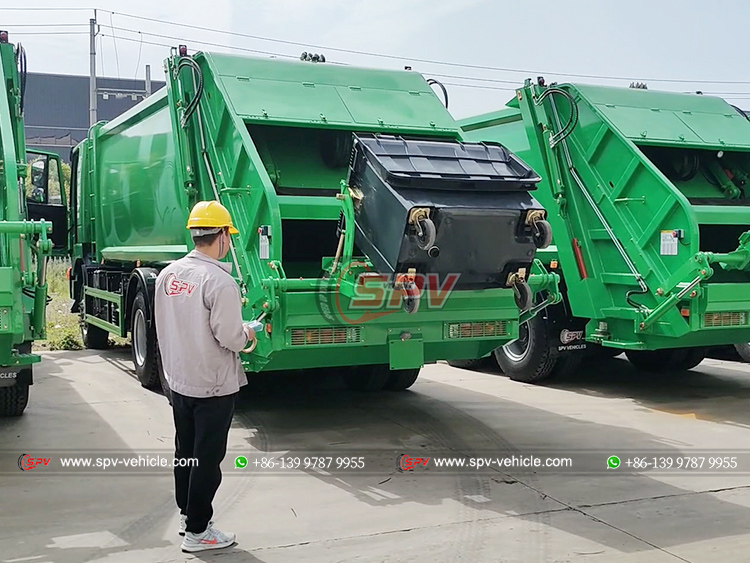

| Compactor Body Working Test | Laoding Dustbin (1100 ml) Test |
 |
 |

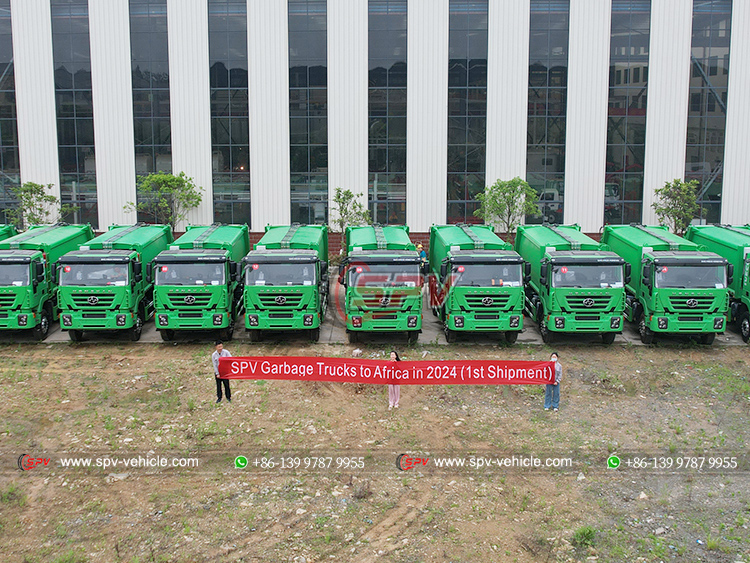

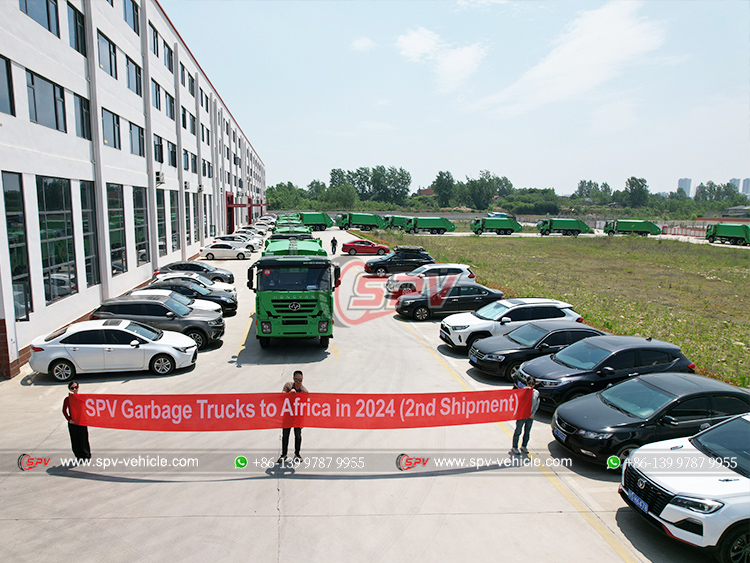

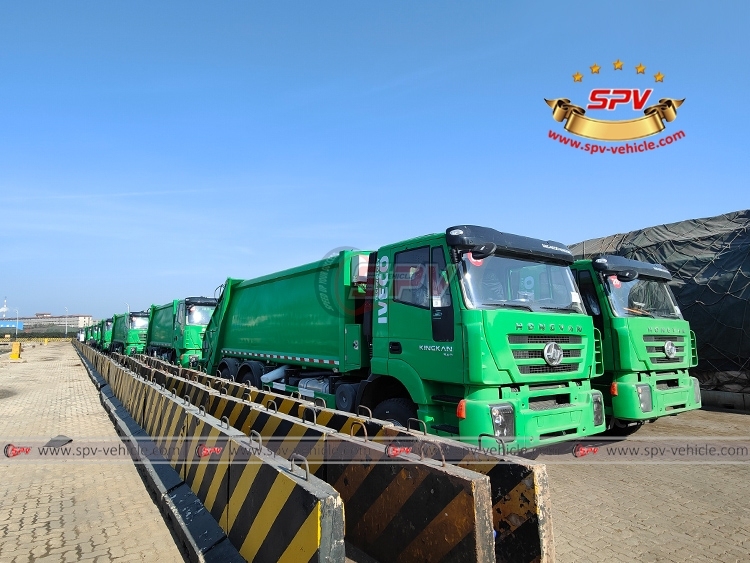

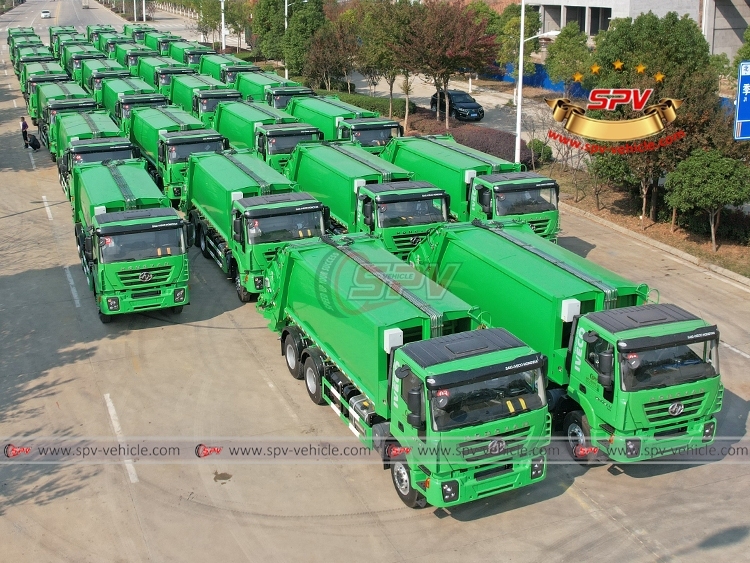

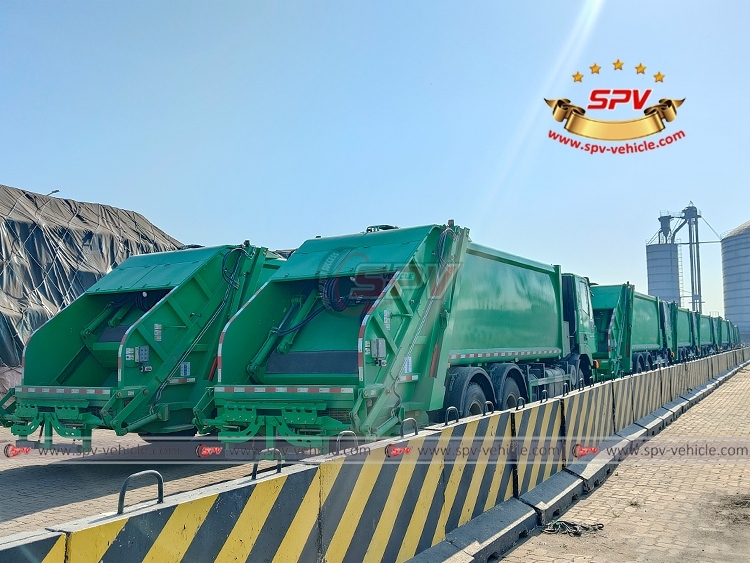

| SPV Dispatched 15 Units of Trash Compactor Trucks to Gabon in 2024 | SPV Dispatched 16 Units of Garbage Trucks to Gabon in 2024 |
 |
 |

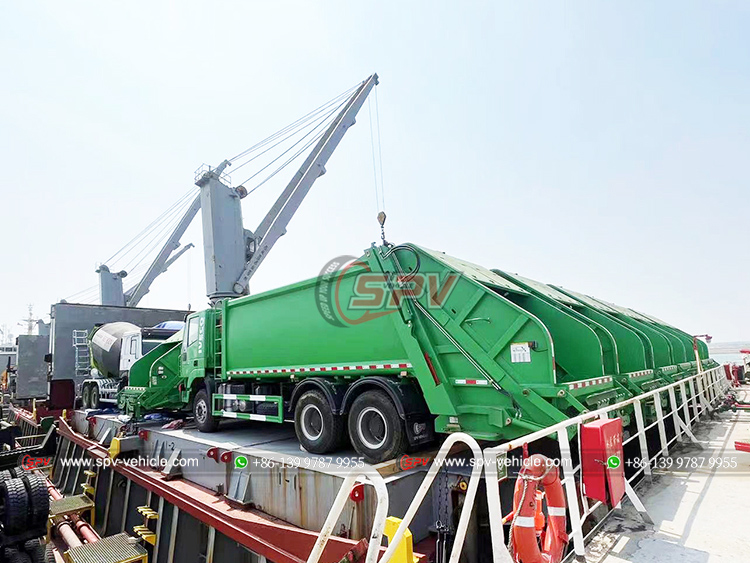

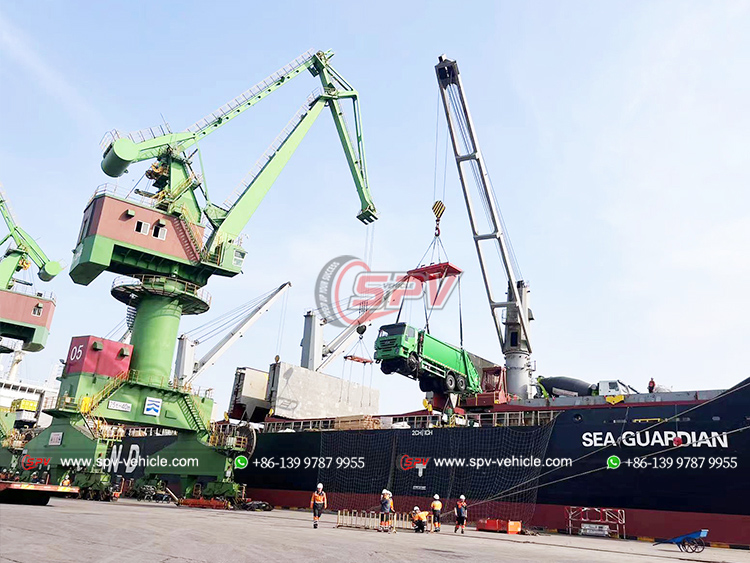

| SPV 20 CBM Garbage Compactor Truck Loaded Into Bulk Vessel | 16 Units of Municipal Waste Trucks Loaded Onto Bulk Vessel |
