Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

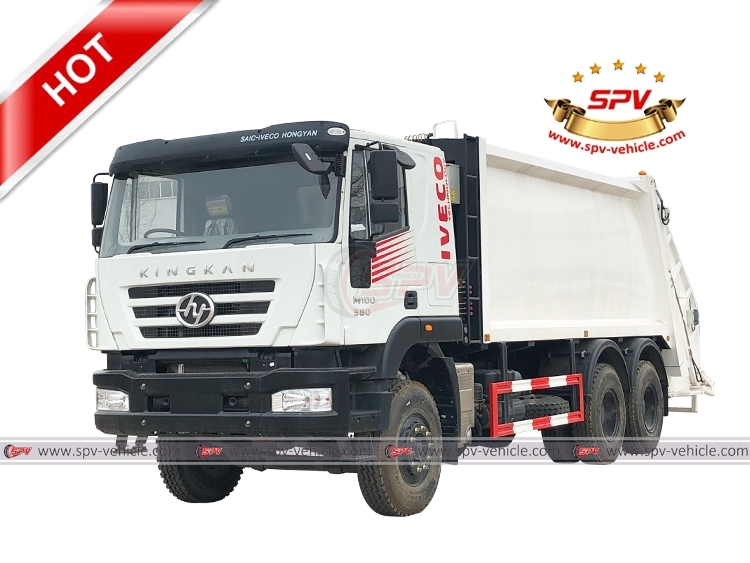

| Rubbish Compressing Truck IVECO (18 m³ solid waste collection truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | IVECO | |
| Overall Dimension | 10430 X 2550 X 3450 mm | |
| GVW / Kerb Weight | 25,000 kg / 14,505 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CURSOR engine | |
| Power | 380 Hp (279 KW) | |
| Displacement |
8709 ml | |
| Emission Standard |
Euro III |
|
| Chassis | Drive Type |
6x4, right hand drive |
| Transmission |
Manual, 9-speed forward & 1 reverse |
|
| No. of Axles |
3 |
|
| Tyre Specification |
12.00R20 | |
| Tyre Number |
10 tyres and 1 spare tyre | |
| Max Speed |
85 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure and Optional |
Waste Box Capacity |
18 CBM |
| Waste Box Material |
Carbon steel | |
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| 1: Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of loading mechanism. | ||
| 2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. | ||
| 3: With working device of emergency braking stop button. | ||
| 4: Garbage body use frame design, elegant, strong structure, large effective capacity. | ||
| 5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||
| 6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600～800kg／m3 after compression. | ||
| 7: All other standard accessories: Tool kit, English manual… | ||
 |
 |

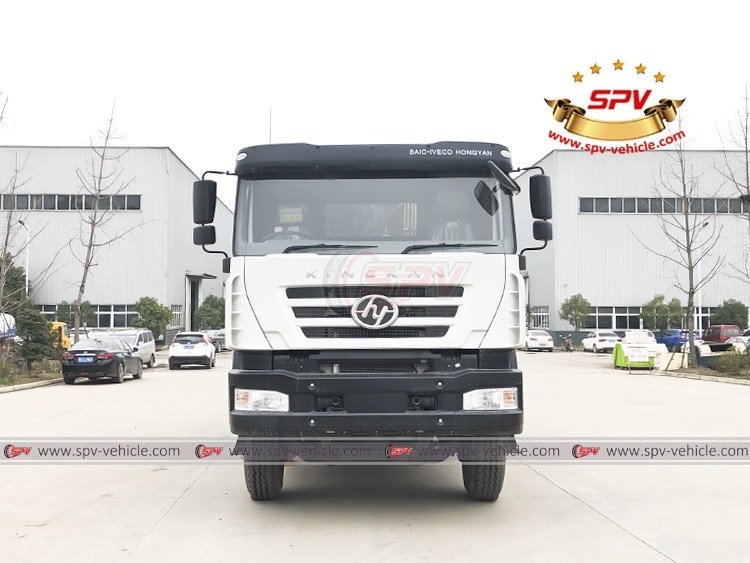

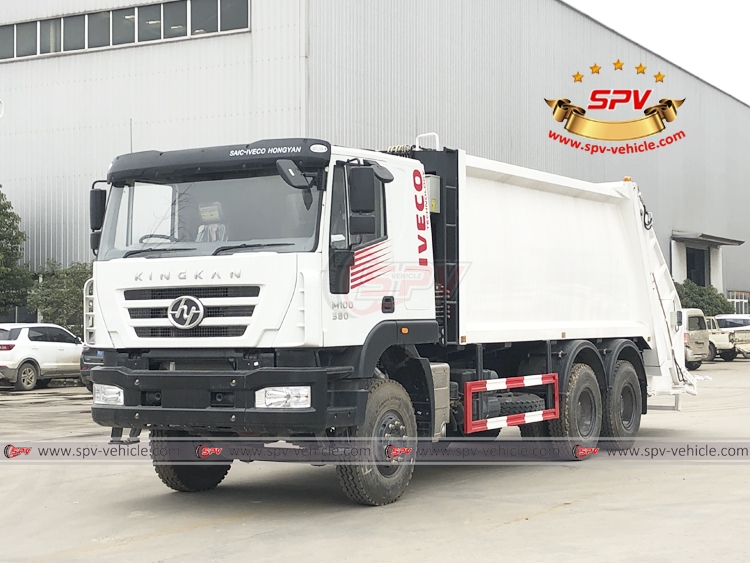

| IVECO 6x4 Rubbish Compactor Truck - Front | IVECO 6x4 Rubbish Compressed Truck - Front Left |
 |
 |

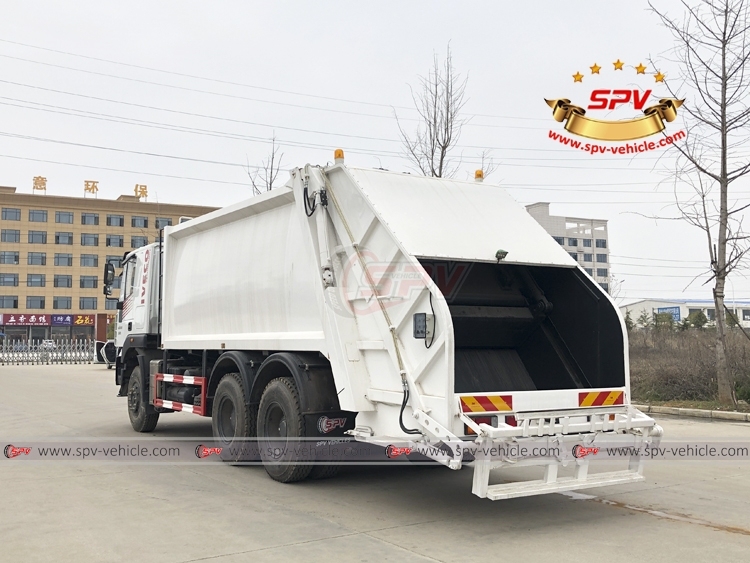

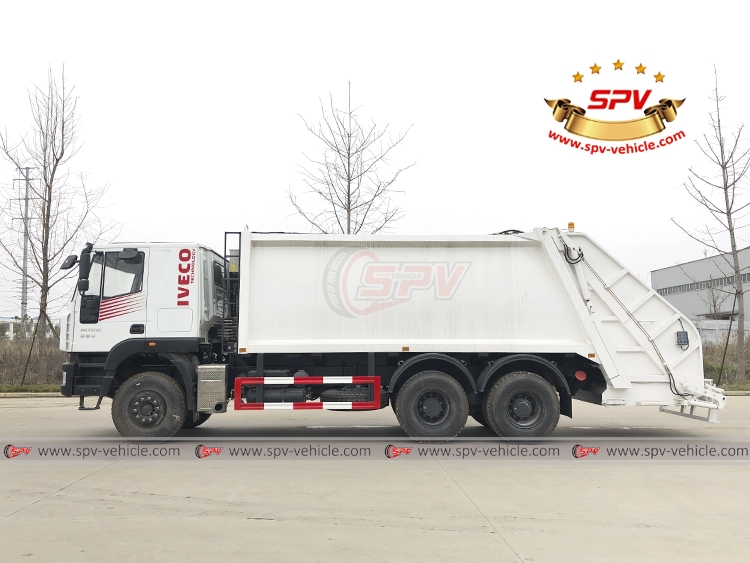

| IVECO 6x4 Trash Transfer Truck - Left | IVECO 6x4 Trash Collection Truck - Rear Left |
 |
 |

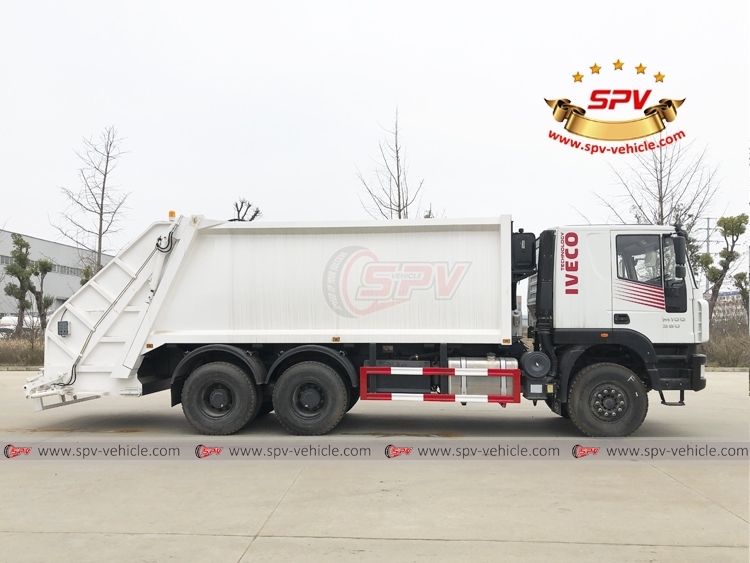

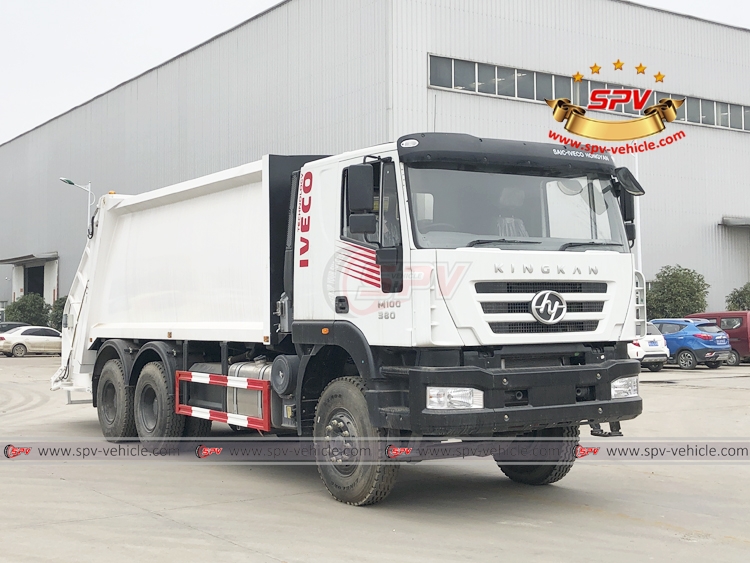

| IVECO 18 CBM Rubbish Transport Truck - Front Right | IVECO 18 CBM Garbage Transport Truck - Right |
 |
 |

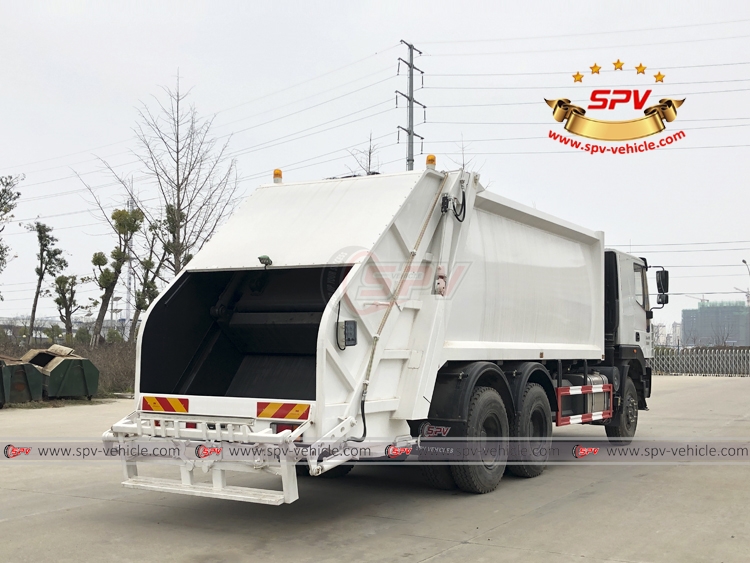

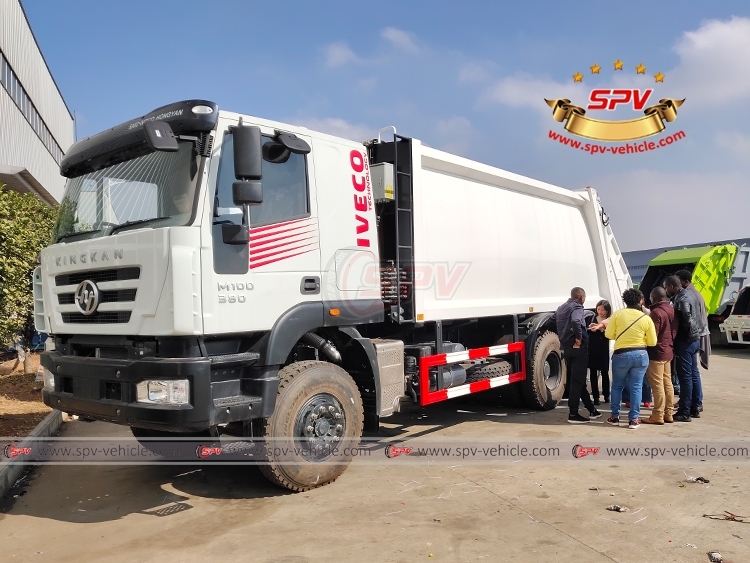

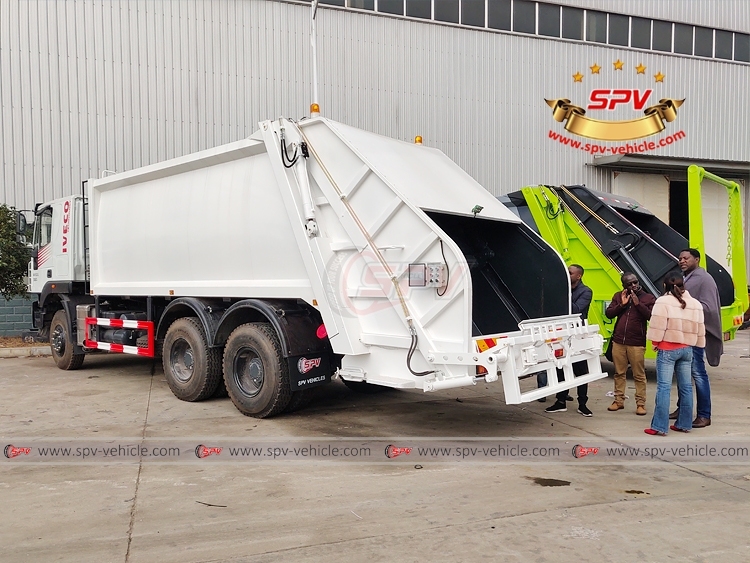

| IVECO 18 CBM Trash Delivery Truck - Rear Right | Zambia Clients on-site Inspection in SPV Factory |
