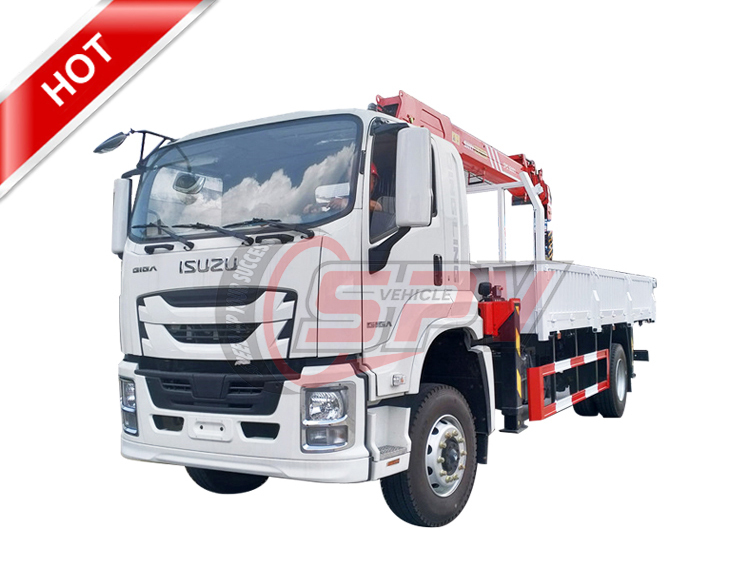

Name: ISUZU Telescopic Crane Truck
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Telescopic crane truck (also called unic crane, cargo truck crane, hydraulic crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.

Specitfication:

Telescopic Crane Truck ISUZU ( 10 tons cargo crane truck )
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	9850 * 2540 * 3920 mm
	GVW / Kerb Weight	18,000 kg / 9,300 kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	240 Ps (176 KW)
	Displacement	11.2L
	Emission Standard	Euro VI
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 6-speed front, 1-reverse
	No. of Axles	2
	Tyre Specification	11R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	6800 X 2500 X 450 mm
	Crane Brand	XCMG / SANY
	Max Lifting Capacity	10 T
	Lifting Capacity @ Working Radius	10000 kg @ 2.50 m; 5500kg @ 4.50 m; 3200 kg @ 7.00 m; 2300kg @ 9.00m 1500 kg@12.0 m
	Max. Lifting Moment	25 T.M
	Max. Lifting Height	13.2 m
	Max. Working Radius	12 m
	Slewing Angle	360°all rotation
	All other standard accessories: Tool kit, English manual
Optional	Hydraulic tipper box is optional. Box thickness according to requirement. ** Box height could be nominated.

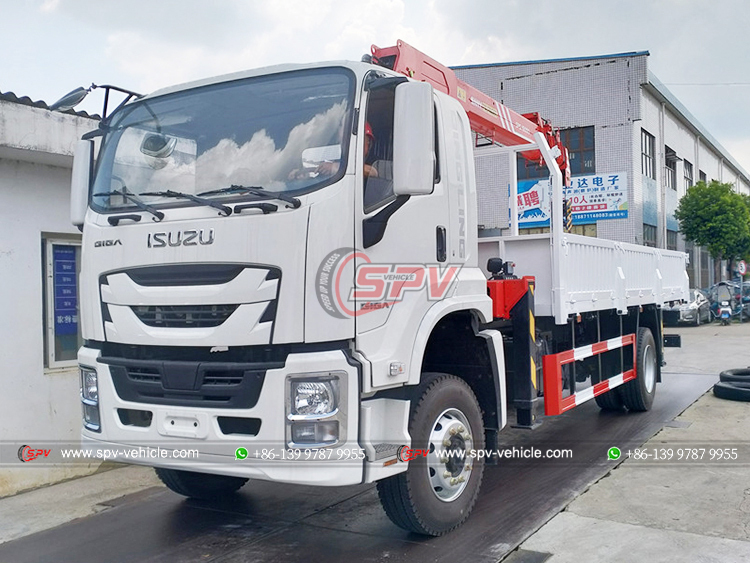

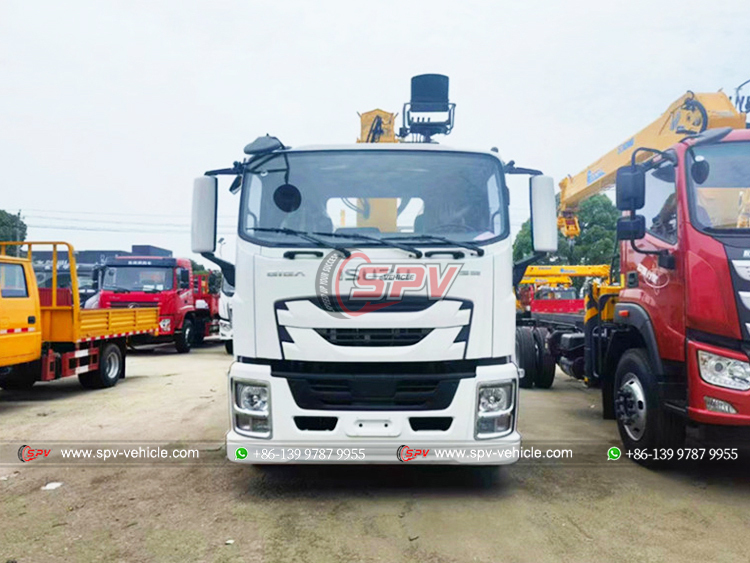

ISUZU 4x2 Hydraulic Crane Truck - Front	ISUZU GIGA 4x2 Cargo Truck Mounted Crane - Front Left

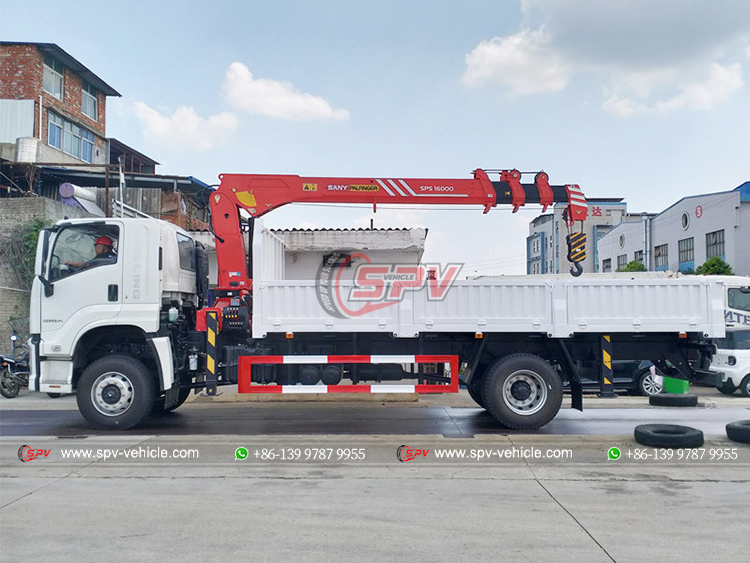

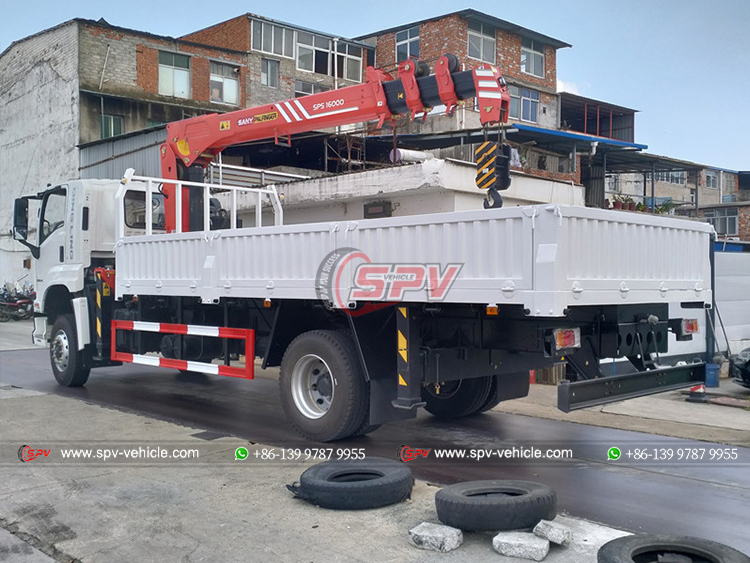

ISUZU Cargo Truck With Crane - Left	ISUZU 6 Wheeler Crane-equipped Truck - Rear Left

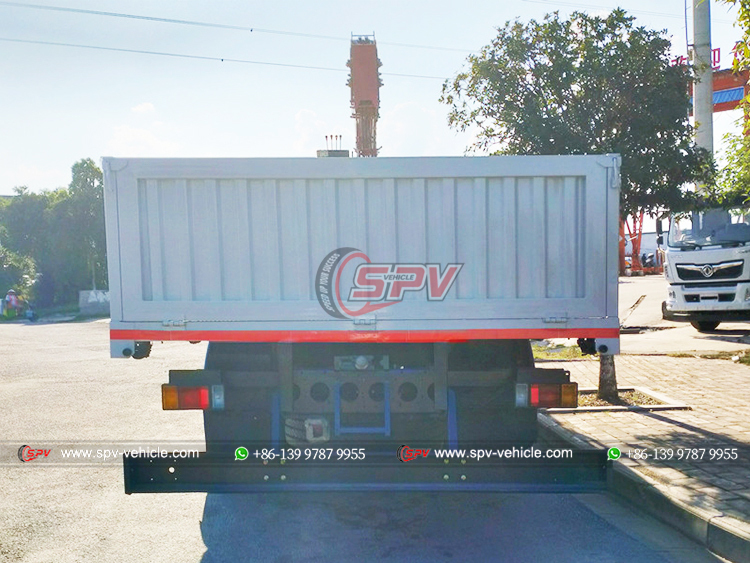

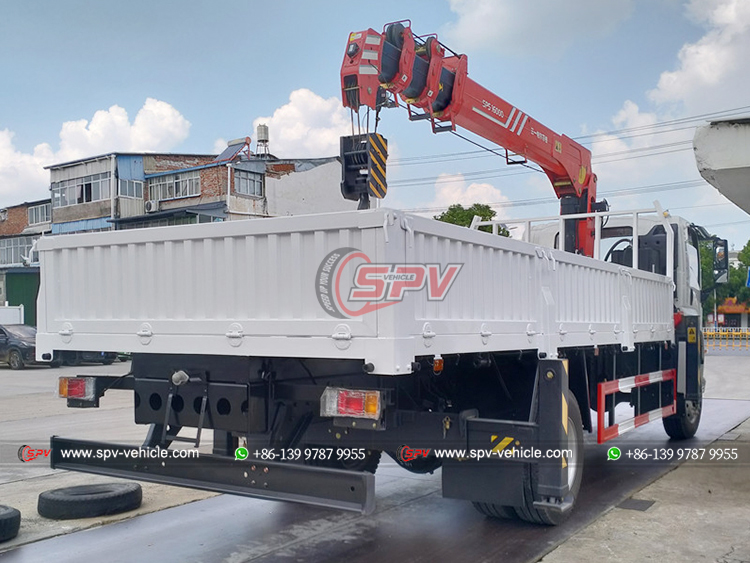

ISUZU 4x2 Crane Truck - Rear Right	ISUZU Heavy-duty Crane Vehicle - Right
