Function:
Crash-proof Buffer Truck (also called Anti-collision buffer truck, anti-collision buffer truck, truck mounted impact attenuator, traffic crash proof truck mounted attenuator, ISUZU collision attenuator truck, anti-collision buffer vehicle, highway safety warning truck, traffic attenuators vehicle, cargo truck with attenuator), is mainly used in highwayand tunel construction,the primary function of an attenuator truck is to safeguard road workers and vehicle occupants from the impact of a collision by reducing its severity. It has strong mobility and provides active warning and passive safety protection for road patrol and road construction safety.
The anti-collision buffer vehicle is a special vehicle designed for road construction and operations. It absorbs up to 70% of the induced energy through the rear anti-collision buffer energy-absorbing module (honeycomb aluminum material combined with arc structure), and can withstand the impact of a 2-ton vehicle at 80 or 100 km/h. It is equipped with an LED pointing screen, a burst light group and an electronic attention screen visible from 500 meters away to achieve multi-photon active early warning. The hydraulic system can complete the deployment of the buffer module within 22 seconds.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Specitfication:
ISUZU Crash-proof Buffer Truck
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
5995*2500*3900mm |
| GVW / Kerb Weight |
4,995 kg/ 4,505 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine |
| Power |
120 Hp(88 Kw) |
| Displacement |
2999 ml |
| Emission Standard |
Euro VI |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
Manual, 5 speed forward, 1 reverse |
| No. of Axles |
2 |
| Tyre Specification |
7.0R16 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
89 km/h |
| Paint |
Metallic paint |
| Superstructure |
Anti Collision Bag Model |
Cansinga-TMA 100K |
| Anti Collision Mass (T) |
2 |
| Bearing Capacity (T) |
8 |
| Trash Container Thickness |
Edge 2mm and Bottom 3mm |
| All standard accessories: tool kit, English Manuall…….. |
 |
 |

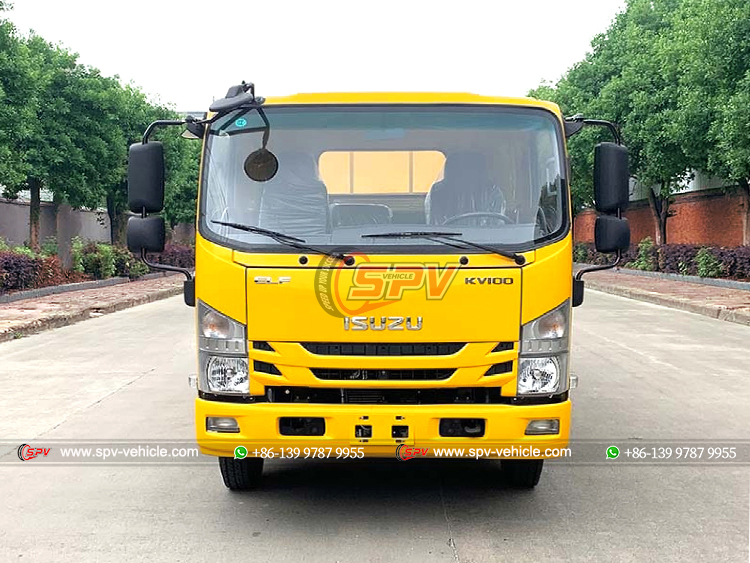

| Crash-proof Buffer Truck ISUZU KV100 - Front |

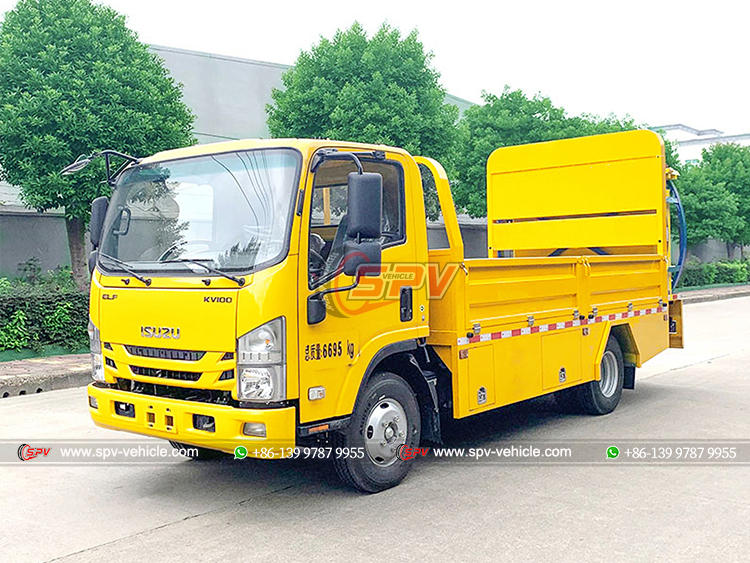

ISUZU KV100 Crash Proof Truck - Front Left |
 |
 |

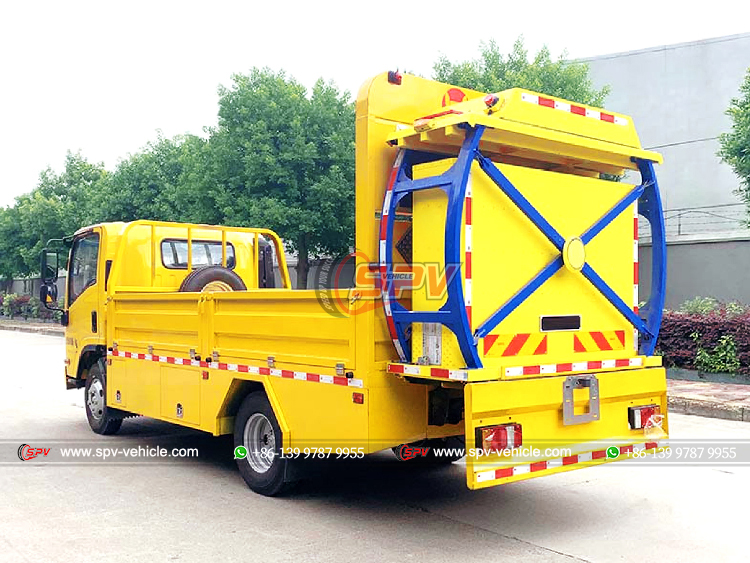

| ISUZU Highway Safety Warning Truck - Rear Left |

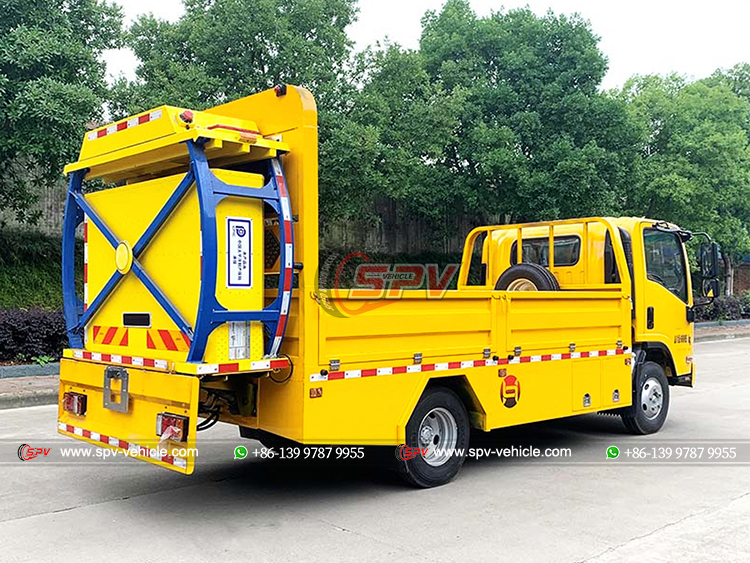

ISUZU Truck Mounted Attenuator Collision Avoidance System - Rear Right |
 |
|

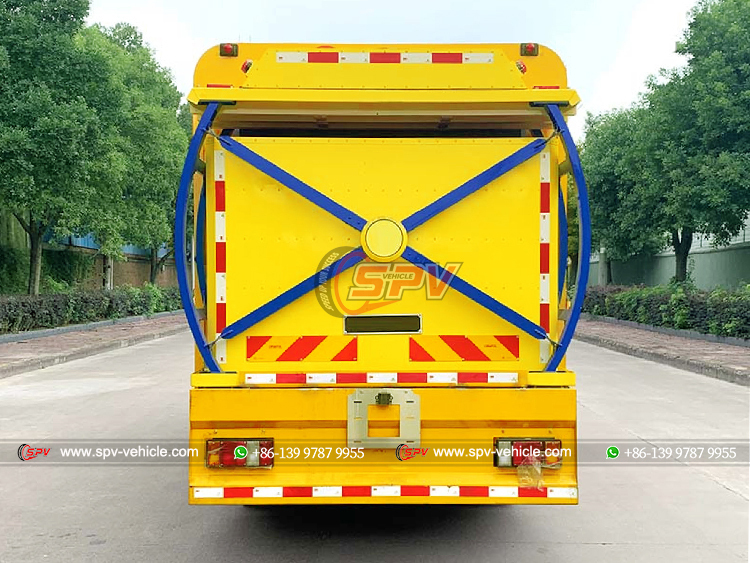

| ISUZU KV100 Traffic Attenuators Vehicle - Rear |
|
