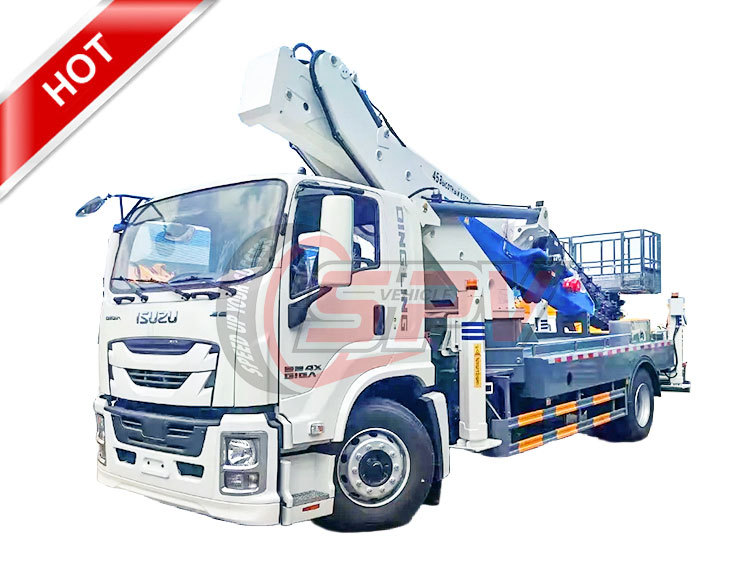

Name: ISUZU Articulated Aerial Work Platform
Brand: SPV Group Limited.
Rating: 5 (1 reviews)

Function:
Articulated Aerial Work Platform (also called Articulating boom lift, Jointed boom lift, Knuckle boom lift, Telescopic-articulated lift, Mobile articulated platform, Elevated work platform (articulated), Articulated cherry picker, Hydraulic boom lift, Multi-joint aerial lift, Articulated access platform, Construction boom lift, High-reach articulated lift, Telescopic knuckle lift, Articulated scissor lift (if hybrid), Industrial boom lift,etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

SPV telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specitfication:

Articulated Aerial Work Platform ISUZU
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	7550 x 2300 x 3350 mm
	GVW / Kerb Weight	25,000 kg/9,800 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	240 Ps (176 KW)
	Displacement	5193 ml
	Emission Standard	Euro V
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 5-forward speed & 1 reverse
	No. of Axles	2
	Tyre Specification	235/78R17.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Automative metallic paint
Superstructure	Cage Rated Capacity	400 kg
	Working Height	28 m
	Beam	The beam is articulated & telescopic extension type, hydraulic actuated and controlled
	Slewing	Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
	Control	Control both on the ground and remote control in cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system

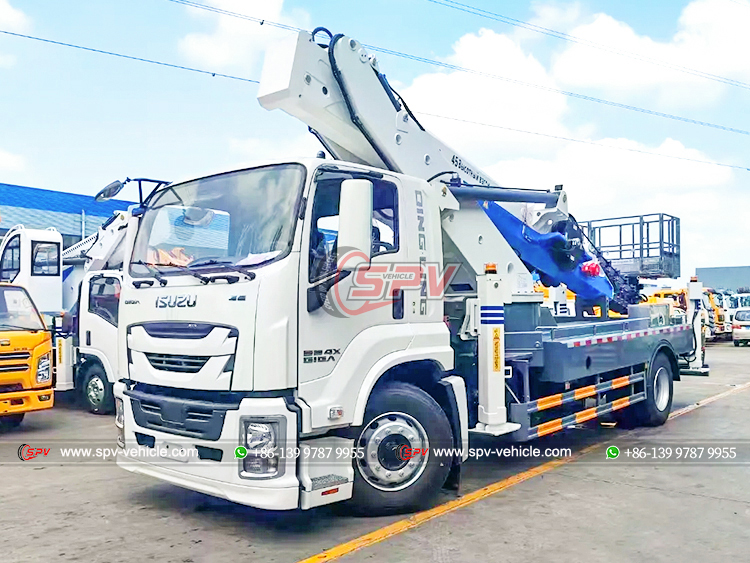

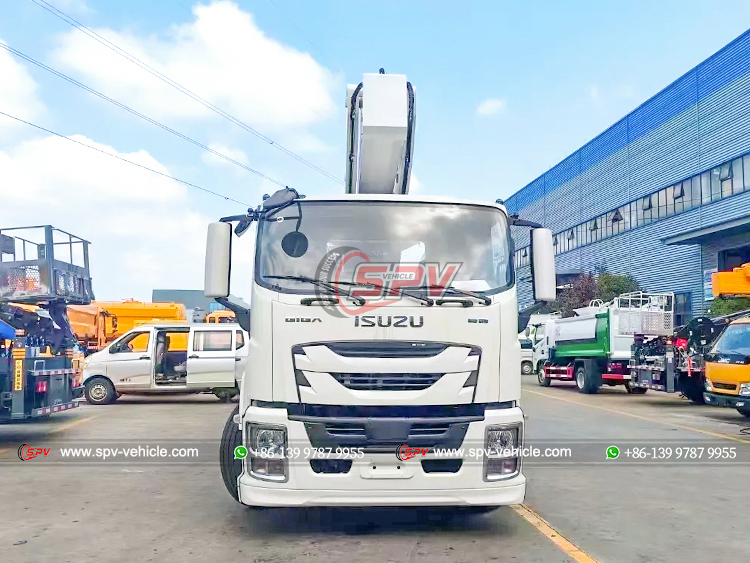

ISUZU Heavy-duty Aerial Working Vehicle - Front	ISUZU Hydraulic Lift Truck - Front Left

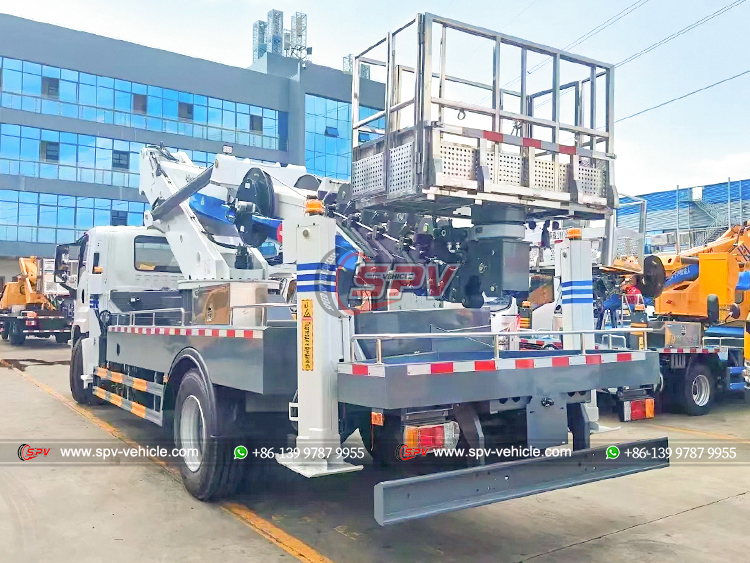

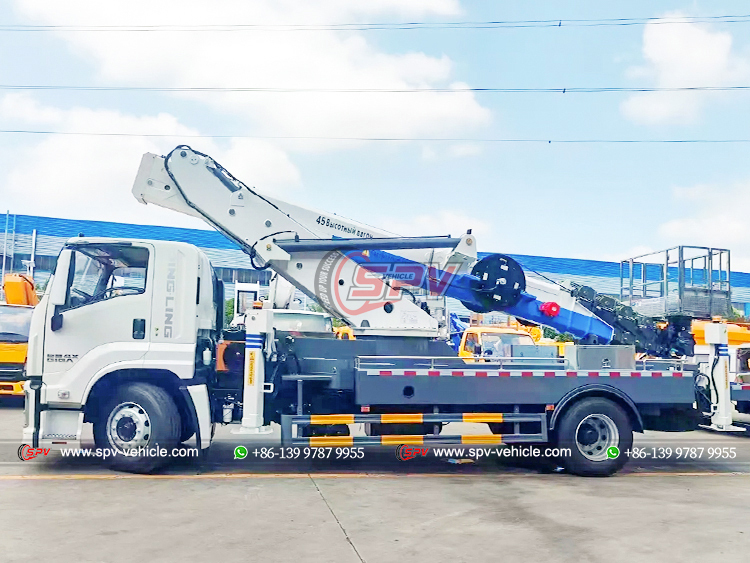

ISUZU GIGA Aerial Lift Vehicle - Left	ISUZU GIGA Bucket Truck - Rear Left

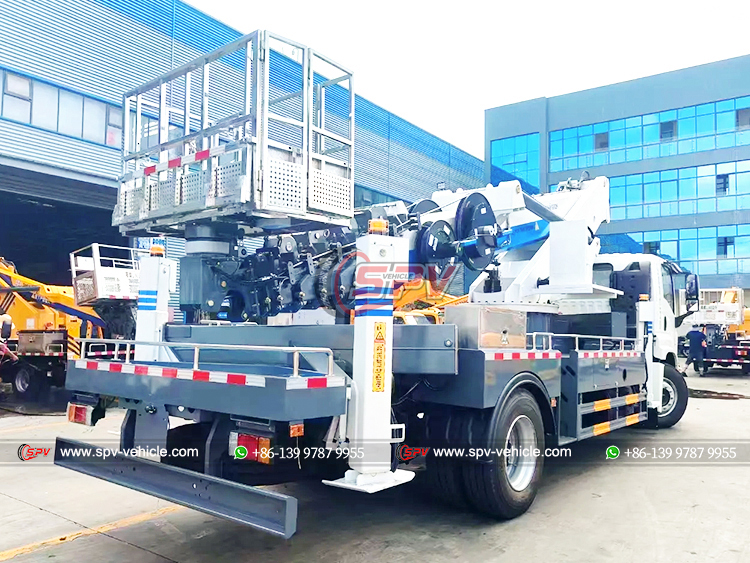

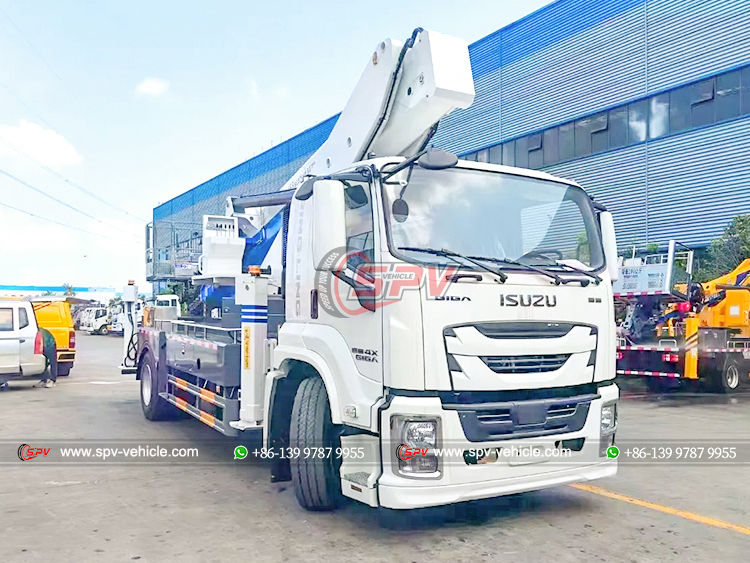

ISUZU Cherry Picker Truck - Front Right	ISUZU GIGA 2 Axles Manlift Truck - Rear Right
