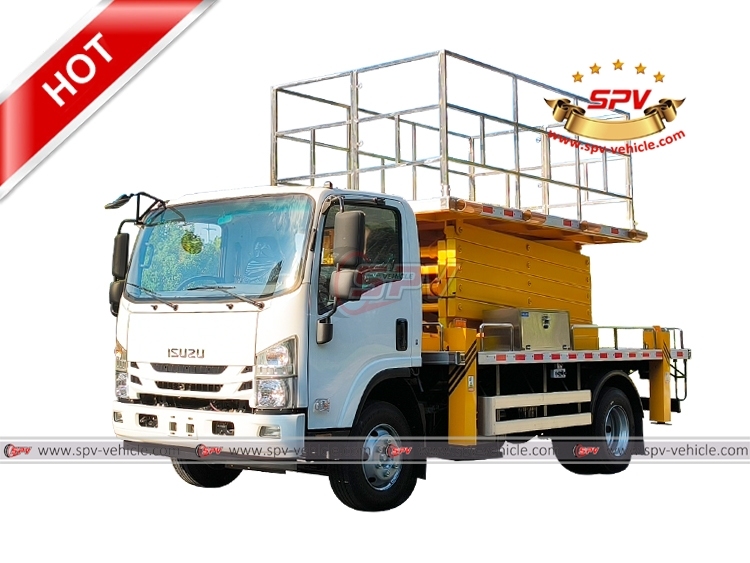

Name: 9M Automatic Scissors Lift Truck ISUZU
Brand: SPV-Vehicle - A Professional Special Purpose Vehicle Manufacturer from

Function:
Automatic scissors lift truck (also called scissor lift truck, Hydraulic scissor lift truck, mobile scissor lift truck, elevated work platform truck, aerial work platform truck, scissor aerial platform truck, High-altitude operation truck, access platform truck, maintenance platform truck, platform lift vehicle, mobile lifting platform vehicle, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Automatic Scissors Lift Truck ISUZU (9 Meters Aerial Truck)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	6080 x 2310 x 2470 mm
	GVW / Kerb Weight	10,550 kg / 6,290 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	120 Ps (88 KW)
	Displacement	2999 ml
	Emission Standard	Euro VI
Chassis	Drive Type	4x2, left hand drive
	Transmission	Manual, 5-forward speed & 1 reverse
	No. of Axles	2
	Tyre Specification	7.0R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Automative metallic paint
Superstructure	Cage Rated Capacity	500 kg
	Working Height	9 m
	Control	Controled by batteries
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system

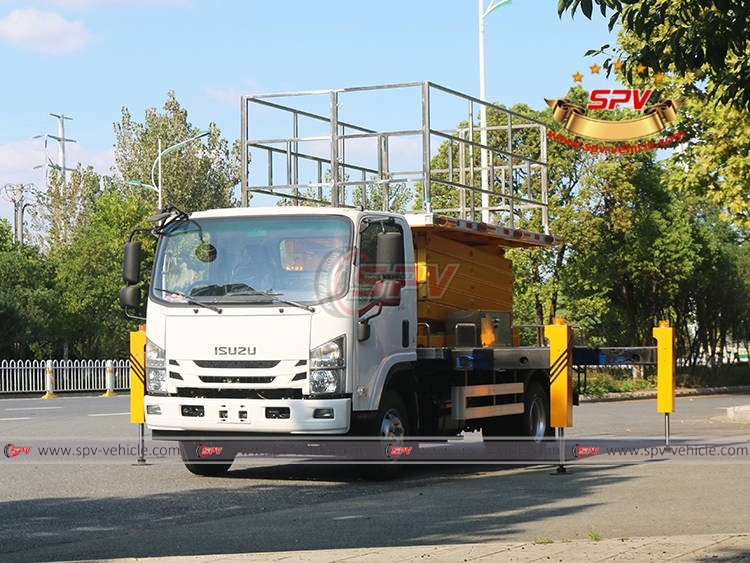

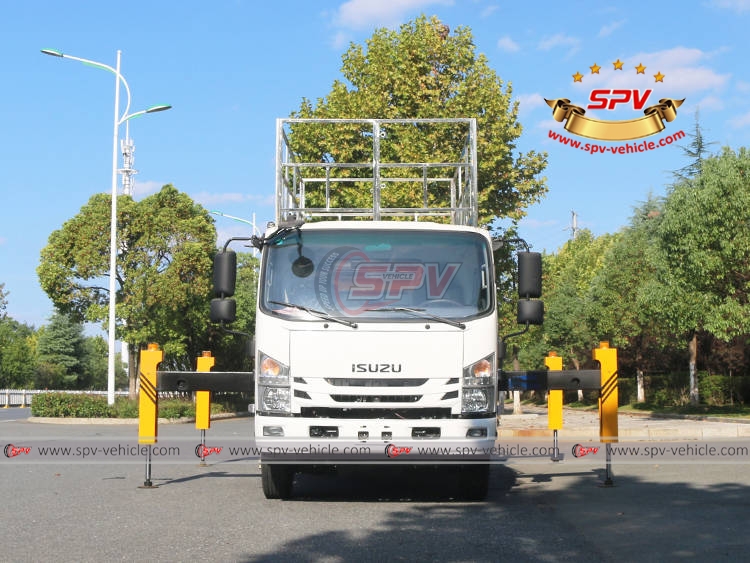

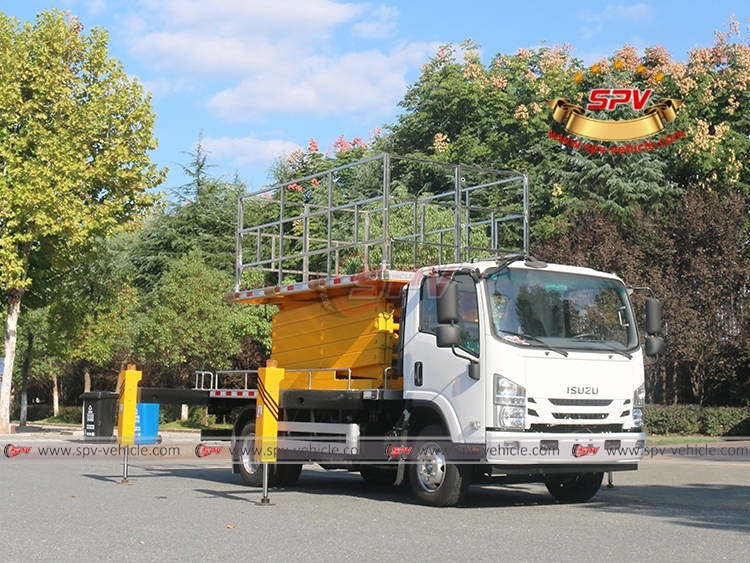

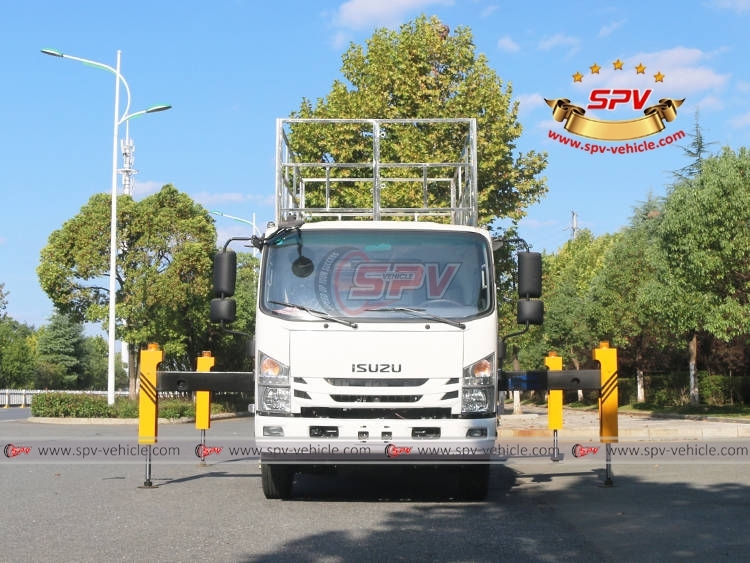

ISUZU 9 Meters Scissors Lift Truck -Front	ISUZU Hydraulic Scissor Lift Truck - Front Left

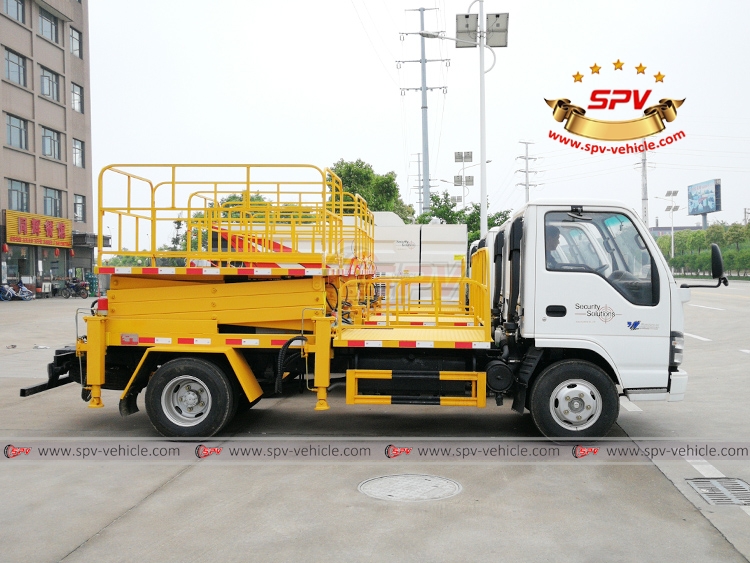

ISUZU Mobile Scissor Lift Truck - Front Right	ISUZU Lift Platform Truck - Right

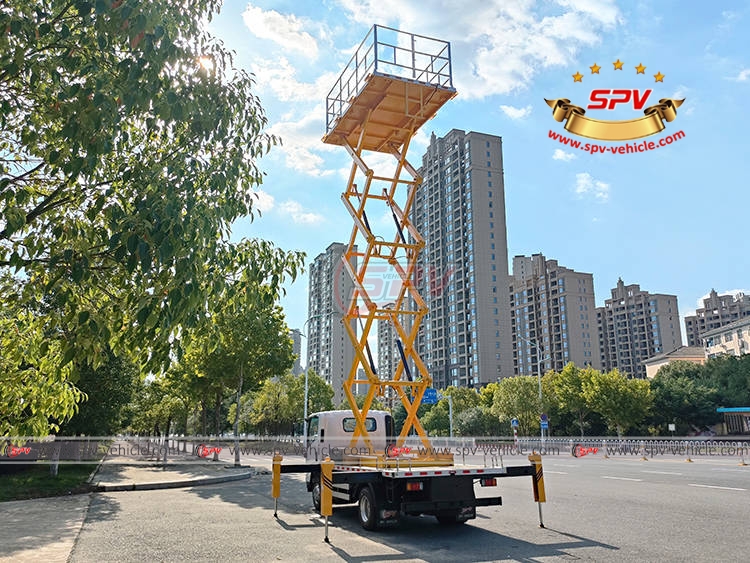

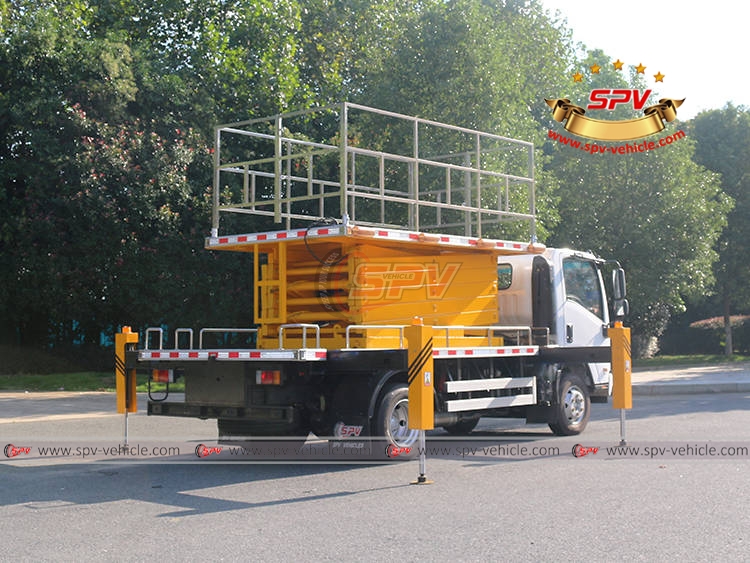

Aerial Scissor Lift Truck - Rear Right	ISUZU Scissor Aerial Platform Truck - Working Test

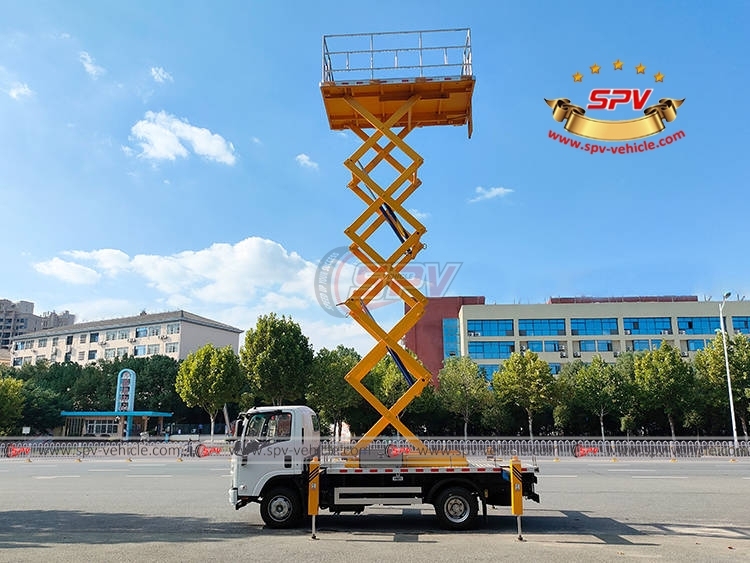

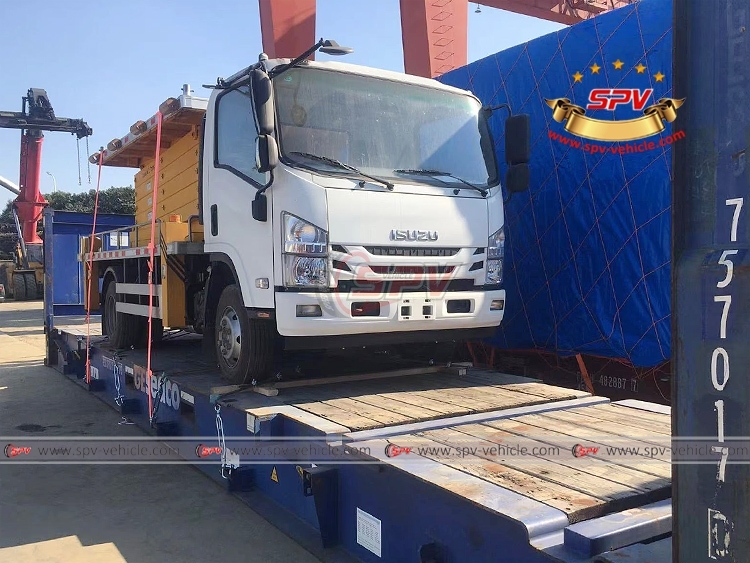

9M Automatic Scissors Lift Truck - Working Test	ISUZU Automatic Scissors Lift Truck - Loading Onto Frame Container

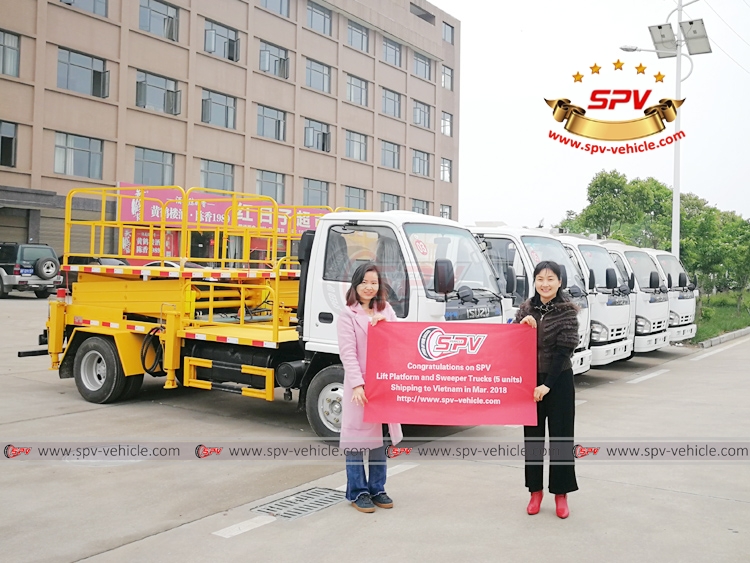

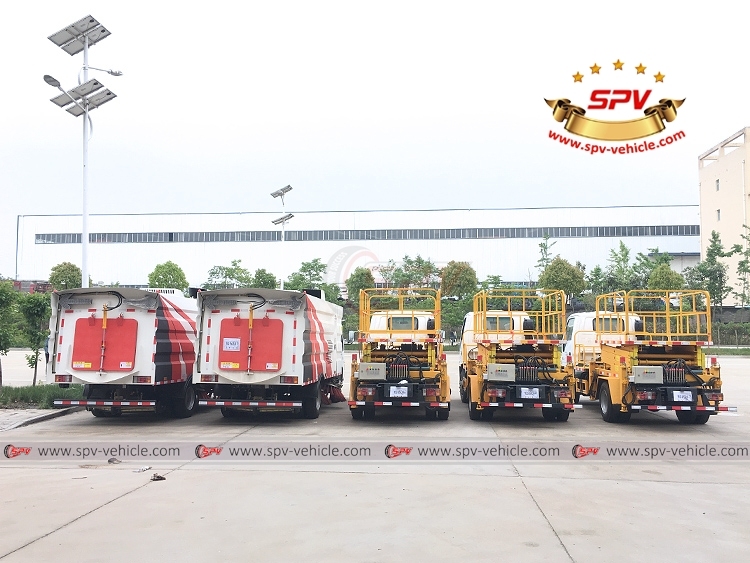

SPV Lift Platform Truck ISUZU and Road Sweeper Truck to Vietnam	Lift Platform Truck ISUZU and Road Sweeper Truck - Rear
