Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

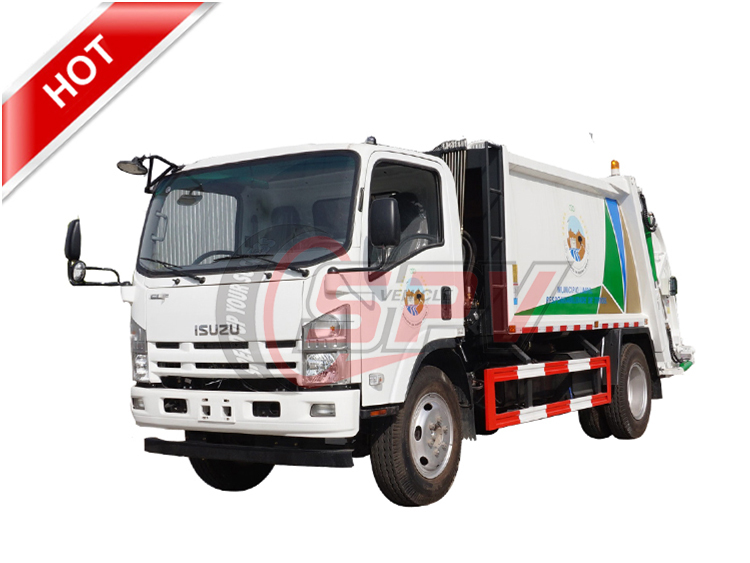

| Junk Compactor Truck ISUZU (8 m³ garbage compactor truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7350*2250 *2870 mm | |
| GVW / Kerb Weight | 10,550 kg/6,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Ps (139 KW) | |
| Displacement |
190 Ps (139 KW) | |
| Emission Standard |
Euro V | |
| Chassis | Drive Type |
4X2, right hand drive |
| Transmission |
Manual, 5-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
235/75R17.5 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
8 m³ |
| Waste Box Material |
Anti-corrosive steel |
|
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

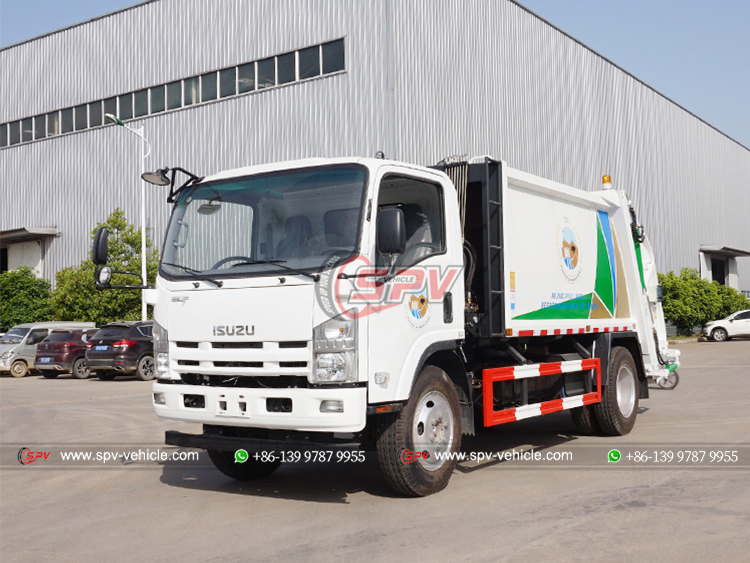

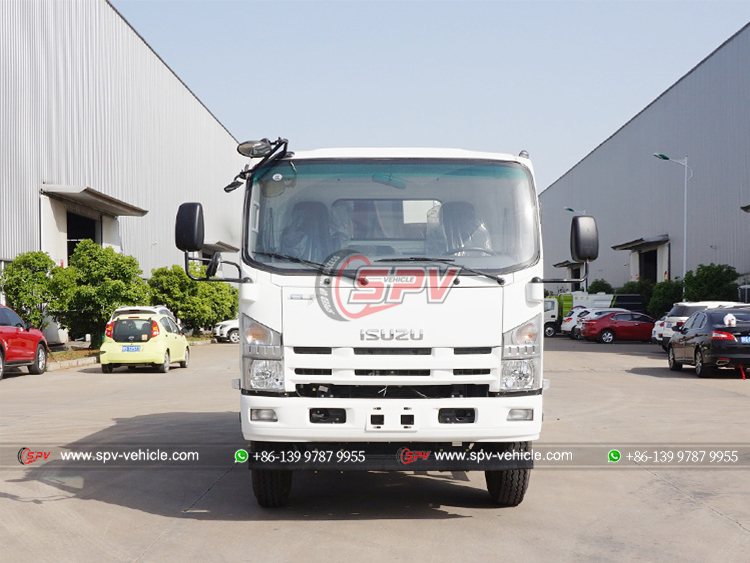

| ISUZU 700P Garbage Truck for Sale - Front | ISUZU NPR Solid Waste Compactor Vehicle - Front Left |
 |
 |

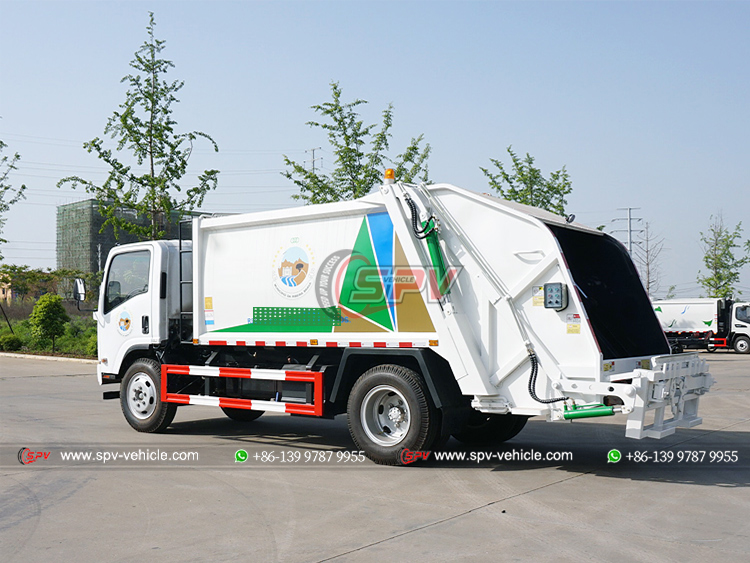

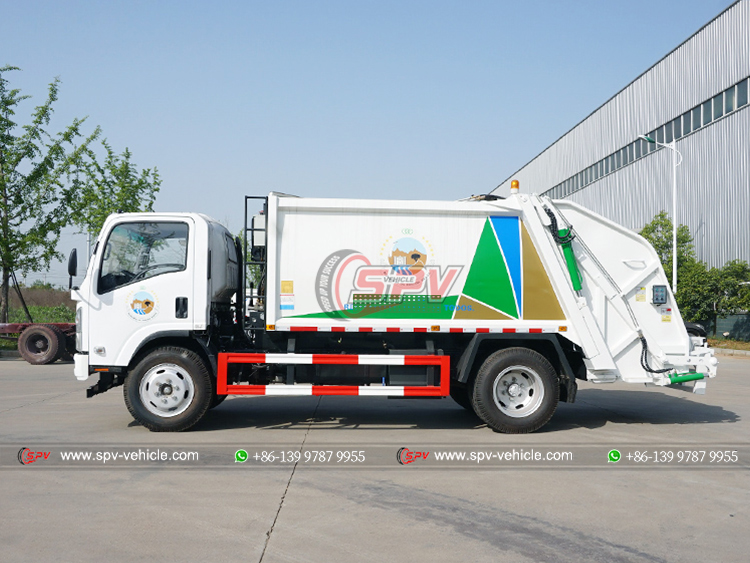

| ISUZU 4x2 Garbage Disposal Truck - Left | ISUZU 700P Garbage Removal Truck - Rear Left |
 |
 |

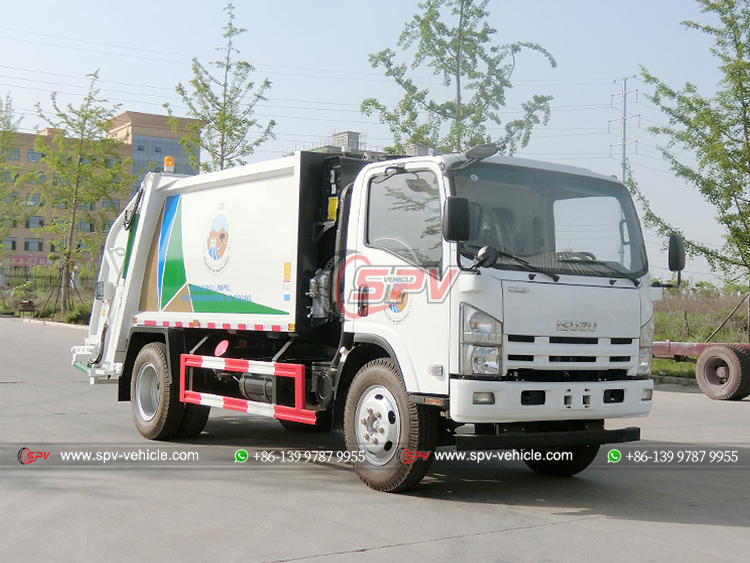

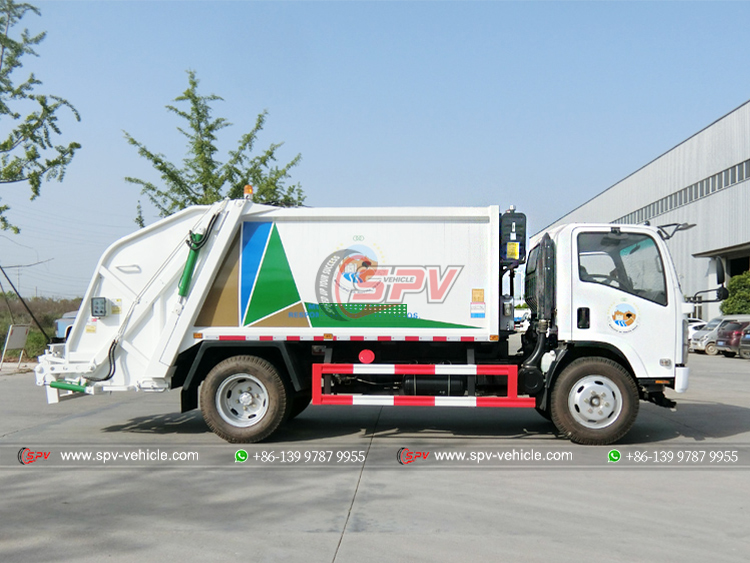

| ISUZU NPR Garbage HaulingTruck - Front Right | ISUZU NPR Rubbish Collection Truck - Right |
 |
 |

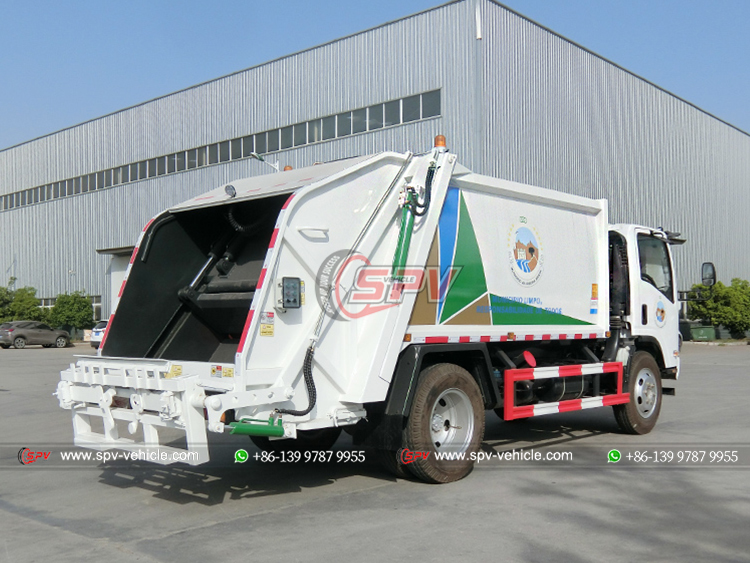

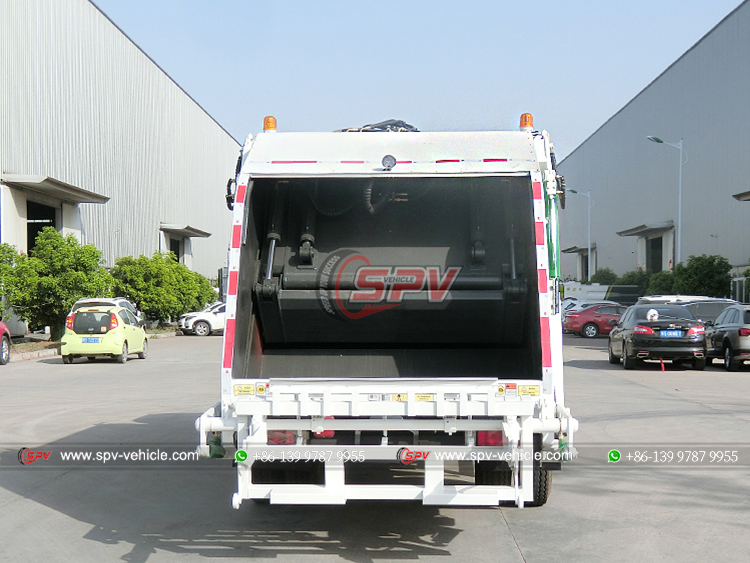

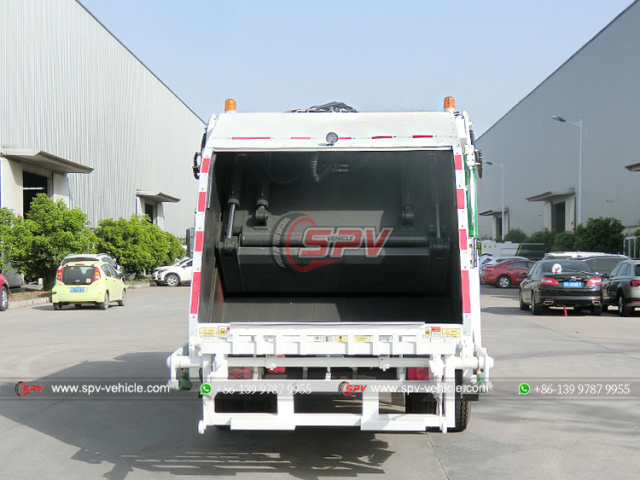

| ISUZU 700P Trash Collection Lorry - Rear Right | ISUZU NPR Junk Compressed Truck - Rear |
 |
 |

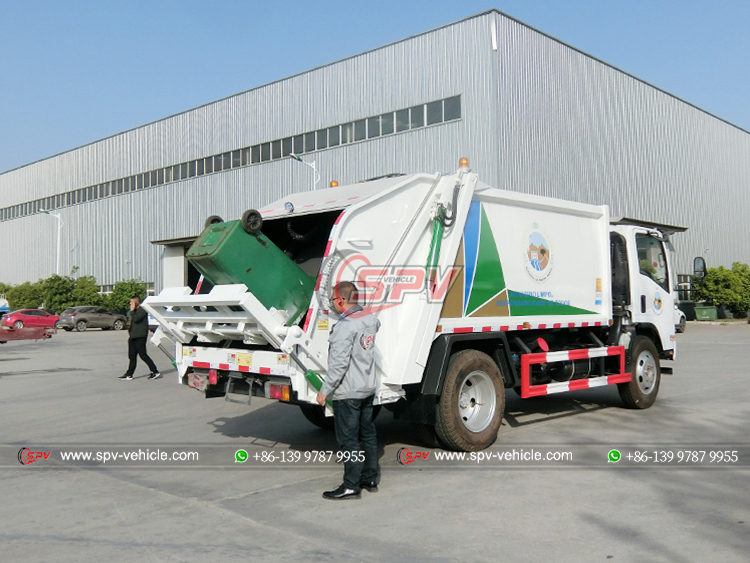

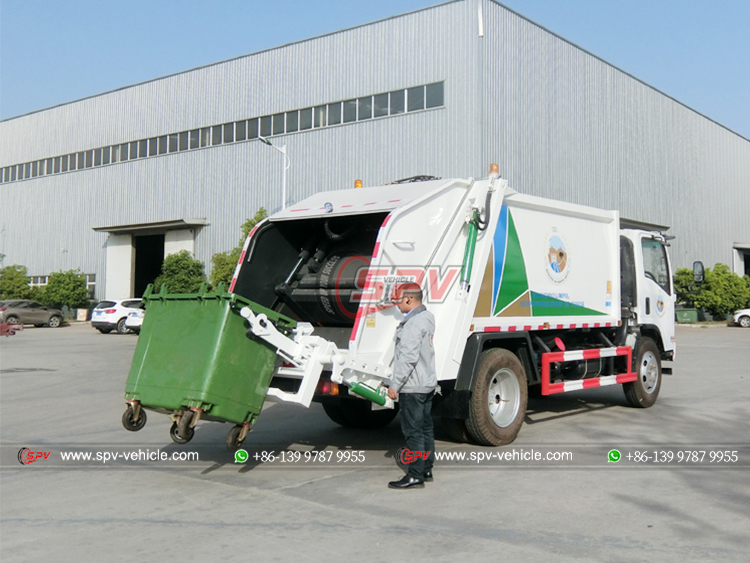

| Loading 240L Dustbin Test | Loading 660L Dustbin Test |
 |
 |

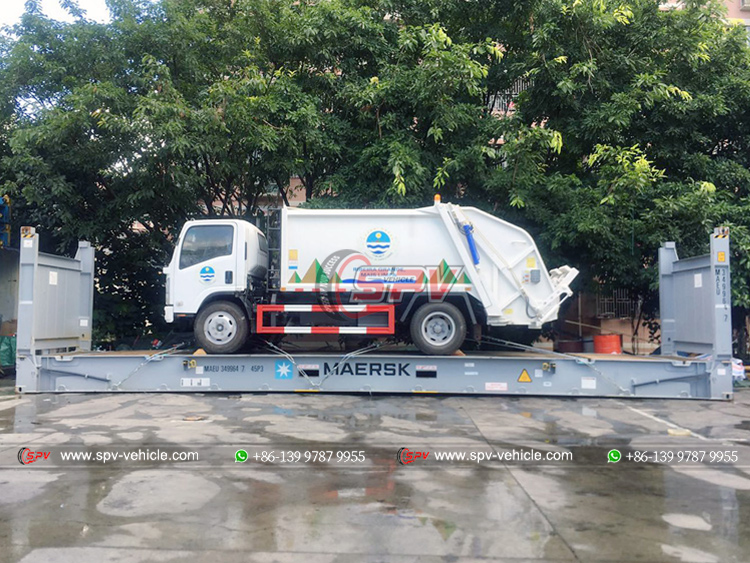

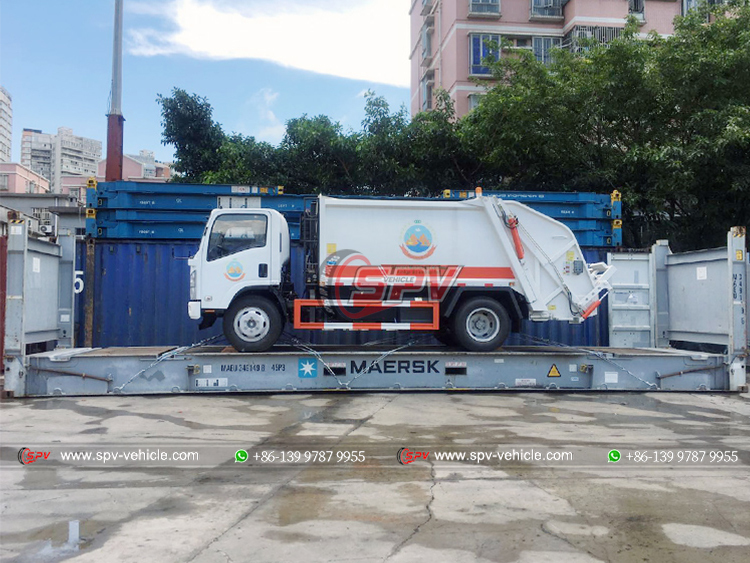

| ISUZU Garbage Compctor Truck to CapeVerde | ISUZU 700P Garbage Compctor Truck to Cape Verde |
