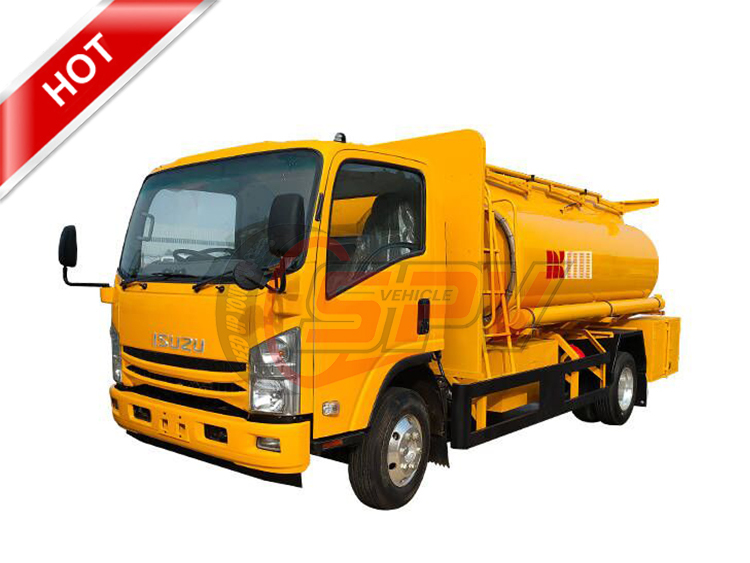

| Refueler Tank Truck ISUZU (8,000 litres fuel delivery truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7000*2210*2770 mm | |
| GVW / Kerb Weight | 10,550 kg /4,860 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Ps (140 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU manual, 6 speed forward, 1reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres (About 2,100 gallons) |
| Tank Material | Stainless steel | |
| Pumping & Counting System | PTO driven pump equipped for overhead deliverytwo discharge by two options:1.PTO, flow meter 25M hose reel;2.PTO, pump big hose with coupling | |
| Hose | High quality PVC hose, anti-aging | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
 |
 |

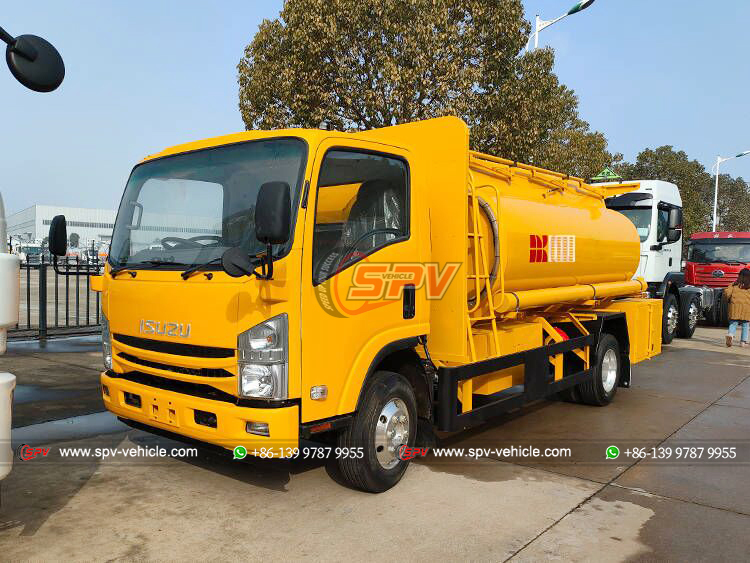

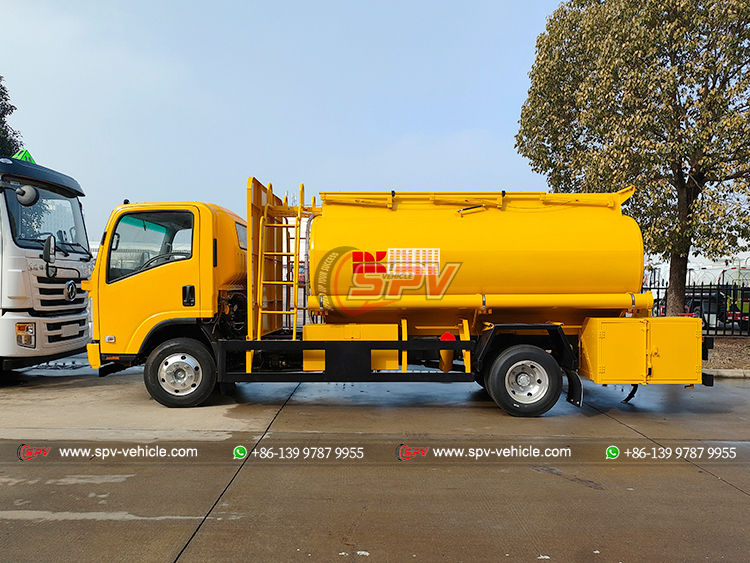

| ISUZU 700P Refueling Tank Truck - Front Left | ISUZU 8,000 Liters Fuel Dispensing Truck - Left |
 |
|

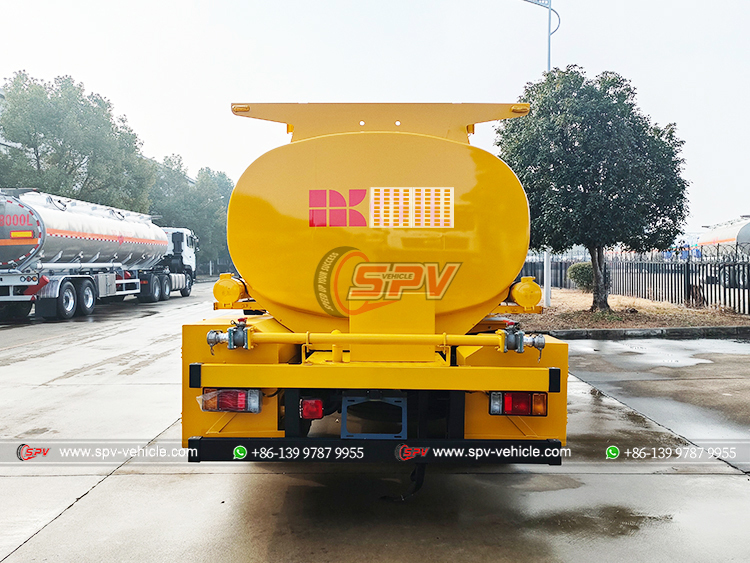

| ISUZU NPR 8,000 Liters Fuel Supply Truck - Rear |
