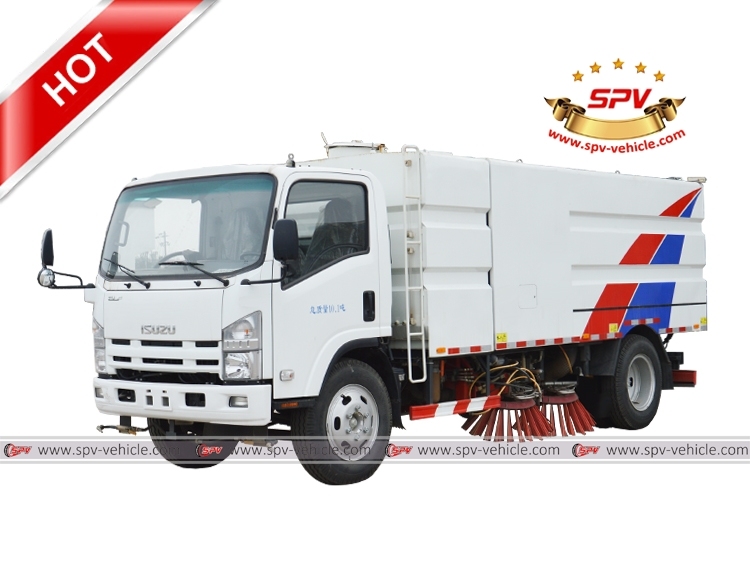

| Road Sanitation Vehicle ISUZU ( 5 CBM dustbin & 2 CBM water tank ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6600 * 2300 * 2800 mm | |
| GVW / Kerb Weight | 10,000kg / 6,500kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 Ps (140 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4x2, left hand drive |
| Transmission | ISUZU Manual, 5 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Material | Stainless Steel | |
| Dustbin Capacity | 4 CBM | |
| Water Tank Capacity | 1 CBM (About 300 gallons) | |
| Sweeping Capacity | 45,000 - 90,000 m³/h | |
| Sweeping Speed | 3-25 km/h | |
| Max Sweeping Width | 2800 -3200 mm | |
| Brooms | 2 sets at each side, at diameter 900 mm | |
| Auxiliary Engine | JMC engine (ISUZU technology) 77 HP (57 KW), super powerful |
|
| Vacuum |
Created by powerful air blower driven byauxiliary engine
|
|
| Suctions | Wet suction and dry suction Middle suctions |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
 |
 |

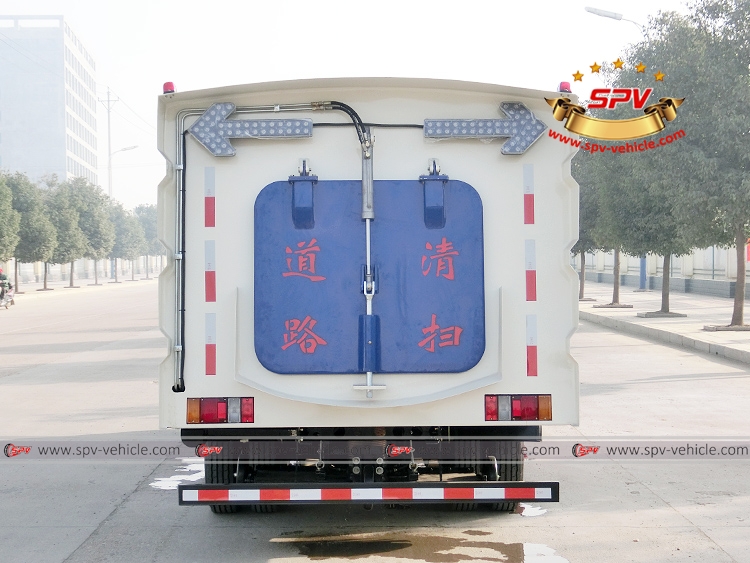

| ISUZU NPR Road Cleaning Truck - Left | ISUZU 7 CBM Road Sweeper Truck - Rear |
