The truck uses a high-power vacuum pump to suck up dust, sand, ash, cement powder, and other dry materials quickly and efficiently.
Dust vacuum trucks help clean roads, industrial plants, warehouses, tunnels, ports, and construction areas, improving environmental cleanliness and reducing air pollution.
It can collect industrial dry waste materials such as metal powder, coal dust, grain residue, and factory debris safely and efficiently.
By removing loose dust and fine particles, the truck helps reduce airborne pollution and improves workplace safety and public health.
The sealed tank design prevents dust leakage during transportation, ensuring clean and safe waste handling.
Dust vacuum trucks are suitable for:
Compared with manual cleaning, dust vacuum trucks provide faster cleaning efficiency, reduce labor costs, and improve productivity.
Dust vacuum trucks are essential vehicles for modern environmental protection and industrial cleaning operations, providing a reliable solution for dust control and dry waste management.

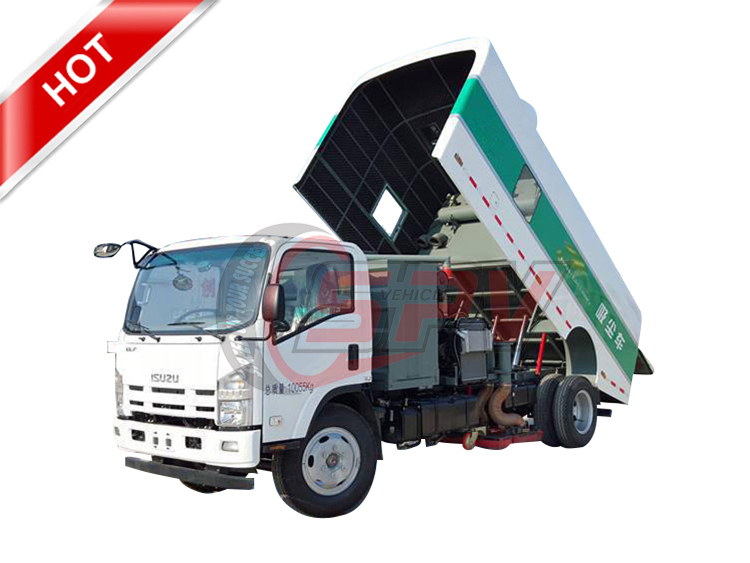

| Dust Vacuum Truck ISUZU (6.5 CBM) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6600 *2300 *2800 mm | |
| GVW / Kerb Weight | 10,055kg/6,500kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5139 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual, 5 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Dustbin Material | Stainless Steel |
| Dustbin Capacity | 5 CBM | |
| Water Tank Capacity | 1.5 CBM | |
| Sweeping Capacity | 45.000-90.000 m³/h | |
| Sweeping Speed | 3-25 km/h | |
| Max Sweeping Width | 2800-3200 mm | |
| Brooms | 2 sets at each side | |
| Auxiliary Engine | JMC engine (ISUZU technology) 77 HP (57 KW), super powerful |
|
| Vacuum |
Created by powerful air blower driven by
auxiliary engine
|
|
| Suctions | Wet suction and dry suction Middle suctions |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
 |
 |

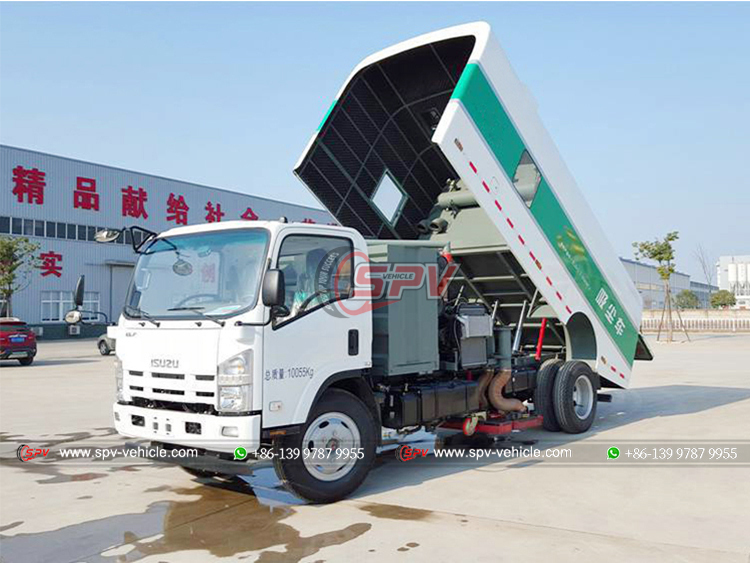

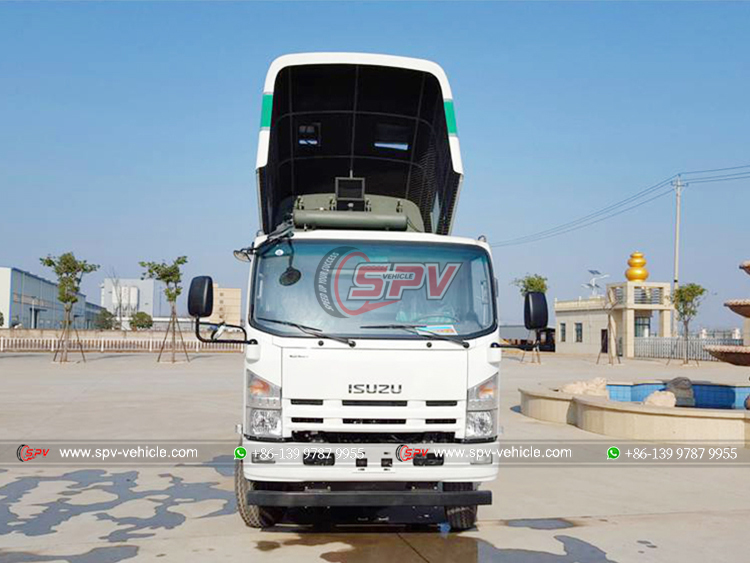

| ISUZU High-power Vacuum Truck - Front | ISUZU NPR Dust Removal Vehicle - Front Left |
 |
 |

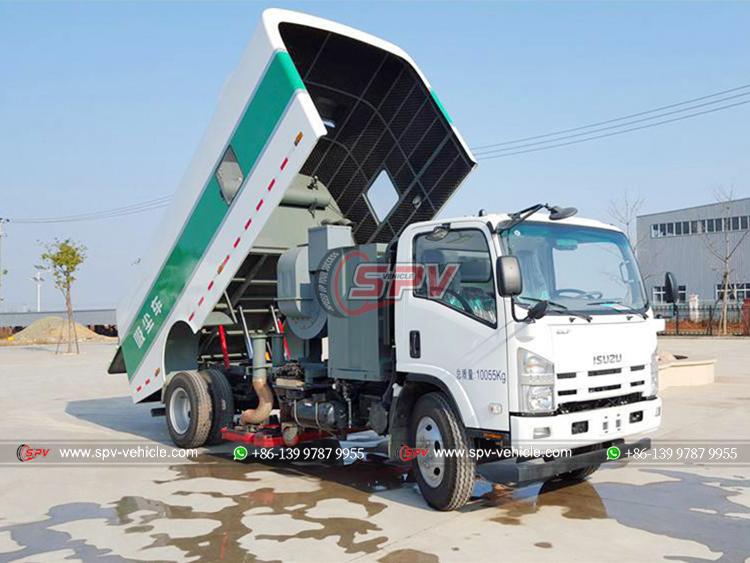

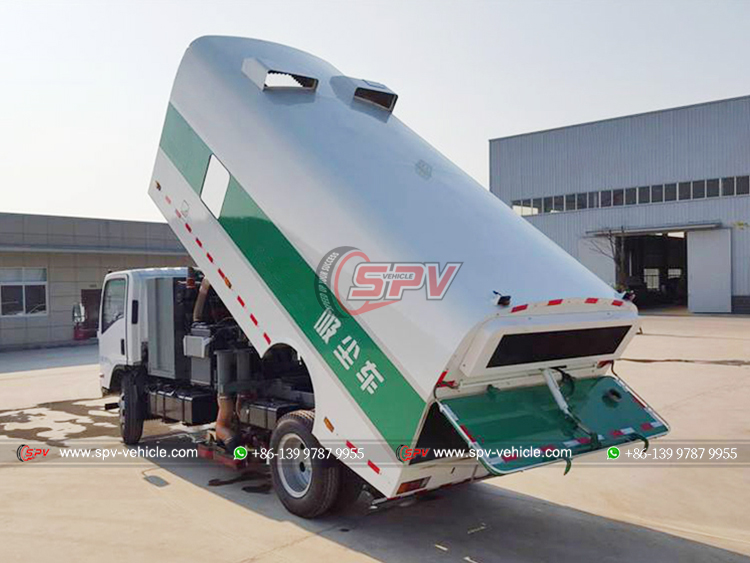

| ISUZU 6.5m³ Dust Extraction Truck - Rear Left | ISUZU 700P Dust Removal Vehicle - Front Right |
 |
 |

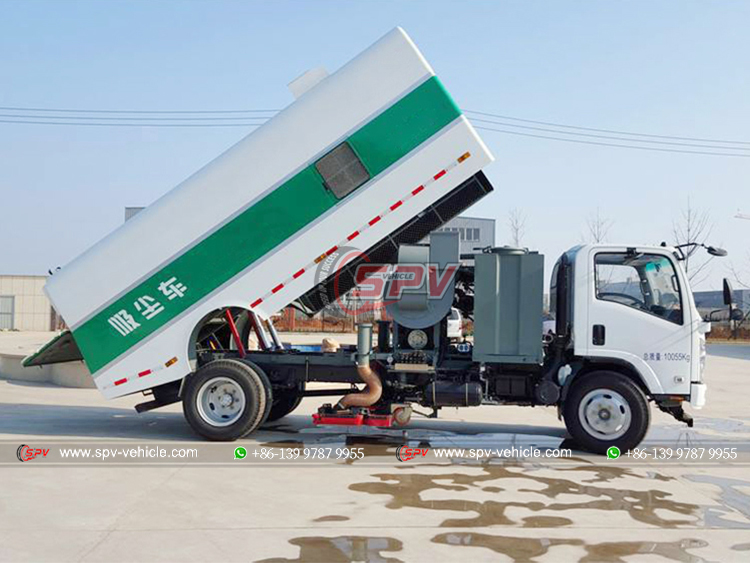

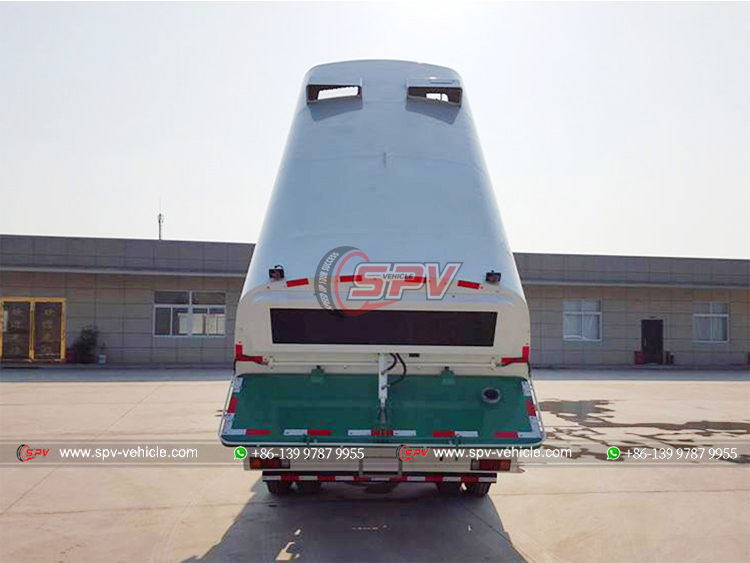

| ISUZU 4x2 Dust Vacuum Truck - Right | ISUZU 700P Dust Collection Truck - Rear |
 |
|

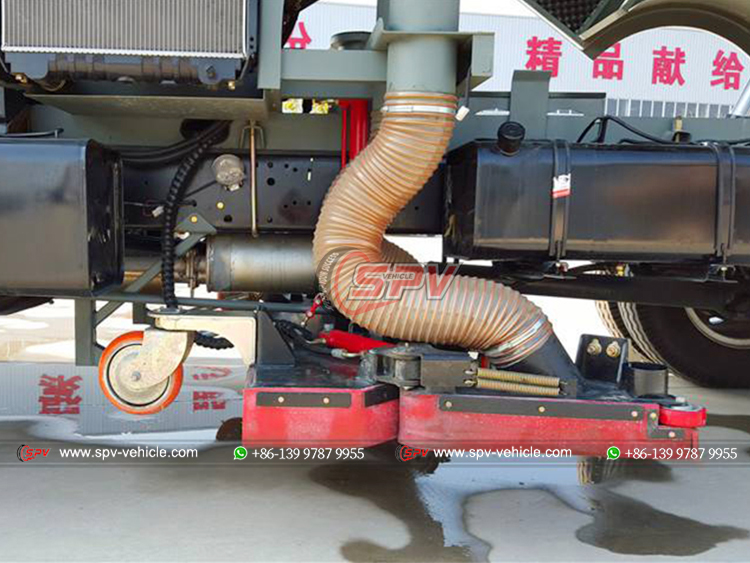

| Vacuum Hose for ISUZU Dust Control Truck |
