Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Junk Compression Vehicle ISUZU (6 m³ garbage truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6650 * 2200 * 2680 mm | |
| GVW / Kerb Weight | 7,300 kg / 5,300 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 Hp (88 KW) | |
| Displacement |
2999 ml | |
| Emission Standard |
Euro IV | |
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 5-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
7.00R16 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
6 m³ |
| Waste Box Material |
Carbon steel | |
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

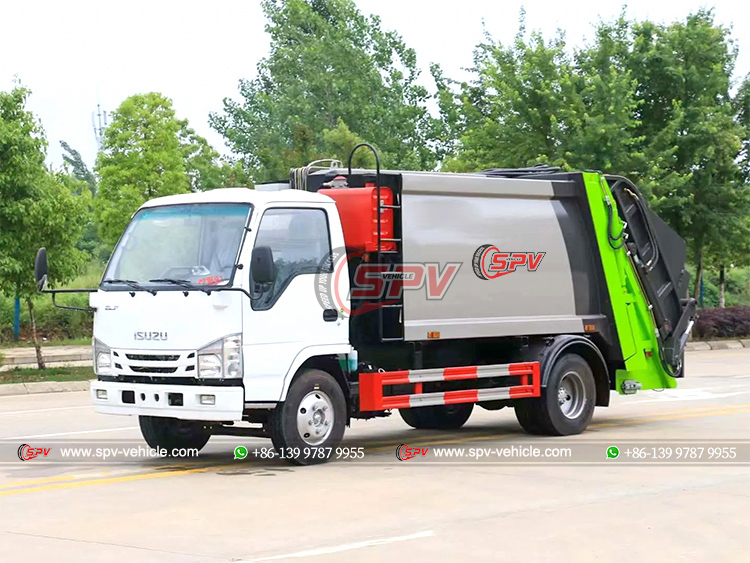

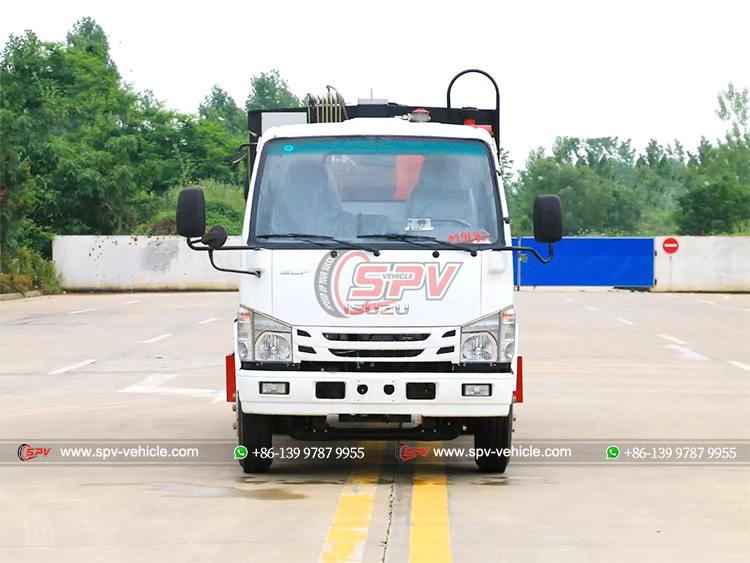

| ISUZU 6 CBM Rubbish Compactor Truck - Front | ISUZU 6 CBM Waste Compactor Truck - Front Left |
 |
 |

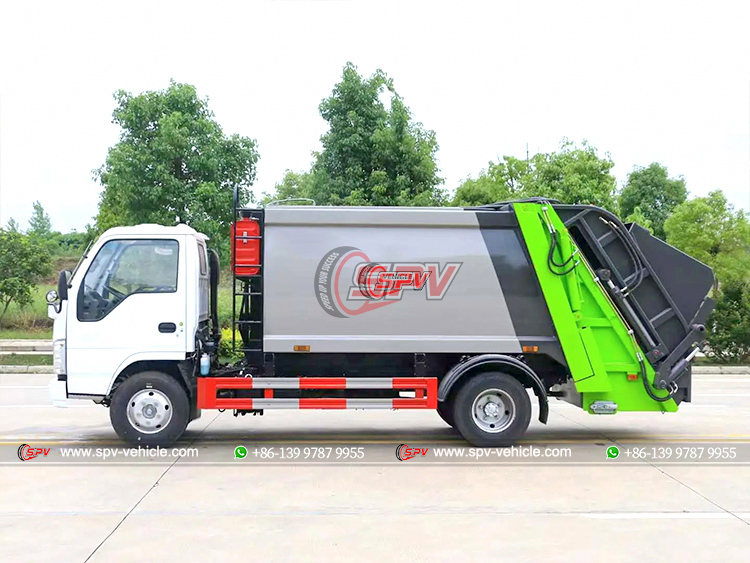

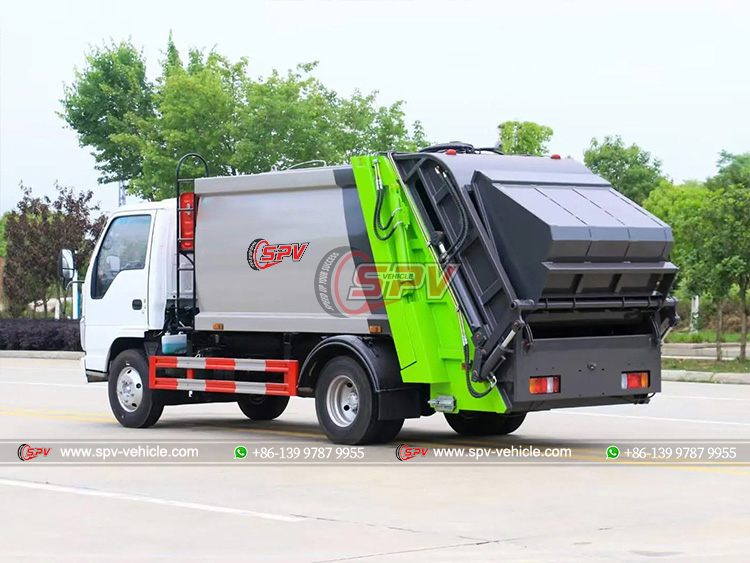

| ISUZU 6 CBM Junk Collection Truck - Left | ISUZU 6 CBM Junk Delivery Vehicle - Rear Left |
 |
 |

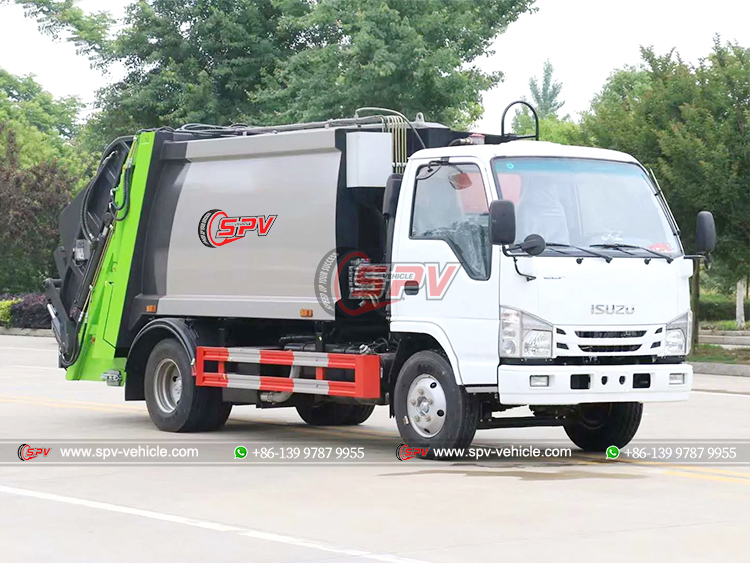

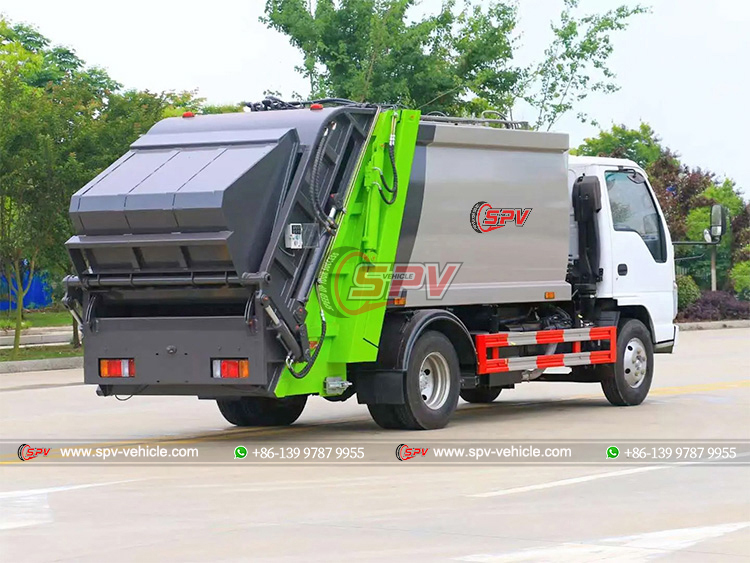

| ISUZU 6 CBM Garbage Delivery Lorry - Front Right | ISUZU Light-duty Junk Compressing Truck - Rear Right |
 |
|

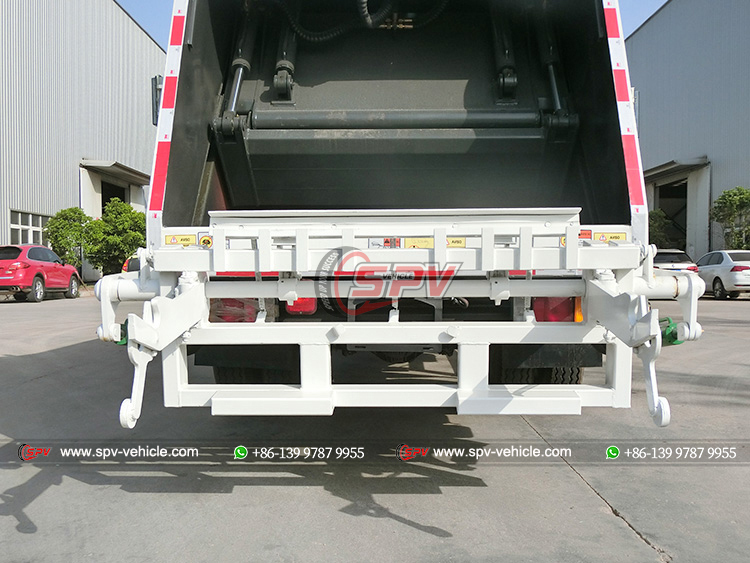

| ISUZU 6 CBM Rubbish Hauling Vehicle - Rear |
