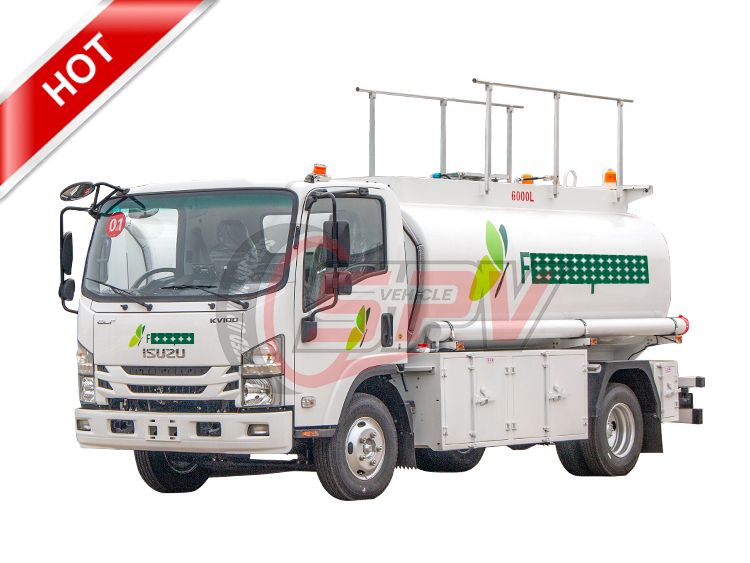

| Diesel Transfer Truck ISUZU (6,000 litres fuel delivery truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5830*2160*2470 mm | |
| GVW / Kerb Weight | 7,300 kg /4,110 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 Ps (88 KW) | |
| Displacement | 2799 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU manual, 5 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 7.0R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 6,000 Litres (About 1,600 gallons) |
| Tank Material | Stainless steel | |
| Pumping | Fuel dispenser | |
| Hose | High quality PVC hose, anti-aging | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
 |
 |

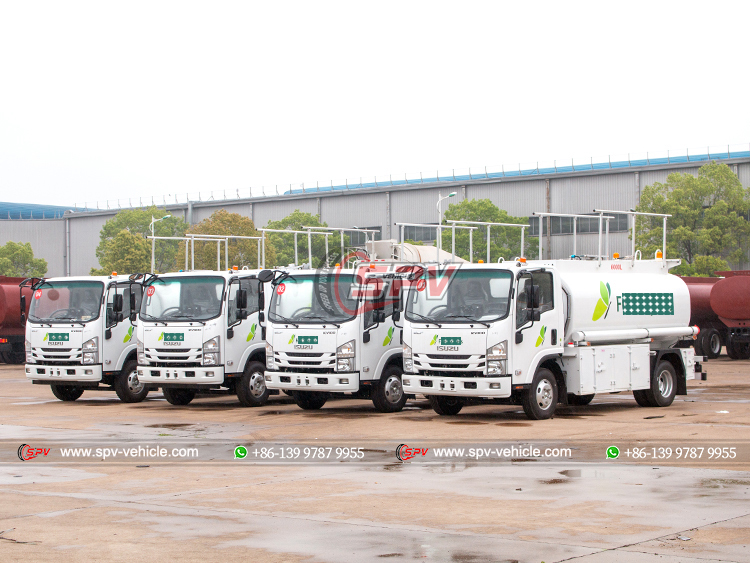

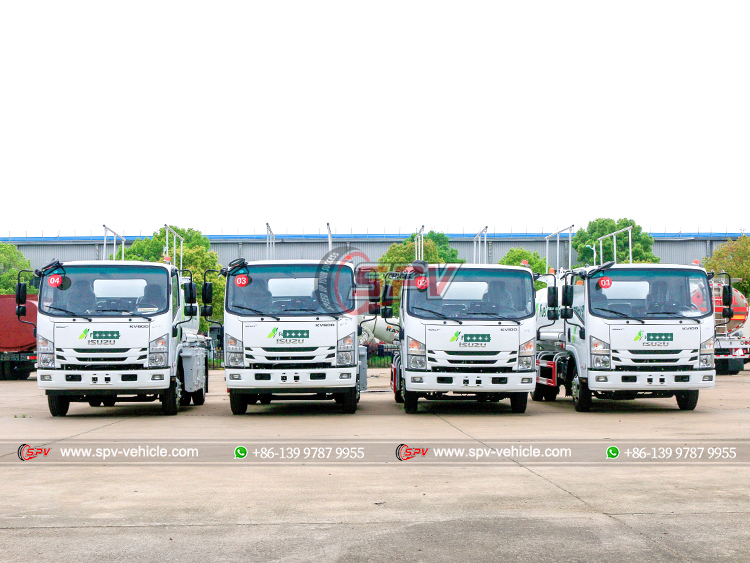

| 4 Units of 6,000 Litres Fuel Dispensing Truck ISUZU - Front | 4 Units of 6,000 Litres Oil Distribution Vehicle ISUZU - Front Left |
 |
 |

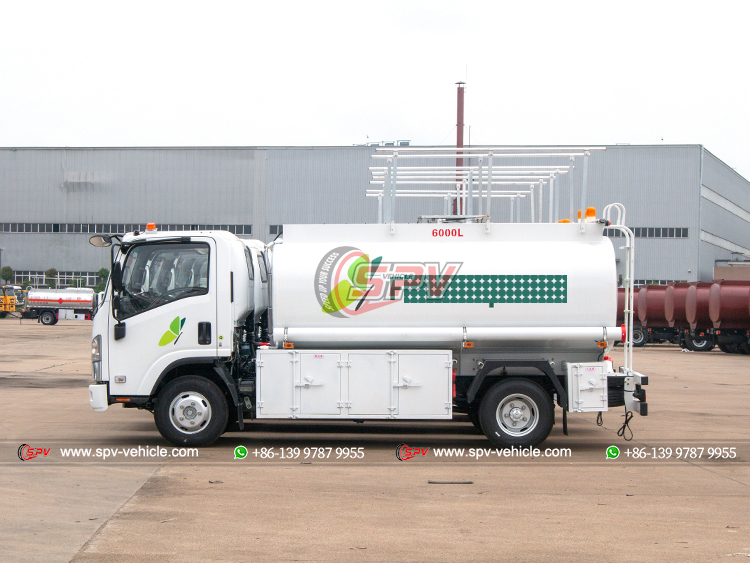

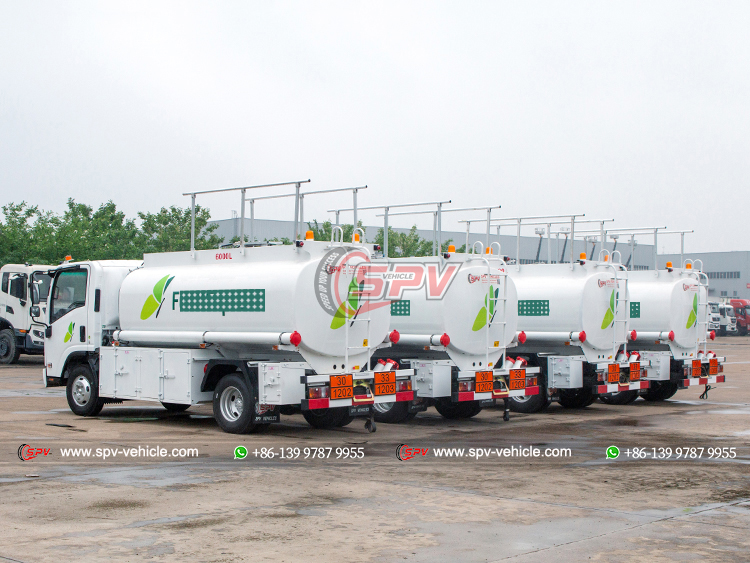

| 6,000 Litres Crude Oil Delivery Truck ISUZU - Left | 4 Units 6,000 Liters Fuel Transfer Lorry - Rear Left |
 |
 |

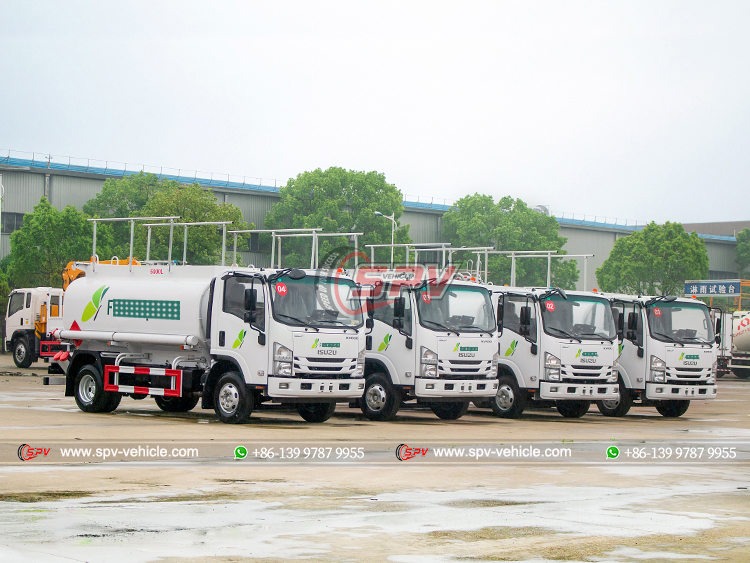

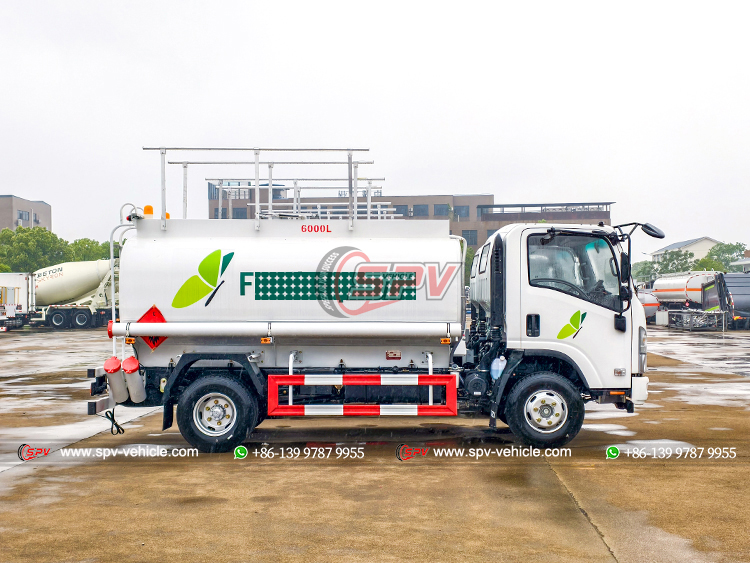

| 4 Units of 6,000 Litres Gasoline Delivery Truck ISUZU - Front Right | ISUZU 6,000 Litres Fuel Truck Mounted Dispenser - Right |
 |
 |

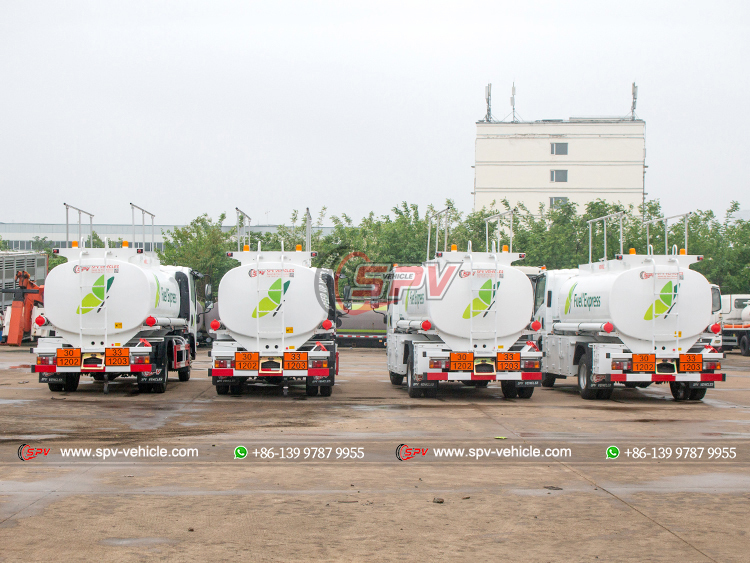

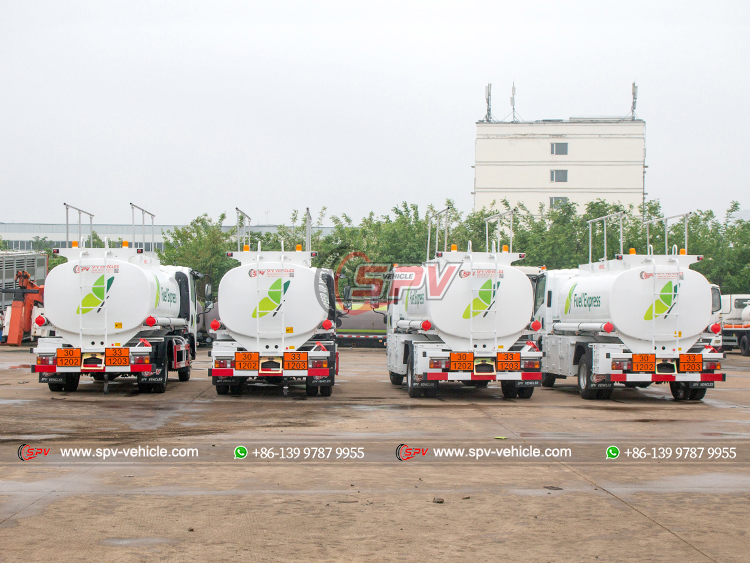

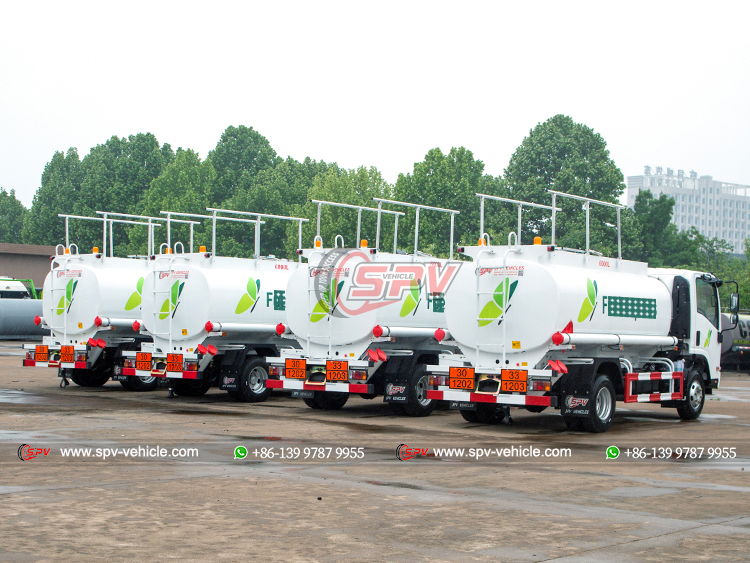

| 4 Units of 6000 Litres Petrol Transport Truck ISUZU -Rear Right | 4 Units 6,000 Litres Fuel Bowser ISUZU - Rear |
 |
 |

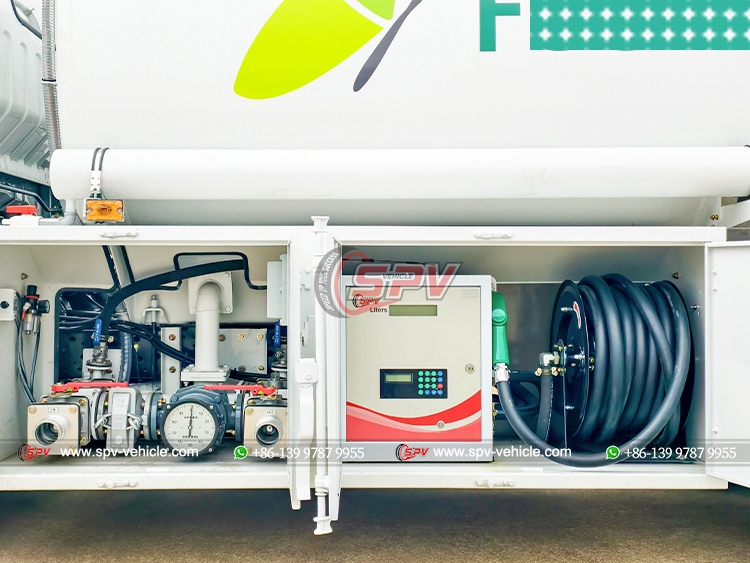

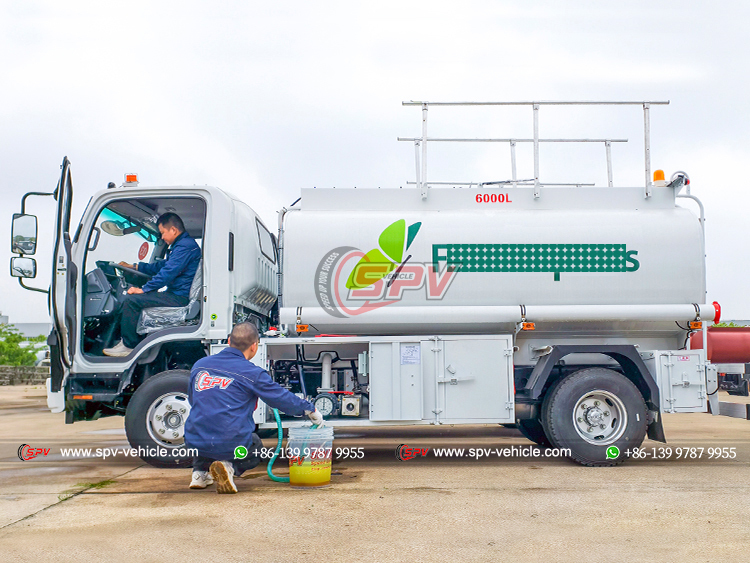

| Pump Box and Dispenser of 6,000L Fuel Truck | Pumping Fuel Test |
 |
|

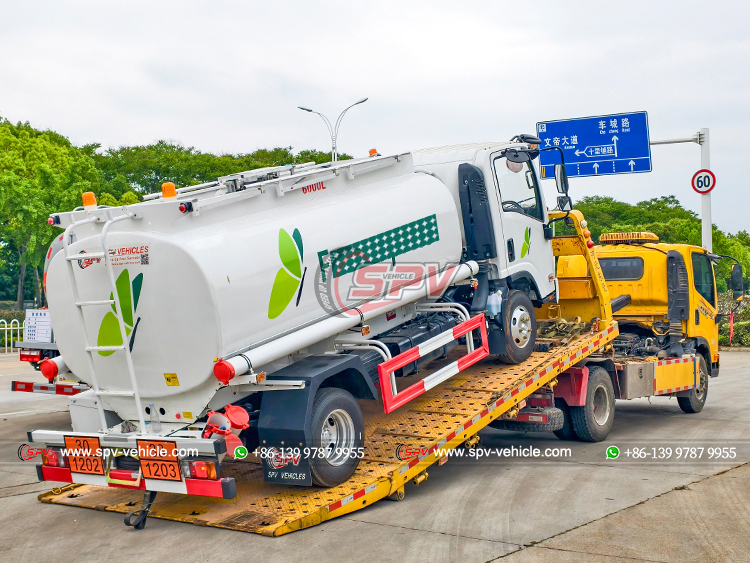

| ISUZU KV100 Refueling Tank Truck Transfered to Loading Port |
