Name: ISUZU 5T Crane Tow Truck
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Crane tow truck (also called tow truck, wrecker tow truck, recovery wrecker trucks, wrecker recovery truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) is used to transport motor vehicles or the vehicles that are broken down. Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slidebed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.

Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life

Specitfication:

Crane Tow Truck ISUZU ( 5 Tons Road Recovery Truck )
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	8200 * 2500 * 2600 mm
	GVW / Kerb Weight	10,000 kg / 6,320 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	190 Ps (139 KW)
	Displacement	5193 ml
	Emission Standard	Euro V
Chassis	Drive Type	4x2, right hand drive
	Transmission	Manual, 6-speed forward, 1 reverse
	No. of Axles	2
	Tyre Specification	235/75R17.5, radial tyre, super wearable
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Automative Metallic paint
Superstructure	Towing Type	Slide bed with wheel – lift
	Flatbed Payload	3-5 Ton
	Towing Capacity	2 Ton
	Crane Capacity	2 Ton
	All other standard accessories: 3 working lights, one tool box and hand washing tank, one set L-type tires holder,6pcs bundling belt and one LED alarm light etc.

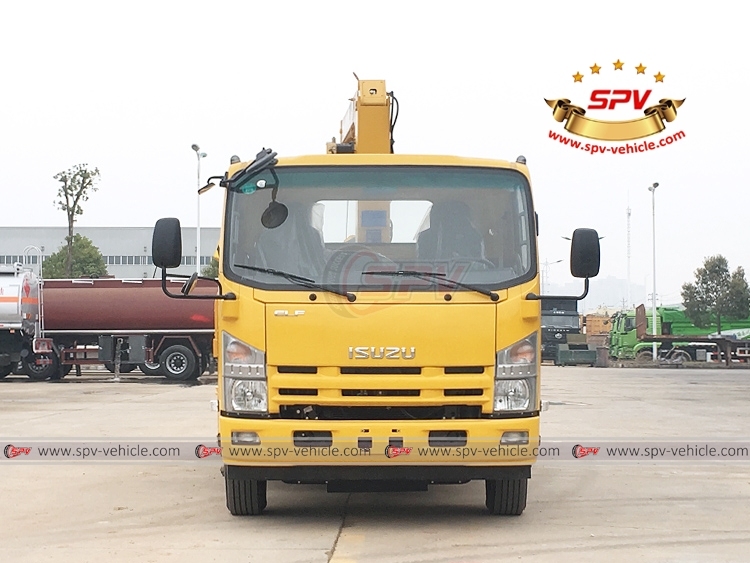

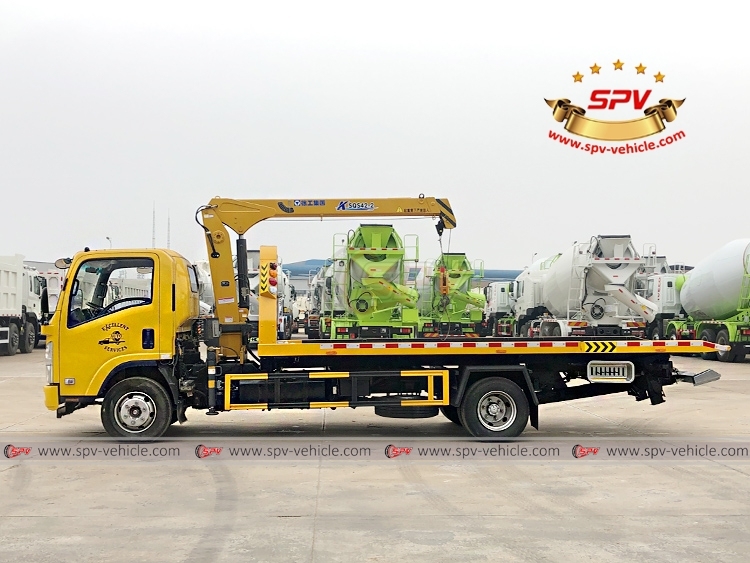

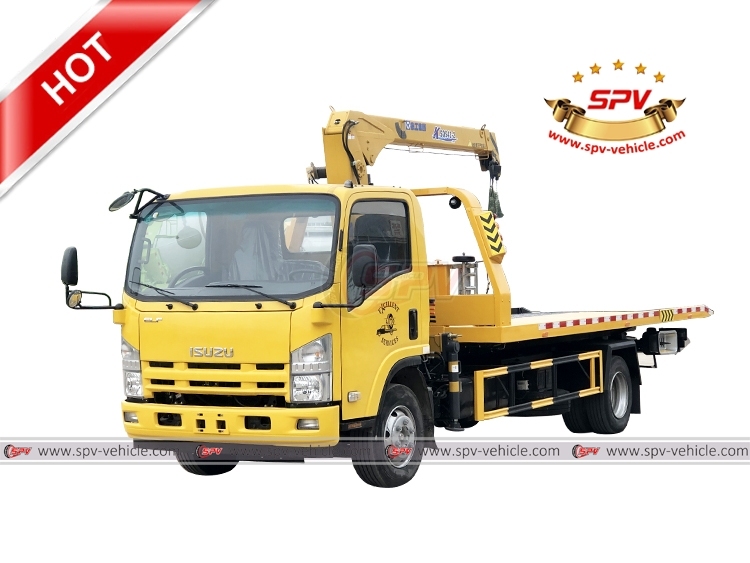

ISUZU NPR Road Crane Wrecker - Front	ISUZU 700P Breakdown Truck with Crane - L eft

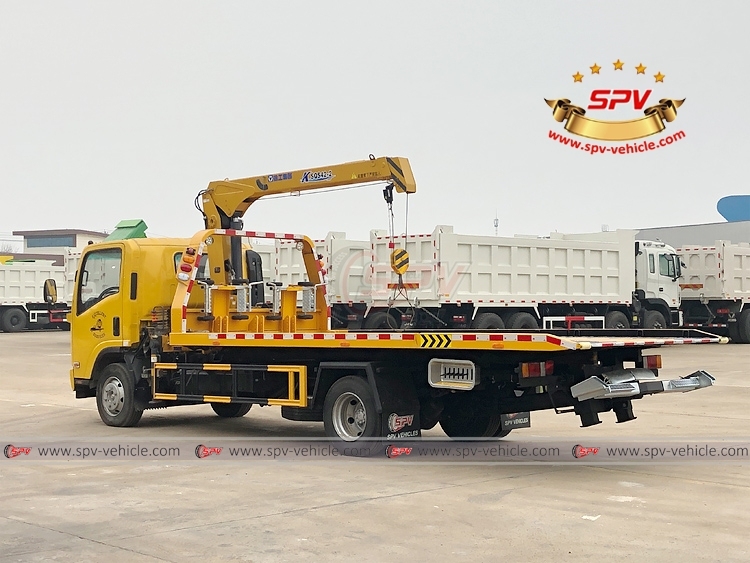

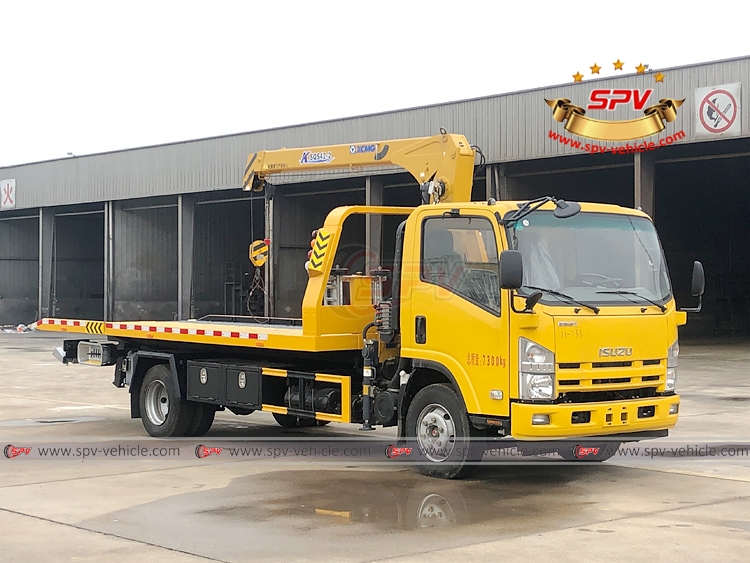

ISUZU NPR Highway Wrecker with Crane - Rear Left	ISUZU NPR Crane Traffic Recovery Truck - Front Right

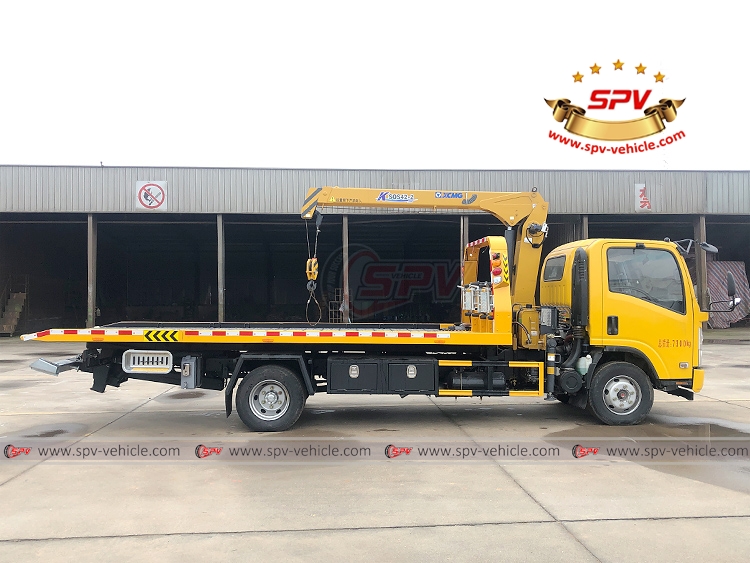

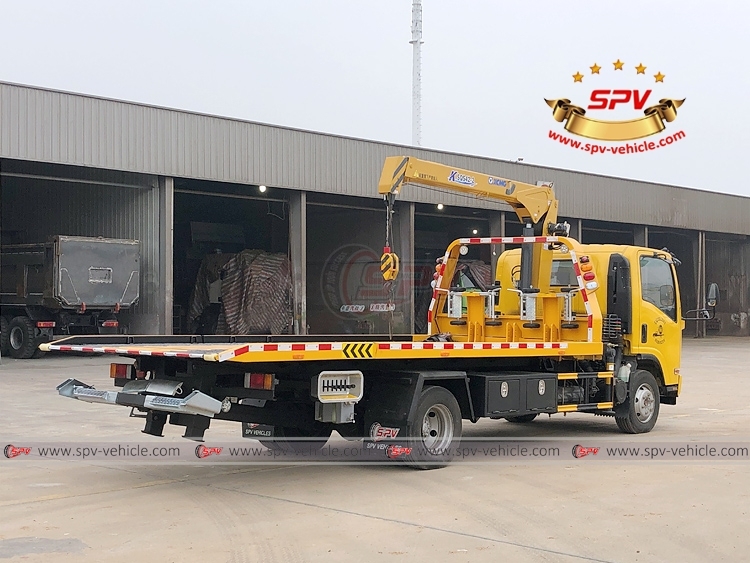

ISUZU 4x2 Traffic Rescue Truck with Crane - Right	ISUZU 4x2 Road Tow Truck with Crane - Rear Right

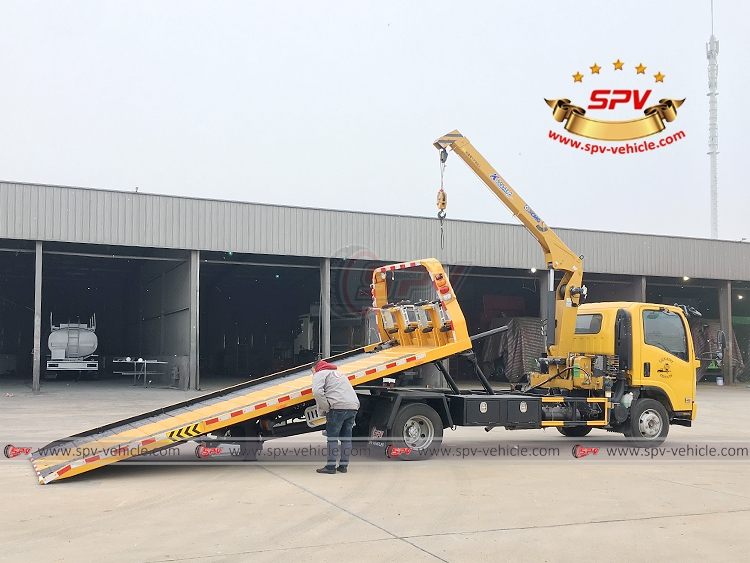

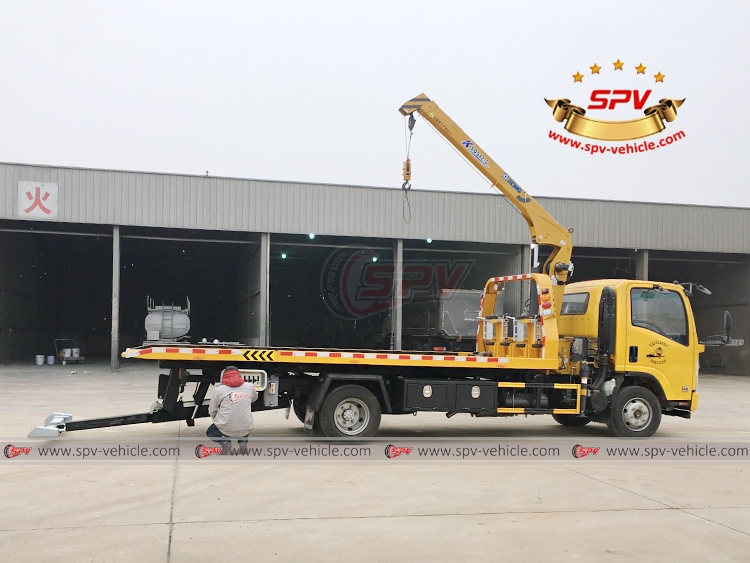

5 Ton Road Recovery Truck with Crane ISUZU - Towing	ISUZU 5T Road Wrecker Truck with Crane - Sliding Bed

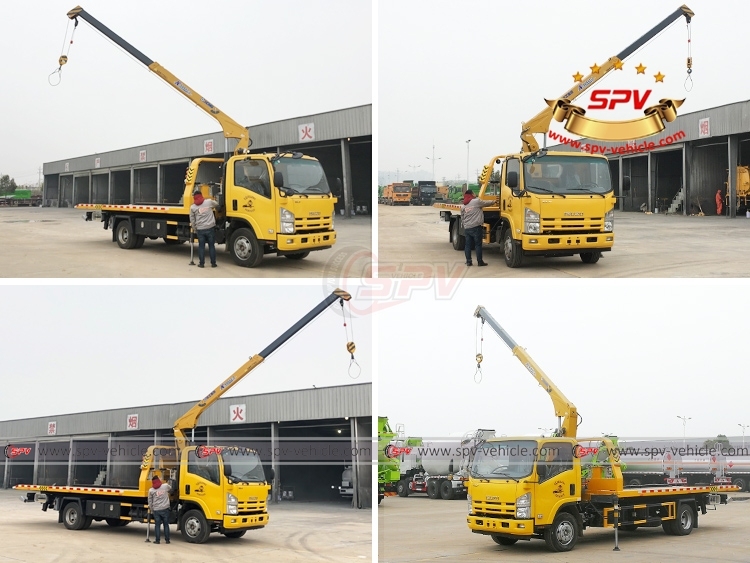

Crane Movementing Test
