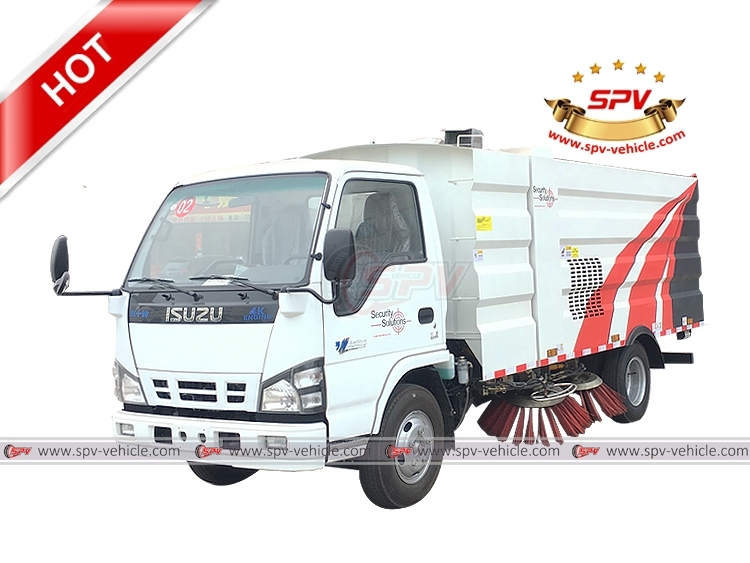

Name: ISUZU 5.5 CBM Leaves Collection Truck
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Leaves collection truck (also called road sweeper, street sweeper, road clean truck, street sweeper truck, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle, road vacuum truck, sanitation sweeping truck, ) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.

Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.

Specitfication:

Leaves Collection Truck ISUZU ( 4 CBM dustbin & 1.5 CBM water tank )
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	6490 * 2000 * 2600 mm
	GVW / Kerb Weight	7,300kg / 5,770kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	120 Ps (88 KW)
	Displacement	2999 ml
	Emission Standard	Euro V
Chassis	Drive Type	4x2, left hand drive
	Transmission	ISUZU Manual, 5 speed forward, 1 reverse
	No. of Axles	2
	Tyre Specification	7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	105 km/h
	Paint	Metallic paint
Superstructure	Water Tank	Stainless Steel
	Dustbin Material	Stainless Steel
	Dustbin Capacity	4 CBM
	Water Tank Capacity	1.5 CBM (About 400 gallons)
	Sweeping Capacity	42,000 m³/h
	Sweeping Speed	3-15 km/h
	Max Sweeping Width	2800mm
	Brooms	2 sets at each side, at diameter 900 mm
	Auxiliary Engine	JMC engine (ISUZU technology) 77 HP (57 KW), super powerful
	Vacuum	Created by powerful air blower driven by auxiliary engine
	Suctions	Wet suction and dry suction Middle suctions
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional	Backup alarm can be equipped. Camera can be equipped. ** Air blower can be of stainless steel.

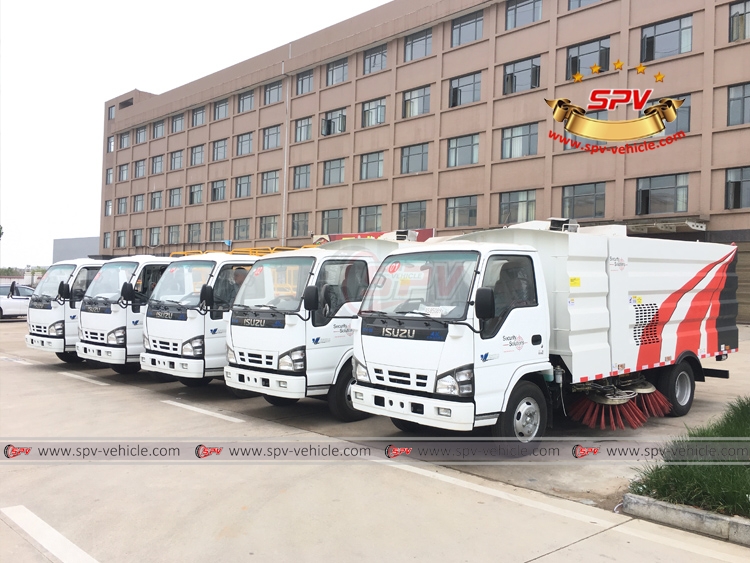

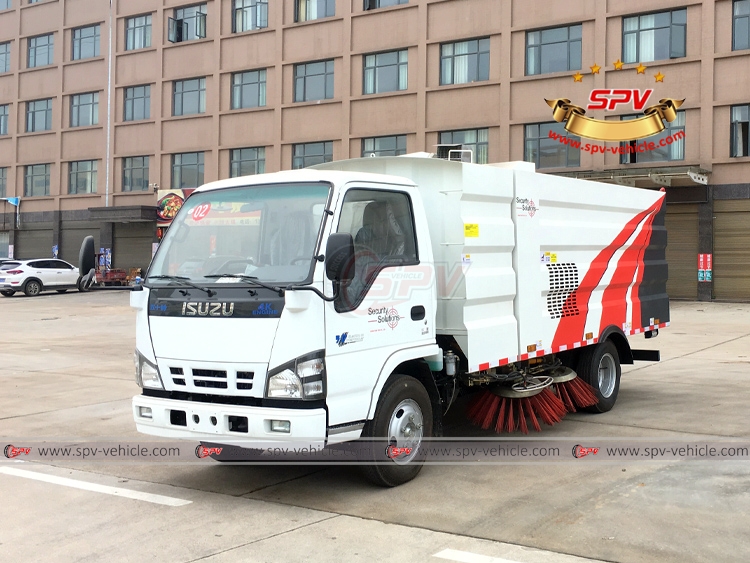

ISUZU Lift Platform Truck and Road Sweeper Truck to Vietnam	ISUZU 5.5 CBM Road Waste Collection Truck - Front Left

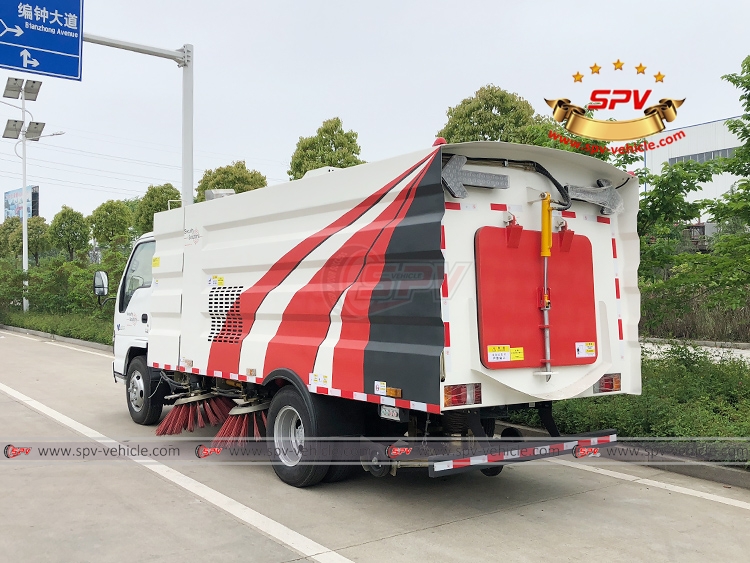

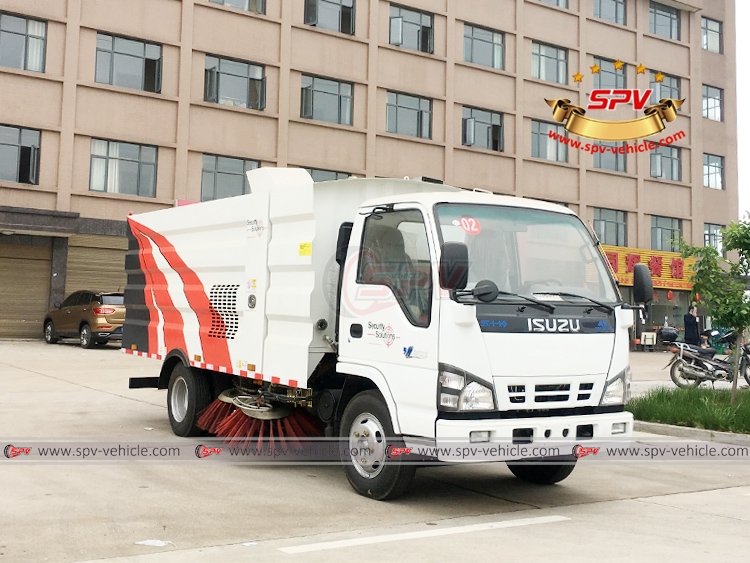

ISUZU 5.5 CBM Road Cleaning Truck - Rear Left	ISUZU Light-duty Road Sweeping Truck - Front Right

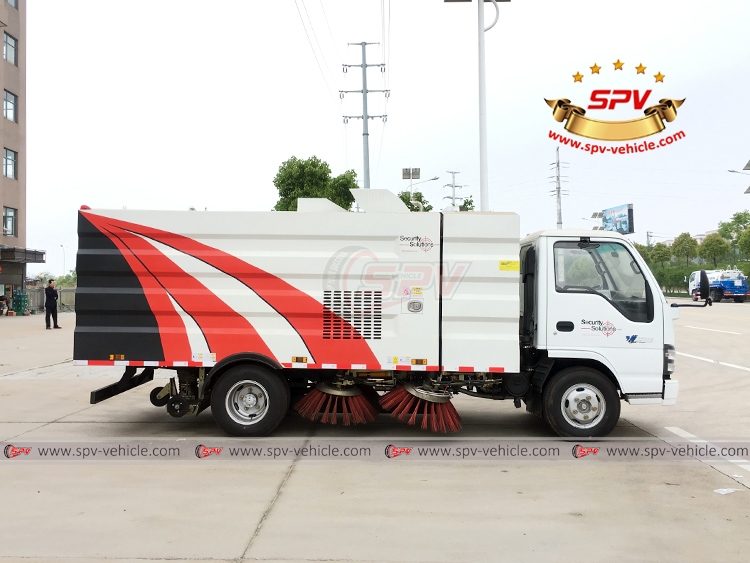

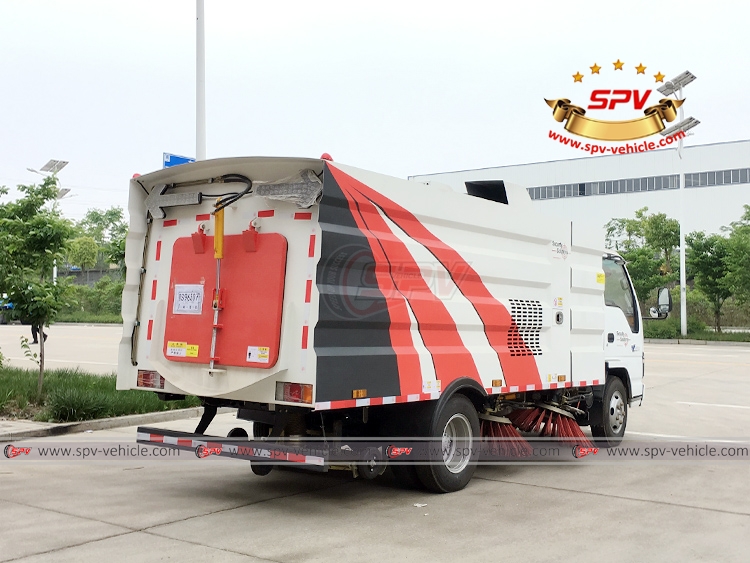

ISUZU 4x2 Road Broom Truck - Right	ISUZU 5.5 CBM Road Garbage Disposal Truck - Rear Right

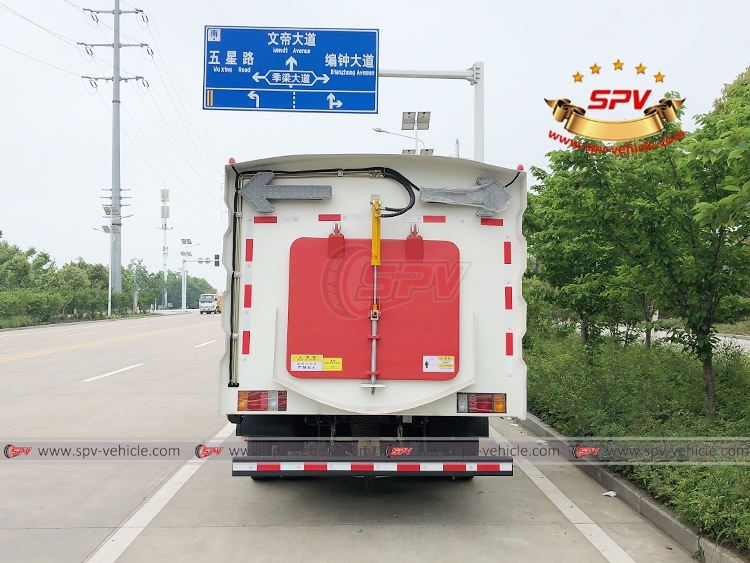

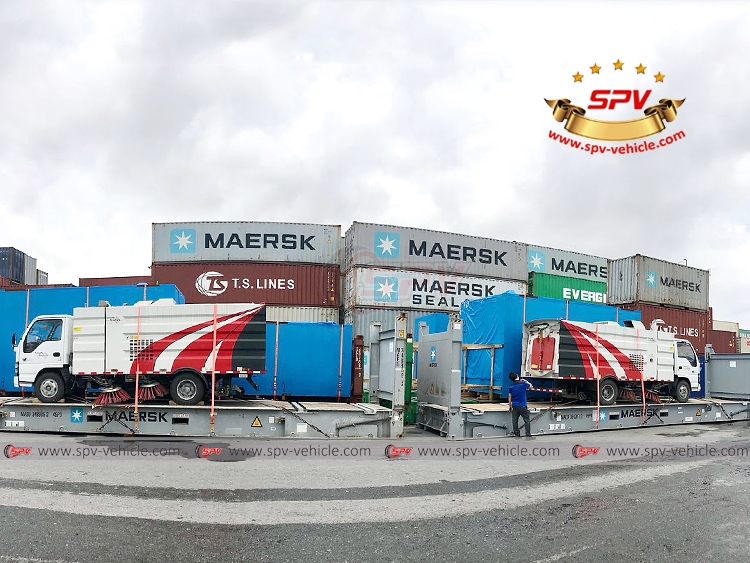

ISUZU 5.5 CBM Street Waste Removal Truck - Rear	ISUZU 5.5 CBM Road Sweeper - In Vietnam Port
Similar Road Vaccum Truck to Honduras

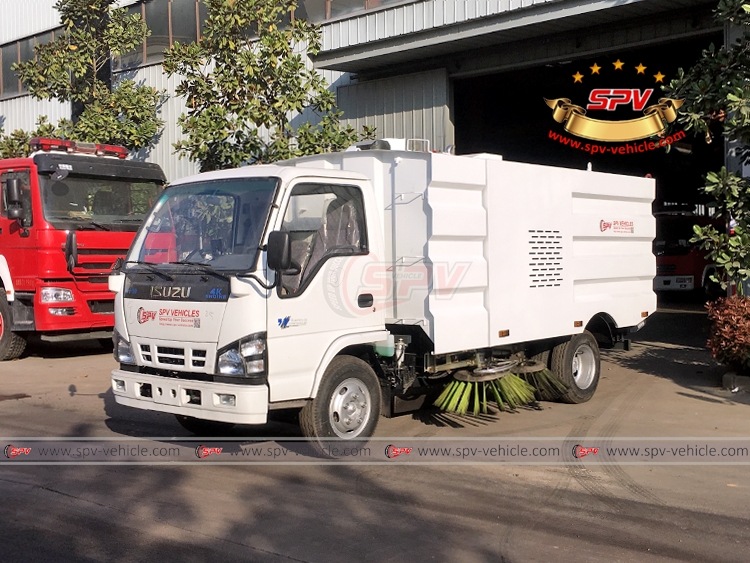

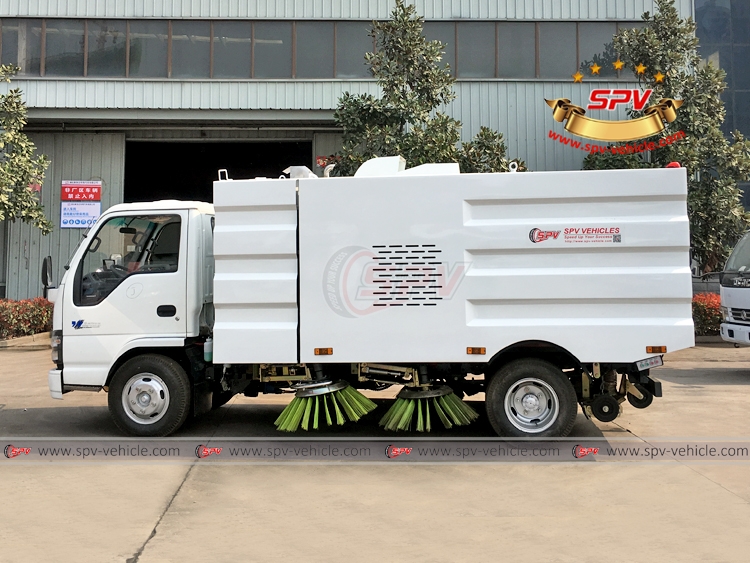

ISUZU Leaves Vacuum Truck To Honduras - Front Left	ISUZU Street Cleaning Truck To Honduras - Left

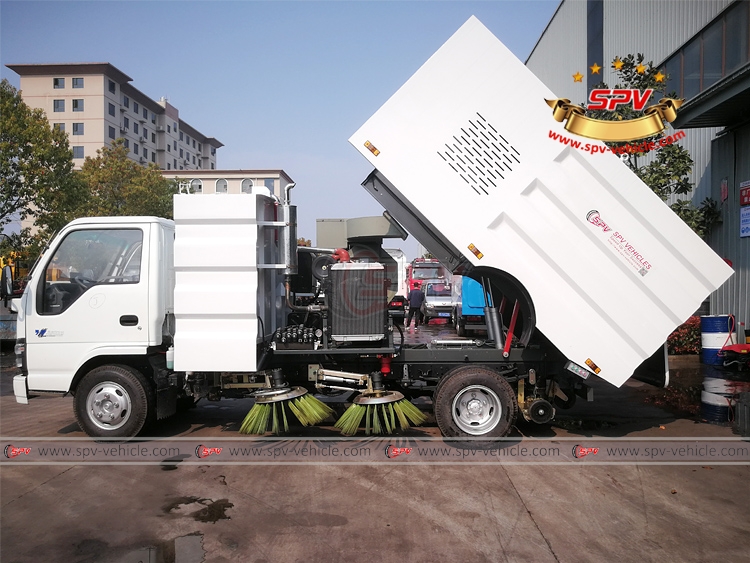

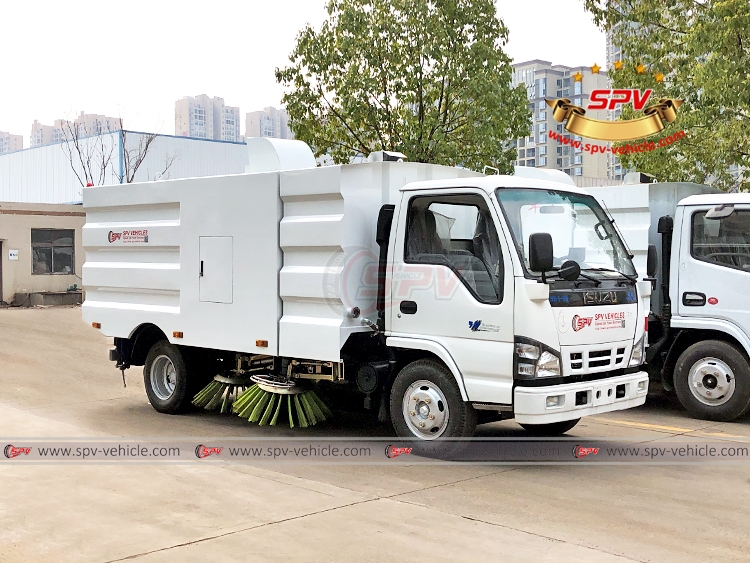

ISUZU Road Sweeper Truck - Discharge Garbage Test	ISUZU Road Vacuum Truck To Honduras - Front Right

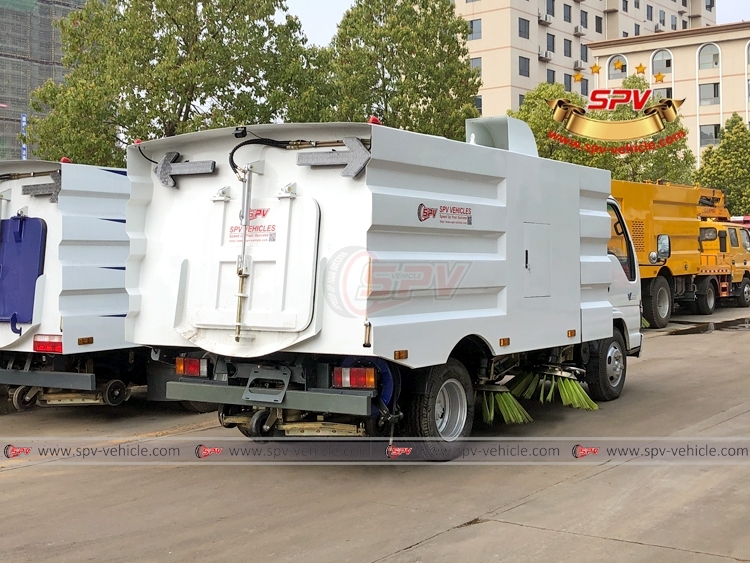

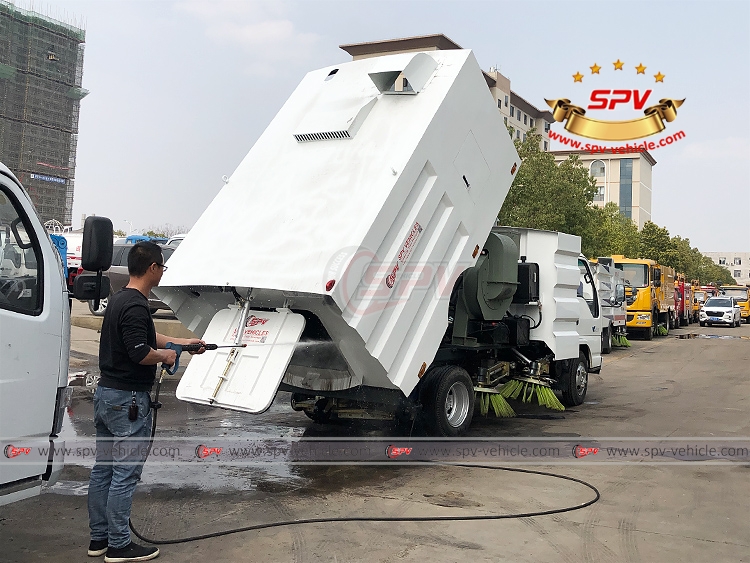

To Honduras - road sweeper truck ISUZU - Equipped with high pressure gun to clean waste tank	ISUZU 5.5 Road Vacuum Vehicle To Honduras - Rear Left
