Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Rubbish Dump Truck ISUZU (5 Ton Trash Dump Truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6800 * 2300 * 2860 mm | |
| GVW / Kerb Weight | 8,300 kg / 4,650 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 132 Hp (97 KW) | |
| Displacement |
2999 ml | |
| Emission Standard |
Euro III |
|
| Chassis | Drive Type |
4x2, left-hand or right hand drive |
| Transmission |
Manual, 5 speed forward, 1 reverse | |
| No. of Axles |
2 |
|
| Tyre Specification |
7.0R17.5, radial tyres, super durable | |
| Tyre Number |
10 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Metallic paint | |
Superstructure |
Loading Capacity | 5 Ton |
| Waste Box Material | Carbon steel | |
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system …….. |
||
 |
 |

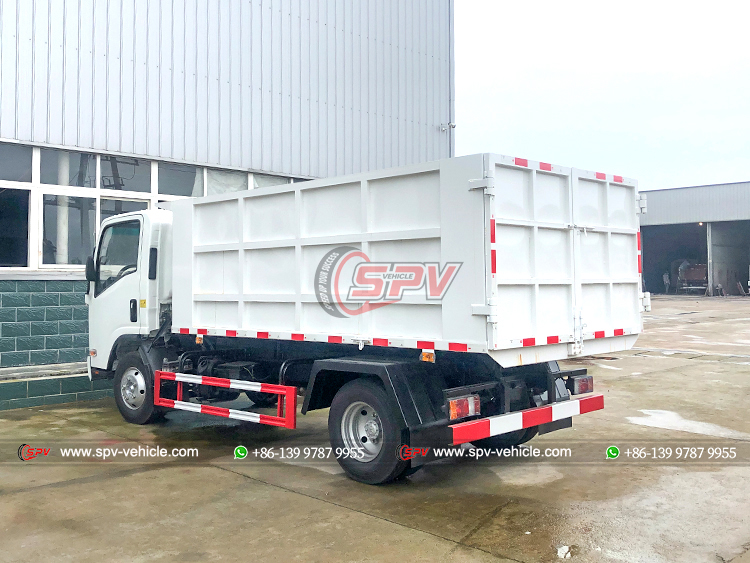

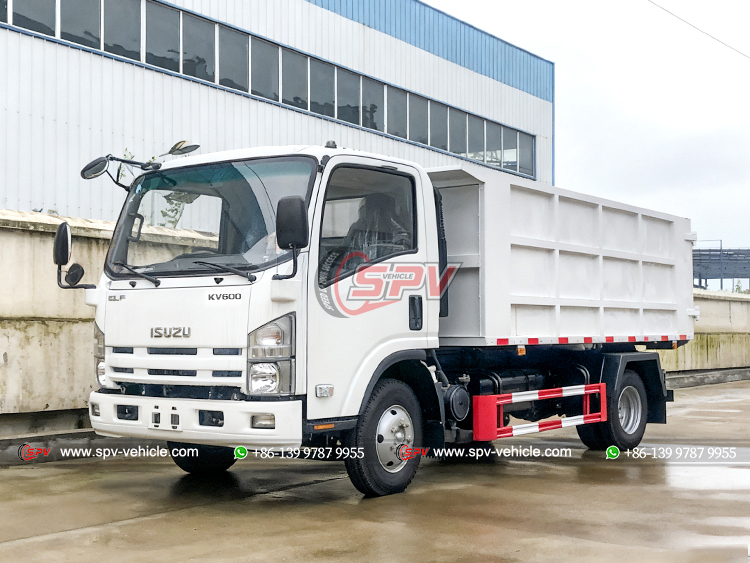

| ISUZU Light Duty Waste Tipper Truck - Front Left | ISUZU KV600 Waste Tipper Truck - Rear Left |
 |
 |

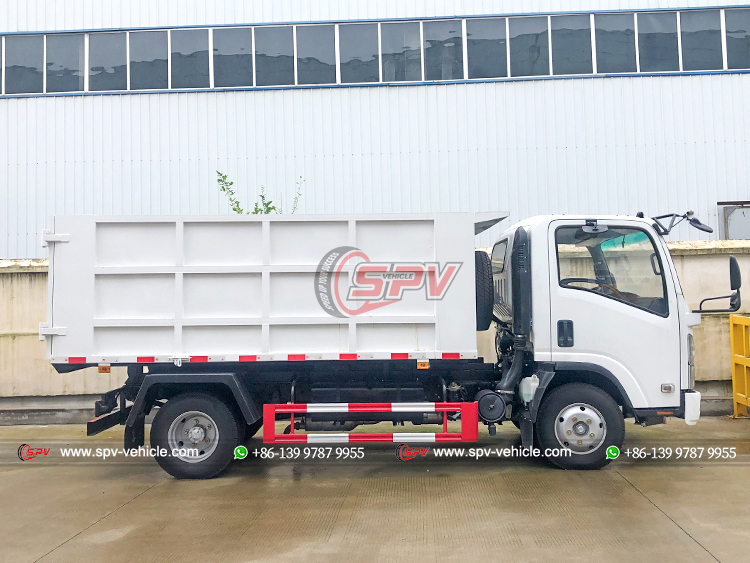

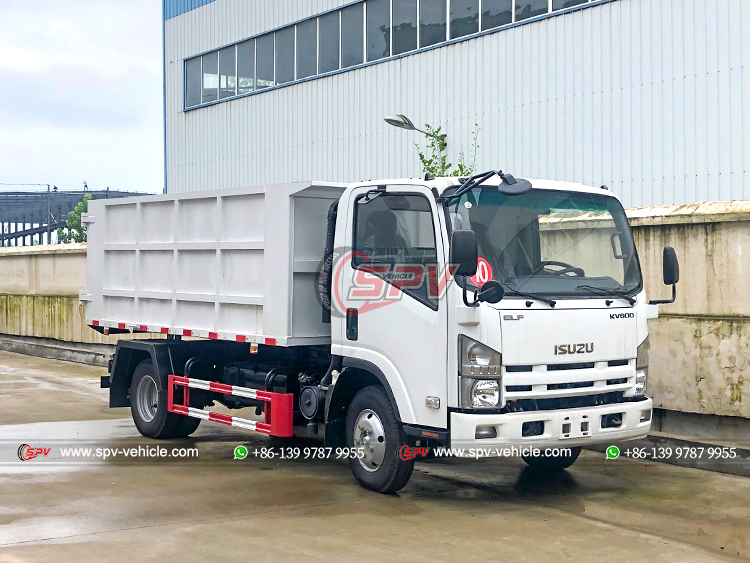

| ISUZU KV600 Solid Waste Tipper Vehicle - Front Right | ISUZU KV600 Trash Tipper Lorry - Right |
 |
 |

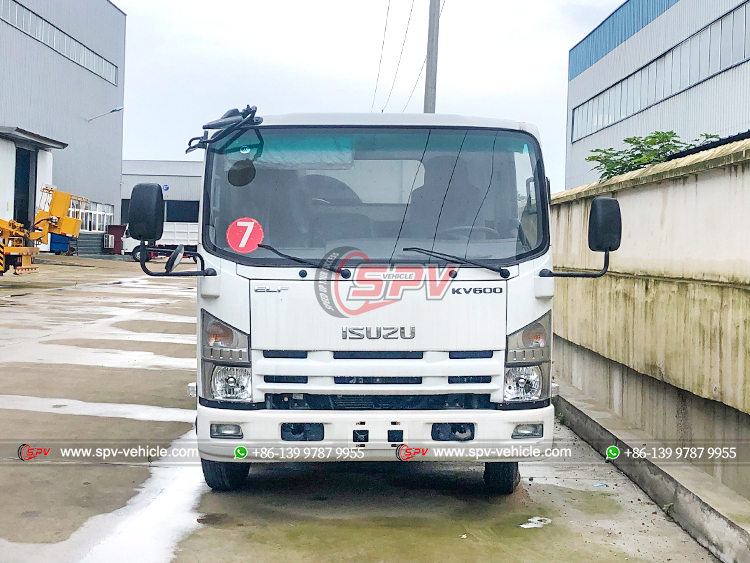

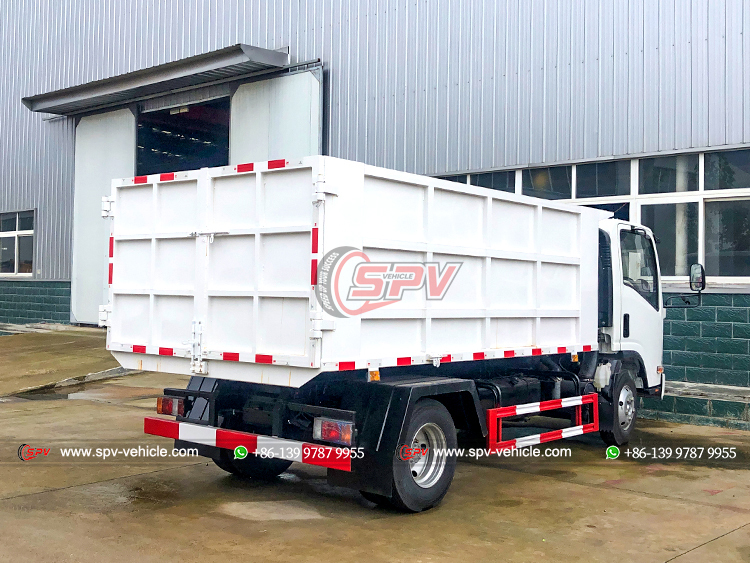

| ISUZU KV600 Rubbish Dump Truck - Rear Right | ISUZU KV600 Junk Dump Truck - Front |
 |
|

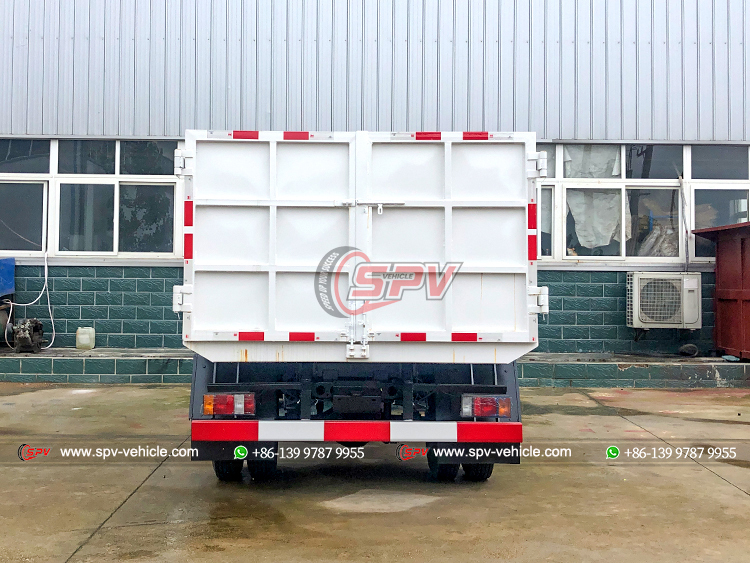

| ISUZU KV600 Garbage Dump Truck - Rear |
