| Helicopter Refueling Truck ISUZU (5,000 litres fuel tank truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7000 * 2130 * 2350 mm | |
| GVW / Kerb Weight | 10,000 kg / 4,670 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual, 6 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres (About 1,300 gallons) |
| Tank Material | Aluminium | |
| Pump | Fuel pump equipped for overhead delivery | |
| Liquid to be loaded | Helicopter Kerosene for helicopter | |

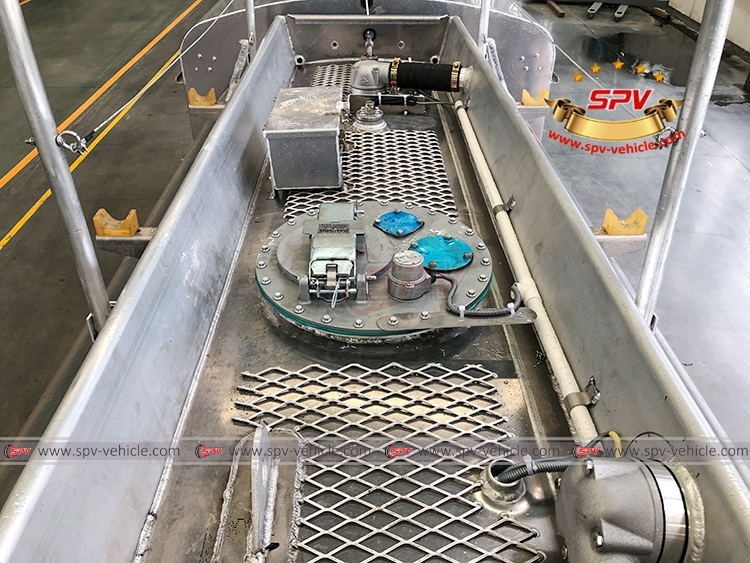

| Tank Top | 1. Top Euro-standard Explosion Proof Manhole, preventing fuel leakage in case the tanker is over rolled. 2. Pressure/vacuum vent integrated, adjusting air pressure in the tank to keep tank safe. 3. Anti-fill sensor. Aluminium handrail on tank top. |
|
| Loading | From top manhole or bottom loading system API. With vapor recovery system. | |
| Tank Bottom | Emergent bottom valve(stainless stee) equipped. Preventing fuel leakage in case of accident. | |
| Pump | Aluminium Fuel pump | |
| Filters | 5 sets filters | |
| Sampler | 1 set | |

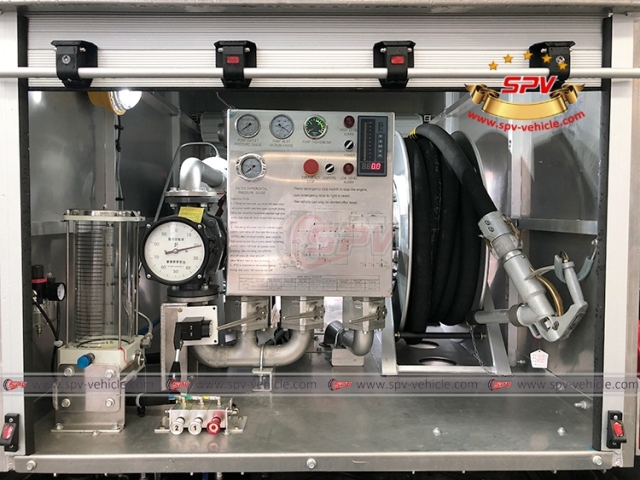

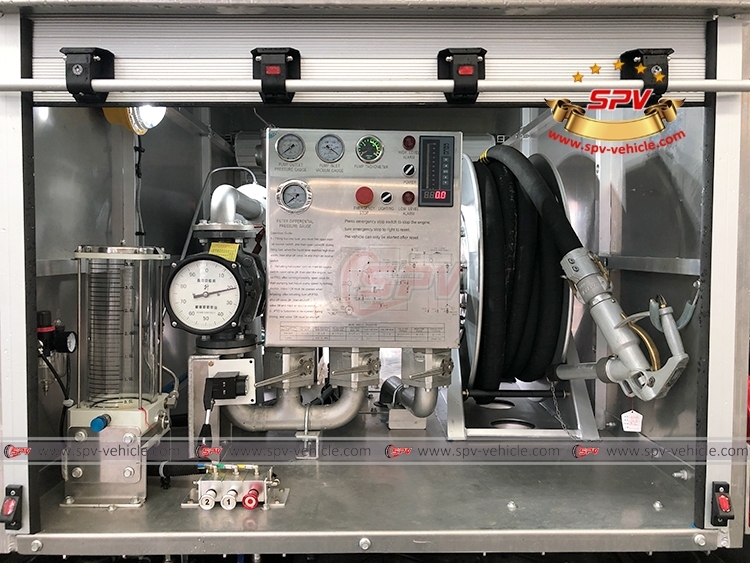

| Hose Reel | 1.5" * 20 meters hose reel with gravity refueling nozzle | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| Suction Head | 6 m | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
 |
 |

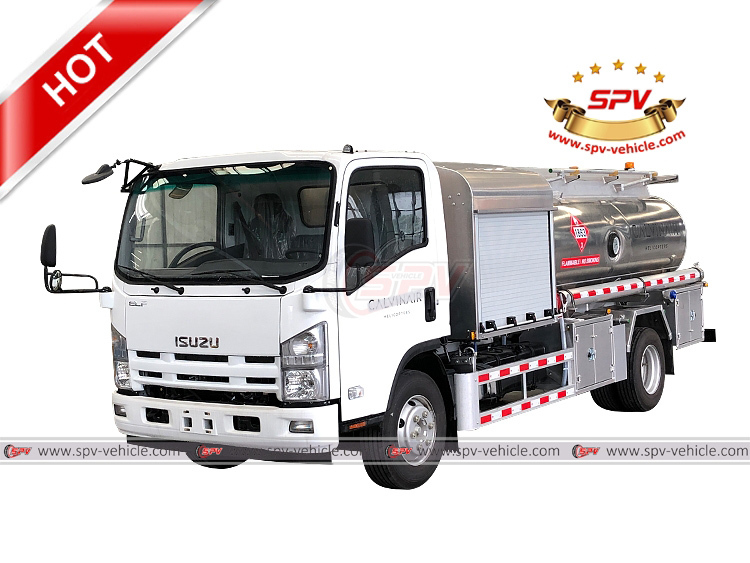

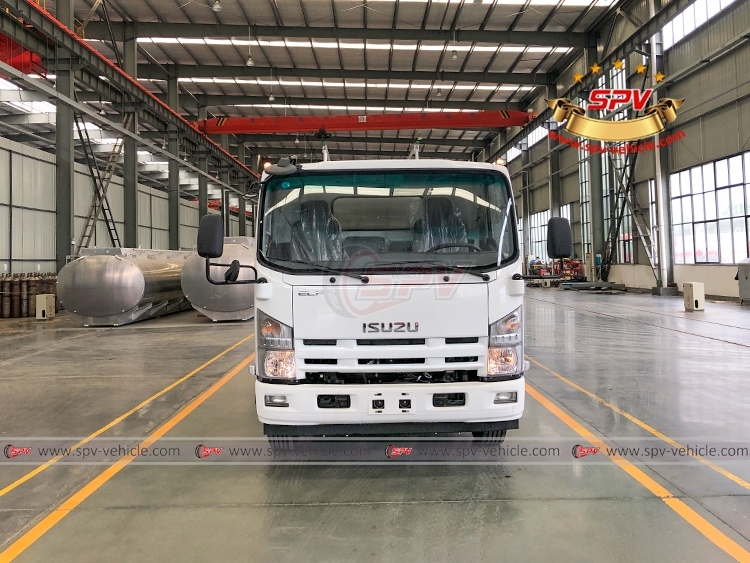

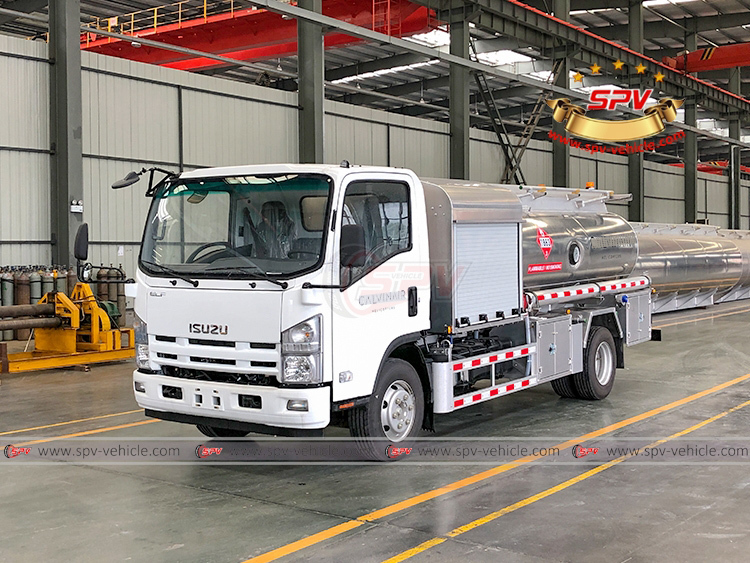

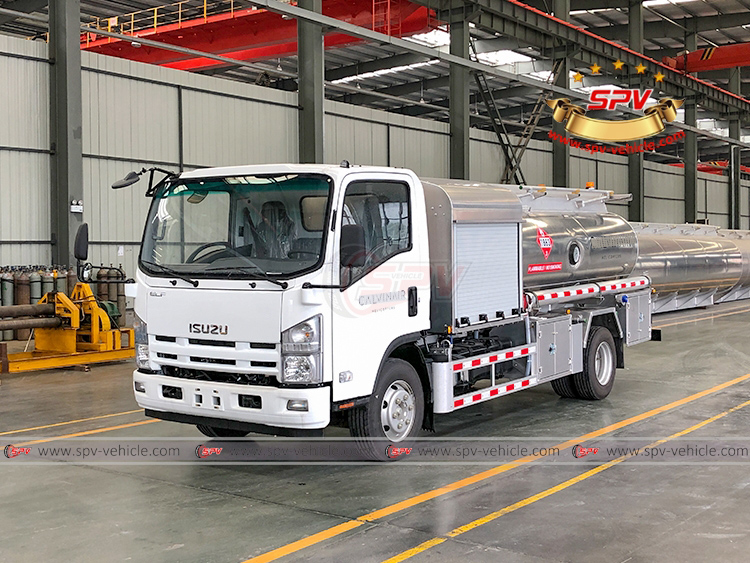

| 5,000 litres Helicopter Refueling Truck ISUZU - Front | ISUZU 5,000 litres Refueling Truck for Helicopter- Front Left |
 |
 |

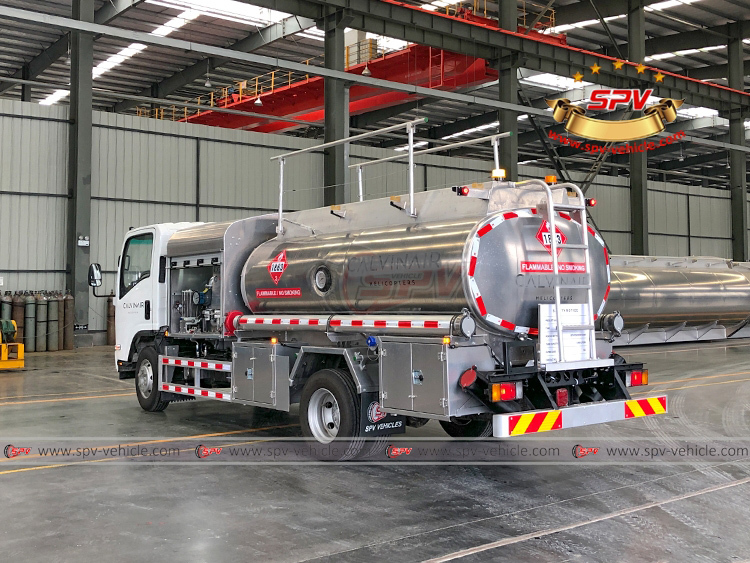

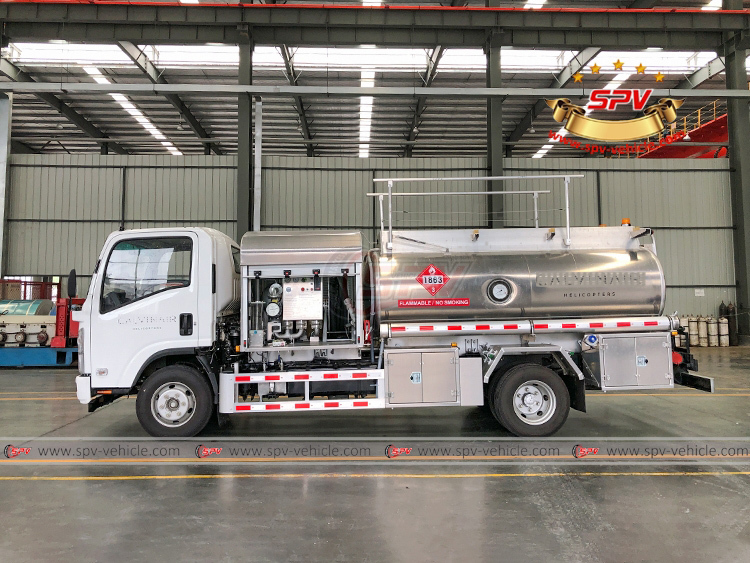

| ISUZU 5,000L Fuel Dispensing for Helicopter - Left | ISUZU NPR 5,000L Refueling Truck - Rear Left |
 |
 |

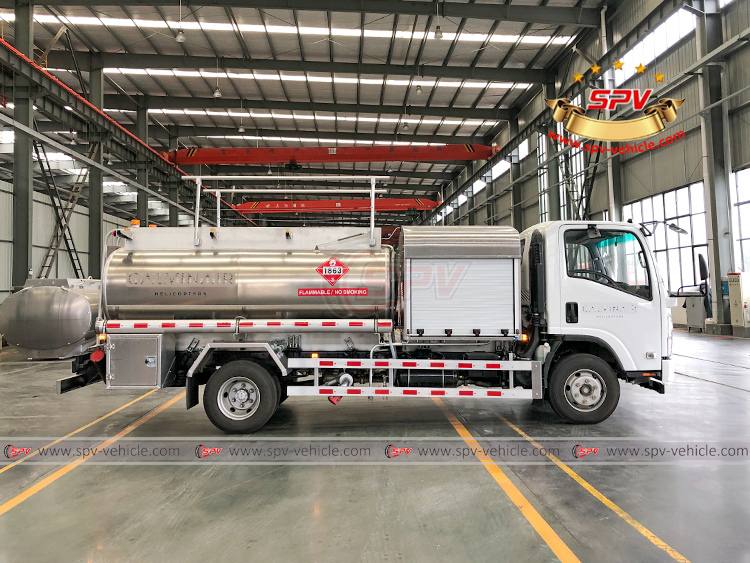

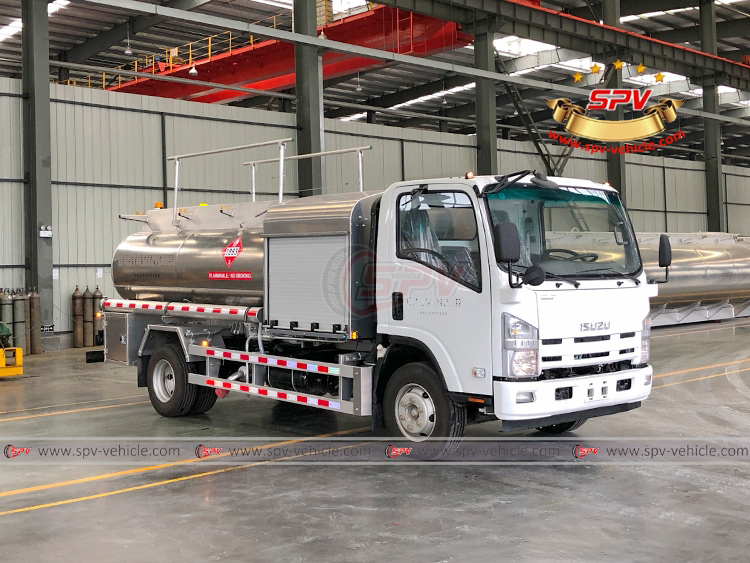

| ISUZU NPR Fuel Supply Truck for Helicopter - Front Right | ISUZU 5,000 Liters Fuel Bowser - Right |
 |
 |

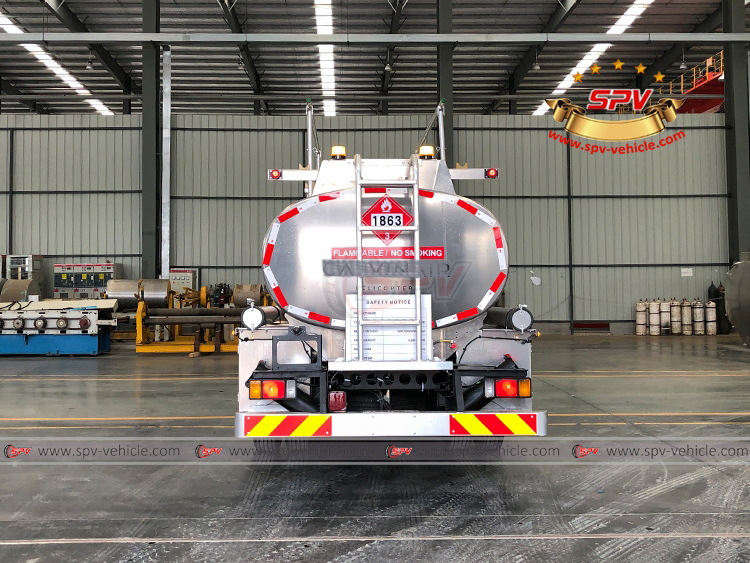

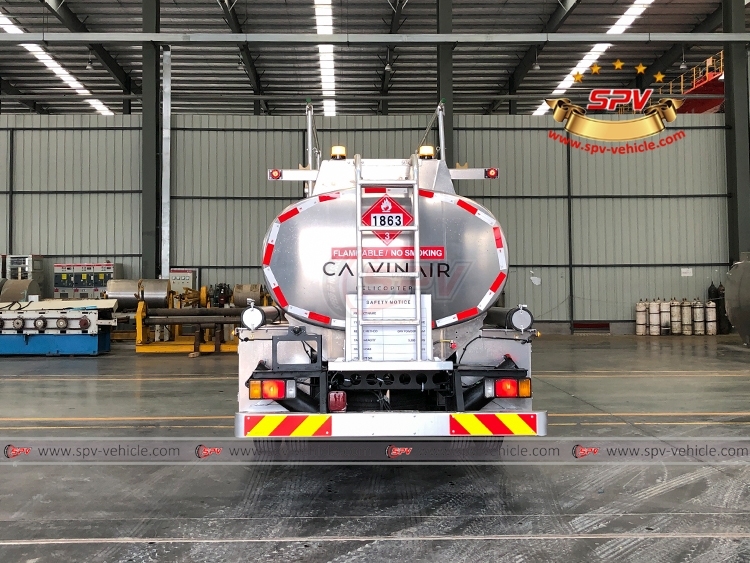

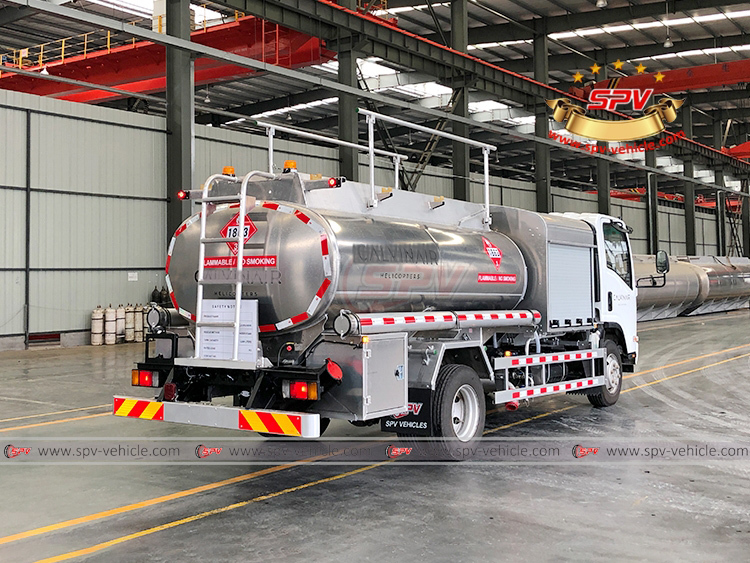

| ISUZU Fuel Tank Truck 700P - Rear Right | ISUZU 5,000 Liters Fuel Delivery Truck - Rear |
