Functions
Greening Spraying Truck (also called road spraying truck, mist water spary truck, water sprinkler truck, ISUZU greening water sprinkler, water spray truck, ISUZU dust control truck, Multi-functional Dust Suppression Truck Sinotruk, water transport truck, Tree watering truck, greening sprinkler truck, reduce dust truck, ISUZU watering truck, mining spray truck, dust reduce truck, ) is a special vehicle for efficient washing operations. It is suitable for washing operations in urban roads, highways, squares, and mine area, etc, as well as municipal and landscaping watering operations.
Water tanker can be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specitfication:

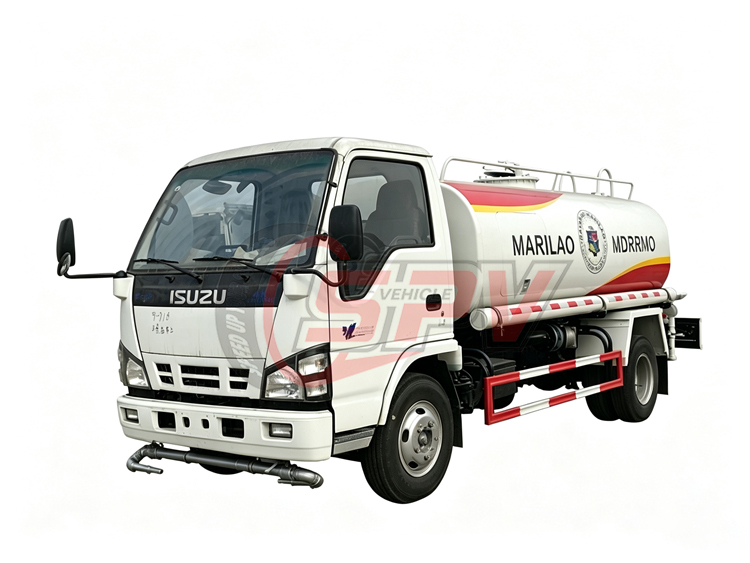

| Greening Spraying Truck ISUZU (5,000 litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5990 * 2300 * 2600 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,900kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | WEICHAI engine | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4x2, left hand drive |
| Transmission | ISUZU Manual, 5-speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 98 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres ( About 1,300gallons) |
| Tank Material | Carbon steel | |
| Flow Speed | 500 litres / min | |
| Delivery Head | 45 m | |
| Suction Head | 6 m | |
| Hose | High quality PVC hose, anti-aging | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
 |
 |

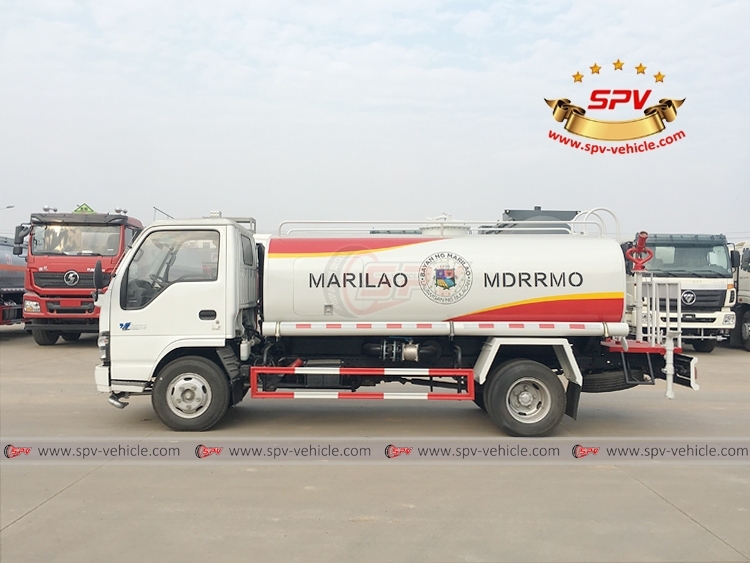

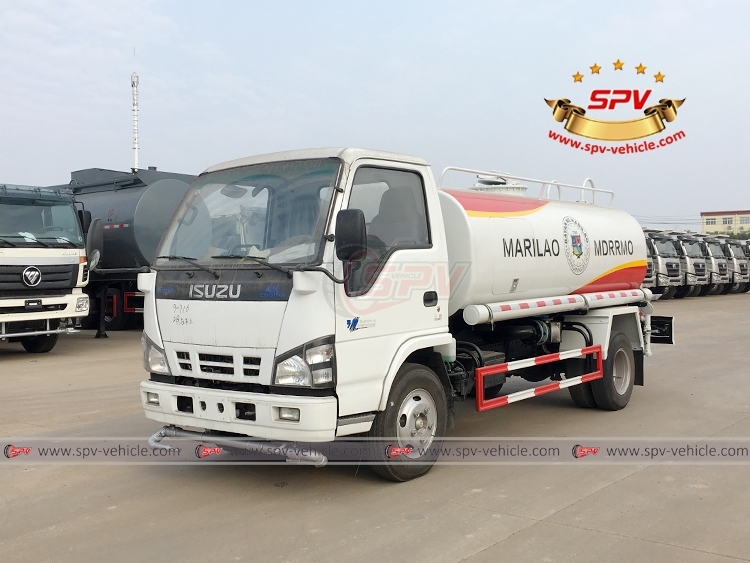

| ISUZU Light-duty Park Irrigation Truck - Front Left | ISUZU 4x2 Landscaping Water Truck - Left |
 |
 |

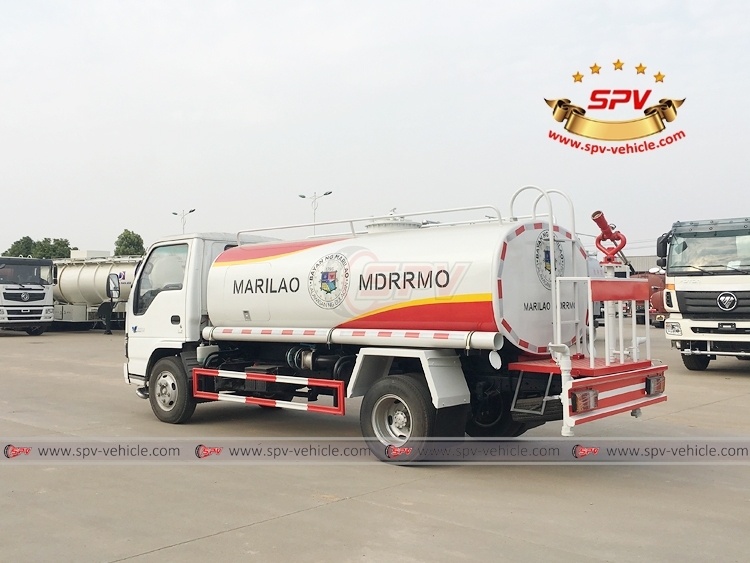

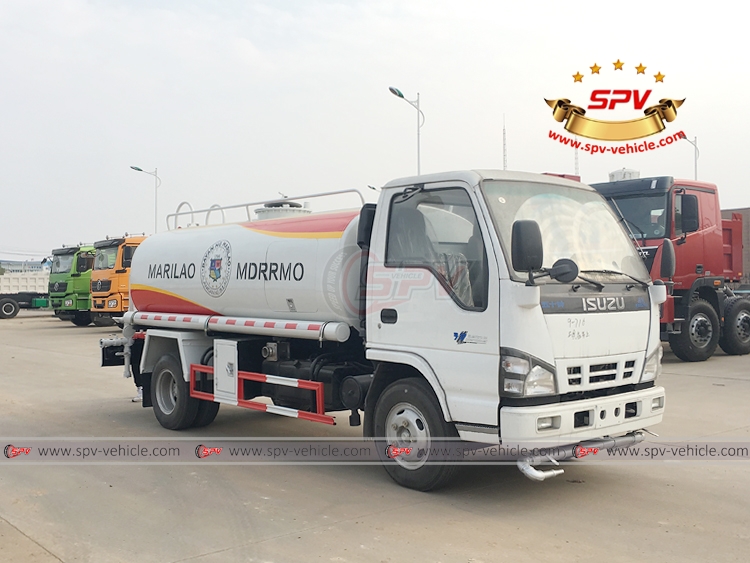

| ISUZU 5,000 litres Water Distribution Truck - Rear Left | ISUZU 5,000 litres Watering Truck - Front Right |
 |
 |

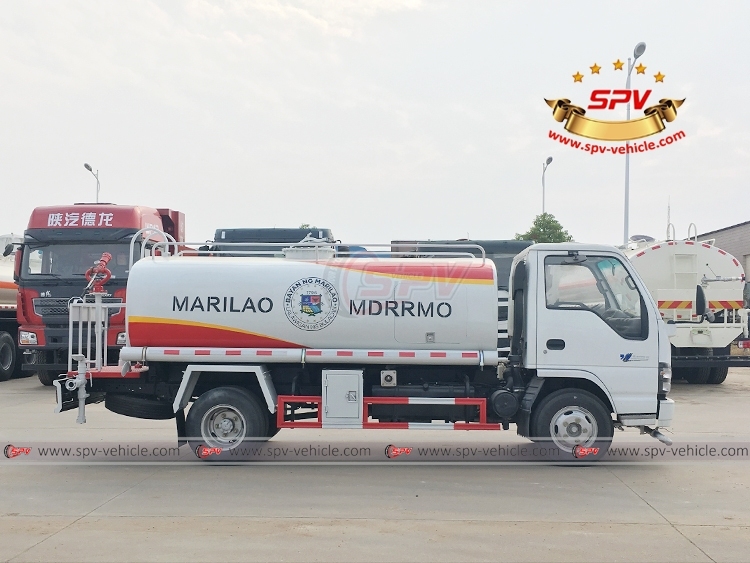

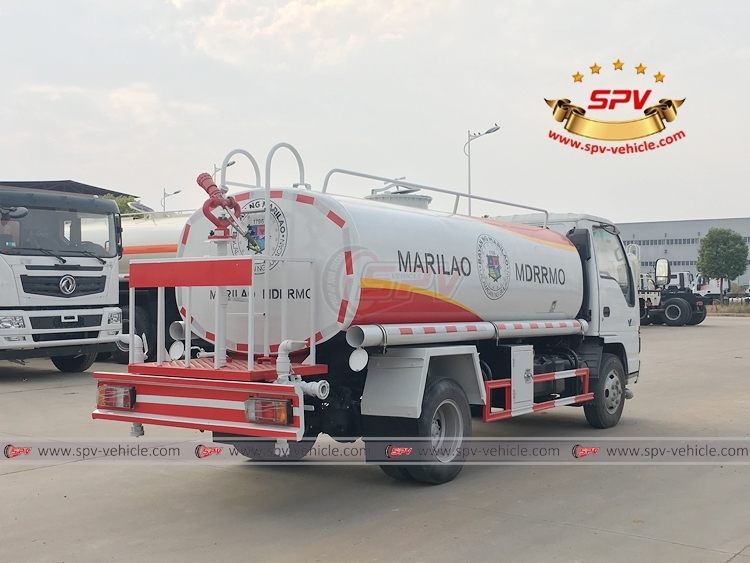

| ISUZU 5,000 litres Greening Sprinkler Truck - Right | ISUZU 5,000 litres Road Spraying Truck - Rear Right |
 |
|

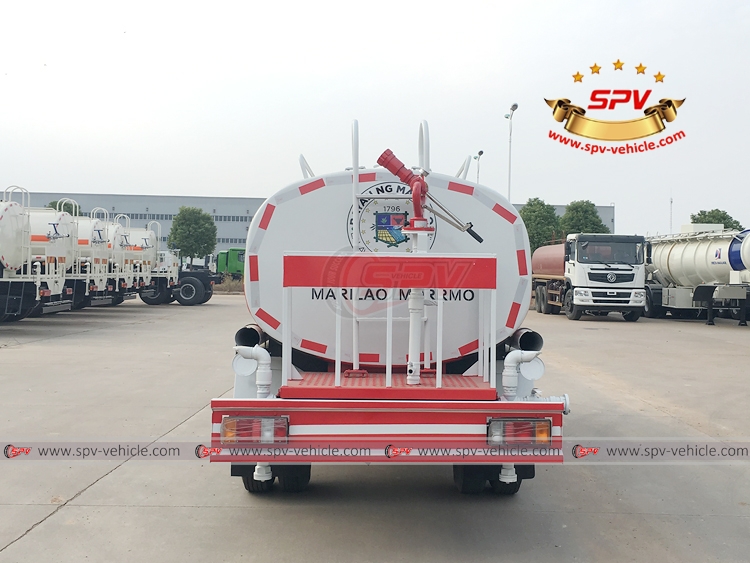

| ISUZU 5,000 litres Tree Watering Truck - Rear |
