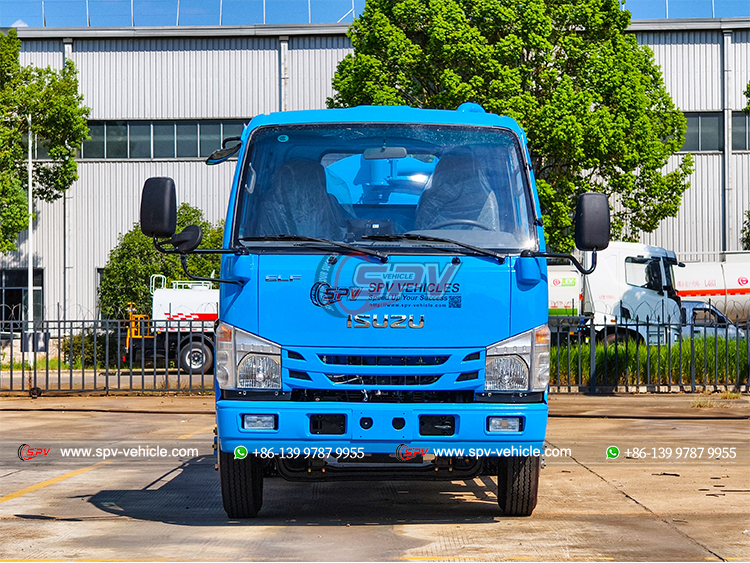

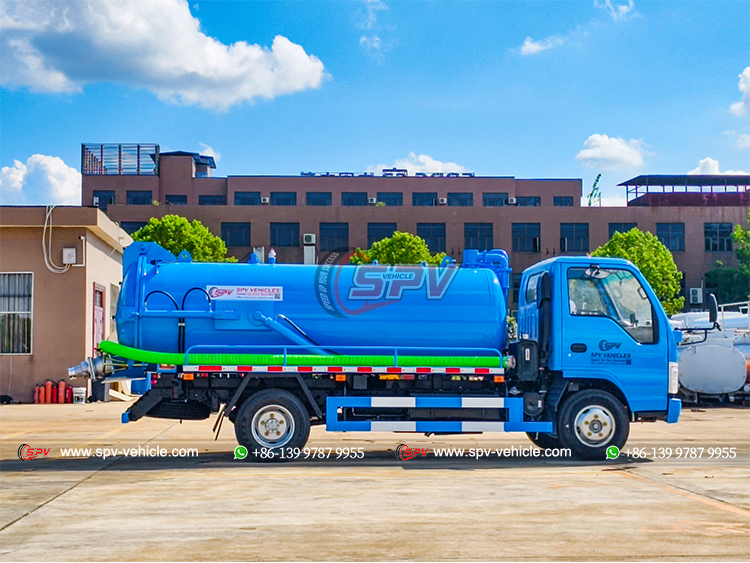

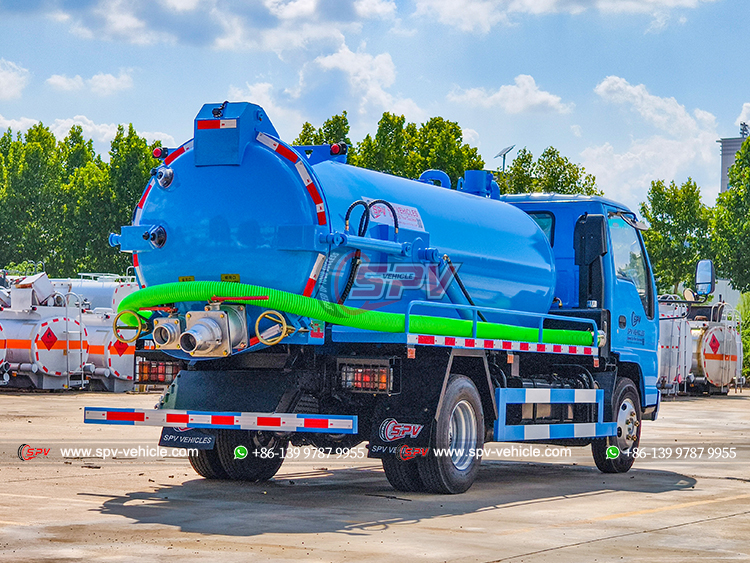

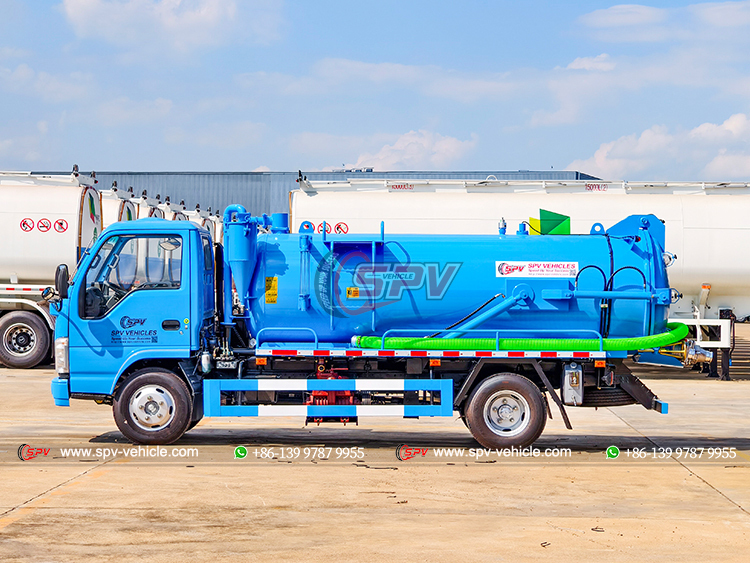

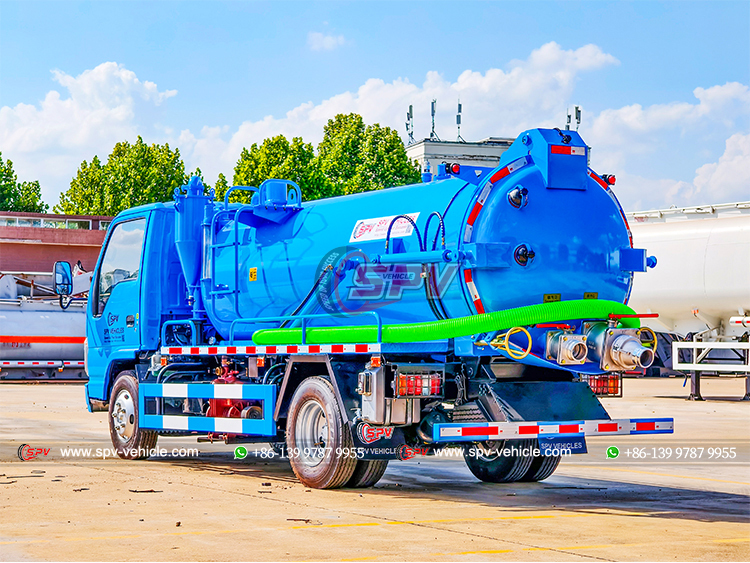

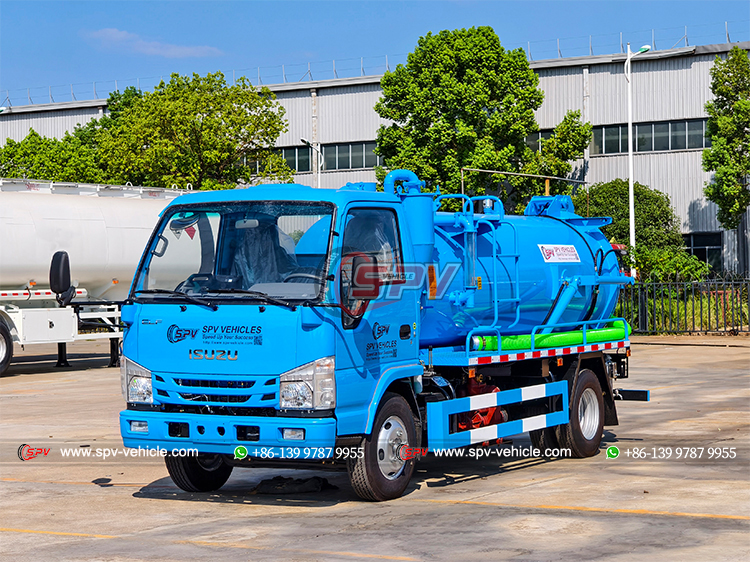

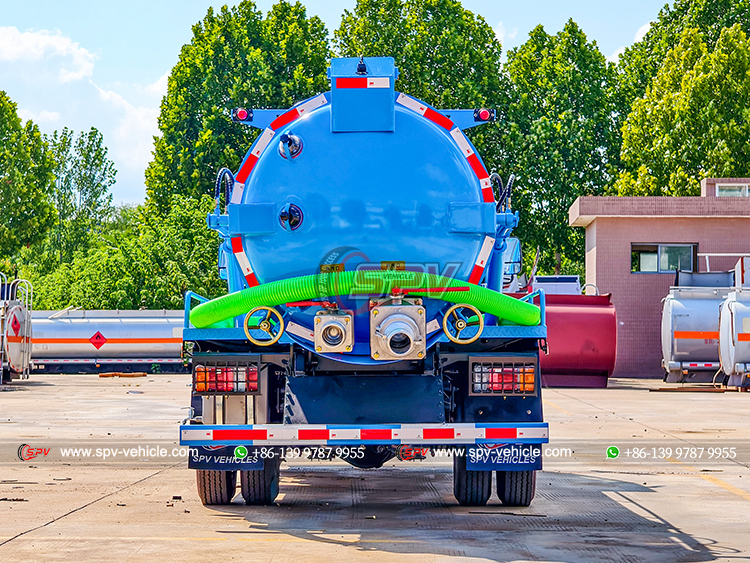

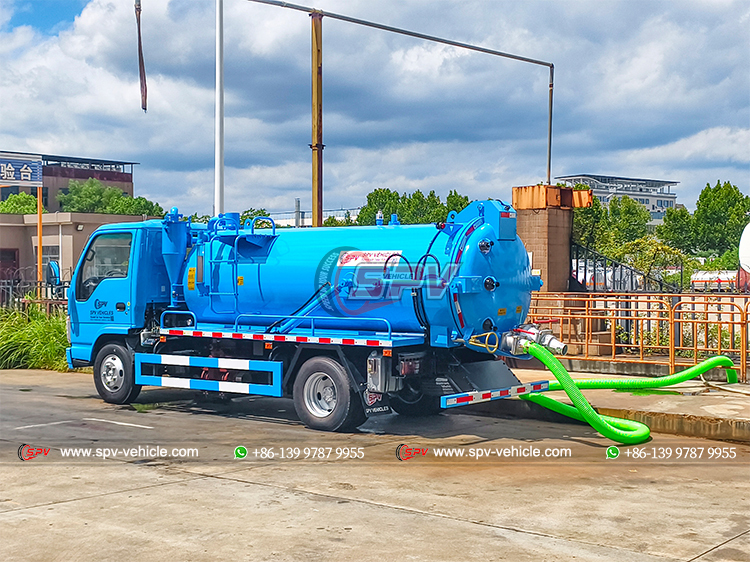

| Sewage Suction Truck ISUZU (4,000 Litres) |
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
6200 x 1900 x 2340 mm |
| GVW / Kerb Weight |
7,300 kg / 4,190 kg |
| Cab |
Cab Capacity |
2 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU, 4JB1CN |
| Power |
120 HP / 88 kw |
Displacement
|
2771 ml
|
Emission Standard
|
Euro IV
|
| Chassis |
Drive Type
|
4X2, left hand drive
|
Transmission
|
ISUZU Manual, 5 forward,1 reverse
|
No. of Axles
|
2
|
Tyre Specification
|
7.00R16
|
Tyre Number
|
6 tyres and 1 spare tyre
|
Max Speed
|
100 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Tank Capacity
|
4,000 litres (about 1,000 gallons)
|
Tank Material
|
Carbon steel
|
Suction Head
|
6 m
|
Vacuum Pump
|
High efficiency, vacuum rare up to 93%, quick suction and discharge
|
Hose
|
High quality, wire strengthened hose
|

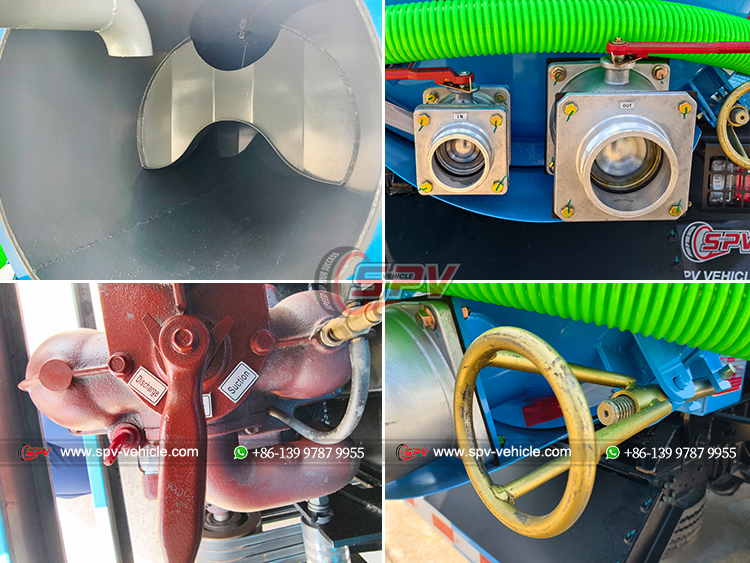

Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose.
|

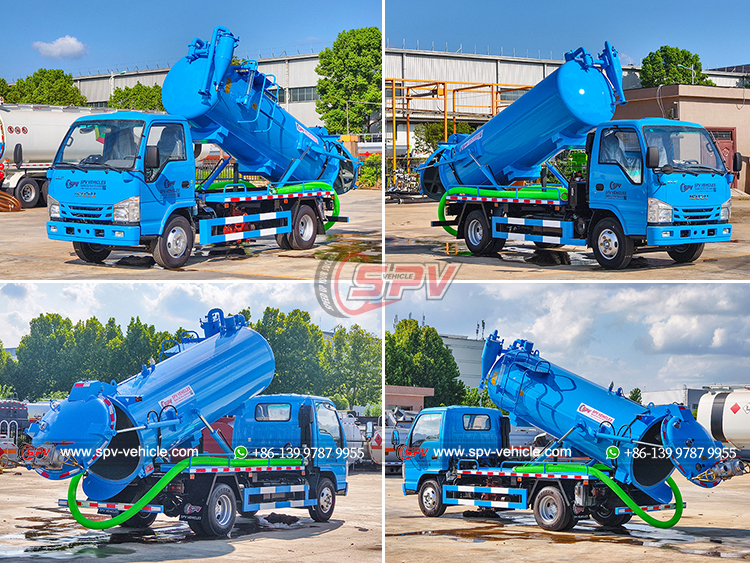

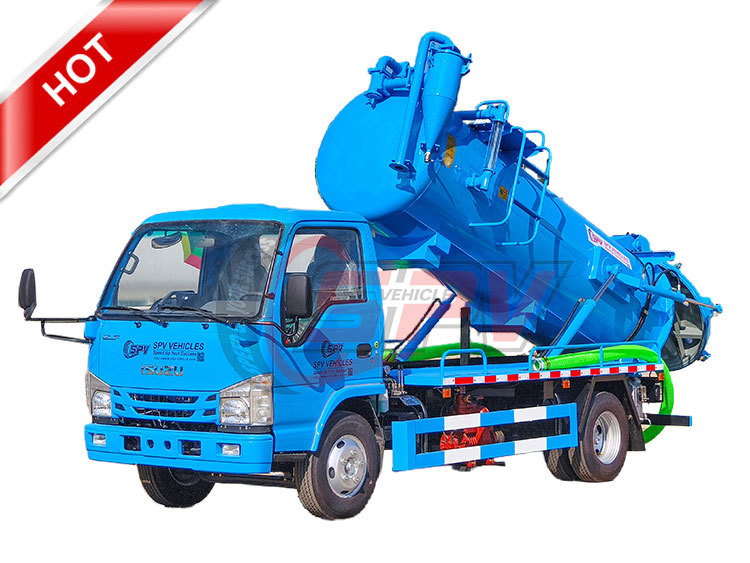

Rear door can be hydraulic opened for complete discharge of solid stuff.
|
All other standard accessories: Tool kit, English manual……
|
| Optional |
** Tank material could be mild steel, stainless steel…
** Italy vacuum pump is available.
|
