Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

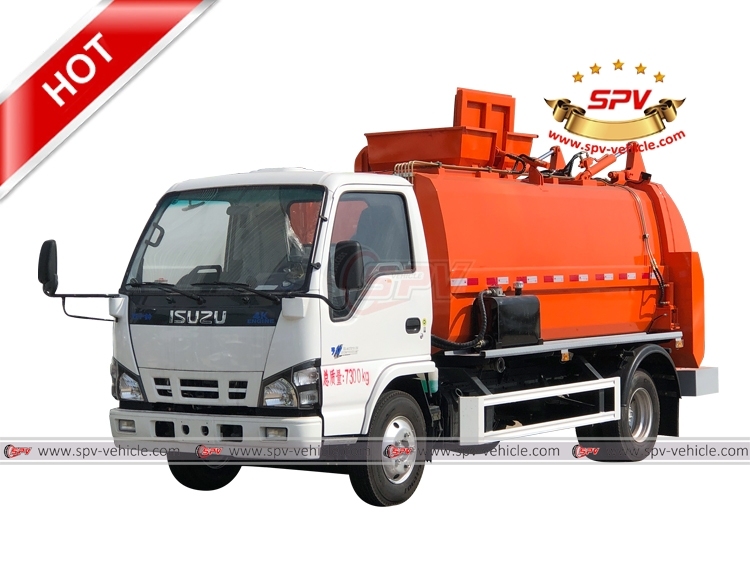

| Kitchen Waste Removal Truck ISUZU (5m³ food food waste delivery truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5860 * 2200 * 2680 mm | |
| GVW / Kerb Weight | 7,300 kg / 4,600 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 130 Hp (95 KW) | |
| Displacement |
2999 ml |
|
| Emission Standard |
Euro V |
|
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 6-speed forward , 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
7.0R16 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
5 m³ |
| Waste Box Material |
Anti-corrosive steel |
|
| Lifting Device | Hydraulic controlled, suitable for lifting 240 L square dustbin | |
| Rear Lid | Hydrauli open to discharge | |
| Discharging | Ejection plate pushing waste out | |
| Waste Water Tank | Under tank(fiter screen at bottom of tank to separate solid and liquid waste.) | |
| Cleaning System | With water tank and motor controlled water pump, to clean tank | |
| Heating system | Optional for using in cold winter | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

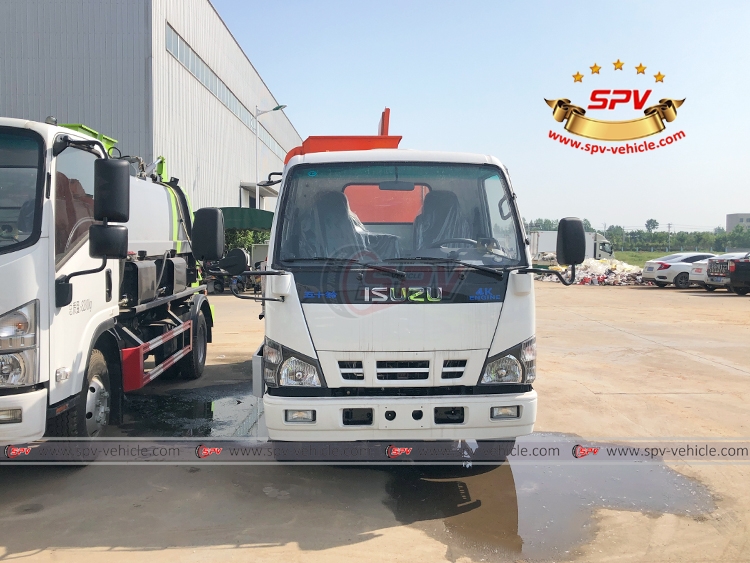

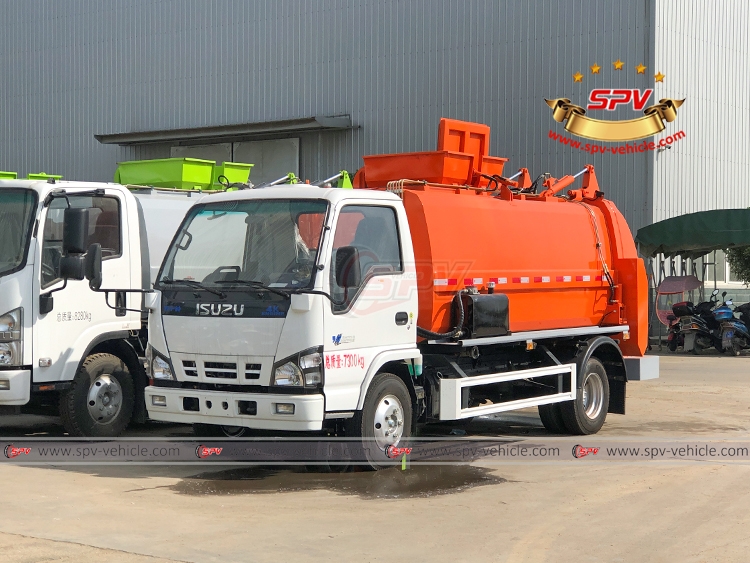

| 5,000 Litres Food Waste Garbage Truck ISUZU - Front | 5,000 Litres Food Waste Disposal Truck ISUZU - Front Left |
 |
 |

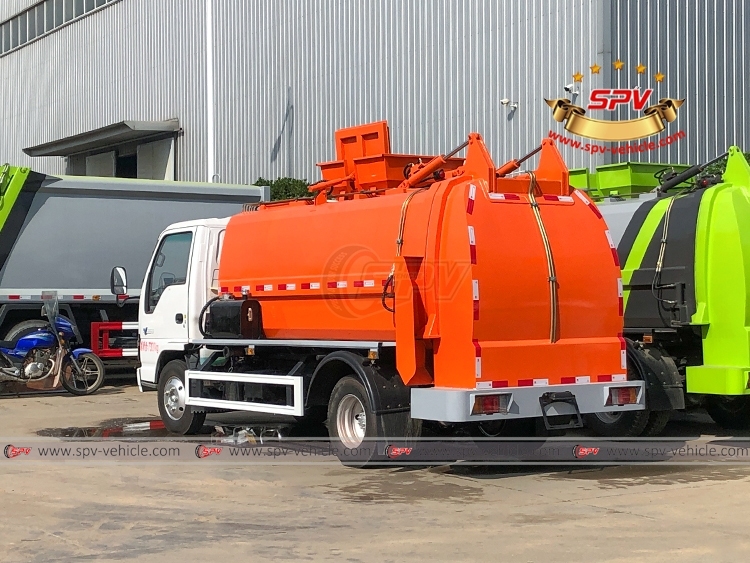

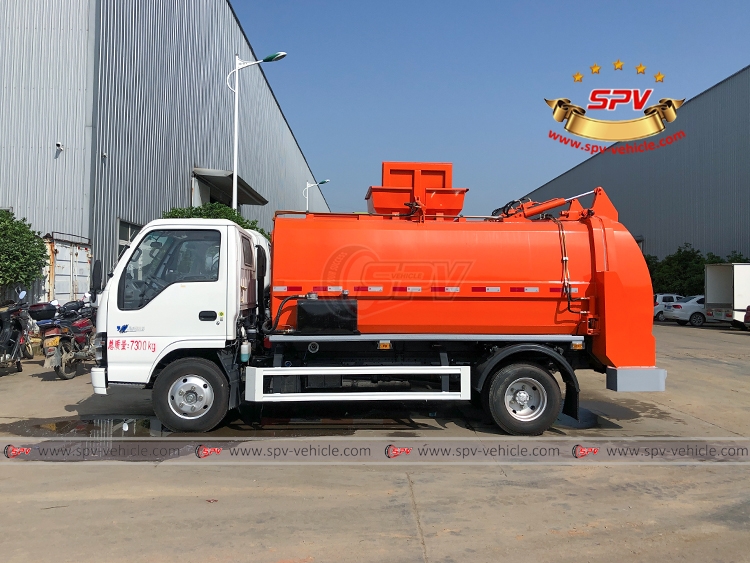

| ISUZU Food Waste Collection Truck - Left | 5,000 Litres Food Waste Delivery Truck ISUZU - Rear Left |
 |
 |

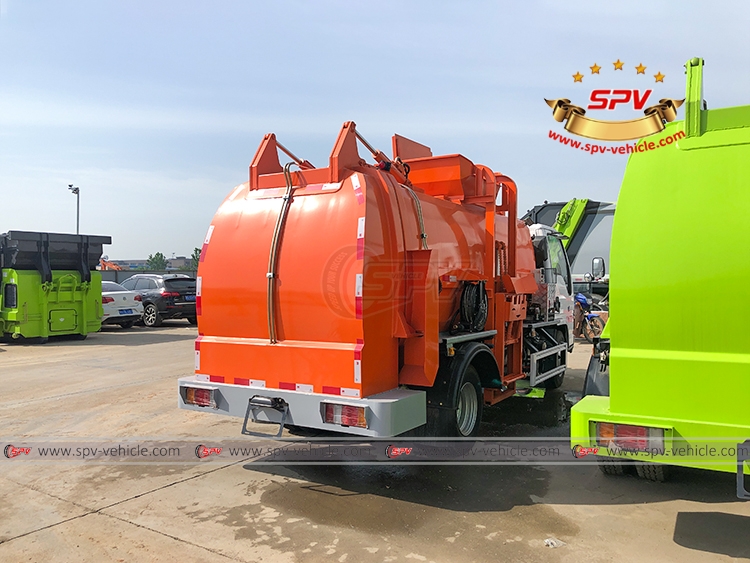

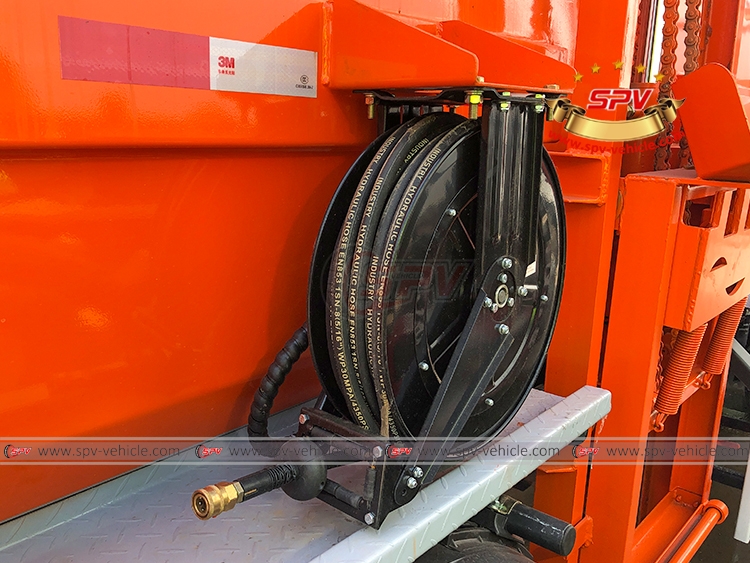

| ISUZU 5,000 Litres Food Waste Removal Vehicle - Rear Right | ISUZU 4x2 Food Waste Garbage Truck - Washing Unit |
