Name: ISUZU 4 CBM Hook Arm Rubbish Truck
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Hook arm rubbish truck (also called hook lift trash truck, hook lift garbage truck, Garbage Truck Mounted Hook Arm, Hook Lift Garbage Wagon, Hook Arm Refuse Removal Truck, Hook Lift Trash Collection Truck, trash compactor truck, waste collection truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart, bin lorry, rubbish collection truck, waste collection vehicle) is designed to collect and transport municipal solid waste.

Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.

The operation system could be manual or electrical control.

Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life

Specitfication:

Hook Arm Rubbish Truck ISUZU (4 m³ Hook Lift Garbage truck)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	6400 * 2200 * 2600 mm
	GVW / Kerb Weight	7,300 kg / 3,200 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	120 Hp (88 KW)
	Displacement	2999 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, right hand drive
	Transmission	Manual, 5-speed forward & 1 reverse
	No. of Axles	2
	Tyre Specification	215/70R17.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Automactive metallic paint
Superstructure	Waste Box Capacity	4 m³
	Waste Box Material	Anti-corrosive steel
	Loading Cyle Time	30-50 S
	Garbage Discharge Time	30 S
	Hydraulic System	Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable.
	Control Method	Manual/ electrical dual control
Optional	Various rear loading mechanism: container lifting; hopper flip; skip loader… Electronic operating system

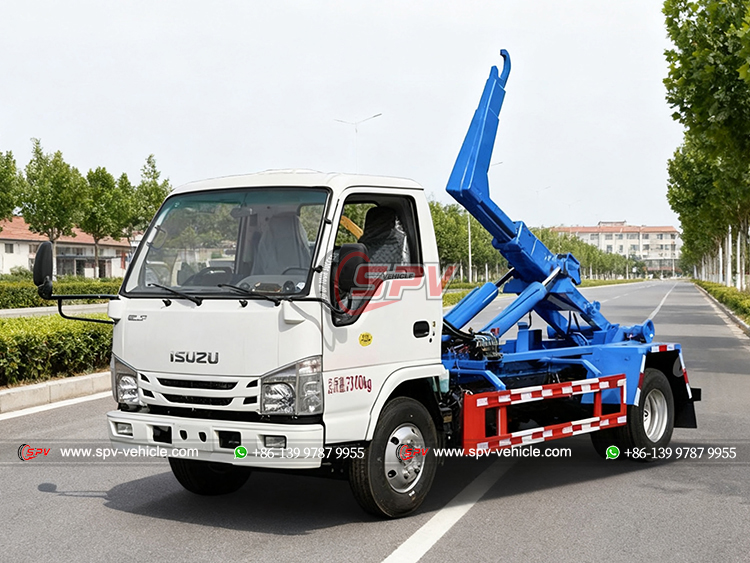

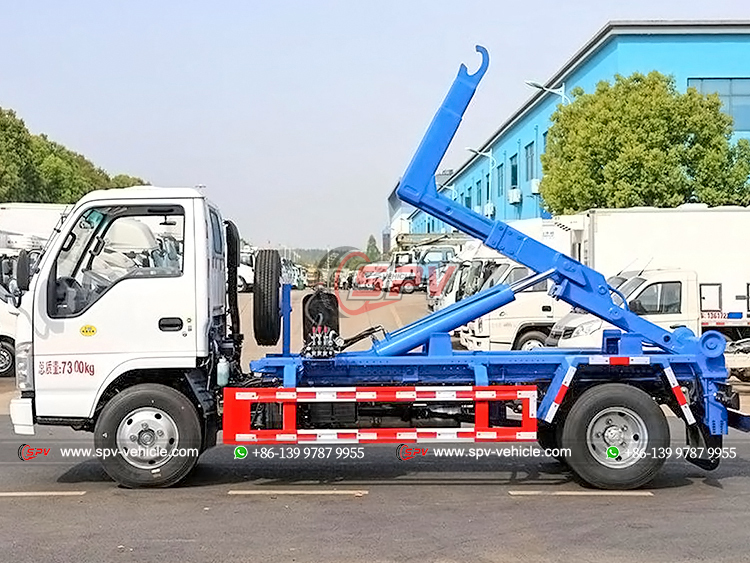

ISUZU 100P Arm Hook Garbage Truck - Front Left	ISUZU 4 Tons Garbage Truck Mounted Hook Arm - Left

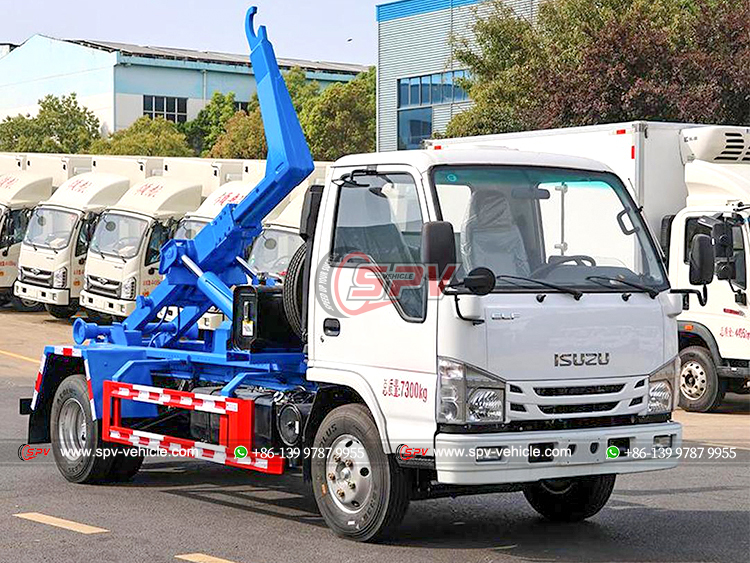

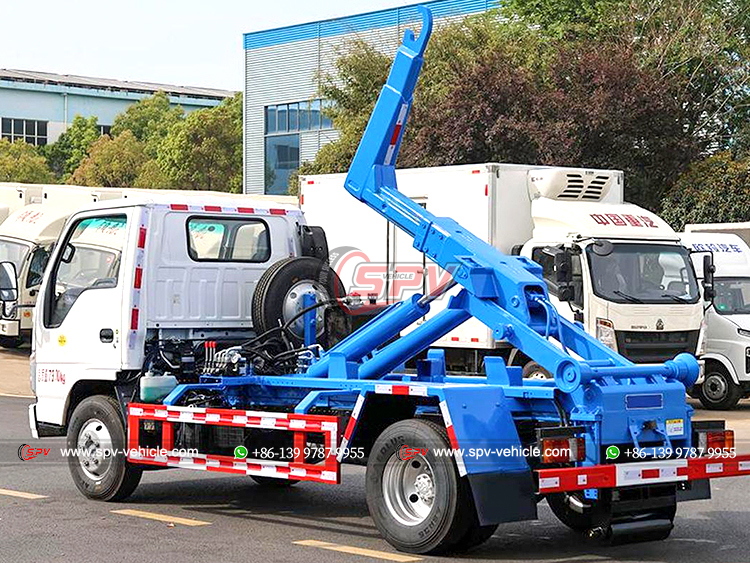

ISUZU 4X2 Light Hook Lift Garbage Wagon - Rear Left	ISUZU 100P Waste Collection Wagon - Front Right

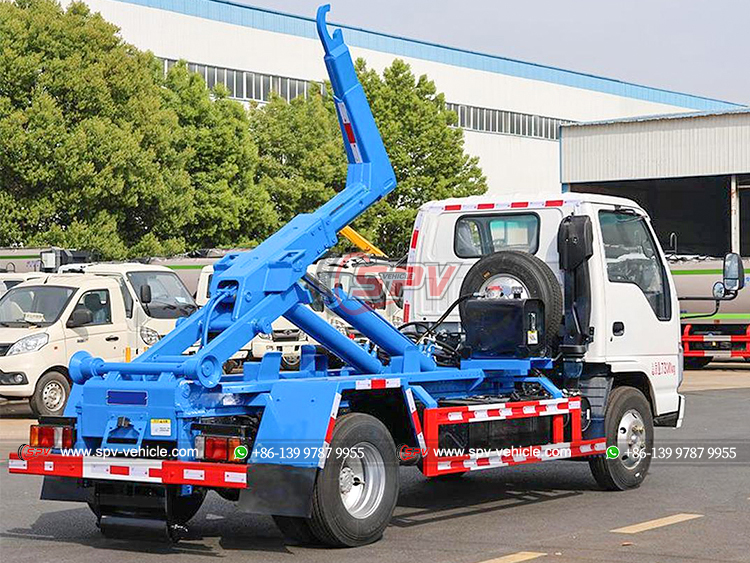

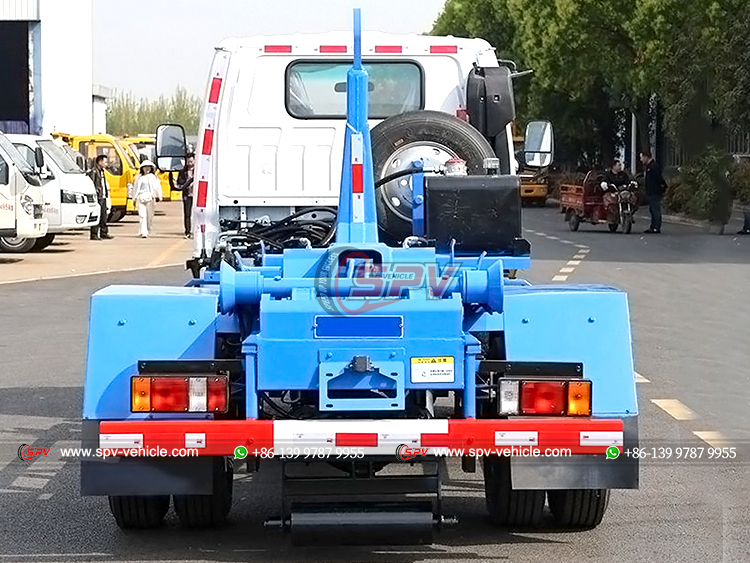

ISUZU 100P Hook Arm Refuse Removal Truck - Rear Right	ISUZU Light Hook Lift Trash Collection Truck - Rear

ISUZU 100P Hook Arm Truck Mounted Dustbin Van
