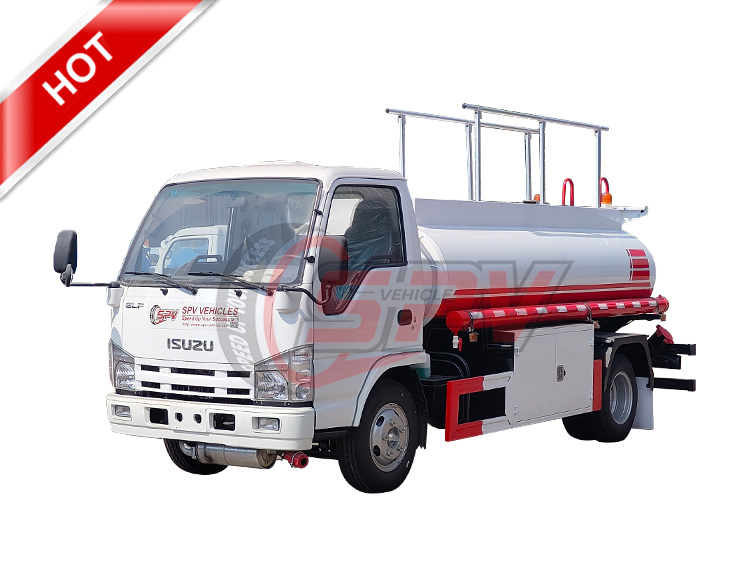

| Fuel Distribution Truck ISUZU (4,000 litres fuel tank truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5840* 1995 *2350 mm | |
| GVW / Kerb Weight | 7,300 kg/3,440 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 96 Ps (71 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual, 5 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 6.50R15 10PR | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 4,000 Litres (About 1,000 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality PVC hose, anti-aging | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
 |
 |

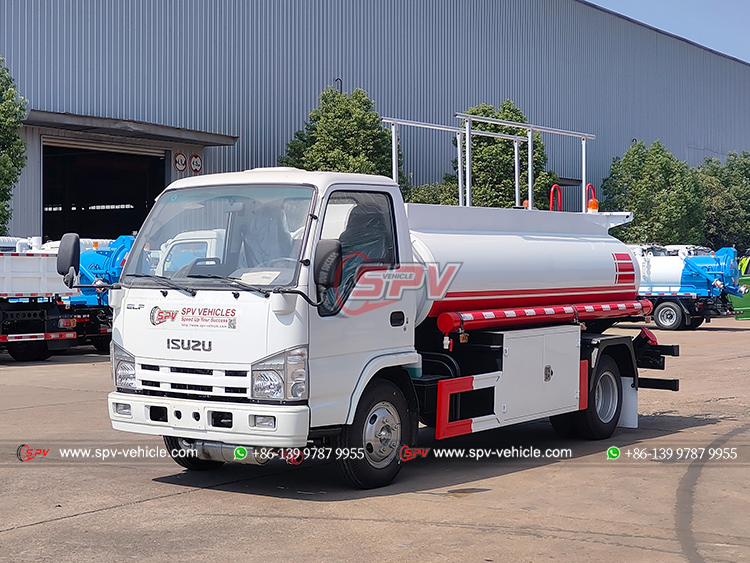

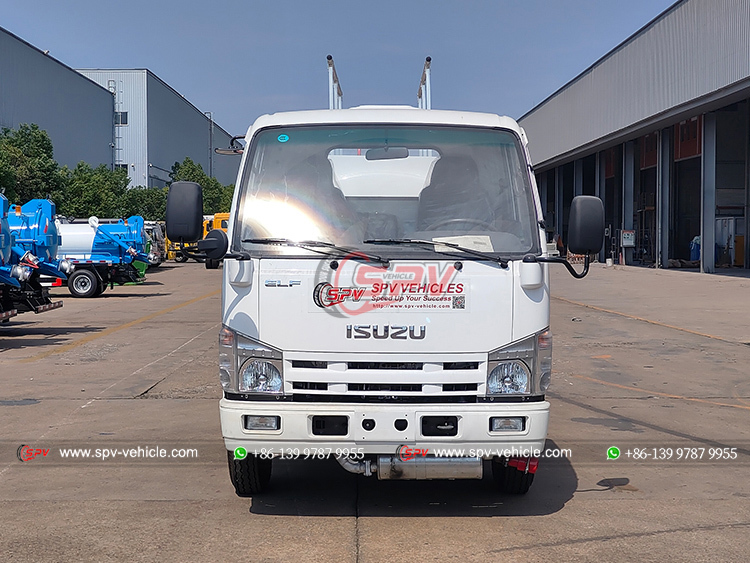

| ISUZU Light-duty Oil Storage Tank Truck - Front | ISUZU 4 Tons Fuel Dispensing Truck - Front Left |
 |
 |

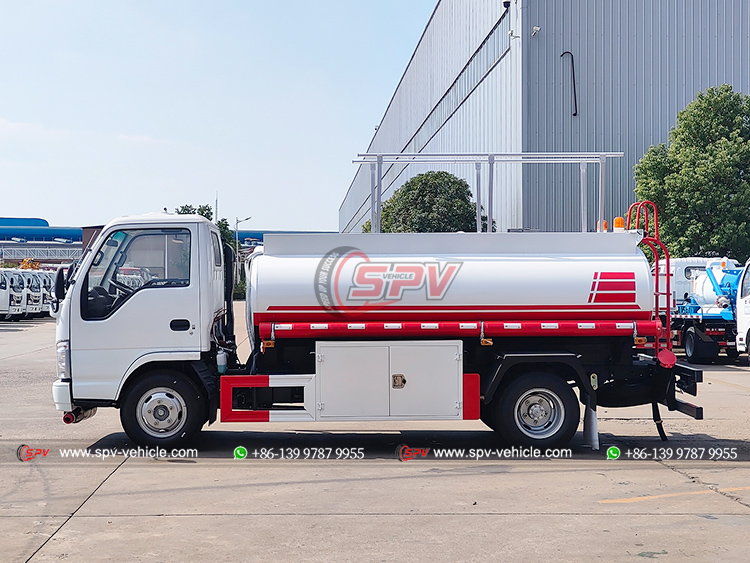

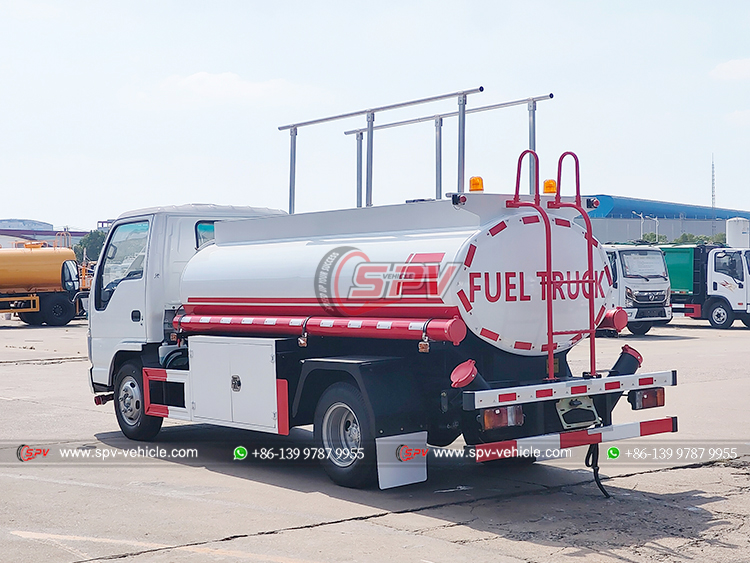

| ISUZU 100P Fuel Transport Truck - Left | ISUZU 100P Fuel Tank Truck - Rear Left |
 |
 |

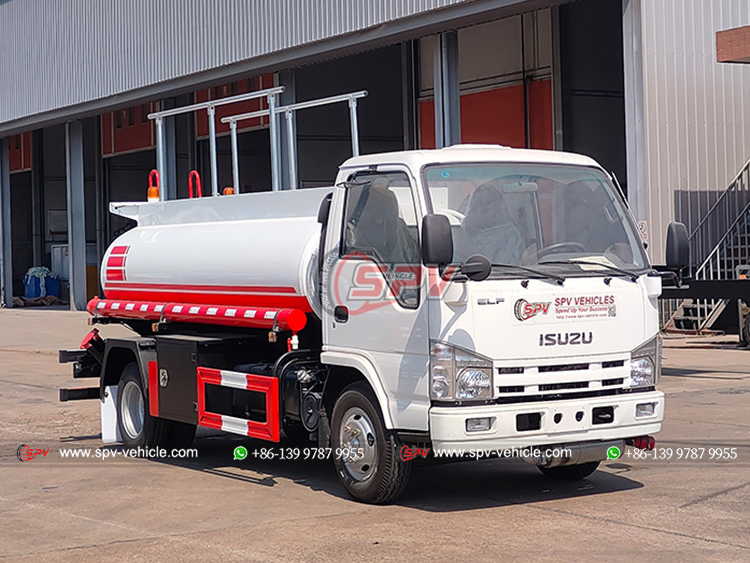

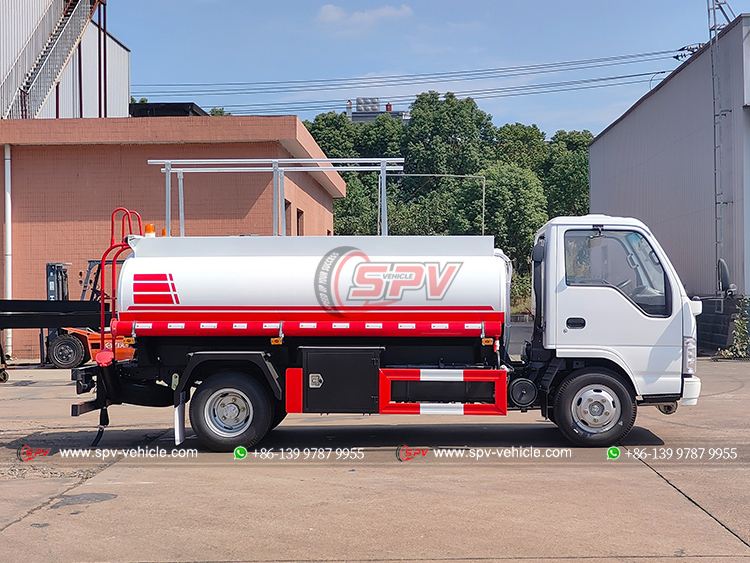

| ISUZU 4 Tons Fuel Carrying Truck - Front Right | ISUZU 100P Gasoline Delivery Truck - Right |
 |
 |

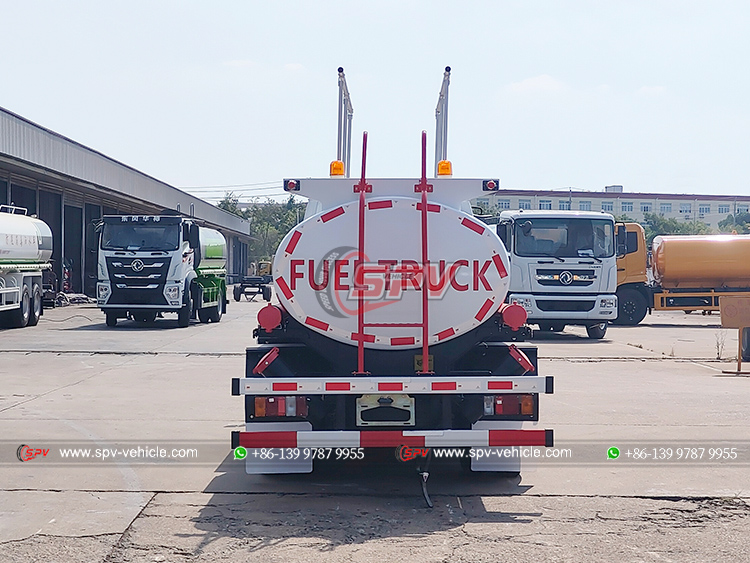

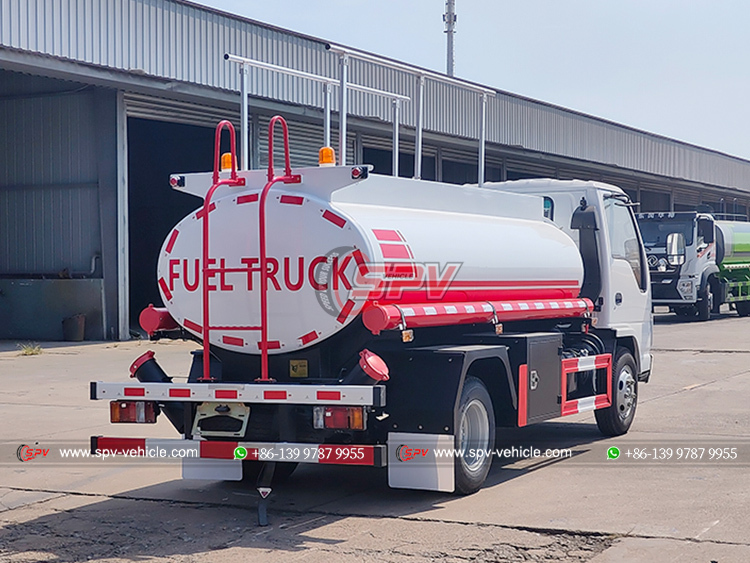

| ISUZU 4x2 Petrol Distribution Truck - Rear Right | ISUZU Light Fuel Logistic Truck - Rear Side |
 |
 |

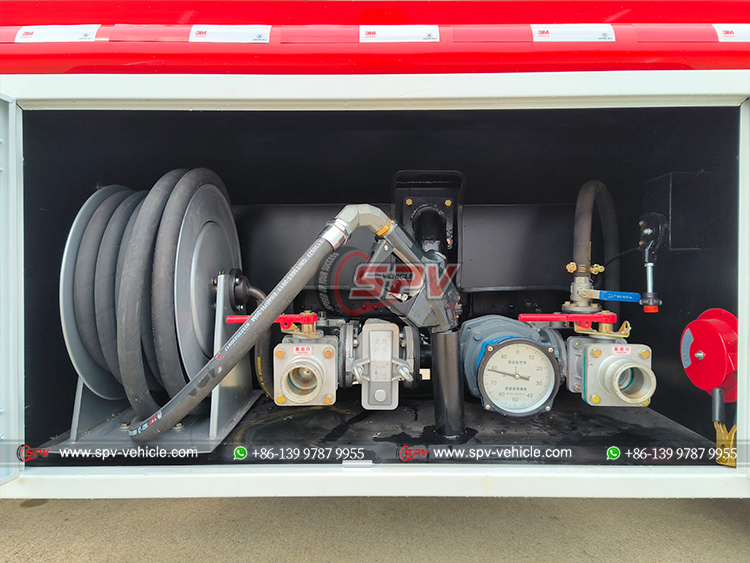

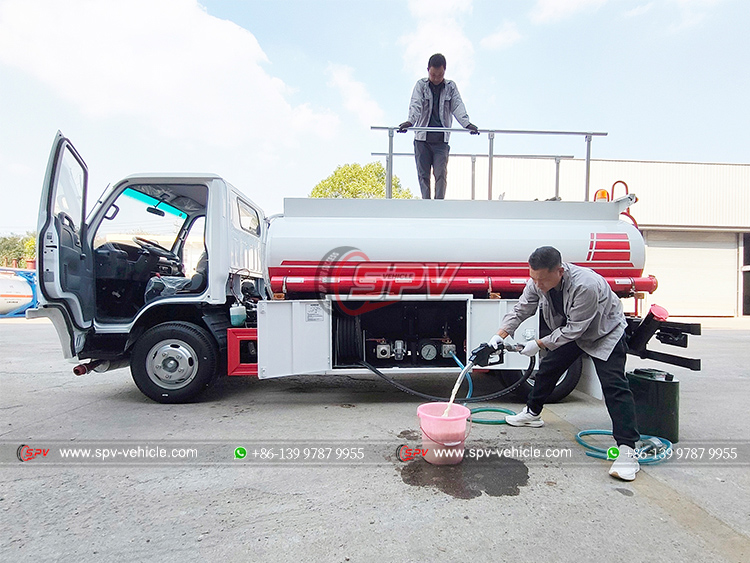

| Pump Fuel Equipments of ISUZU Fuel Bowser | Pumping Fuel Test for ISUZU Fuel Supply Truck |
