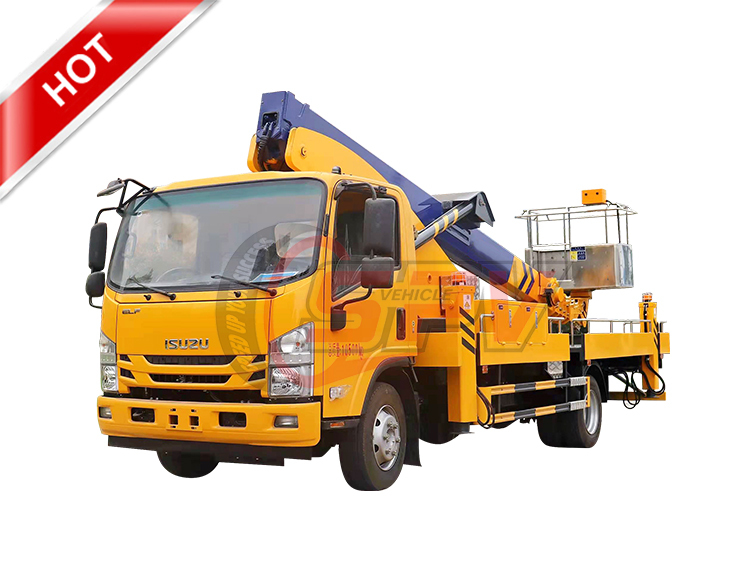

Name: ISUZU 28M Telescopic Boom Aerial Truck
Brand: SPV Group Limited.
Rating: 5 (1 reviews)

Function:
Telescopic boom aerial truck (also called telescopic boom trucks, telescopic boom lifts, telescopic aerial lift , telescopic aerial truck, telescopic working platform, bucket manlift truck, articulated telescopic aerial truck, articulated boom lift, articulated basket platform, cherry picker truck, tree triming truck, High-altitude cable maintenance truck, mobile aerial work truck, hydraulic platform truck, telescopic platform truck, articulating boom truck, maintenance platform truck. aerial work platform truck,etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

SPV telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specitfication:

Telescopic Boom Aerial Truck ISUZU (28 Meters Hydraulic Aerial Truck)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	7550 x 2300 x 3350 mm
	GVW / Kerb Weight	10,500 kg/8,400 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	190 Ps (139 KW)
	Displacement	5193 ml
	Emission Standard	Euro V
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 5-forward speed & 1 reverse
	No. of Axles	2
	Tyre Specification	235/78R17.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Automative metallic paint
Superstructure	Cage Rated Capacity	400 kg
	Working Height	28 m
	Beam	The beam is articulated & telescopic extension type, hydraulic actuated and controlled
	Slewing	Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
	Control	Control both on the ground and remote control in cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system

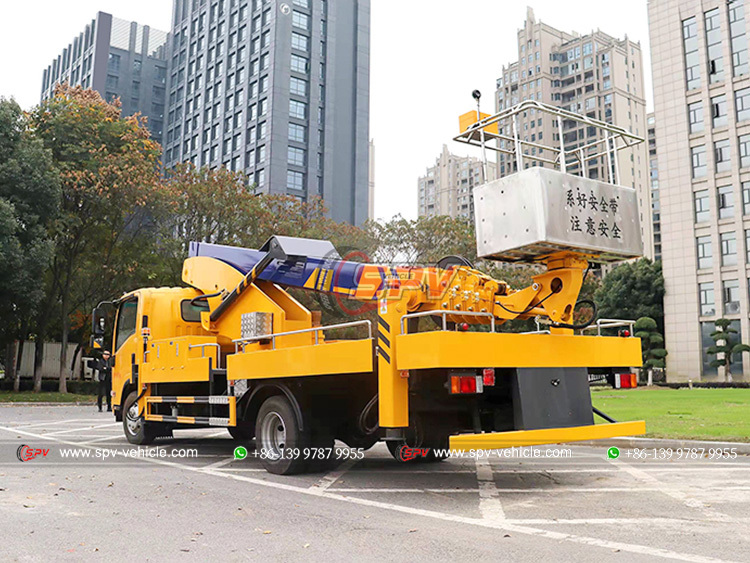

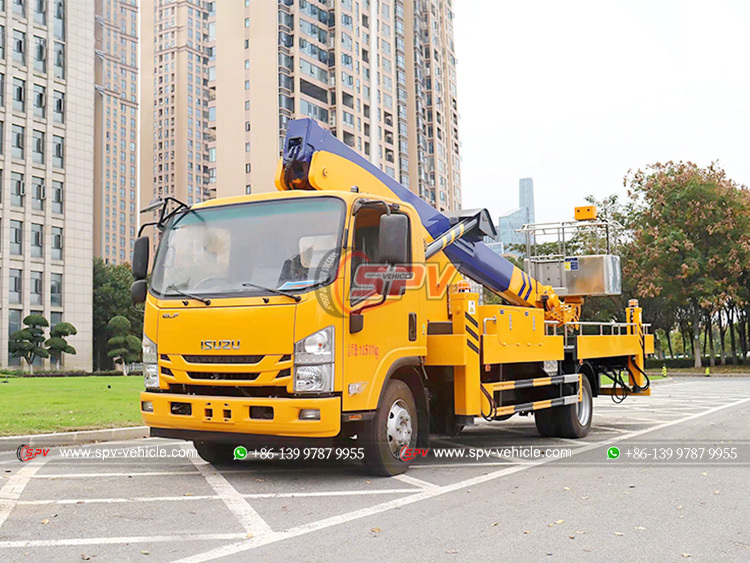

ISUZU Municipal Aerial Work Truck - Front Left	ISUZU 28M Telescopic Aerial Working Truck - Rear Left

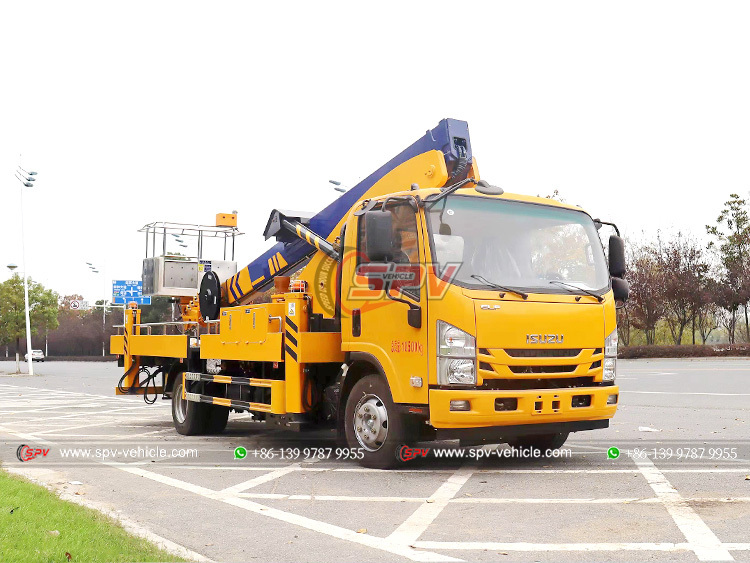

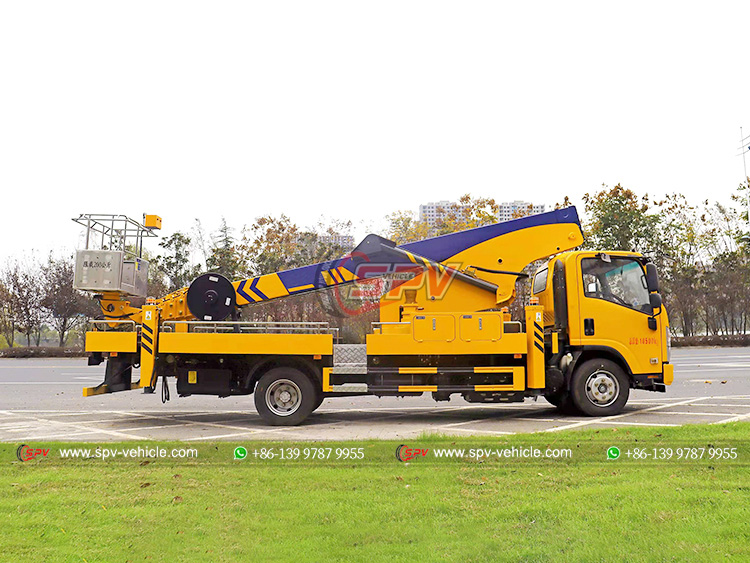

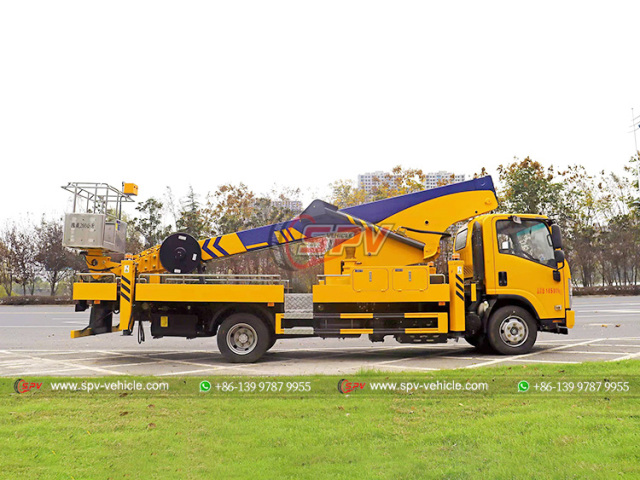

ISUZU Aerial Truck for Trim Tree - Front Right	Truck Mounted 28M Aerial Working Platform - Right

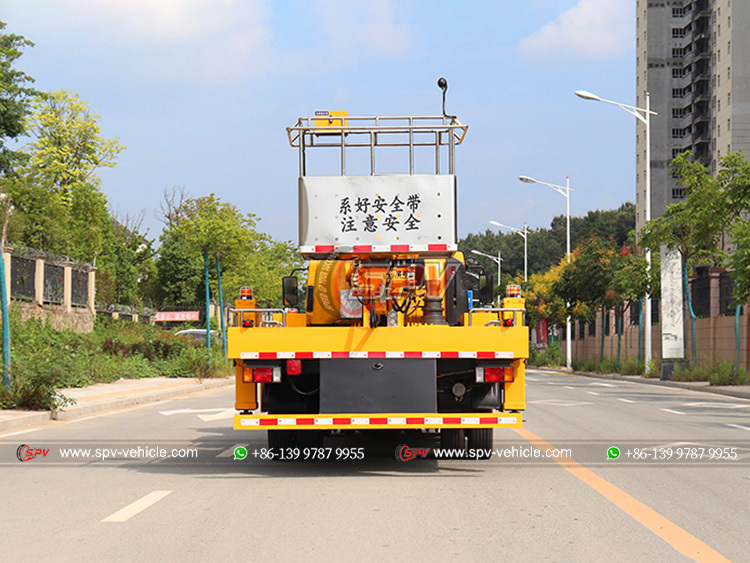

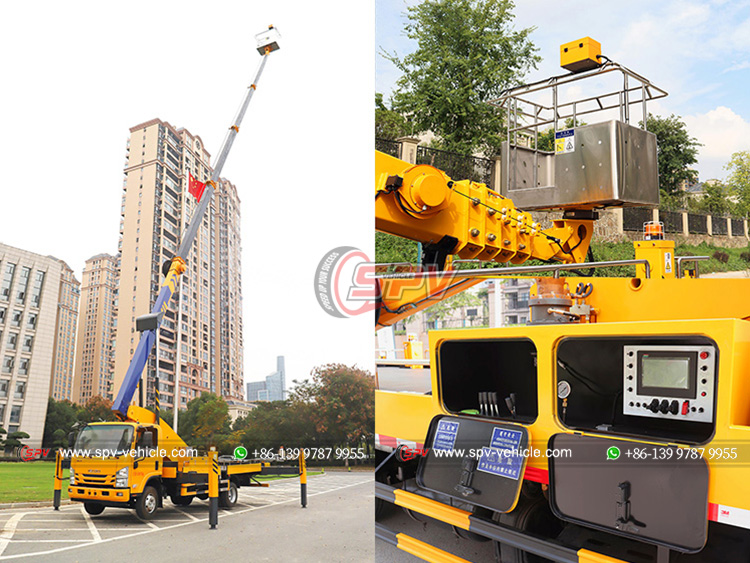

ISUZU Aerial Truck With Manlift Cage - Rear	ISUZU 100P Telescopic Boom Truck Working Test
