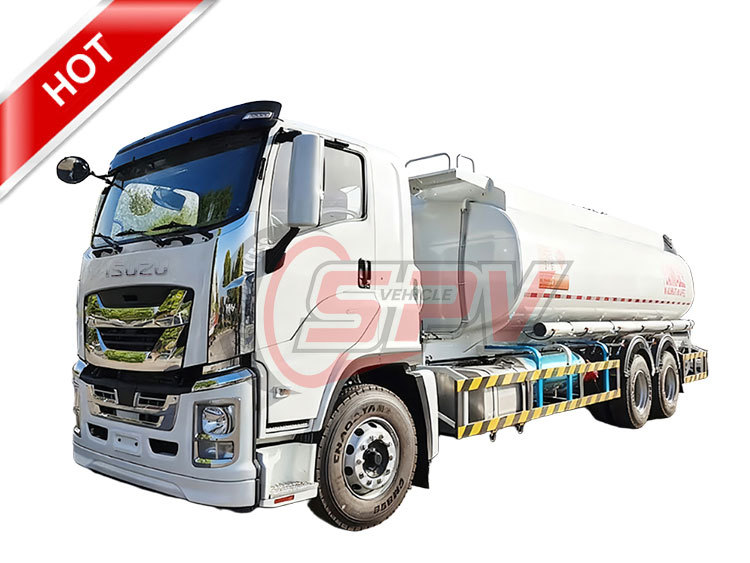

| Fuel Supply Truck ISUZU (18,000 litres fuel delivery truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 10510 * 2505 * 3127 mm | |
| GVW / Kerb Weight | 25,000 kg / 9,430 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 sleeper |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 300 Ps (221 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | ISUZU manual, 9 speed forward, 2 reverse | |
| No. of Axles | 3 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 18,000 Litres (About 4,800 gallons) |
| Tank Material | Alumiumu alloy plate | |
| Pump | Fuel pump equipped for overhead delivery | |
| Hose | High quality PVC hose, anti-aging | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | * Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
 |
 |

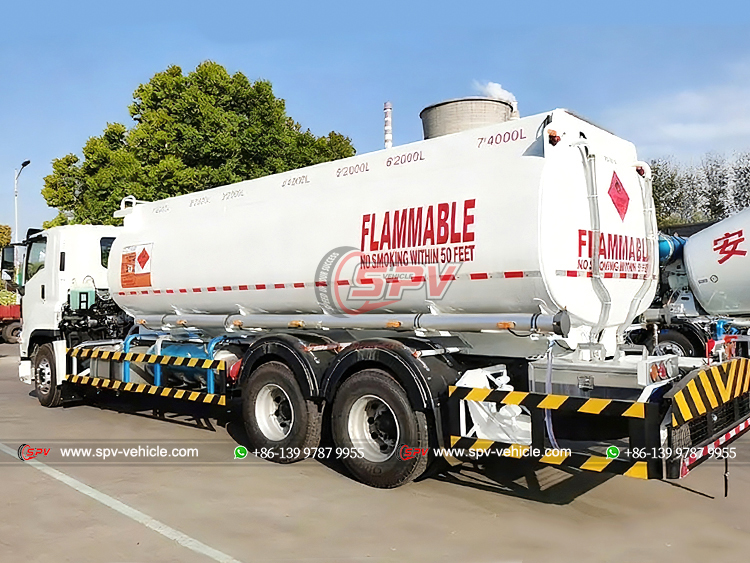

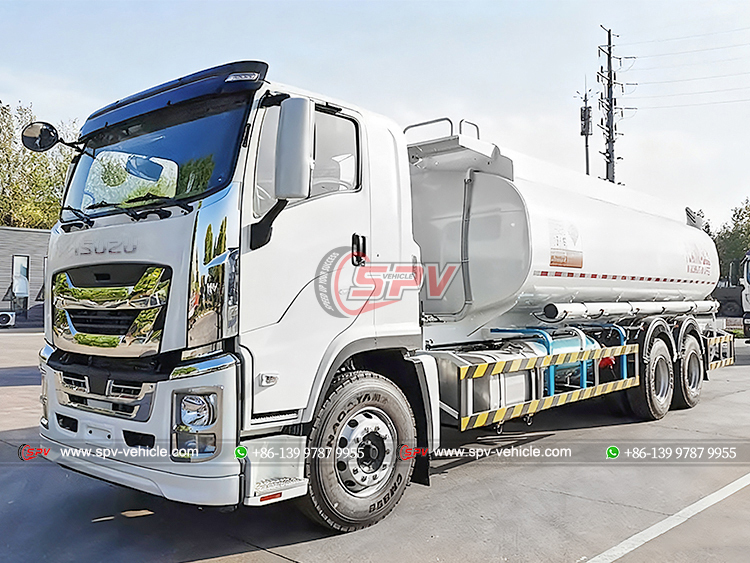

| ISUZU 3 Axles Diesel Storage Tank Truck - Front Left | ISUZU Heavy-duty Petrol Transport Truck - Rear Left |
 |
 |

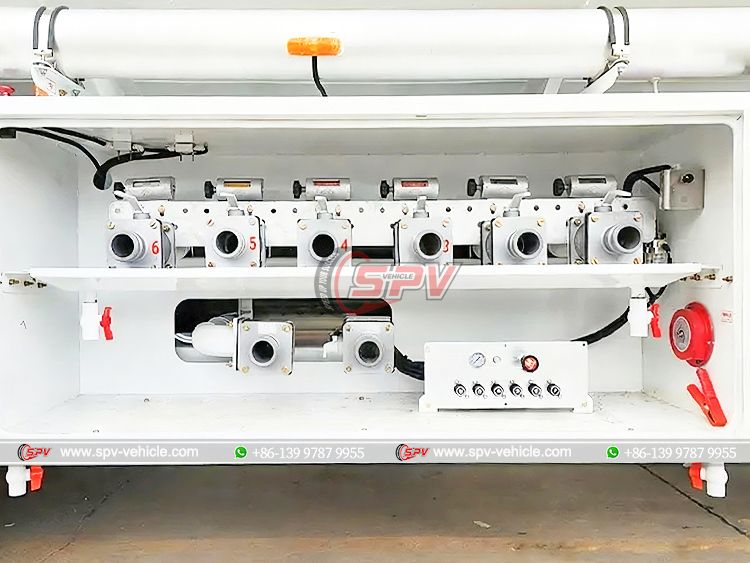

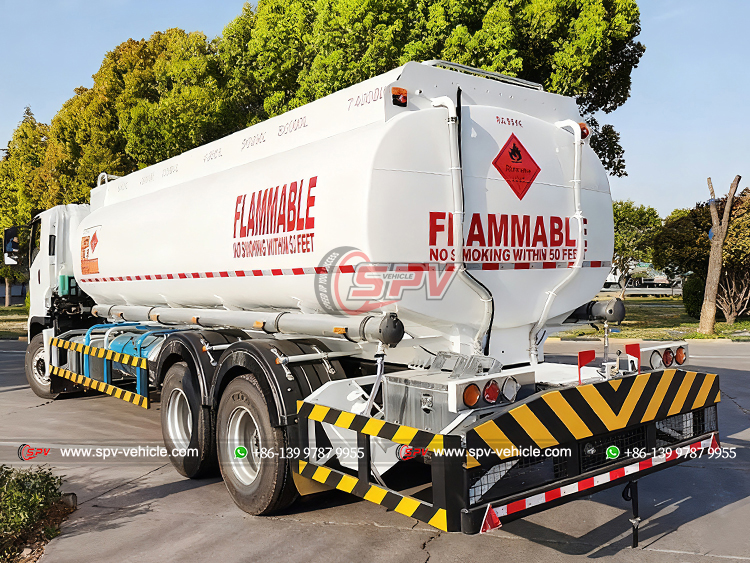

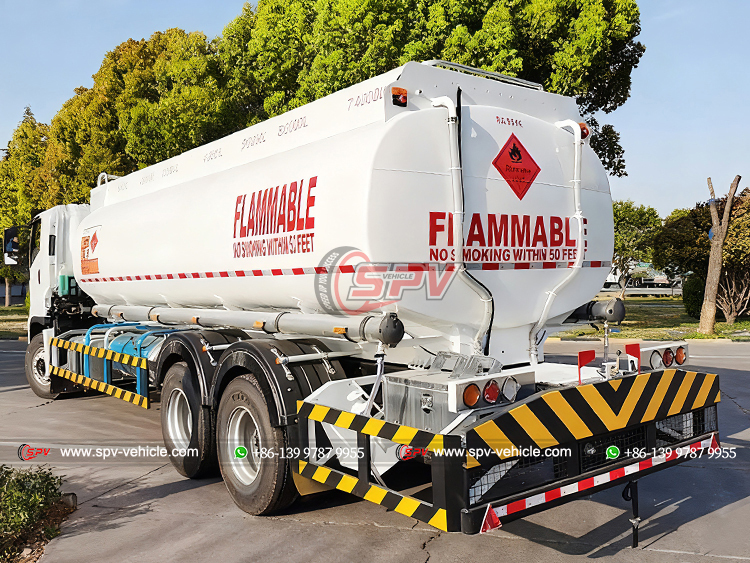

| ISUZU 10 Wheels Diesel Tank Truck - Rear Left | Discharging Fuel Valve of Each Compartment |
