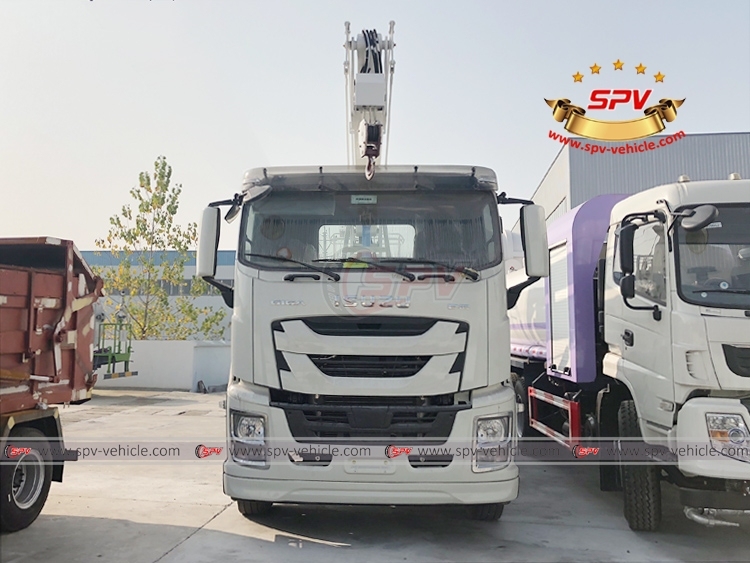

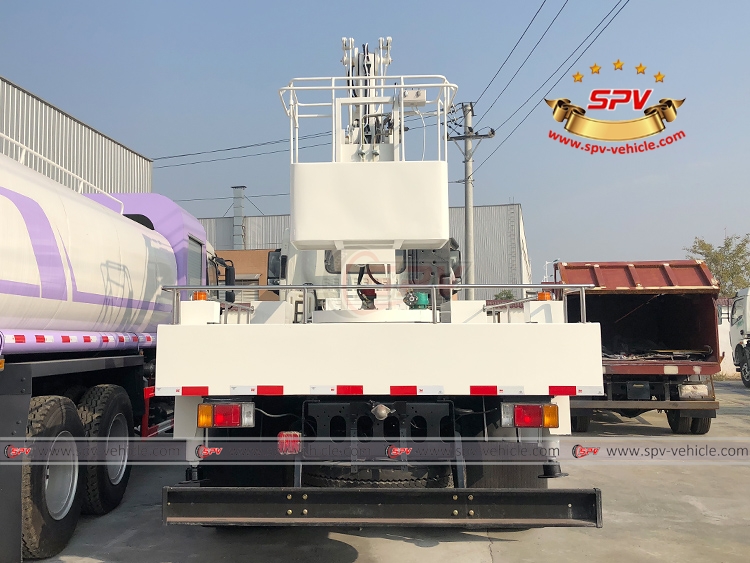

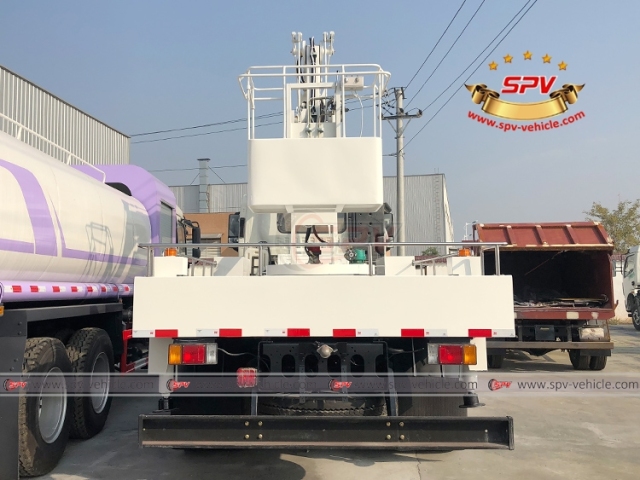

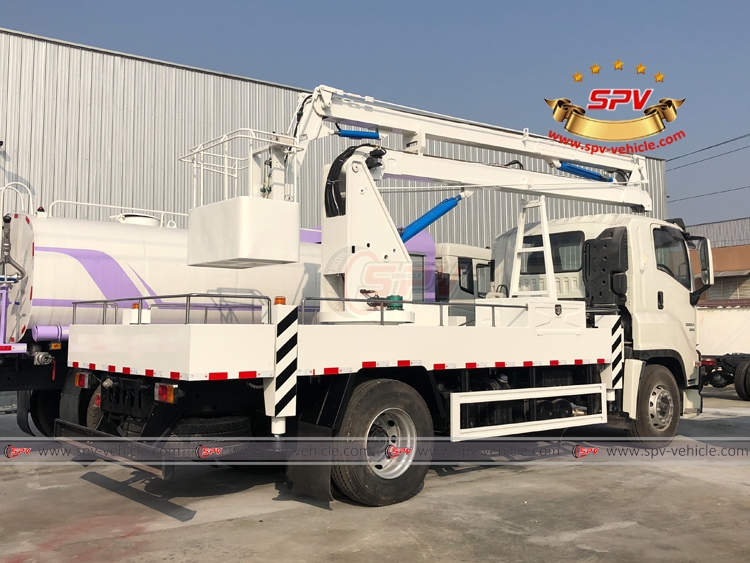

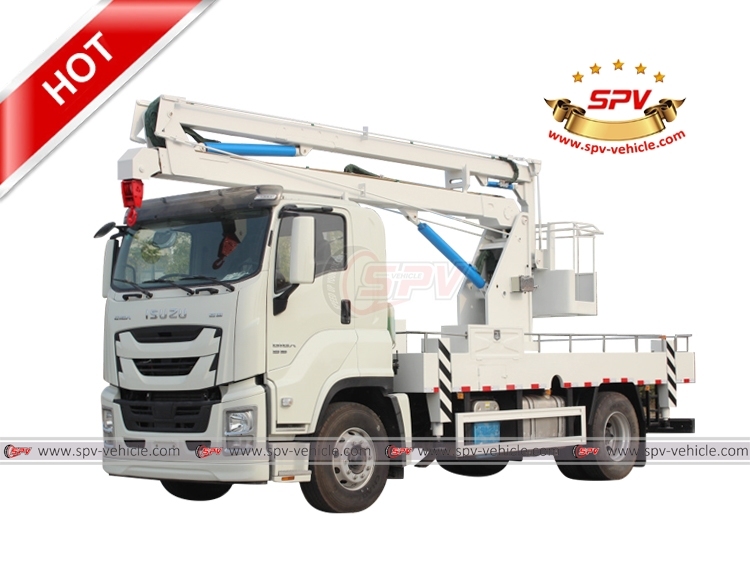

Name: ISUZU 16M Aerial Working Truck
Brand: SPV Group Limited.
Rating: 5 (1 reviews)

Function:
Aerial working truck (also called fold arm aerial truck, sky platform Truck, knuckle boom platform truck， Knuckle boom aerial working truck, fold arm sky working truck, fold arm aerial lift , fold arm aerial truck, knuckle working platform, bucket manlift truck, articulated telescopic aerial truck, articulated boom lift, articulated basket platform, cherry picker truck, tree triming truck, High-altitude cable maintenance truck, mobile aerial work truck, hydraulic platform truck, telescopic platform truck, articulating boom truck, maintenance platform truck. aerial work platform truck,etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specitfication:

Aerial Working Truck ISUZU (16 Meters Aerial Truck)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	9900 * 2500 * 4200 mm
	GVW / Kerb Weight	21,000 kg / 11,000 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	380 Ps (279 KW)
	Displacement	9839 ml
	Emission Standard	Euro VI
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 6 -forward speed & 1 reverse
	No. of Axles	2
	Tyre Specification	315/80R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Automative metallic paint
Superstructure	Cage Rated Capacity	200 kg capacity, anti-slip floor
	Working Height	16 m
	Slewing	360° continuous rotation with base turntable
	Control	Control both on the ground and in the cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system
