Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.

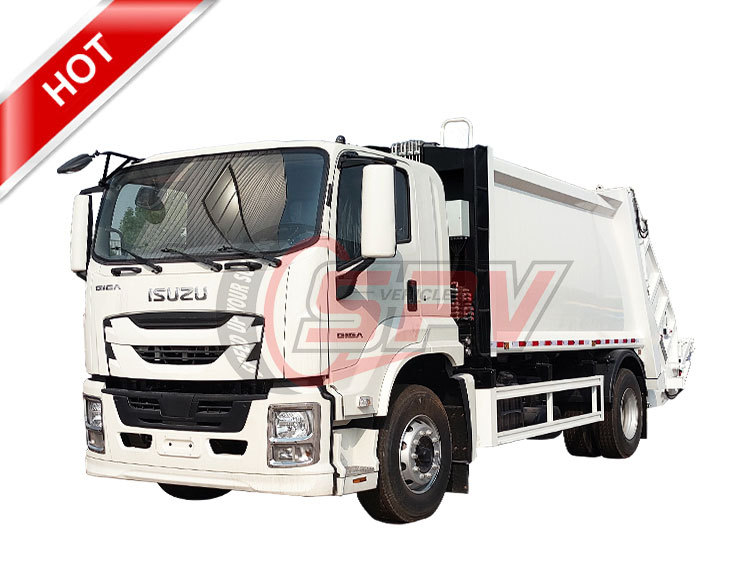

| Garbage Collection Truck ISUZU (15 m³ garbage compactor truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 10400 * 2500 * 2730 mm | |
| GVW / Kerb Weight | 25,000 kg / 10,090 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 240 Hp (176 KW) | |
| Displacement |
7790 ml |
|
| Emission Standard |
Euro VI |
|
| Chassis | Drive Type |
4X2, right hand drive |
| Transmission |
Manual, 8-speed forward , 2 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
295/80R22.5 16PR | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
15 m³ |
| Waste Box Material |
Anti-corrosive steel |
|
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

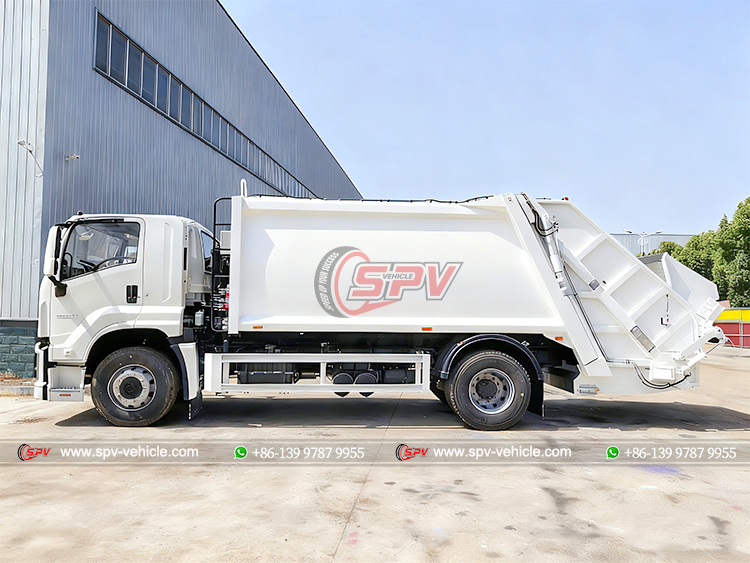

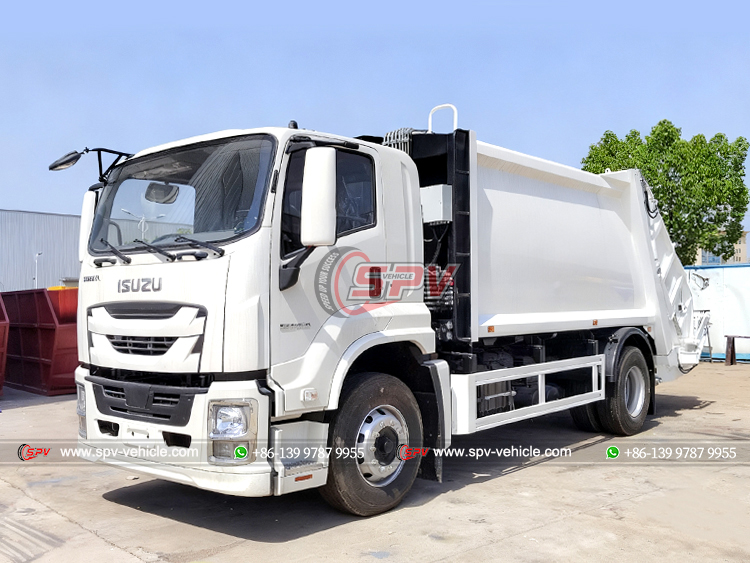

| ISUZU GIGA Waste Management Truck - Front Left | ISUZU GIGA 4x2 Compressed Trash Truck - Left |
 |
 |

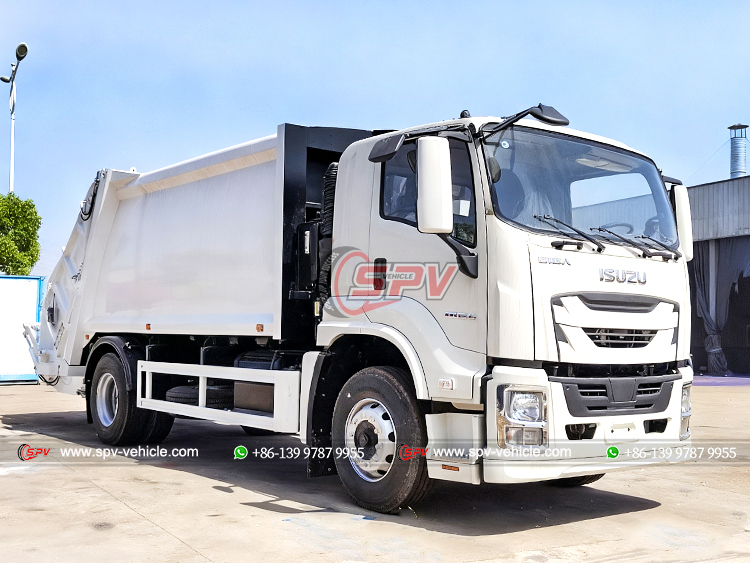

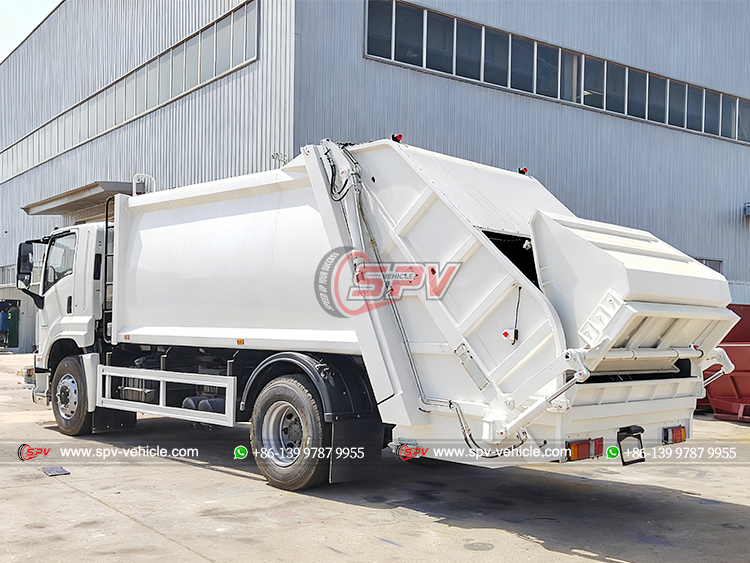

| ISUZU GIGA 2 Axles Waste Collection Truck - Rear Left | ISUZU Heavy-duty Refuse Compactor Truck - Front Right |
 |
 |

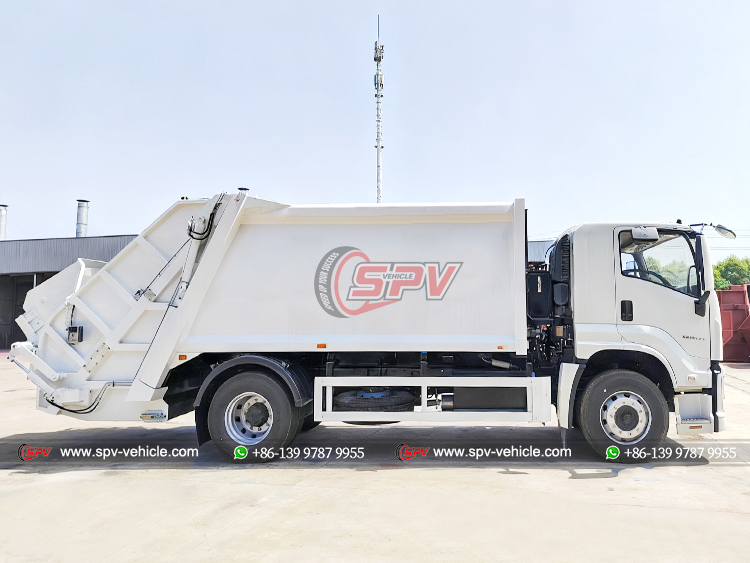

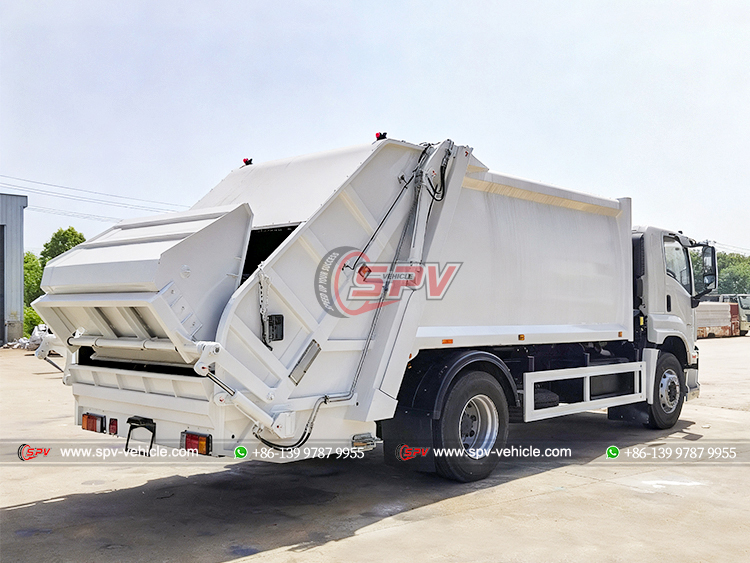

| ISUZU GIGA 4x2 Junk Compactor Lorry - Right | ISUZU GIGA Heavy-duty House Waste Garbage Truck - Rear Right |
 |
|

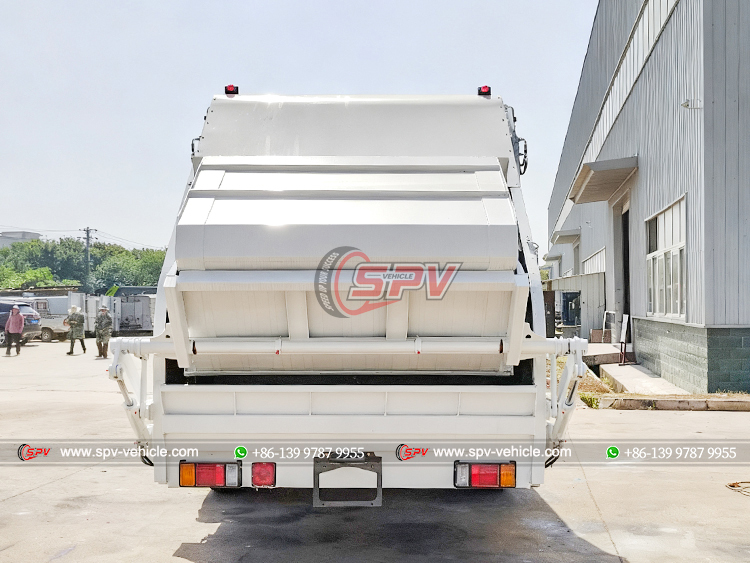

| ISUZU GIGA 4x2 Rubbish Compactor Truck - Rear |
