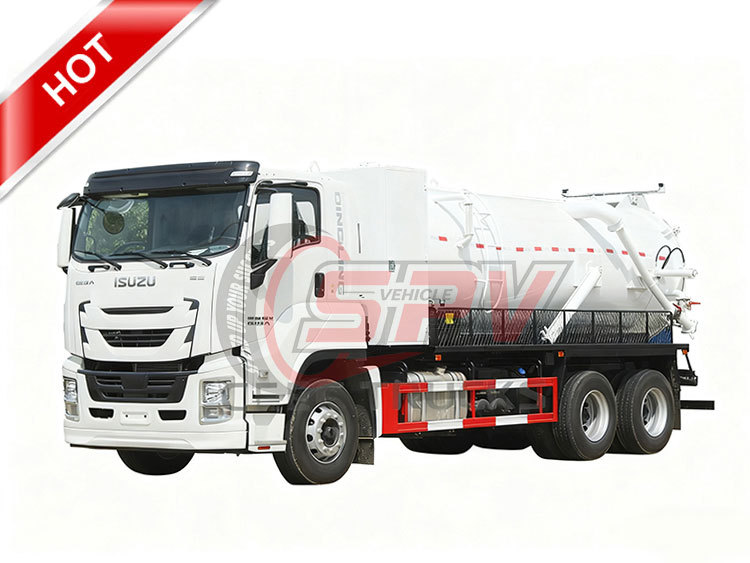

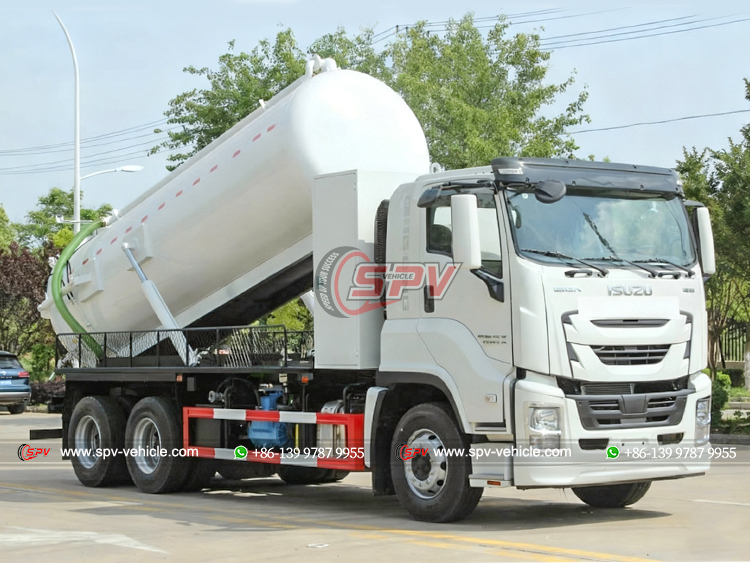

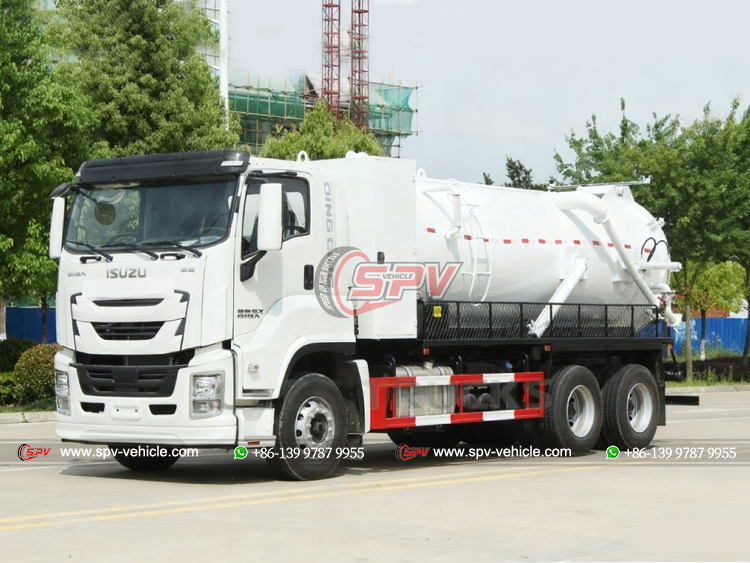

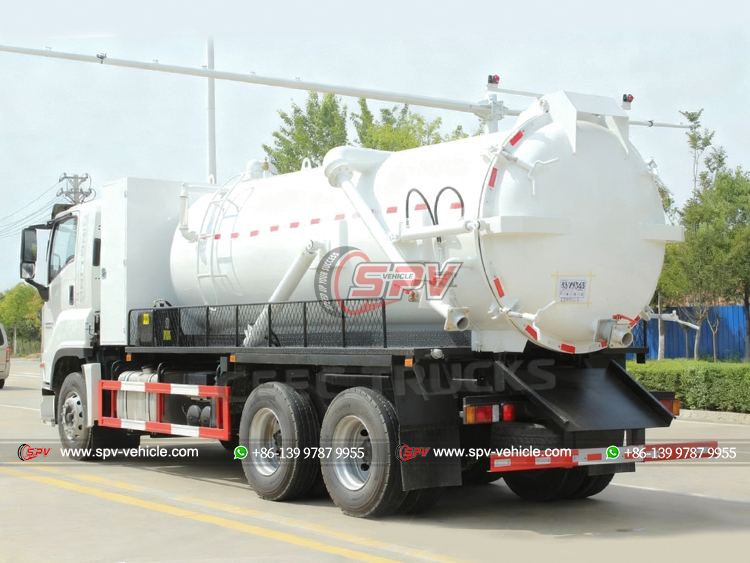

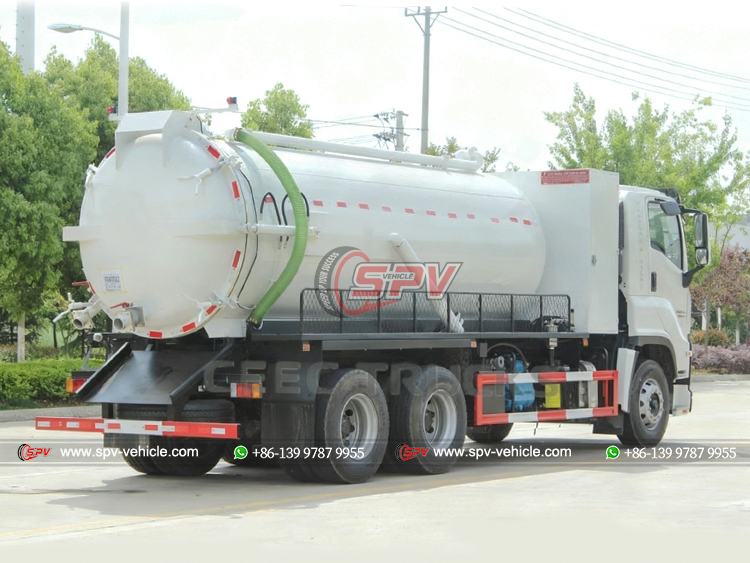

| Sewage Disposal Truck ISUZU (15,000 Litres) |
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
10500 * 2550 * 3180 mm |
| GVW / Kerb Weight |
25,000 kg / 10,760 kg |
| Cab |
Cab Capacity |
2 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU, 4JB1CN |
| Power |
350 Ps (257 KW) |
Displacement
|
9839 ml |
Emission Standard
|
Euro V |
| Chassis |
Drive Type
|
6X4, left hand drive
|
Transmission
|
ISUZU Manual, 12 forward,2 reverses
|
No. of Axles
|
3
|
Tyre Specification
|
315/80R22.5 |
Tyre Number
|
10 tyres and 1 spare tyre
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Tank Capacity
|
15,000 litres (about 4,000 gallons)
|
Tank Material
|
Carbon steel
|
Suction Head
|
6 m
|
Vacuum Pump
|
High efficiency, vacuum rare up to 93%, quick suction and discharge
|
Hose
|
High quality, wire strengthened hose
|

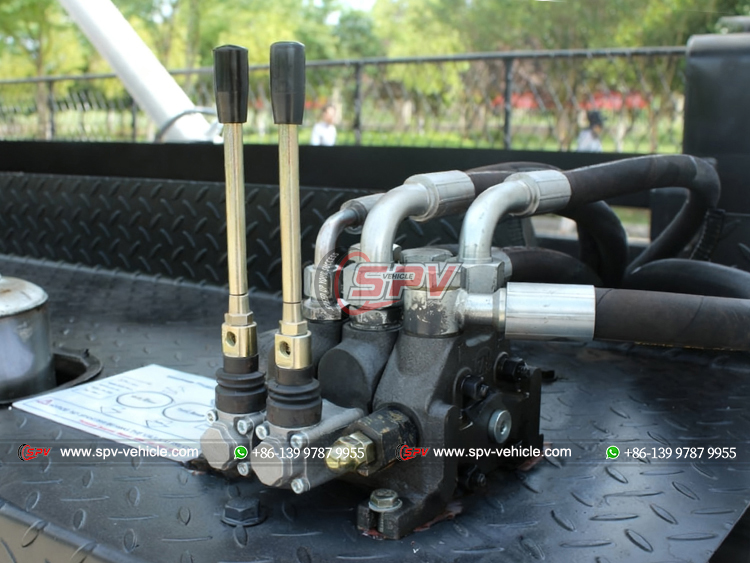

Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose.
|

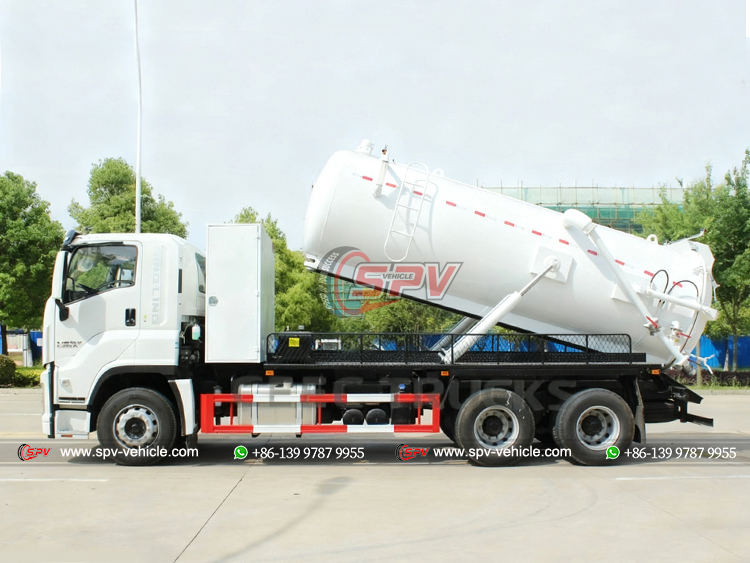

Rear door can be hydraulic opened for complete discharge of solid stuff.
|
All other standard accessories: Tool kit, English manual……
|
| Optional |
** Tank material could be mild steel, stainless steel…
** Italy vacuum pump is available.
|
