Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
| Garbage Transport Truck ISUZU (12 m³ garbage truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 8920 * 2500 * 3280 mm | |
| GVW / Kerb Weight | 18,000 kg / 9,300 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Hp (139 KW) | |
| Displacement |
5193 ml | |
| Emission Standard |
Euro V | |
| Chassis | Drive Type |
4x2, right hand drive |
| Transmission |
Manual, 6-speed forward & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
10.00-20 | |
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Automactive metallic paint |
|
| Superstructure |
Waste Box Capacity |
12 m³ |
| Waste Box Material |
Carbon steel | |
| Loading Cyle Time | 30-50 S | |
| Garbage Discharge Time | 30 S | |
| Hydraulic System | Top quality multi-way valve, Chinese top brand hydraulic cylinders(9 pcs), hoses, stable and reliable. | |
| Control Method | Manual/ electrical dual control | |
| Optional | **Various rear loading mechanism: container lifting; hopper flip; skip loader… **Electronic operating system |
|
 |
 |

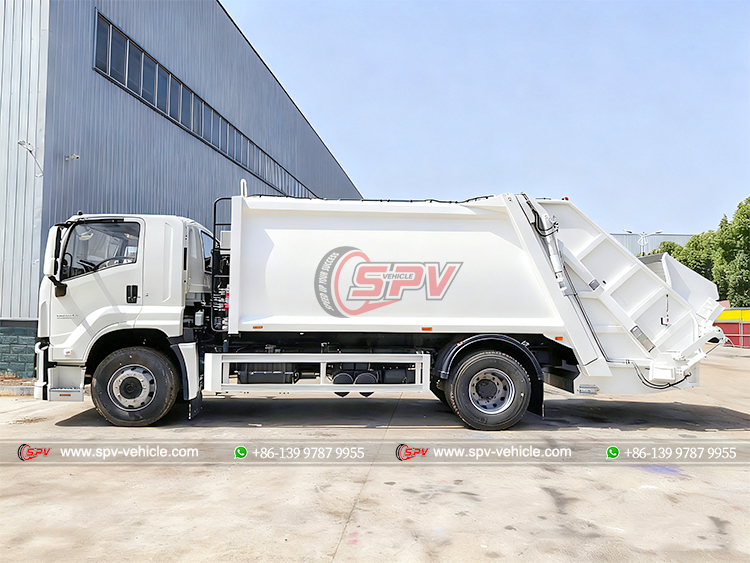

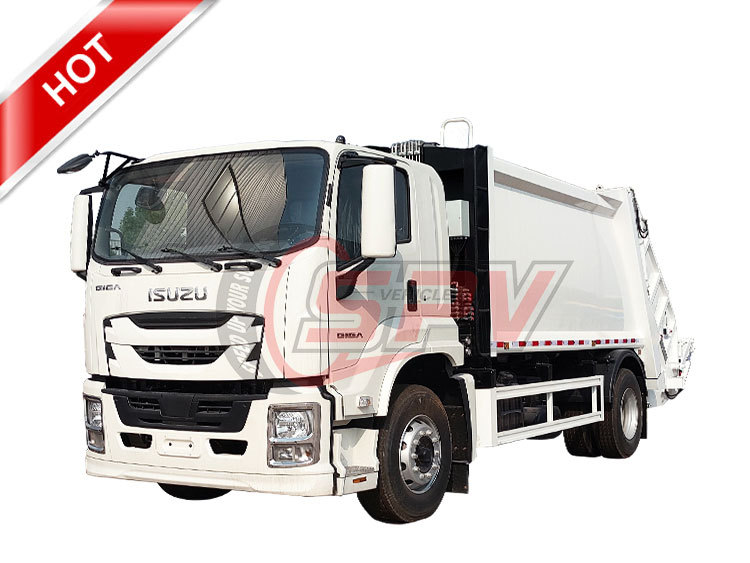

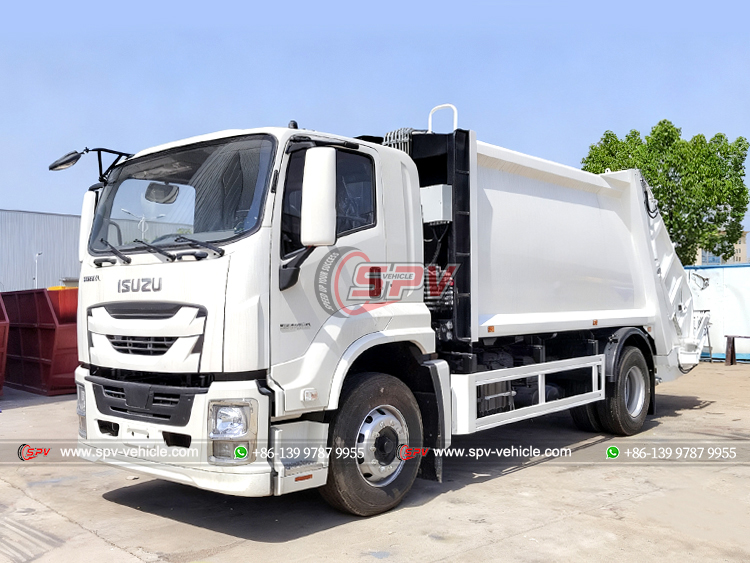

| ISUZU GIGA 12 CBM Trash Disposal Truck - Front Left | ISUZU GIGA 4x2 Trash Transport Truck - Front |
 |
 |

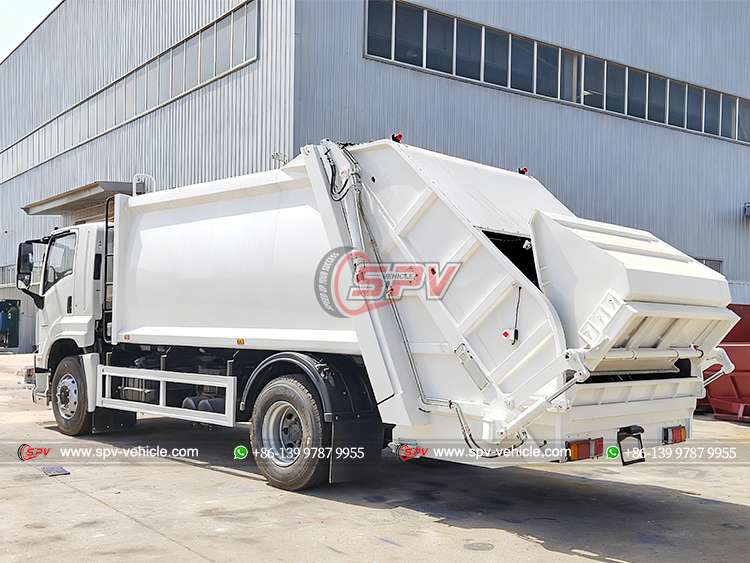

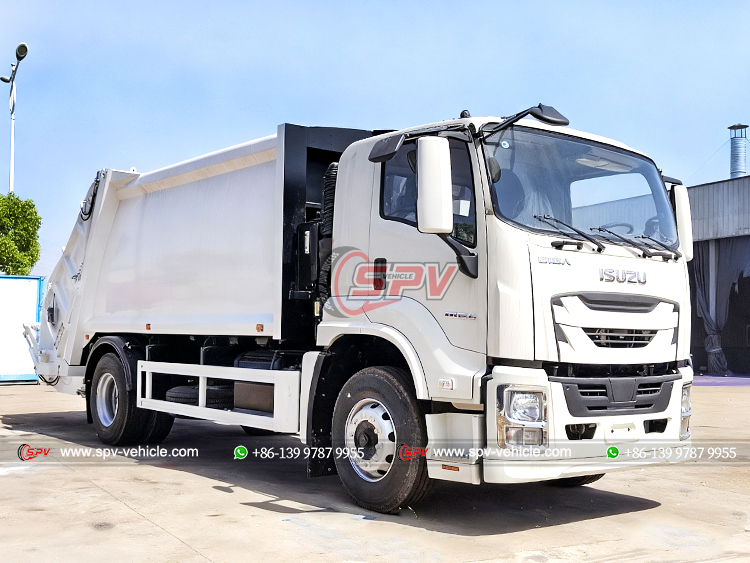

| ISUZU GIGA 12 CBM Garbage Transport Truck - Rear Left | ISUZU GIGA 12 CBM Rubbish Removal Truck - Front Right |
 |
 |

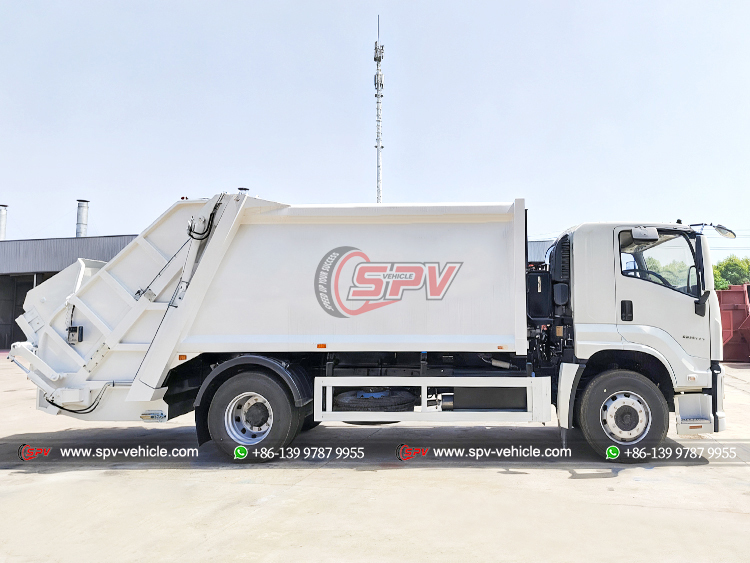

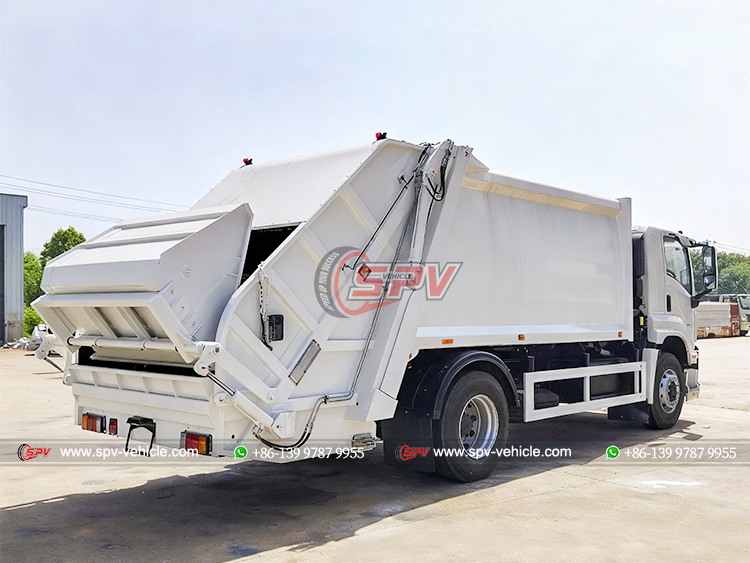

| ISUZU GIGA 12 CBM Rubbish Delivery Lorry - Right | ISUZU GIGA 12 CBM Rubbish Hauling Lorry - Rear Right |
 |
 |

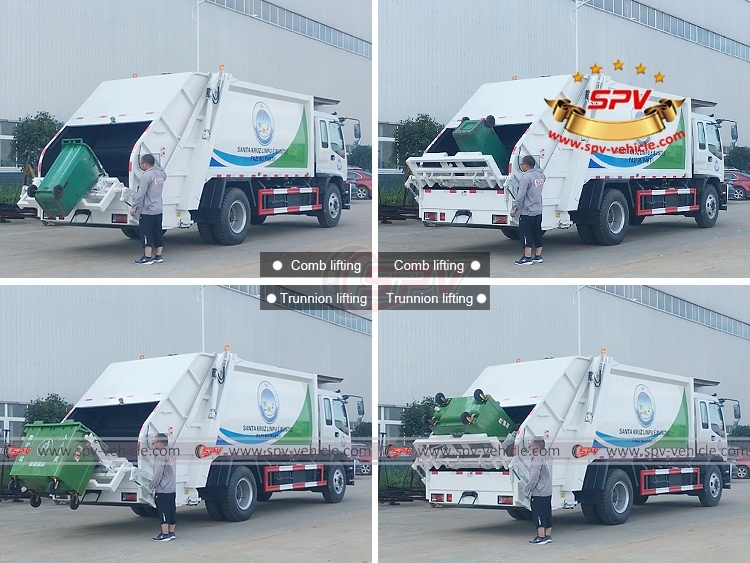

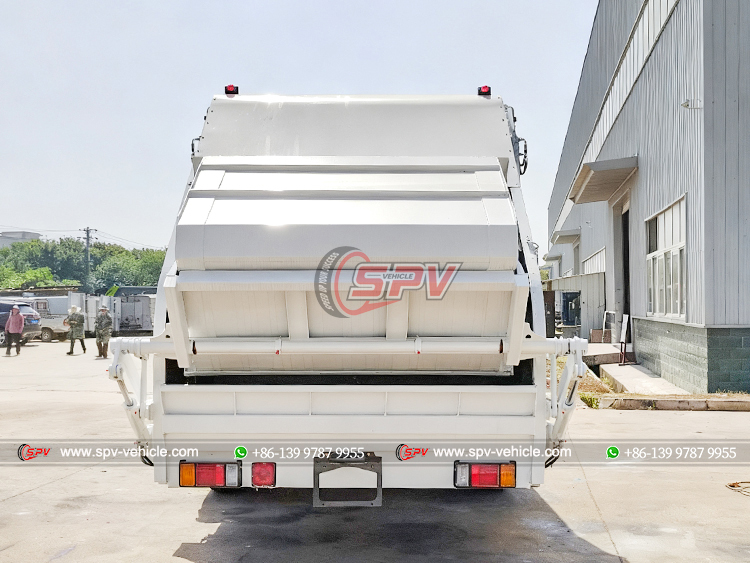

| ISUZU GIGA 12 CBM Solid Waste Hauling Truck - Rear | 12 CBM Garbage Compactor Truck ISUZU - Lifting Demostration |
 |
|

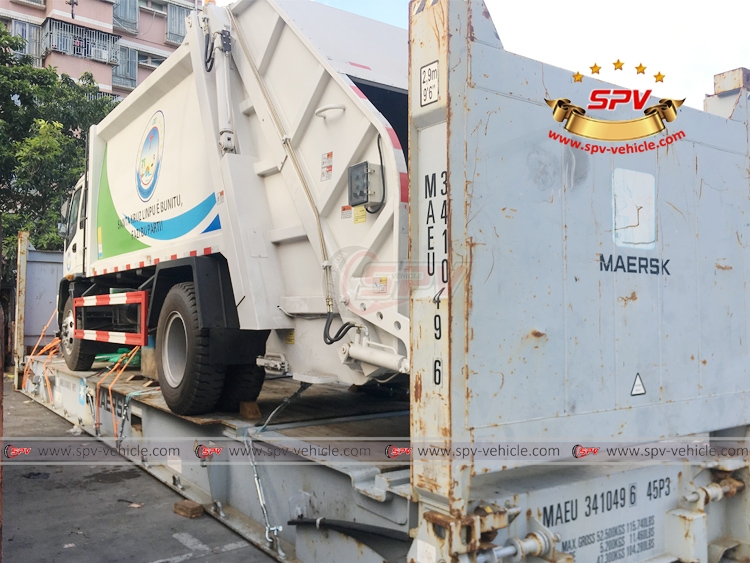

| ISUZU 12 CBM Trash Delivery Truck to Cape Verde - Loading into Container |
