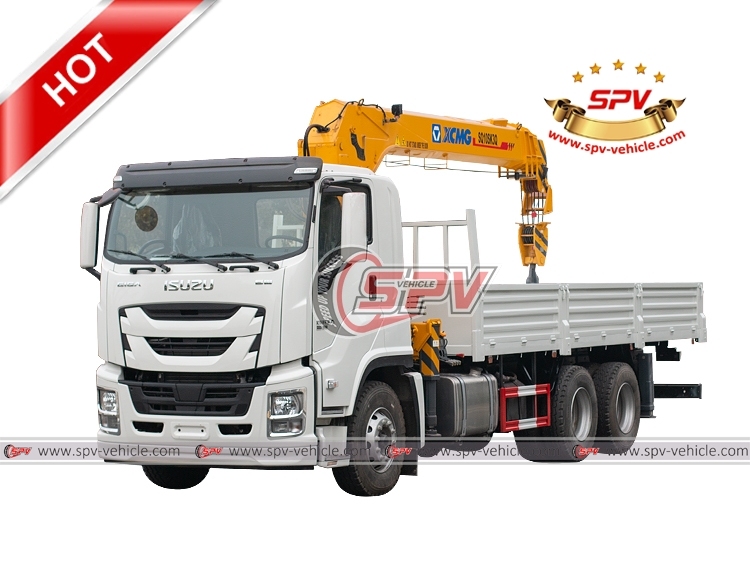

Name: ISUZU 10 Ton Hydraulic Crane Truck
Brand: SPV-vehicle- A Professional Special Purpose Vehicle Manufacturer from
Rating: 5 (1 reviews)

Function:
Hydraulic crane truck (also called unic crane, cargo truck crane, hydraulic crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.

Specitfication:

Hydraulic Crane Truck ISUZU ( 10 tons crane truck )
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	10800 25103630 mm
	GVW / Kerb Weight	25,000 kg/11,900 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	350 Hp (257 KW)
	Displacement	15680 ml
	Emission Standard	Euro VI
Chassis	Drive Type	6X4, left hand drive
	Transmission	Manual, 10-speed front, 2-reverse
	No. of Axles	3
	Tyre Specification	11R22.5
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	6800 X2300 X 450 mm
	Crane Brand	XCMG / SANY
	Max Lifting Capacity	10 T
	Lifting Capacity @ Working Radius	10000kg @ 4.50 m; 5500 kg @ 7.00 m; 3000kg @ 9.00m 1000 kg@12.0 m
	Max. Lifting Moment	25 T.M
	Max. Lifting Height	14.2 m
	Max. Working Radius	14.9 m
	Slewing Angle	360°all rotation
	All other standard accessories: Tool kit, English manual
Optional	Hydraulic tipper box is optional. Box thickness according to requirement. ** Box height could be nominated.

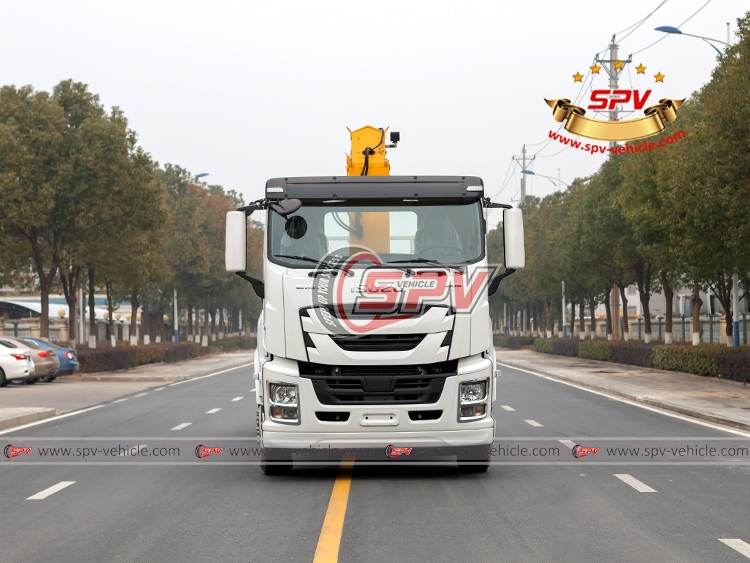

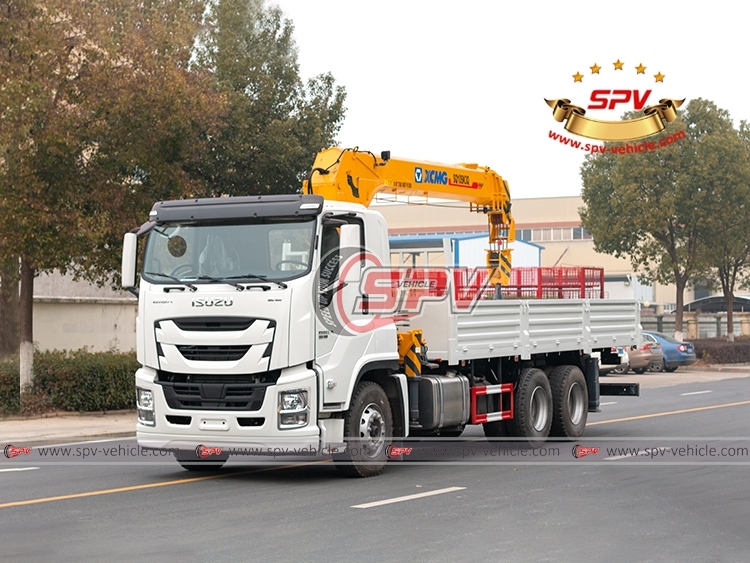

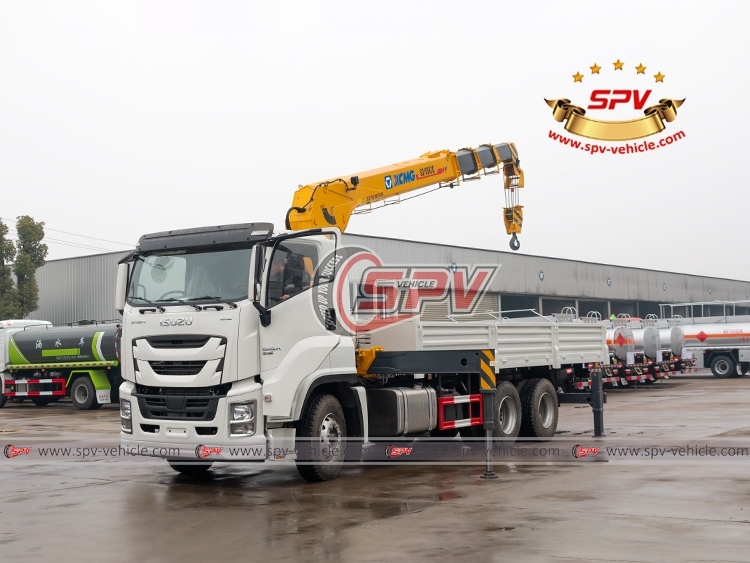

ISUZU Freight Truck With Crane - Front	ISUZU 10 Tons Crane-equipped truck - Front Right

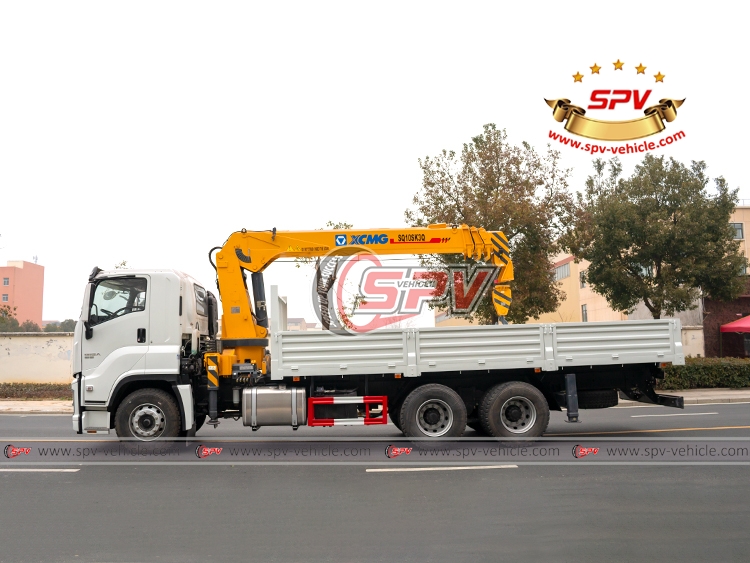

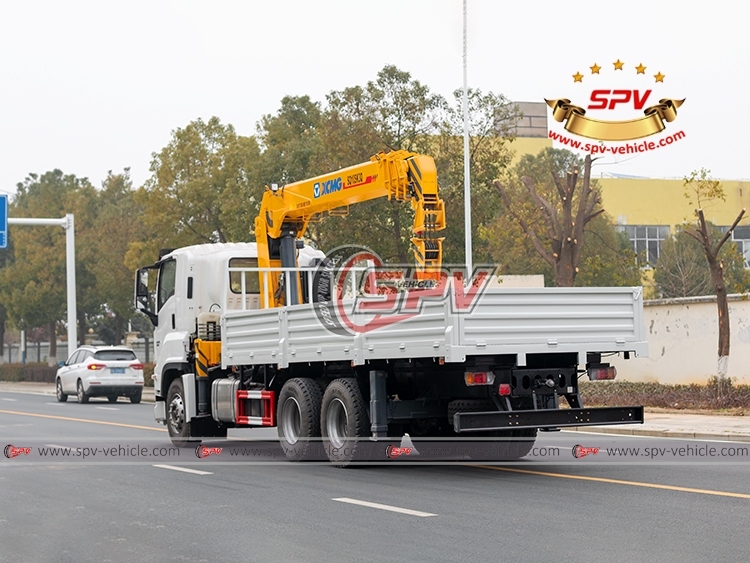

ISUZU Delivery Truck with Crane - Left	ISUZU Truck with Lifting Crane - Rear Left

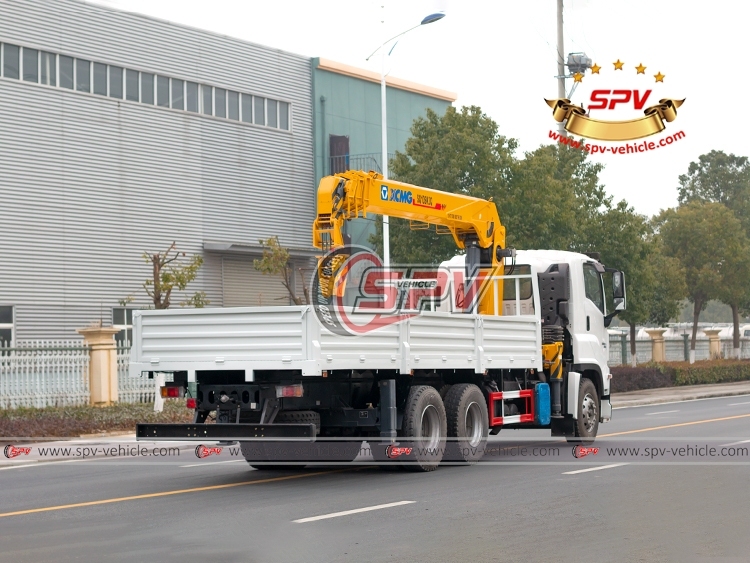

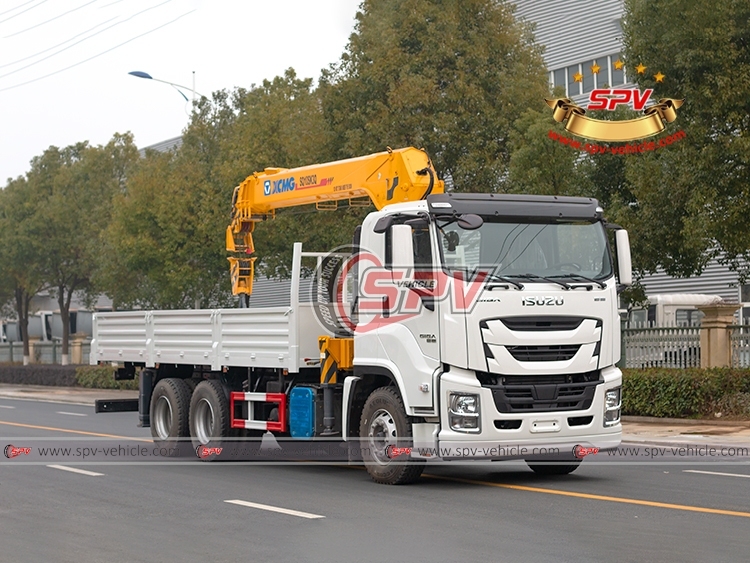

ISUZU Transport Truck with Crane - Front Right	ISUZU Telescopic Crane Truck - Rear Right

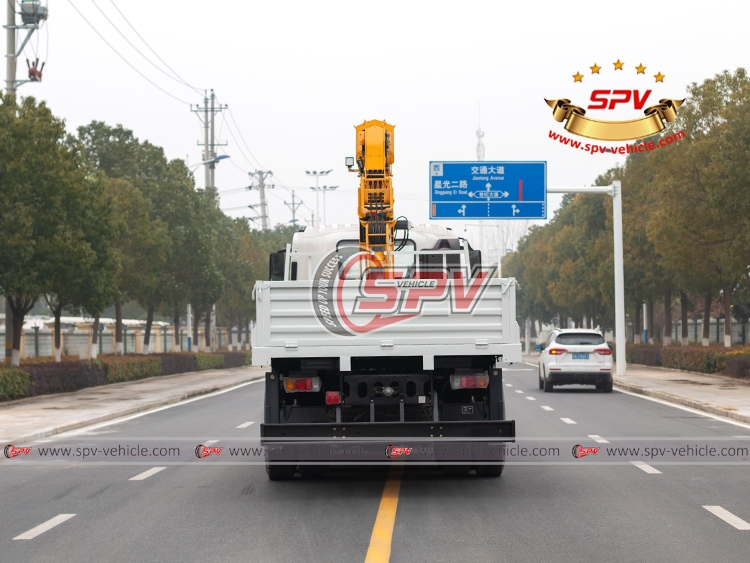

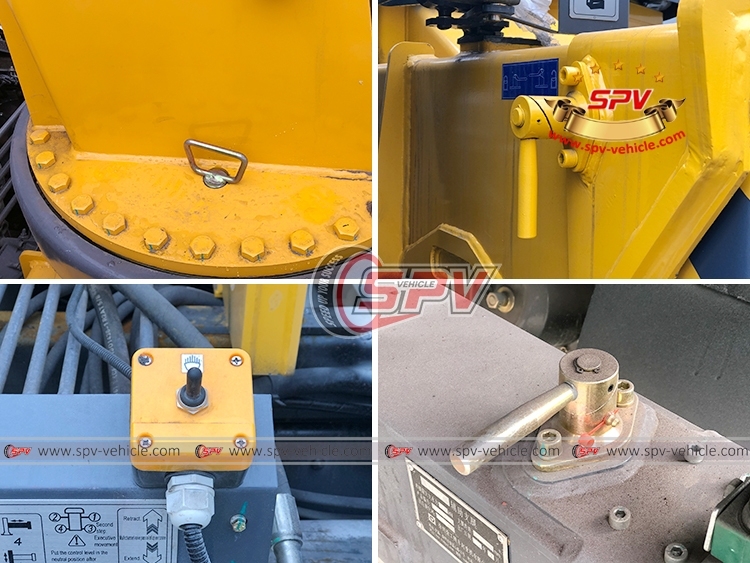

ISUZU Utility Crane Truck - Rear	10 Tons Cargo Crane Truck ISUZU - Operation Valves
