| Fire Response Truck ISUZU ( 10,000 litres Fire Truck) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 12000 * 2550 * 3890 mm | |
| GVW / Kerb Weight | 25,000 kg / 15,800 kg | |
| Cab | Cab Capacity | 2+4 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 350 Ps (257 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 6x4, left hand drive |
| Transmission | Manual, 9-speed forward, 1 reverse | |
| No. of Axles | 3 | |
| Tyre Specification | 11.00R20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Water Tank Material | Carbon steel | |
| Superstructure | Water Tank Capacity | 8,000 Litres (About 2,100 gallons) |
| Foam Tank Capacity | 2,000 Litres (About 5,00 gallons) | |
| Fire Pump | Flow speed:60 L/s Pressure:1.0M Pa |
|
| Fire Cannon | Flow speed:48 L/s | |
| Shot | Water ≥ 60 m Foam ≥ 55 m |
|
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static. | |
| A series of fire implement tools: suction hose, intake screen, water segregator, siamese (water combiner), fire hose, hose bandage, etc........Details as per below accessory list. | ||
 |
 |

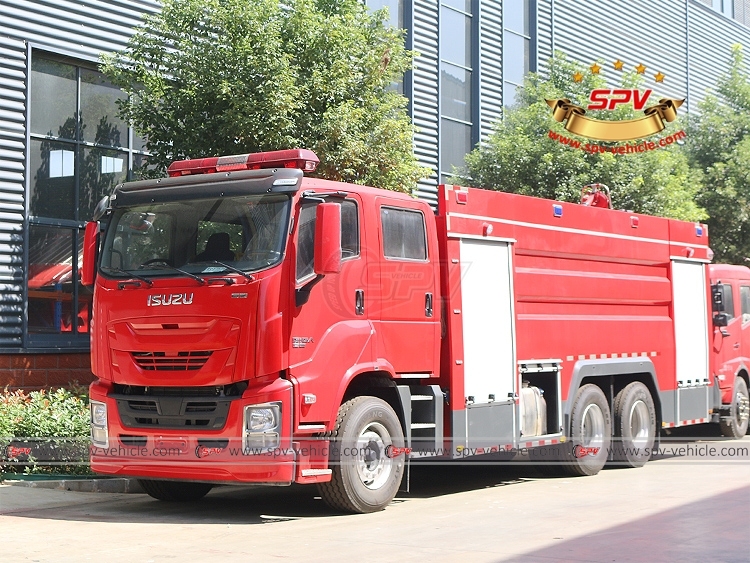

| ISUZU 10,000 Liters Foam Tank Fire Truck - Front Left | ISUZU Ladder Fire Vehicle - Rear Left |
